Sortation Systems

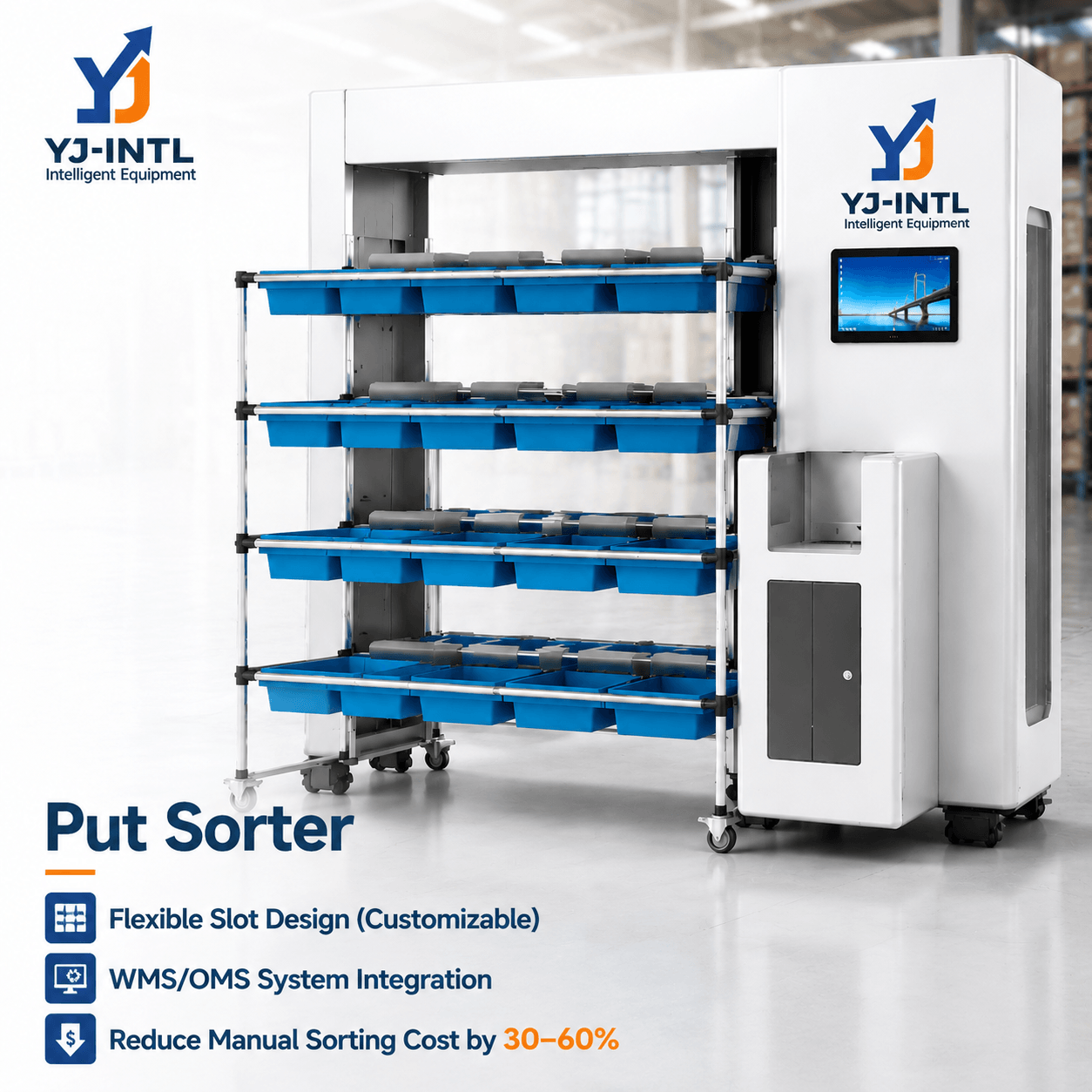

Put Wall System

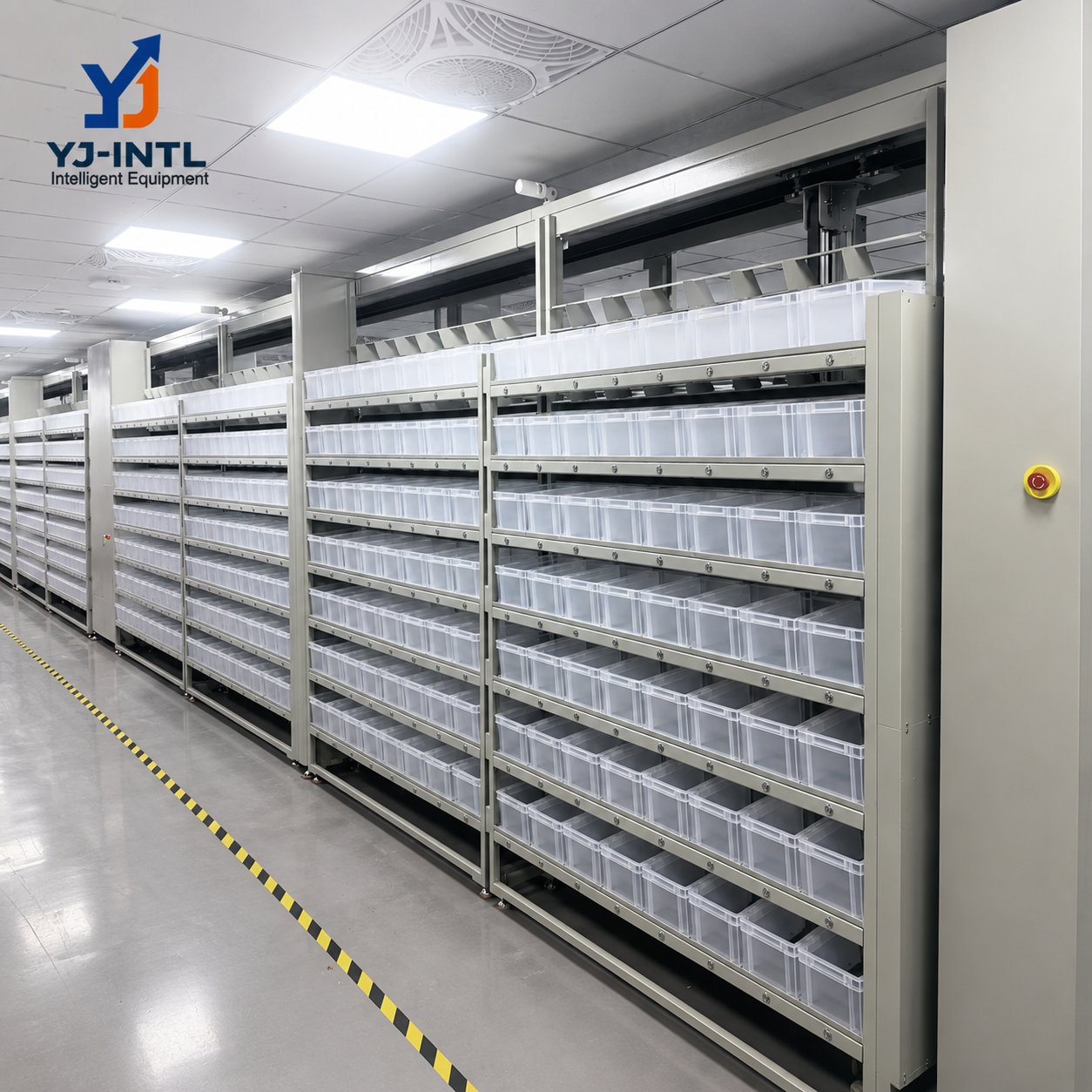

Intelligent Put Wall System for High-Efficiency Order Fulfillment
YJ-INTL Put Wall System （3D Sorter） is an intelligent parcel sorting and order consolidation solution designed for e-commerce fulfillment centers, distribution warehouses, and 3PL operations. Unlike traditional manual put-to-wall processes, the automated system combines barcode scanning, intelligent routing, servo positioning technology, and warehouse software integration to improve sorting accuracy and reduce labor dependency.
The system automatically identifies parcels and assigns them to designated sorting locations according to orders, destinations, SKUs, or delivery routes. It is especially suitable for multi-order, multi-SKU fulfillment scenarios where high flexibility and fast processing speed are required.
With modular rack design, customizable sorting slots, and seamless integration with WMS/WCS platforms, YJ-INTL helps warehouse operators build scalable fulfillment workflows for peak seasons and long-term business growth.
Our Put Wall Sorting Solutions
Multi-Vehicle Dual-Channel Seeding Wall System
The YJ-INTL Dual-Channel Put Wall System is designed for fulfillment operations that need to consolidate high volumes of small orders into clearly defined destination locations. Its dual-channel architecture separates and organizes order flows while keeping multiple sorting positions within a compact operator-facing workstation. The system can be configured with different numbers of sorting slots, bin sizes, workstation layouts and software interfaces according to order profiles and available warehouse space. With a reference processing range of 1,500–2,500 PPH, it is suitable for e-commerce fulfillment, retail replenishment, 3PL operations and other piece-picking environments where manual sorting becomes difficult to control.
High-speed 3D Sorter For E-commerce Fulfillment
The 3D Sorter System is designed for e-commerce order consolidation and multi-order fulfillment. Its three-dimensional sorting structure organizes multiple order locations within a compact workstation, helping operators distribute picked items to the correct orders in a structured and visible workflow. The system combines modular sorting locations, visual order guidance and intelligent control functions to connect picking with order consolidation and packing. Its 3D structure can be configured according to order volume, SKU characteristics, warehouse space and required sorting capacity.

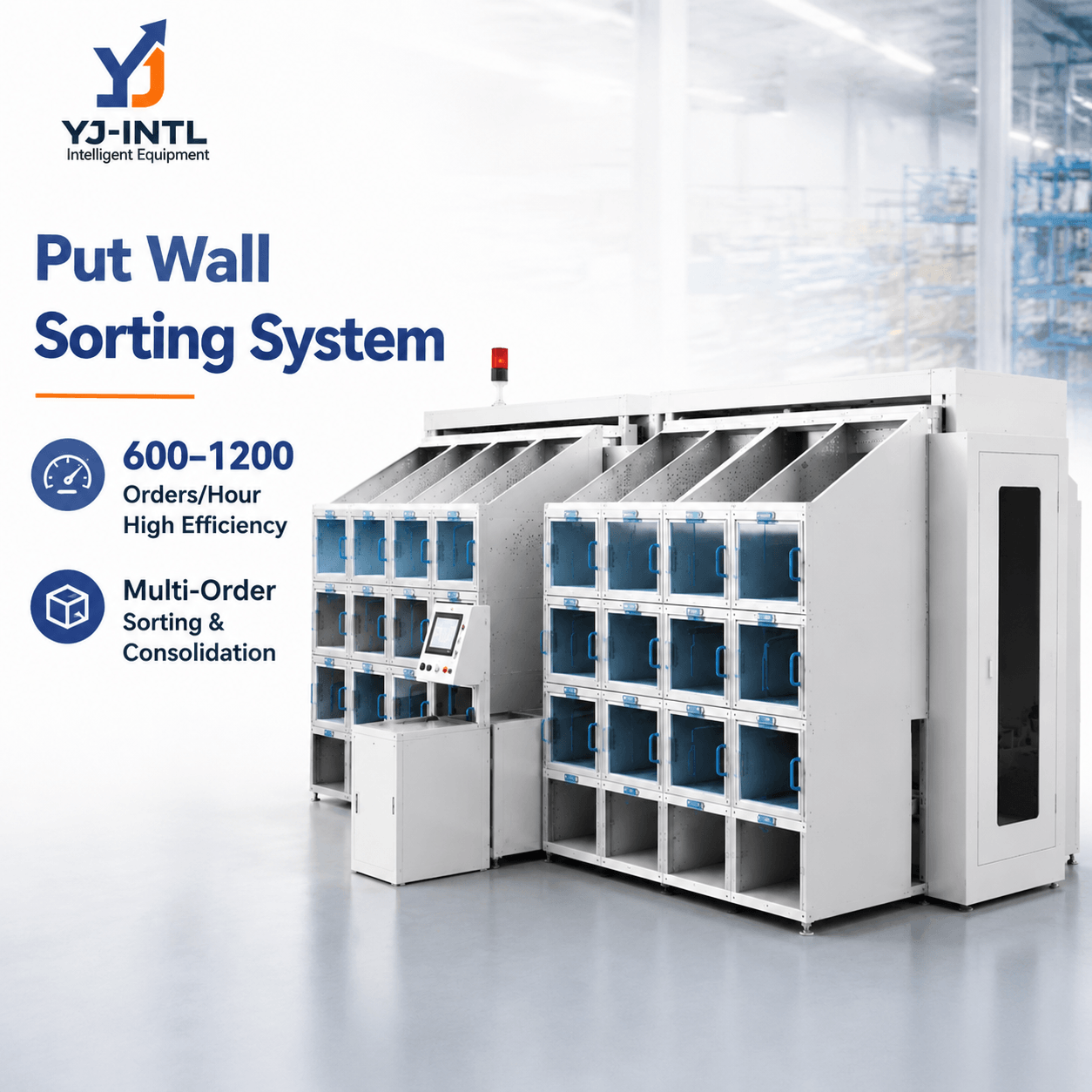

Multi-Channel Put Wall Sorting System | Intelligent Order Sorting
The Multi-Channel Intelligent Put Wall Sorting System is designed for order consolidation and multi-order sorting in e-commerce, retail, fulfillment and distribution operations. By combining modular sorting locations, visual indicators and intelligent control, the system helps operators quickly identify the correct destination for each order item while improving workspace utilization and sorting consistency. Its modular structure allows the number and arrangement of sorting channels to be configured according to order volume, SKU characteristics and available warehouse space.
Intelligent Put Wall Sorting System for E-commerce Order Fulfillment
The Intelligent Put Wall Sorting System is designed for order consolidation and item-to-order sorting in e-commerce fulfillment and warehouse operations. By combining multiple sorting locations with visual identification and controlled material movement, the system helps operators quickly distribute items to the corresponding orders. Its modular structure allows the number and arrangement of sorting positions to be configured according to order volume, SKU characteristics and available warehouse space. The system can also incorporate electrical control, alarm indication and servo-driven sorting components to support more organized and efficient order fulfillment workflows.

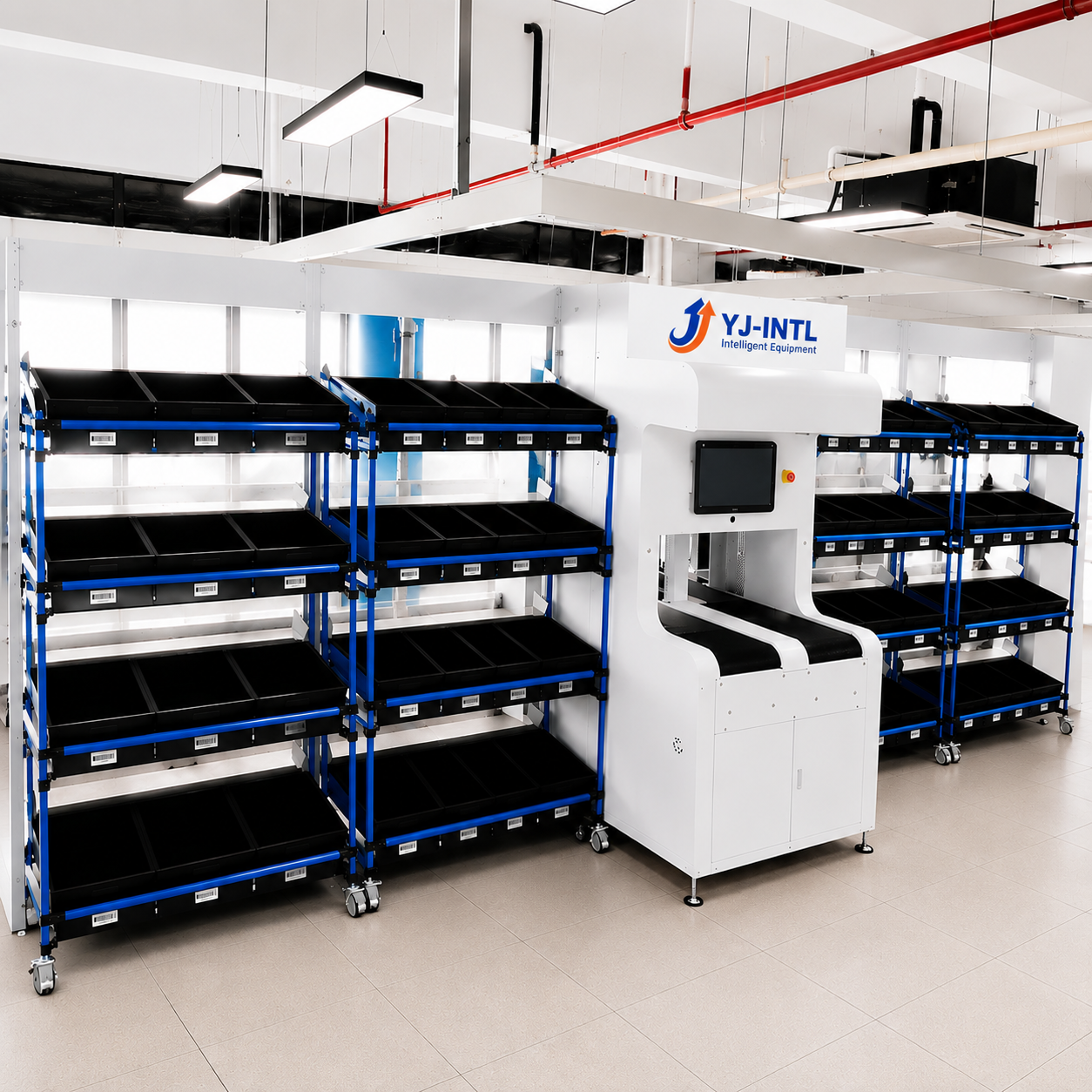

Applications of Put Wall Systems
E-commerce Fulfillment Centers
During peak order periods—such as major promotional events or seasonal sales—e-commerce warehouses often need to handle thousands or even tens of thousands of SKUs simultaneously. Traditional manual sorting methods are prone to issues such as reduced efficiency, higher error rates, and increased labor costs.
Retail Distribution Centers
The retail industry typically requires the reallocation of merchandise based on stores, regions, and sales channels.
Pharmaceutical & Healthcare Logistics
Pharmaceutical logistics demands high levels of accuracy and traceability:
Precise allocation of pharmaceutical orders
Batch management
Reduction of human error
Enhanced compliance
Apparel & Fashion Warehouses
The apparel industry is characterized by a vast number of SKUs, complex size and color combinations, and a high proportion of small-batch orders. A Put Wall System enables warehouses to rapidly handle tasks such as order splitting, multi-item order consolidation, and the processing of e-commerce returns and exchanges.
Technical Specifications of Put Wall System
| Technical Parameter | Specification |
|---|---|
| Sorting Capacity | 1,000-3,000 PPH (Standard) / 5,000-8,000 PPH / 15,000-30,000 PPH (Customized) |
| Order Processing Capacity | Up to 600-1,200 orders/hour depending on configuration |
| Sorting Method | Put-to-Wall / Seeding Sorting System |
| Number of Sorting Slots | 100 slots (Customizable) |
| Maximum Parcel Weight | 3g-3kg |
| Equipment Size | 6600 × 2800 × 2400 mm |
| Control System | WMS / OMS Integrated Intelligent Control System |
| Communication Interface | API Integration with WMS, OMS and Warehouse Automation Systems |
| Power Supply | 220V / 380V (Customized) |
| Power Consumption | 8500W |
| Brand | YJ-INTL |
| Origin | Zhejiang, China |
| Full Box Promoting Function | Optional |
| Application | E-commerce Fulfillment, 3PL Warehouse, Retail Distribution, Parcel Sorting Cente |
Why Choose YJ-INTL as Your Put Wall System Manufacturer

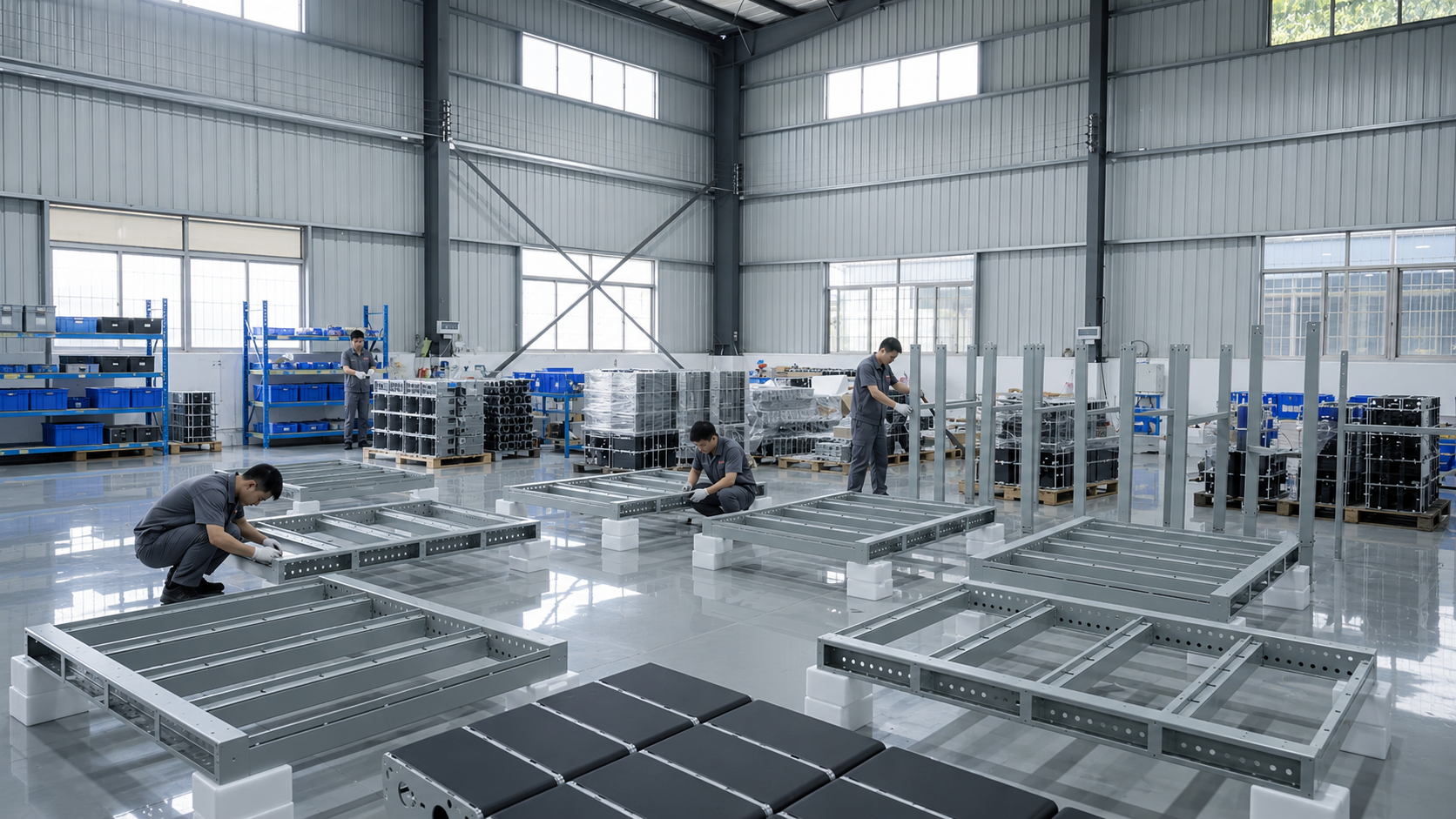

Professional Manufacturer
Experienced in intelligent logistics automation equipment design and manufacturing.
Case Studies
Real-world deployments measured by the numbers they deliver.
All Projects
Smart Pick-to-Light/Put Wall System for E-Commerce Batch Order Fulfillment
99.9%300%<10 Mins99.99%
YJ-INTL engineered an automated Pick-to-Light (PTL) smart put wall system for high-density e-commerce multi-item order consolidation. Featuring hands-free wireless barcode scanners, real-time LED light modules, dual-sided bin status indicators, and integrated packaging stations, the system boosts order sorting efficiency while achieving 99.9% accuracy.
"Implementing YJ-INTL's Pick-to-Light put wall system transformed our peak season fulfillment operations. The combination of visual LED prompts and rear packing stations eliminated order mixing completely. Temp operators get up to speed within minutes, and our order consolidation speed has tripled while maintaining a 99.9% accuracy rate across all multi-item orders."
Fulfillment Operations Director, E-Commerce Logistics Center
FAQ
An automated Put Wall System uses barcode scanning, control software and intelligent allocation algorithms to determine where each parcel should be placed. When a package enters the system, the barcode information is captured and matched with order data from the warehouse system. The system then guides operators or automated mechanisms to place the parcel into the correct sorting location. This process reduces manual decision-making and improves order consolidation accuracy.
Traditional Put Wall operations depend heavily on workers identifying labels and remembering sorting rules, which can become inefficient during peak seasons. Automated Put Wall Systems provide digital instructions, real-time status monitoring and software-based sorting logic, helping warehouses reduce errors, improve labor utilization and handle higher order volumes.
The optimal configuration depends on order volume, peak season throughput, number of sorting destinations, parcel dimensions, SKU complexity, available floor space and integration requirements. A professional supplier should evaluate current operation data and future expansion plans rather than only selecting equipment based on speed.
Yes. Industrial Put Wall solutions are commonly integrated with WMS, WCS, barcode scanners, conveyors, DWS systems and other warehouse automation equipment. Through software communication interfaces, the system can receive order instructions, update sorting status and provide real-time operational data.
The project cost is influenced by sorting capacity, number of sorting destinations, automation level, rack structure, scanning technology, software requirements, warehouse layout and customization scope. A detailed engineering analysis is required to provide an accurate solution and quotation.
YJ-INTL supports solution consultation, system design, manufacturing, commissioning guidance, operator training and technical support. Our goal is to ensure stable long-term operation after deployment.
Put Wall System Technology Guide
How Put Wall Automation Improves Fulfillment Efficiency
Put Wall automation transforms traditional batch sorting workflows into data-driven fulfillment processes. By connecting physical sorting equipment with warehouse software, operators receive accurate instructions and can complete order consolidation faster with fewer mistakes.
Why Put Wall Systems Are Important for Modern E-commerce Warehouses
As online orders become smaller, more frequent and more customized, warehouses need flexible sorting solutions. Put Wall Systems provide a scalable approach for handling complex order profiles while maintaining accuracy and operational visibility.
Product Highlights
1. High-Throughput Sorting Performance
Processing capacity of up to 2,500 parcels per hour
Ideal for high-volume order fulfillment operations
Maintains stable performance under peak-season warehouse workloads
2. Manual & Automatic Feeding Options
Supports flexible manual loading and integration with automatic infeed systems
Easily connects to upstream systems, such as conveyor lines or DWS units
Adapts to varying levels of warehouse automation
3. High Precision, Reduced Human Error
Digital "wall-loading" confirmation system enhances accuracy
Ensures correct matching of SKUs to orders
Minimizes sorting errors and improves first-pass accuracy
4. Modular, Scalable Structure
Modular design allows for easy expansion of sorting chutes
Flexible configuration adapts to different warehouse sizes
Supports future capacity upgrades without requiring system replacement
 |  |
|---|
