Auto Bagging Machine | Express Parcel Packaging System
Intelligent Auto Bagging Machine Solutions for Modern Fulfillment Operations
YJ-INTL Auto Bagging Machines provide automated packaging solutions for e-commerce fulfillment centers, express logistics hubs and distribution warehouses.
As a professional logistics automation manufacturer, YJ-INTL develops intelligent bagging systems integrating feeding, bag dispensing, sealing and warehouse software connection. These solutions help reduce manual packaging workload and improve fulfillment efficiency.
Our Auto Bagging Machine Solutions
YJP-60P E-commerce Auto Bagger with Printer and Conveyor Machine
The YJP-60P is an integrated automatic bagging solution for e-commerce and logistics operations, combining automatic bag feeding, parcel bagging, sealing, printing and conveyor output in one compact system. With a throughput of up to 1,000 bags per hour , the system helps fulfillment centers streamline repetitive packaging processes while maintaining consistent sealing and labeling performance.
YJP-60E E-commerce Packaging Machine With Print & Apply
YJP-60E Automatic Bagging Machine is the print-and-apply model in the YJP packaging range, designed for e-commerce order fulfillment where packaging and shipping-label processing need to be completed within one workflow. The machine integrates scanning, label printing, label applying, bag dispensing, bag opening and sealing , reducing the need for multiple manual packaging steps. The catalog specifies a fastest rate of 1,400 bags/hour and supports bag widths of 150–550 mm and lengths of 250–720 mm.
YJP-90E Intelligent Bubble Film Packaging Machine
YJP-90E Intelligent Bubble Film Packaging Machine is the protective packaging model in the YJP series, designed for products that require cushioning during transportation. Unlike YJP-40E, YJP-60E and YJP-70E, which focus on conventional bag packaging, YJP-90E uses bubble film to create a protective package around the product. Its three-servo control system integrates automatic feeding, bubble film forming, sealing and cutting into one continuous operation. The supplied catalog specifies a packaging speed of 30–100 bags/min and supports multiple film materials including PP, CPP, PVC, PS, EVA, PET, PVDC+PVC and OPP/CPP
YJP-70E Horizontal Bagging Machine | Large-Size E-commerce
YJP-70E is the horizontal flagship packaging model in the YJP series, designed for large-size e-commerce products and general merchandise packaging . Compared with the compact standard YJP-40E and the integrated print-and-apply YJP-60E, the YJP-70E focuses more on large-format packaging, durable construction and overseas operating environments . The machine is equipped with a high-sensitivity code scanner, 27-inch 1080P full-color display and high-performance computing hardware. Its body uses integrated welding, automotive-grade painting, protective coating and high-precision bearings to support long-term operation.
YJP-40E Automatic Bagging Machine for E-commerce Fulfillment
YJP-40E Automatic Packaging Machine is a high-performance desktop packaging machine designed for overseas e-commerce and parcel fulfillment applications. It combines automated bagging and sealing functions with intelligent heating control, high-precision positioning and touchscreen operation. The machine uses an independent power supply, intelligent heating algorithm and pure-copper closed-loop stepper motor to support stable sealing, accurate positioning and continuous operation. Its compact structure makes it suitable for e-commerce packaging stations and other parcel-processing environments. The source catalog specifies up to 1,600 pieces/hour , with support for applicable bag, label and package size ranges.

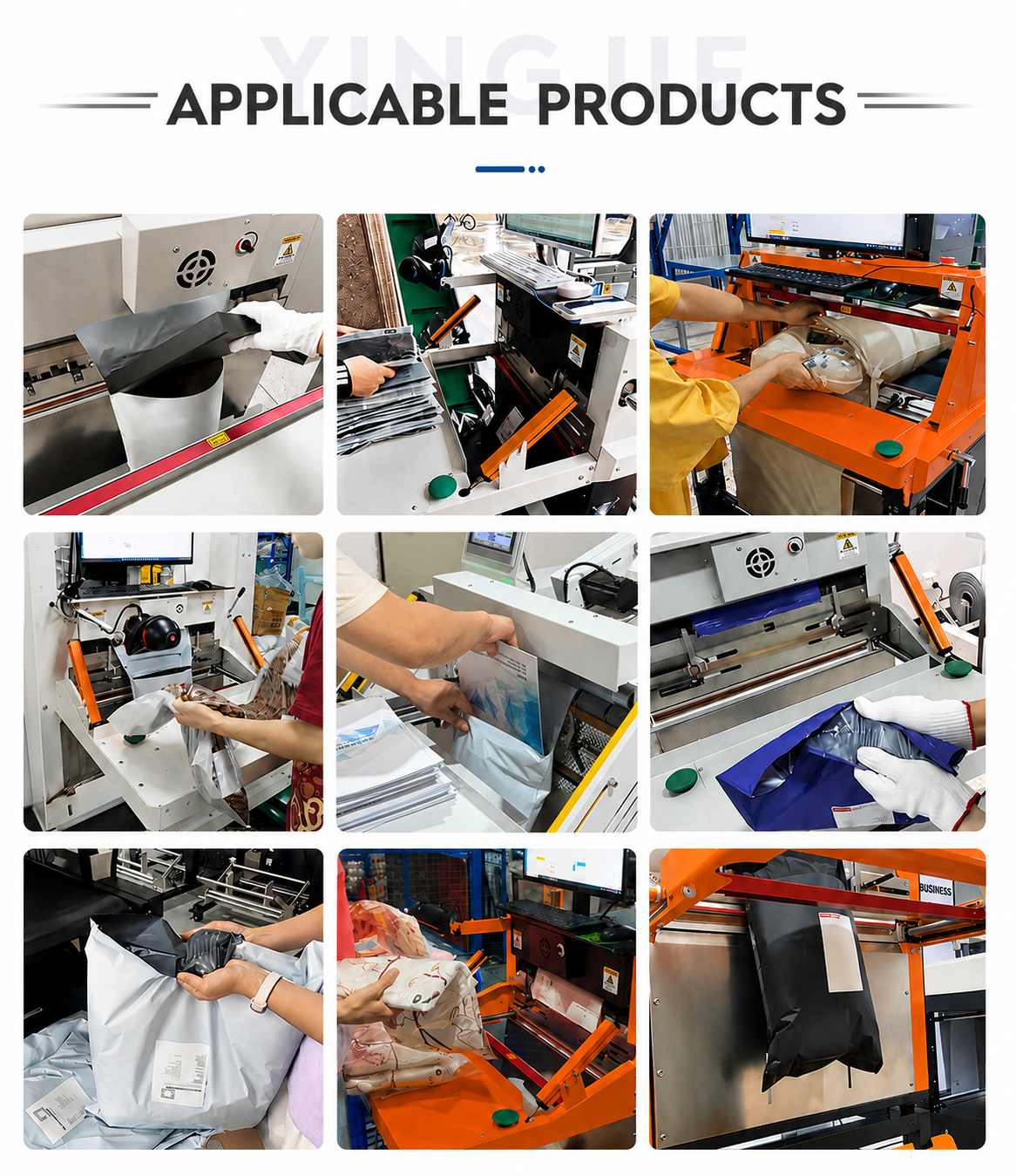

Applications of Auto Bagging Machine

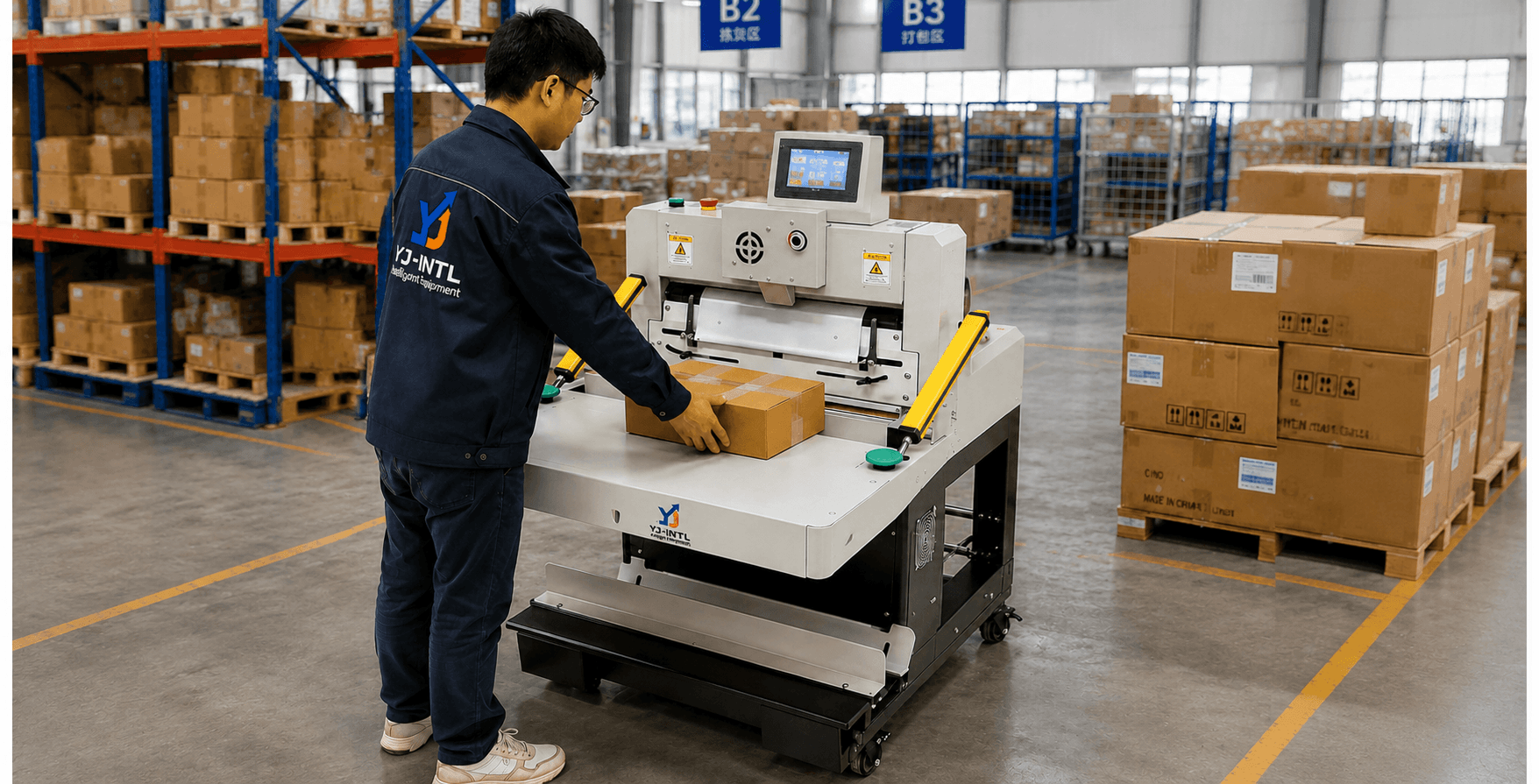

E-Commerce Fulfillment Centers
Auto bagging machines are widely used in e-commerce fulfillment centers to automate the final packaging process after picking and sorting. By integrating with conveyors, barcode scanning systems, and warehouse management software, the system can automatically feed parcels, apply packaging bags, seal packages, and prepare orders for shipment.
Express Parcel Sorting Hubs
Express logistics centers handle thousands of parcels every hour and require fast, reliable packaging solutions. Auto bagging machines can be connected with parcel sorting systems to complete automated packaging after sorting operations.
Retail Distribution Centers
Retail distribution centers use automated bagging systems for processing apparel, consumer goods, accessories, and other small-to-medium packages.
Technical Specifications of YJ-INTL Auto Bagging Machine
| Parameter | YJP-40E | YJP-60E | YJP-70E | YJP-90E |
|---|---|---|---|---|
| Product Type | Desktop Packaging Machine | Automatic Bagging Machine | Intelligent Packaging Machine | Bubble Film Packaging Machine |
| Packaging Method | Automated Packaging & Sealing | Bag Dispensing + Opening + Sealing + Labeling | Intelligent Bagging / Packaging | Bubble Film Forming + Sealing + Cutting |
| Packaging Speed | Up to 1,600 pcs/h | Up to 1,400 bags/h | Up to 1,200 pcs/h | 30–100 bags/min |
| Package Size | 100 × 150 mm – 400 × 600 mm | Bag width 150–550 mm; length 250–720 mm | Bag length 400–900 mm; width 150–660 mm | L 100–500 mm; W 35–200 mm; H 5–60 mm |
| Bag Thickness | 0.03–0.12 mm | 0.08–0.13 mm | 0.08–0.13 mm | — |
| Label Size | 30 × 40 mm – 200 × 100 mm | W 40–100 mm; L 40–200 mm | W 40–100 mm; L 40–200 mm | — |
| Display / HMI | Capacitive Touchscreen | 27-inch 1080P Full-Color Display | 27-inch 1080P Full-Color Display | — |
| Host Computer | — | i7-4790, 8GB RAM, 256GB SSD | Intel H110, i7-7700, 16GB RAM, 256GB M.2 SSD | — |
| External Communication | RS485 | Ethernet / Wi-Fi / USB | Ethernet / Wi-Fi / USB | — |
| Power Supply | AC220V 50/60Hz | — | — | 220V 50Hz |
| Rated / Total Power | 400W | 450W | 450W | 4.1kW |
| Machine Weight | 100kg | 200kg | 220kg | 260kg |
| Machine Size | 1060 × 940 × 1250 mm | 1770 × 760 × 1200 mm | 1200 × 1000 × 2100 mm | 3640 × 960 × 1100 mm |
| Film Compatibility | — | — | — | PP, CPP, PVC, PS, EVA, PET, PVDC+PVC, OPP/CPP etc. |
| Control Architecture | High-performance control chip + stepper motor | High-performance PC | High-performance PC + intelligent control | Three-servo control |
| Main Highlight | Intelligent heating & precision positioning | Automatic bagging + label printing/applying | Overseas flagship / large-size packaging | Protective bubble film packaging |
Why Choose YJ-INTL Auto Bagging Machine

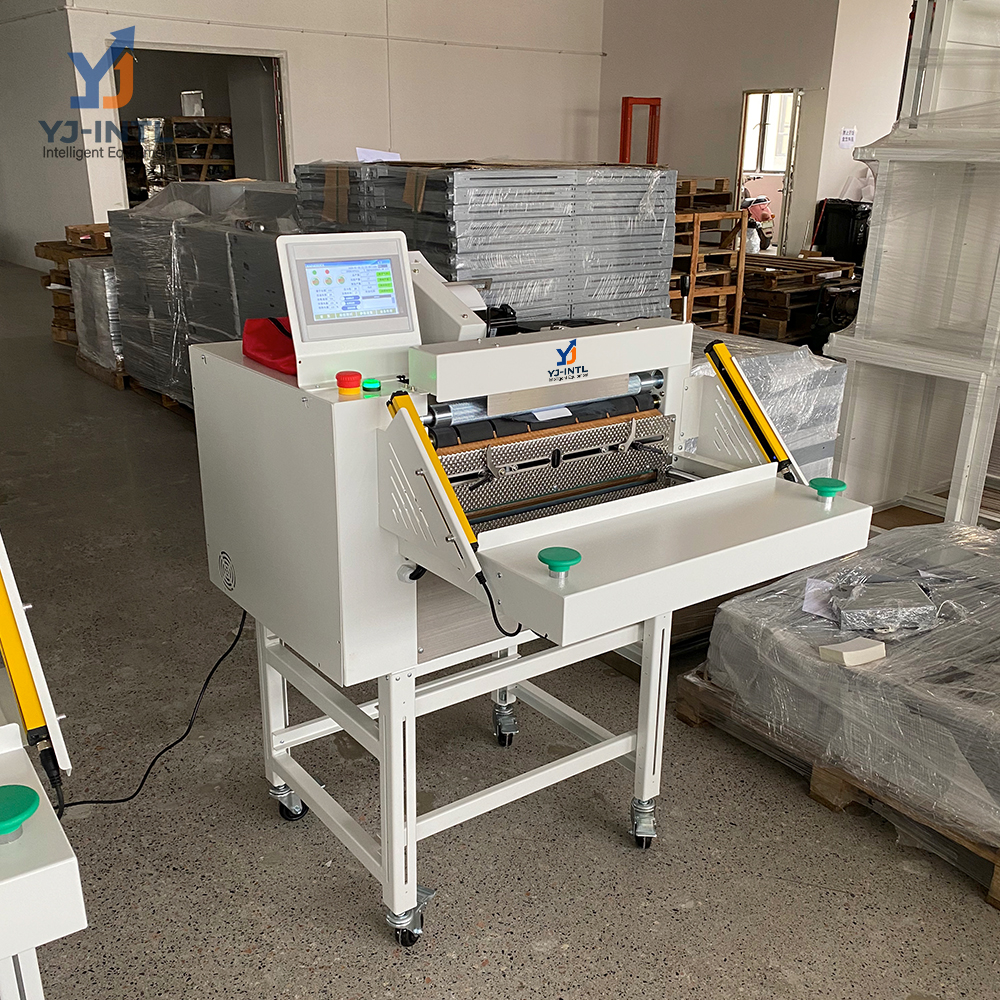

High-Efficiency Automated Packaging
YJ-INTL auto bagging machines automate bag feeding, parcel loading and sealing processes, helping fulfillment centers improve packaging speed, reduce manual labor and maintain stable operation during high-volume order periods.
Case Studies
Real-world deployments measured by the numbers they deliver.
All Projects
Quanzhou YTO Express Hub: Automated Narrow Belt Sorter Achieving 10,000 PPH Capacity
10,000 PPH99.99%50 kg4–5 Operators
To handle heavy seasonal parcel volume surges in coastal e-commerce centers, Quanzhou YTO Express Hub upgraded its sorting infrastructure with YJ-INTL's narrow belt sorter. Featuring unaligned blind infeed, multi-car linkage for bulky cargo, and precision side-discharge chutes, the line handles up to 10,000 parcels per hour with a 99.99% scan accuracy while requiring only 4-5 operators on site.
"In coastal manufacturing hubs like Quanzhou, parcel profiles range from tiny polybags to heavy footwear cartons. The YJ-INTL narrow belt sorter transformed our operations—allowing operators to drop mixed cargo onto the belt without manual pre-sorting. The multi-car linkage carries oversized bags effortlessly, and our labor footprint dropped from 12 workers to just 4 per shift."
Regional Operations Manager, Quanzhou YTO Express Distribution Hub
FAQ
Choosing the right auto bagging machine depends on several factors, including parcel dimensions, package weight, daily processing volume, packaging material, required speed and existing fulfillment workflow.
Yes. YJ-INTL auto bagging machines are designed to support different parcel sizes, soft packages and product types with adjustable parameters.
Yes. The auto bagging machine can be integrated with warehouse automation systems including conveyors, barcode scanners, DWS equipment, WMS and WCS platforms.
To design an optimized auto bagging solution, YJ-INTL typically requires information including parcel size and weight range, packaging materials, required throughput, warehouse layout, existing equipment and software integration requirements.
Auto Bagging Machine Technology Guide
What Is an Auto Bagging Machine?
An automated bagging system replaces manual packaging operations by completing feeding, bagging and sealing processes automatically.
Benefits of Automated Parcel Packaging
Automation improves efficiency, packaging consistency and scalability for modern fulfillment centers.
Product Highlights
1. High Efficiency
An integrated system for automatic bagging, sealing, and output, achieving packaging speeds of over 600–1,500 units per hour.
Supports 24/7 continuous operation in high-volume fulfillment centers, significantly reducing manual labor and boosting outbound efficiency.
2. Labor Savings & Cost Reduction
Replaces multiple manual packing stations with a single machine.
Reduces labor costs by up to 50–70%.
Minimizes packaging errors and rework.
Optimizes consumables usage (bag/film-saving design).
3. High Precision & Stability
Reliable sealing performance ensures secure and safe packaging.
Low error rate with consistent bag formation and seal quality.
Industrial-grade components ensure long-term reliability.
Designed specifically for continuous, heavy-duty logistics operations.
4. Smart Integration
Compatible with WMS, OMS, and ERP systems.
Seamless integration with conveyors, sorting systems, and labeling systems.
Optional in-line printing and labeling capabilities ("Print-and-Pack" solution).
Smart HMI touchscreen for easy operation and monitoring.

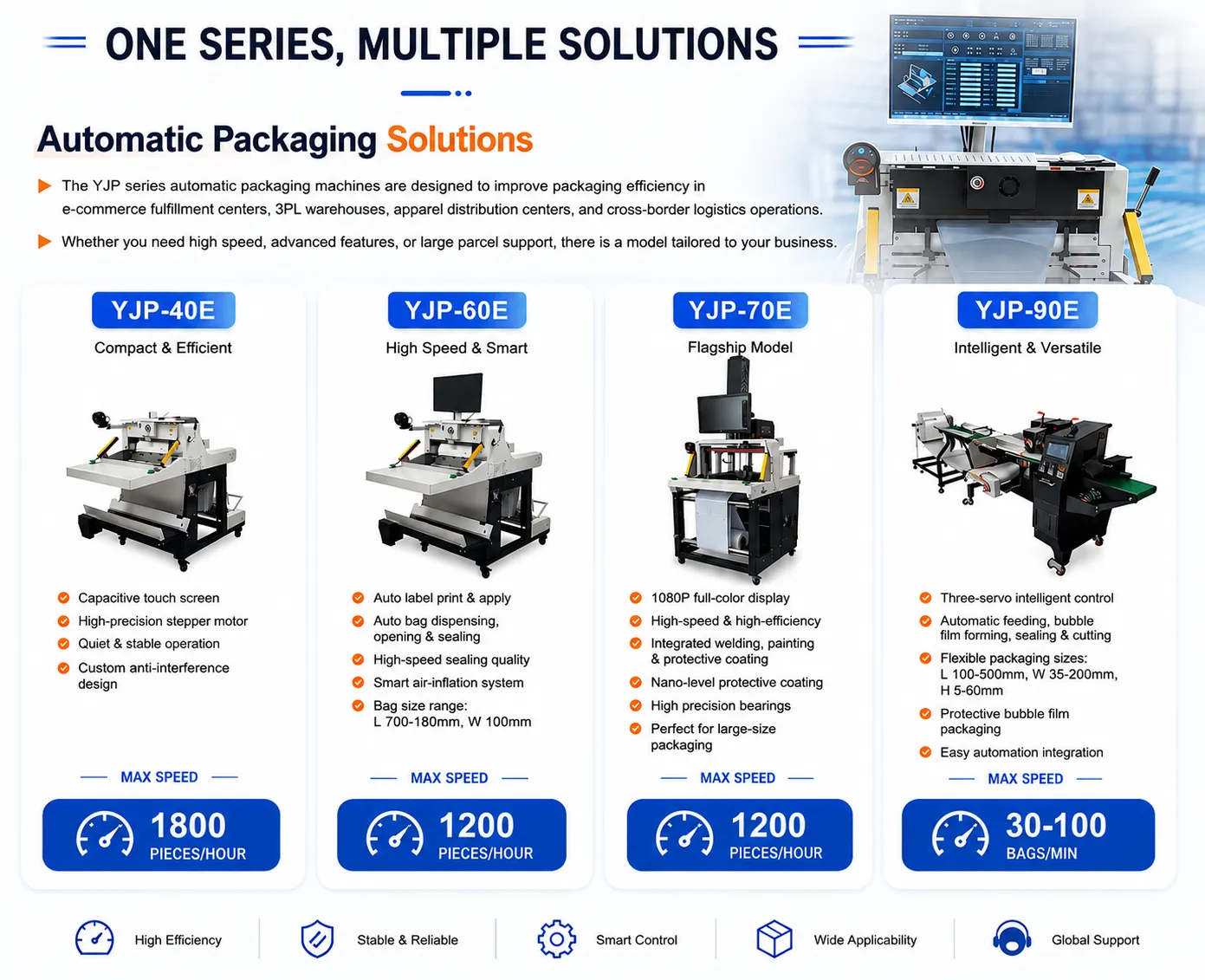

Four Packaging Solutions for Different E-commerce Fulfillment Needs
YJ-INTL offers four packaging machine configurations designed for different parcel types, packaging workflows and fulfillment requirements. Instead of using one machine for every application, the range is divided according to the actual packaging process:
YJP-40E focuses on efficient and economical parcel packaging,
YJP-60E adds integrated printing and labeling,
YJP-70E is designed for large-size and overseas packaging applications,
while YJP-90E provides protective bubble-film packaging for products requiring cushioning.
