Sortation Systems

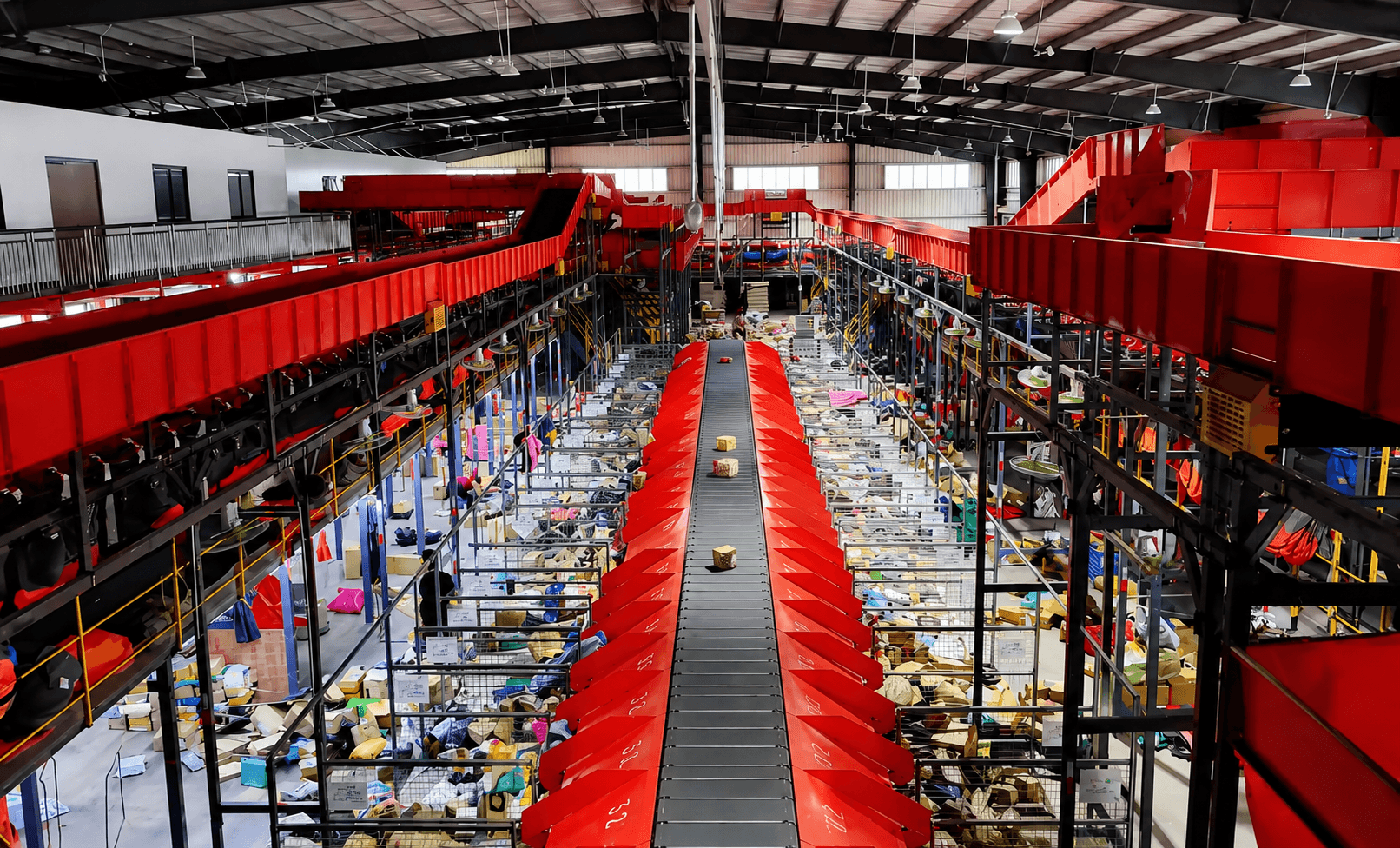

Narrow Belt Sorter Systems
High-Speed Narrow Belt Sortation for Modern Warehouses
YJ-INTL is a leading warehouse automation solution provider specializing in intelligent parcel sortation systems for logistics hubs, e-commerce fulfillment centers, courier networks, and distribution warehouses.
Our Narrow Belt Sorter integrates conveying, barcode scanning, DWS, intelligent controls, and warehouse software into one seamless system, enabling high-speed, accurate, and scalable parcel handling while reducing labor costs and increasing operational efficiency.

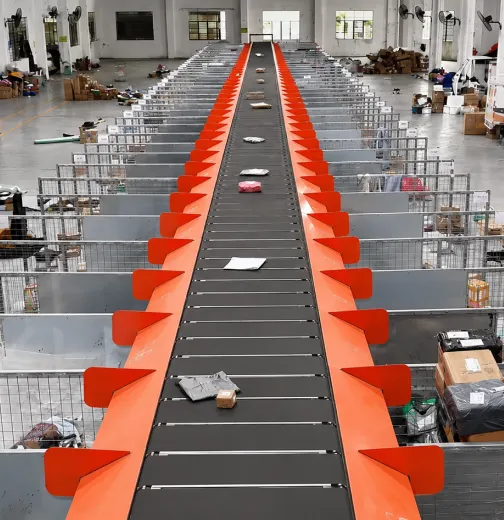

Our Narrow Belt Sorter Systems
Narrow-belt cross-belt sorter
The linear narrow-belt sorter is an automated sorting system independently developed by YJ-Intl to meet diverse material sorting requirements. It comprises four main components—item induction, barcode scanning, the main sorting unit, and discharge chutes—with the entire system centrally controlled by an electronic control software platform. Items are fed onto the sorter's carriages via various induction methods; barcode scanners automatically capture destination data, and the sorter conveys the items to the designated chutes based on this information, thereby executing the transport and sorting functions.
Heavy-Duty Narrow Belt Sorter
Engineered for modern express distribution hubs and e-commerce fulfillment facilities, the YJ-INTL Narrow Belt Sorter delivers stable, high-speed automated parcel sortation across a compact operational footprint. Featuring multi-car linkage, unaligned blind infeed, and dual-side precision discharge, the system handles mixed cargo—from small polybags to heavy cartons up to 50 kg—with minimal manual intervention.

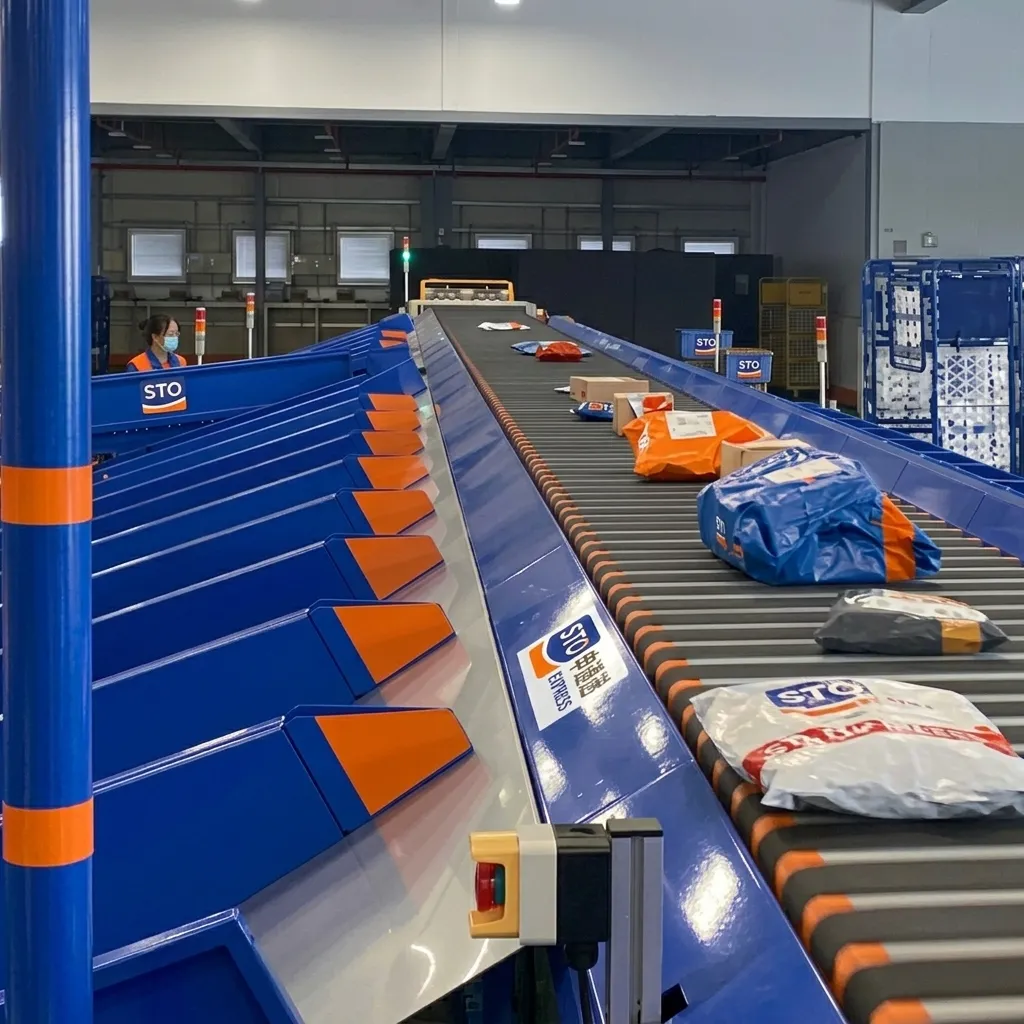

Linear Narrow Belt Parcel Sorting System For E-commerce Fulfillment
The YJ-INTL Narrow Belt Sorter for E-commerce Fulfillment is designed for high-volume parcel sorting in e-commerce fulfillment centers, courier hubs, 3PL warehouses and distribution facilities. It automates the movement of mixed-size parcels from induction to identification, tracking, sorting and final destination discharge, reducing manual sorting work and improving outbound processing efficiency. With a reference throughput of 8,000–12,000 parcels per hour, support for parcels up to 50 kg, and configurable 200 mm or 300 mm carrier pitch, the system can be engineered around your order volume, parcel profile, destination count and warehouse layout. Integration with barcode scanning, DWS, WCS and WMS allows the sorter to operate as part of a complete fulfillment automation system.

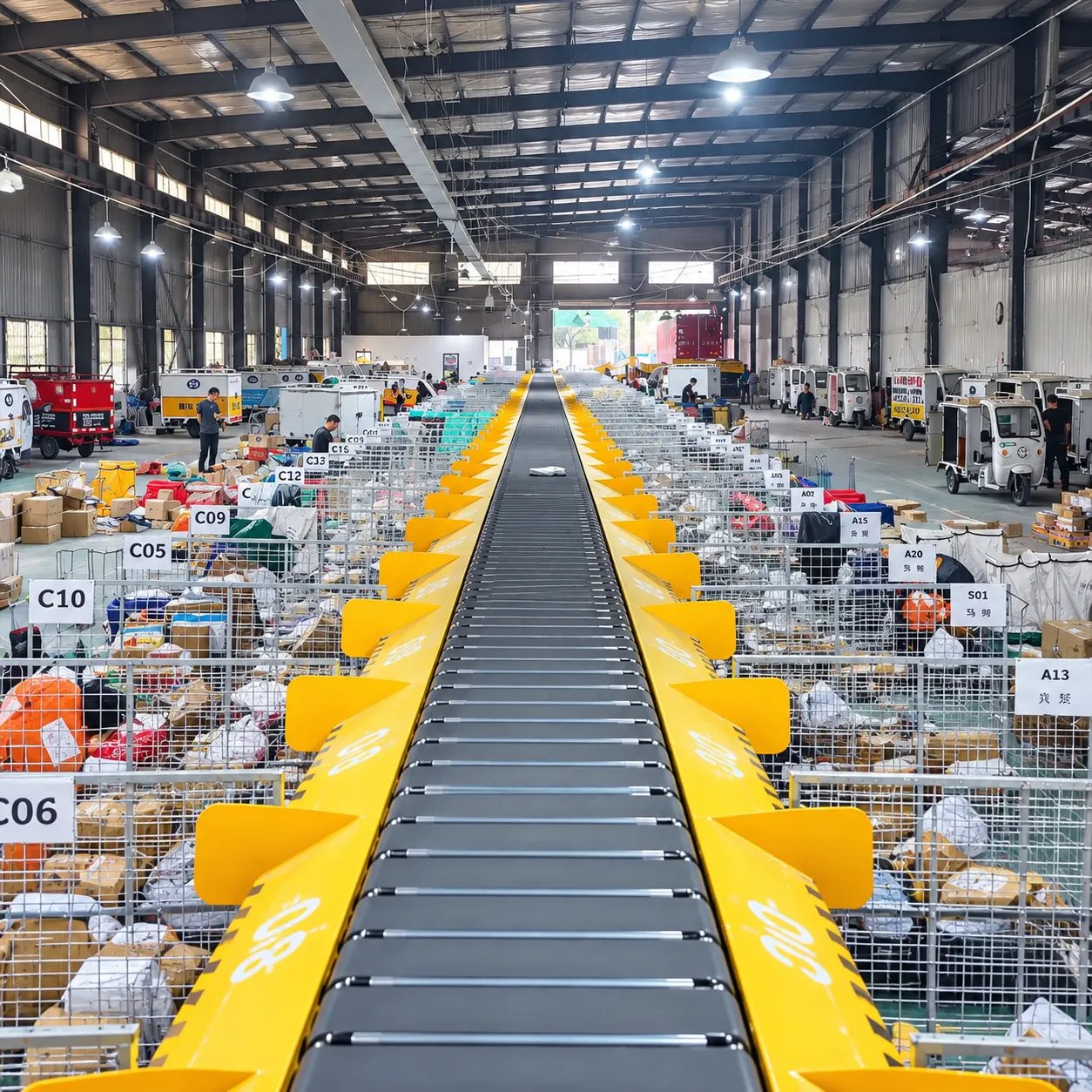

UDA Express Linear Narrow Belt Sorter | 8,000–12,000 PPH
The YJ-INTL UDA Express Narrow Belt Sorter is an automated parcel sorting system engineered for express delivery hubs, e-commerce fulfillment centers, 3PL warehouses and distribution operations. Its linear configuration combines continuous conveying, parcel identification and automated destination sorting to create a more consistent flow from induction to outbound dispatch.

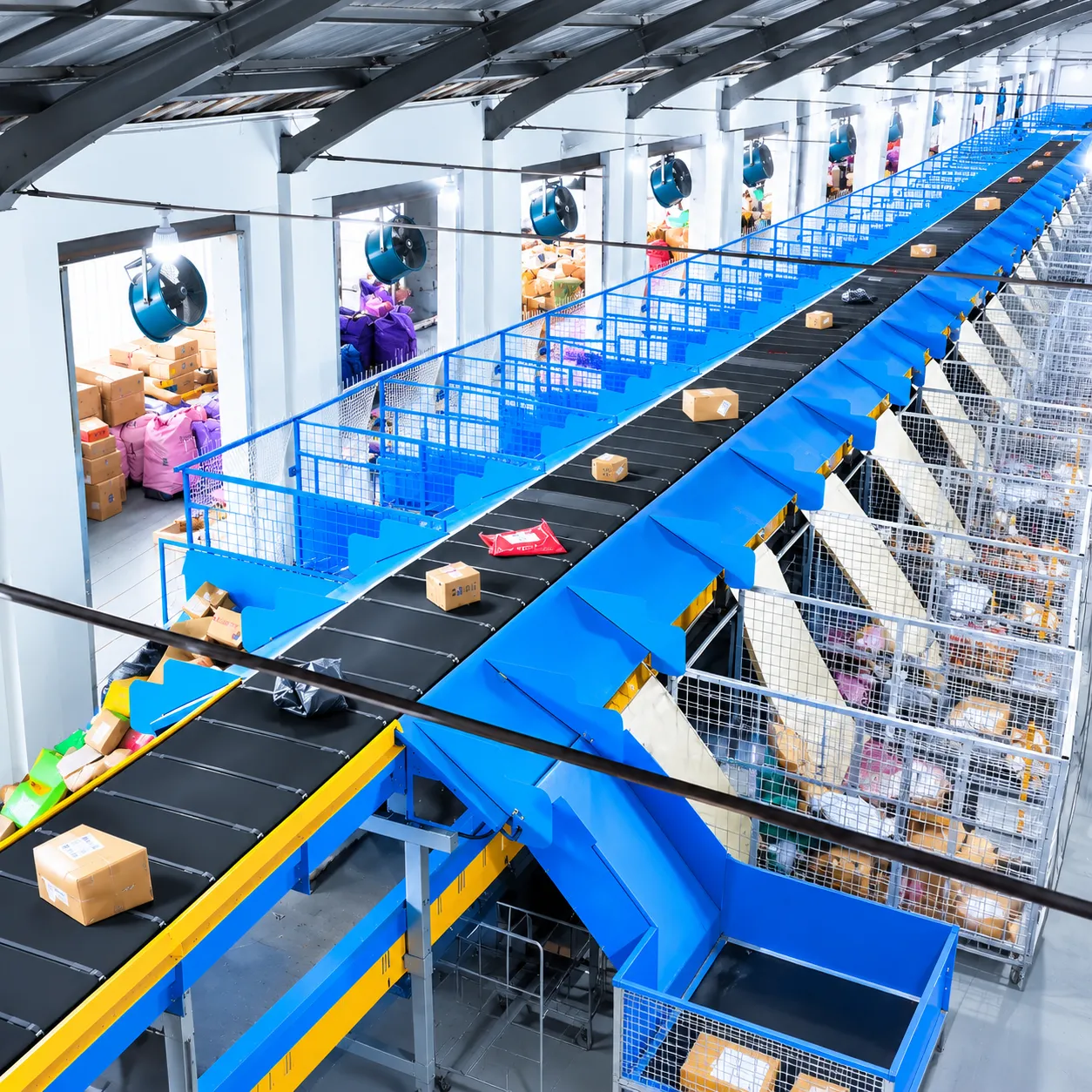

Automated Narrow Belt Sorter (200mm/300mm Pitch)
The YJ-INTL Narrow Belt Sorter is an automated parcel sorting system designed for high-volume logistics, express delivery, e-commerce fulfillment, 3PL warehouses and distribution centers. Using a continuous narrow-belt conveying structure and controlled lateral diversion, the system automatically routes parcels to different destinations according to barcode information and predefined sorting rules. With 7,000–10,000 parcels per hour reference throughput , 2–2.5 m/s operating speed , and support for parcels from 0.05 kg to 50 kg , it provides a practical automation solution for facilities that need higher sorting capacity without relying on a large manual workforce. The system supports 200 mm and 300 mm carrier pitch , with a maximum recommended parcel profile of 1200 × 900 × 700 mm for the configuration shown in the product specification.

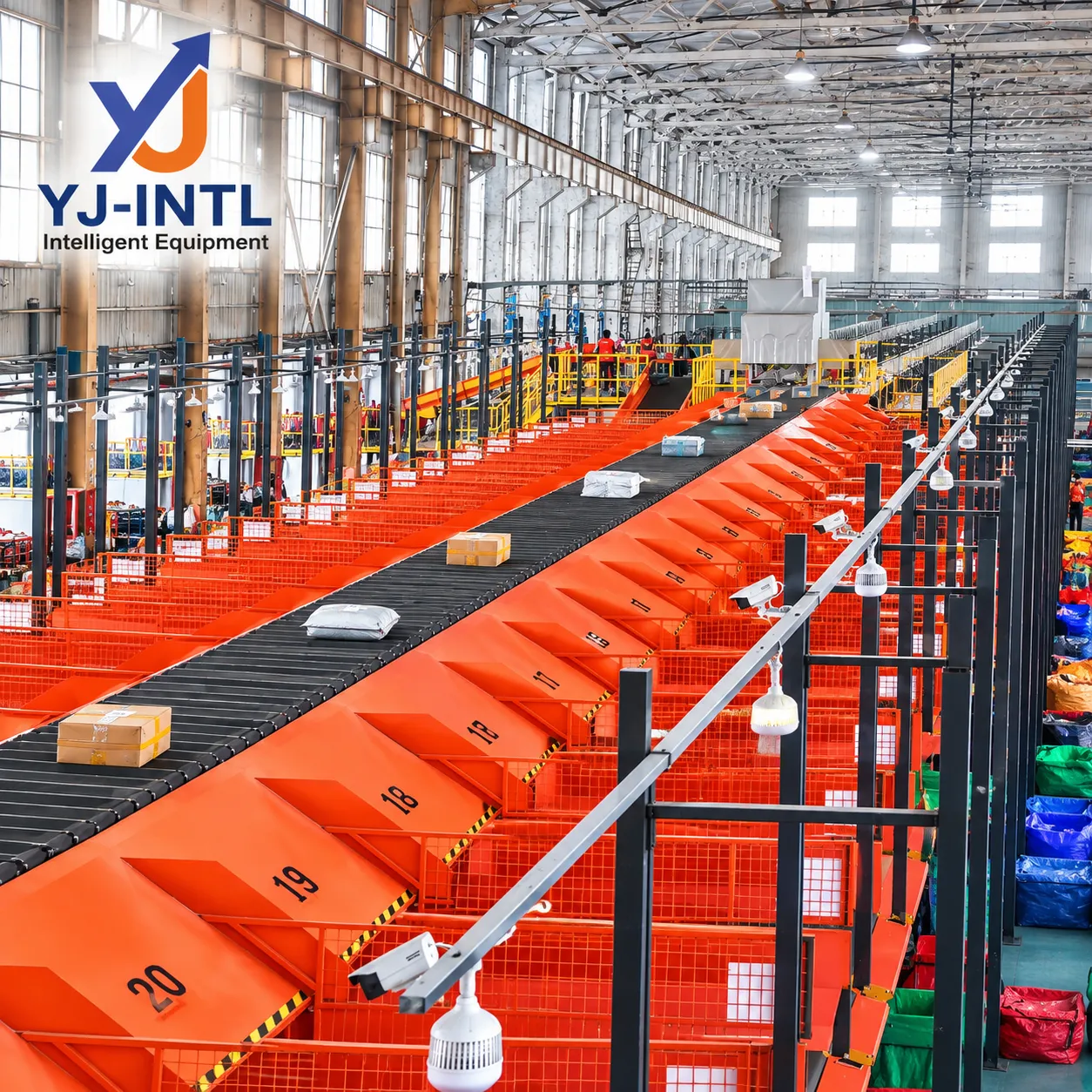

Narrow Belt Sorter | High-Speed Automated Parcel Sorting System
YJ-INTL Narrow Belt Sorter is an automated parcel sortation system designed for logistics hubs, e-commerce fulfillment centers, courier networks, 3PL warehouses and distribution operations. The system combines continuous conveying, parcel identification, intelligent control and automated destination sorting to reduce manual handling and create a more consistent parcel flow.

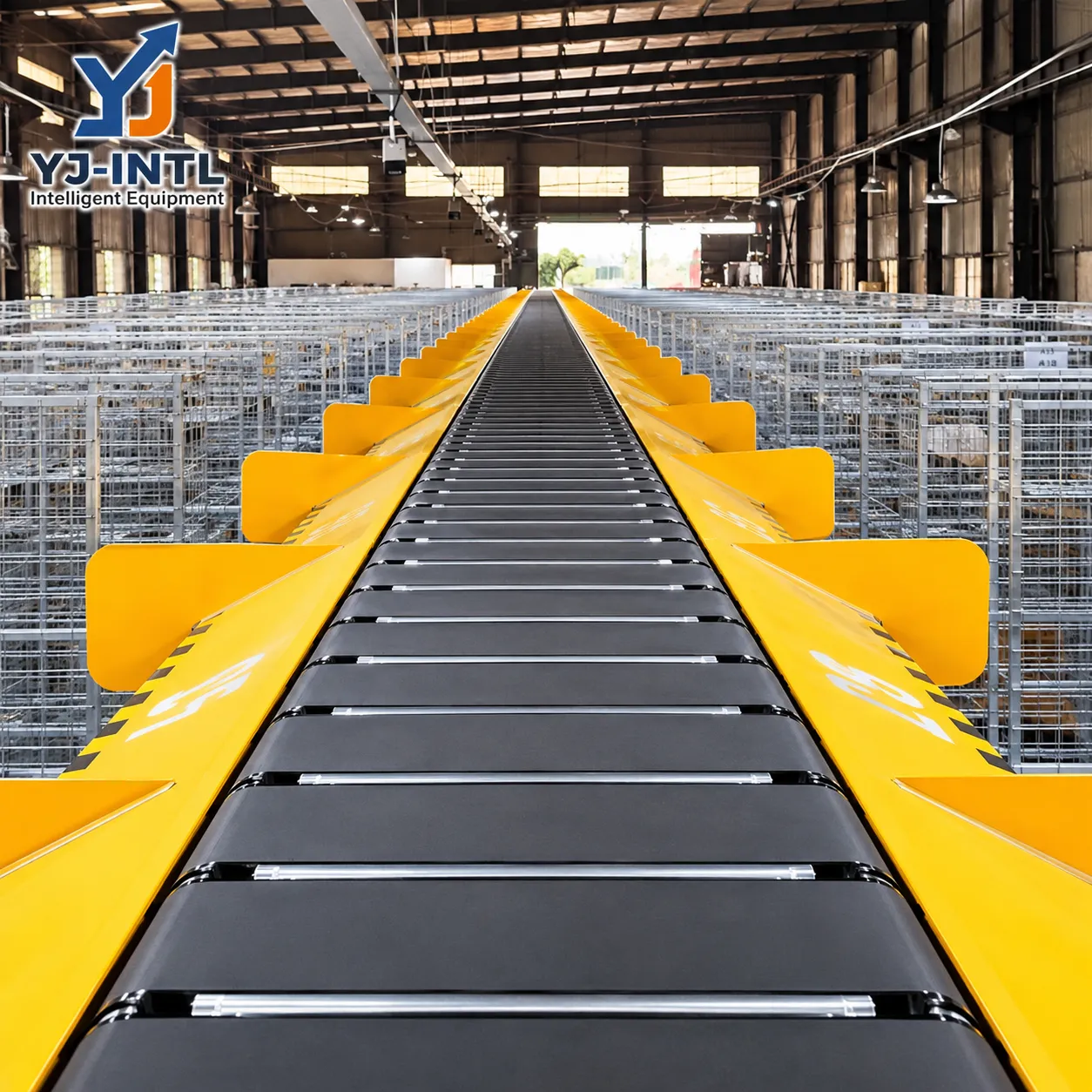

Narrow Belt Sorter
YJ-INTL Narrow Belt Sorter is an automated parcel sortation system designed for high-volume logistics hubs, e-commerce fulfillment centers, courier networks and distribution warehouses. Its modular conveyor architecture combines continuous conveying with controlled lateral diversion, allowing parcels, cartons, bags and suitable irregular items to be automatically routed to different destinations. Automate parcel sorting with a flexible narrow belt system engineered around your throughput, parcel profile and destination layout. Zero-impact conveyor belt unloading prevents damage from drops, freefalls, and lateral impacts. The dynamic multi-conveyor support system adapts to package size and weight without pre-sorting. It can handle fragile, oversized (up to 2 meters), and heavy (up to 60 kg) packages in a single pass.

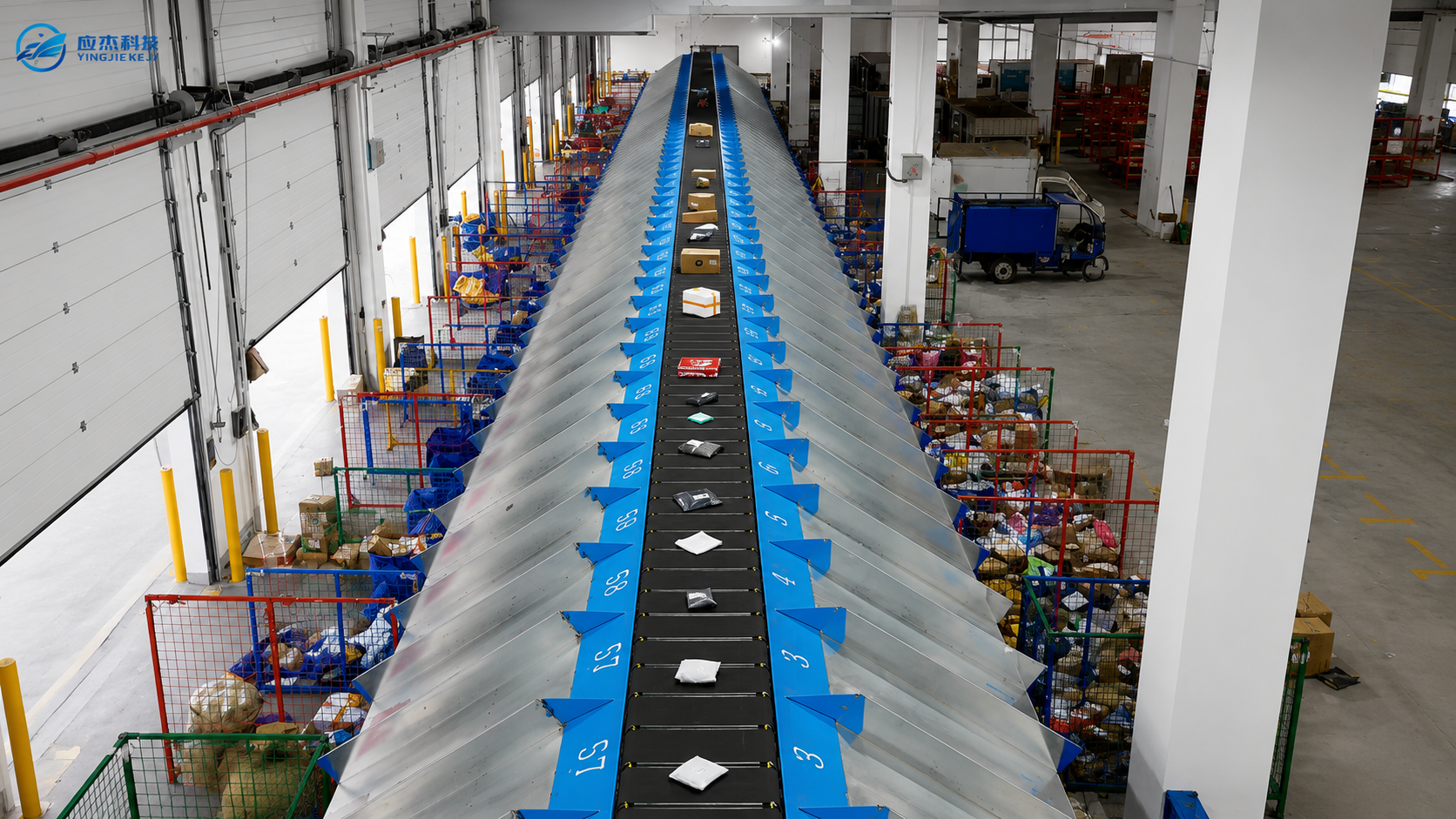

Linear Narrow Belt Parcel Sorter | 8,000–12,000 PPH
The Linear Narrow Belt Parcel Sorter is a high-speed automated sorting system designed for e-commerce, express delivery and distribution operations. Its linear conveying structure provides continuous parcel transport and accurate destination sorting while supporting different package types, including soft parcels, flat pieces, sacks, cartons and irregular parcels with a stable center of gravity. With a reference throughput of 8,000–12,000 pieces per hour and a maximum load of 50kg , the system can be configured with different belt widths, carrier pitches and induction methods to match specific parcel profiles and sorting requirements.
Narrow Belt Sorter | High-Speed Parcel Sorting Conveyor System
YJ-INTL Narrow Belt Sorter is an advanced automated parcel sorting conveyor system designed for high-volume logistics operations, e-commerce fulfillment centers, courier hubs, retail distribution warehouses, and manufacturing facilities. By using multiple narrow belts combined with intelligent diverting mechanisms, the system enables accurate, smooth, and flexible sorting of cartons, parcels, bags, and totes to multiple destinations. As part of YJ-INTL's complete intralogistics automation portfolio, the narrow belt sorter can be integrated with DWS systems, barcode scanners, WMS, WCS, PLC control systems, and conveyor lines to create an end-to-end intelligent sorting solution. It helps logistics operators improve throughput, reduce manual sorting labor, and achieve reliable 24/7 automated operations.

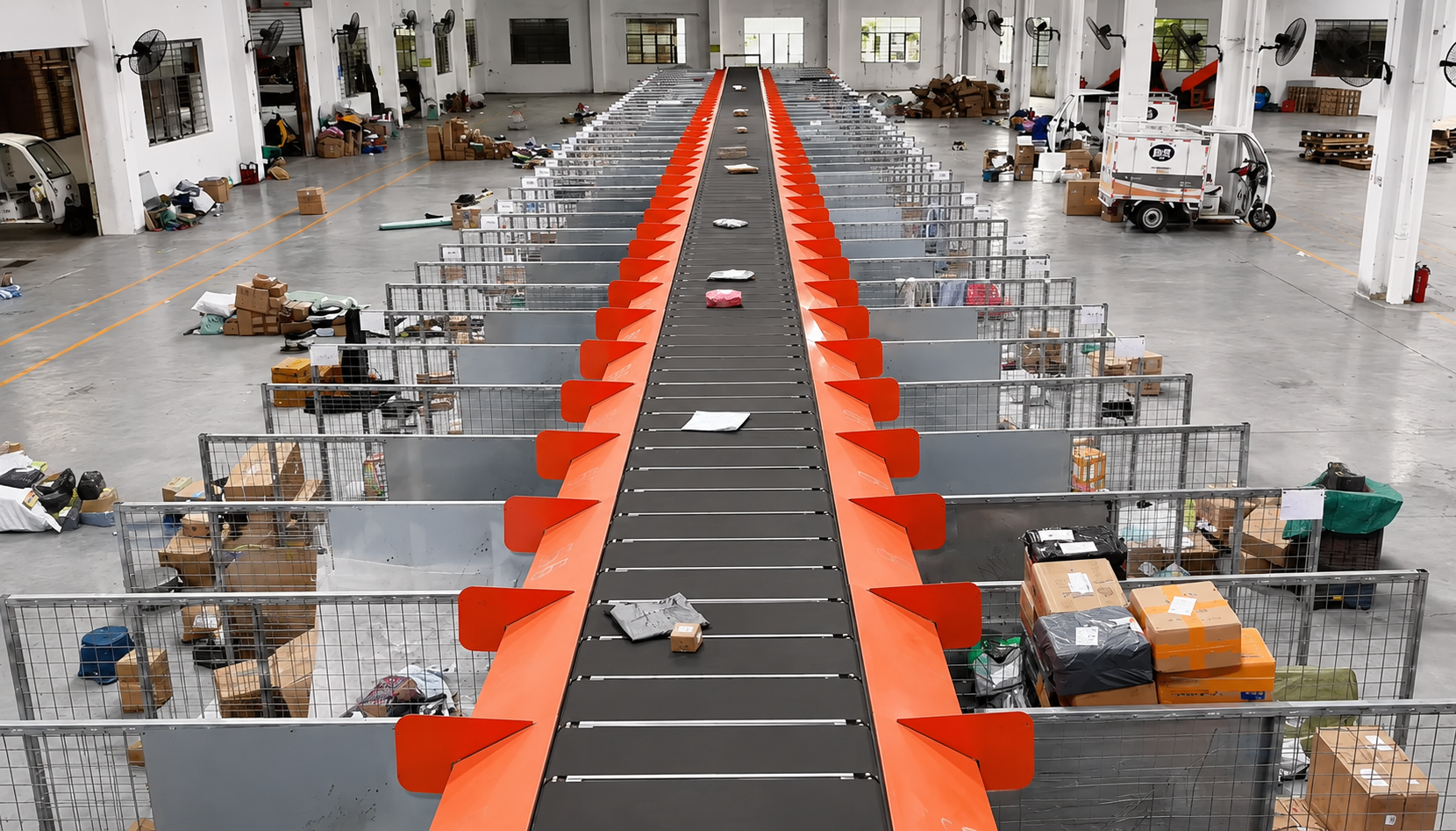

Linear Narrow Belt Sorter | 8,000–12,000 PPH Parcel Sorting System
YJ-INTL Linear Narrow Belt Sorter is a high-throughput parcel sorting system designed for logistics, e-commerce and distribution centers. With 8,000–12,000 PPH reference throughput, up to 50kg load capacity and support for manual or automatic induction, it provides a flexible solution for standard, large and irregular parcels. Key Benefits 8,000–12,000 PPH Max. 50kg Load Max. 1200 × 900 × 700mm 200 / 300mm Pitch 800 / 1000mm Belt Width Manual / Auto Induction Large & Irregular Parcel Compatible

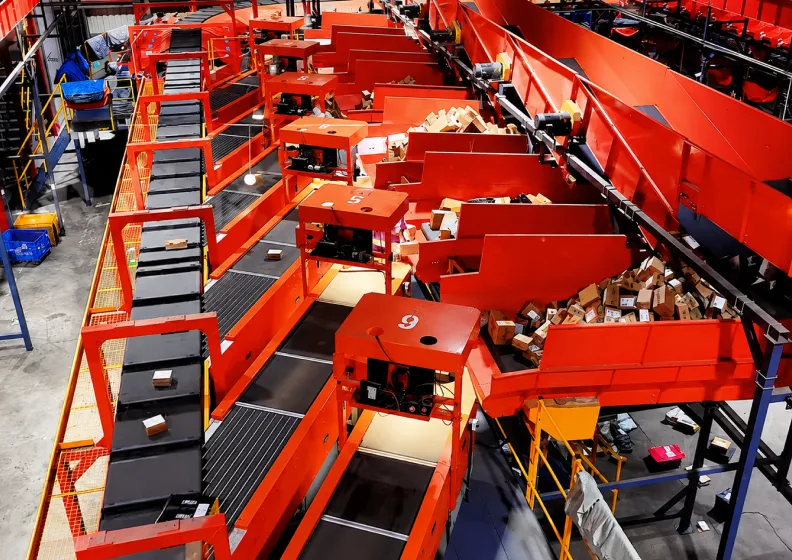

Applications
E-commerce Fulfillment
Handle high-volume e-commerce parcels with fast and accurate automatic sorting. Ideal for order consolidation, outbound parcel distribution, and peak-season fulfillment operations.
Courier & Express Distribution
Increase parcel throughput while reducing manual handling in regional and national courier sorting hubs. Designed for continuous operation under heavy daily parcel volumes.
3PL Warehouse Sorting
Support multi-client warehouse operations with flexible destination sorting for cartons, parcels, and poly bags. Easily adapt to changing order profiles and shipping requirements.
Retail Distribution Centers
Automate carton sorting for store replenishment, order consolidation, and outbound distribution. Improve shipping accuracy and reduce labor-intensive manual sorting.
Specifications
| Specification | Reference Parameter | Specification | Reference Parameter |
|---|---|---|---|
| Sorting Capacity | 8,000–12,000 parcels/hour | Operating Speed | 2–2.5 m/s |
| Sorting Error Rate | ≤0.03% | Barcode Recognition | 99.99% |
| Maximum Parcel Size | ≤1200 × 900 × 700 mm | Rated Parcel Load | 0.05–50 kg |
| Carrier Pitch | 200 / 300 mm | Belt Width | 800 / 1000 mm |
| Induction | Manual / Automatic | Sorting Configuration | Customized |
| Floor Space | Approx. 100–500 m² | Labor Reference | Approx. 4–5 operators |
| Identification | Barcode / DWS / OCR Integration | Control & Integration | PLC / WCS / WMS |
| Application | E-Commerce / Express / 3PL / Distribution | System Layout | Linear / Customized |
Why Choose YJ-INTL as Your Automation Partner
WCS & WMS Integration
Connect seamlessly with ERP, WMS, MES, and third-party logistics software.
Case Studies
Real-world deployments measured by the numbers they deliver.
All Projects
Quanzhou YTO Express Hub: Automated Narrow Belt Sorter Achieving 10,000 PPH Capacity
10,000 PPH99.99%50 kg4–5 Operators
To handle heavy seasonal parcel volume surges in coastal e-commerce centers, Quanzhou YTO Express Hub upgraded its sorting infrastructure with YJ-INTL's narrow belt sorter. Featuring unaligned blind infeed, multi-car linkage for bulky cargo, and precision side-discharge chutes, the line handles up to 10,000 parcels per hour with a 99.99% scan accuracy while requiring only 4-5 operators on site.
"In coastal manufacturing hubs like Quanzhou, parcel profiles range from tiny polybags to heavy footwear cartons. The YJ-INTL narrow belt sorter transformed our operations—allowing operators to drop mixed cargo onto the belt without manual pre-sorting. The multi-car linkage carries oversized bags effortlessly, and our labor footprint dropped from 12 workers to just 4 per shift."
Regional Operations Manager, Quanzhou YTO Express Distribution Hub
FAQ
The ideal model depends on parcel size, throughput, warehouse layout, destination quantity, and future expansion plans. Our engineering team provides customized recommendations.
Our systems support cartons, poly bags, parcels, and irregular packages with configurable size and weight ranges.
Yes. Our Narrow Belt Sorters support integration with WMS, WCS, ERP, MES, barcode scanners, DWS systems, and other warehouse software.
Yes. We provide complete engineering services including design, installation, commissioning, operator training, and after-sales support worldwide.
Standard systems are typically delivered within 30–60 days, while customized projects depend on system configuration and project scope.
Learn More About Narrow Belt Sorter
What Is a Narrow Belt Sorter?
A Narrow Belt Sorter is an automated parcel sortation system designed to transport and divert cartons, parcels, poly bags, and other packages to designated destinations with high speed and precision. Unlike manual sorting, a narrow belt sorter uses independently driven belts to gently transfer items onto branch conveyors or chutes, making it ideal for logistics hubs, e-commerce fulfillment centers, courier depots, and distribution warehouses.
Modern narrow belt sorting systems can be integrated with barcode scanners, DWS (Dimension, Weight & Scanning) systems, OCR cameras, WCS, and WMS platforms to automate the entire parcel handling process. Their modular structure also allows warehouses to expand sorting capacity as business grows without replacing the entire system.
How Does a Narrow Belt Sorter Work?
A Narrow Belt Sorter operates through a coordinated sequence of conveying, identification, tracking, and diversion. Parcels first enter the conveyor line, where barcode scanners or DWS systems automatically identify shipment information. The warehouse control system then determines the correct destination based on predefined sorting logic.
As each parcel reaches its assigned divert position, the independently controlled narrow belts gently move the package onto the corresponding takeaway conveyor or chute. This process enables continuous, high-speed sorting while maintaining excellent accuracy and minimizing product damage. The system supports real-time communication with warehouse software, providing complete visibility throughout the sorting process.
Benefits of Narrow Belt Sortation Systems
Implementing a Narrow Belt Sorter significantly improves warehouse productivity by increasing sorting speed while reducing manual labor requirements. Compared with traditional manual operations, automated narrow belt sortation delivers higher throughput, greater sorting accuracy, and more consistent performance during peak seasons.
Additional advantages include flexible system layouts, modular expansion, low maintenance requirements, and compatibility with a wide variety of package types, including cartons, parcels, poly bags, and irregular packages. Combined with intelligent warehouse software, narrow belt sorters help businesses optimize operational efficiency, lower labor costs, and improve customer satisfaction through faster order fulfillment.
How to Choose the Right Narrow Belt Sorter
Selecting the right Narrow Belt Sorter depends on several operational factors, including parcel dimensions, package weight, required throughput, available warehouse space, and the number of sorting destinations. Businesses should also evaluate future expansion plans, software integration requirements, and overall project ROI before selecting a system.
A professional warehouse automation provider will analyze your operational workflow and recommend the most suitable sorter configuration, conveyor layout, barcode identification technology, and control software. Choosing a scalable solution ensures that your warehouse can continue to grow while maintaining high sorting efficiency and long-term operational reliability.
