Narrow Belt Sorter

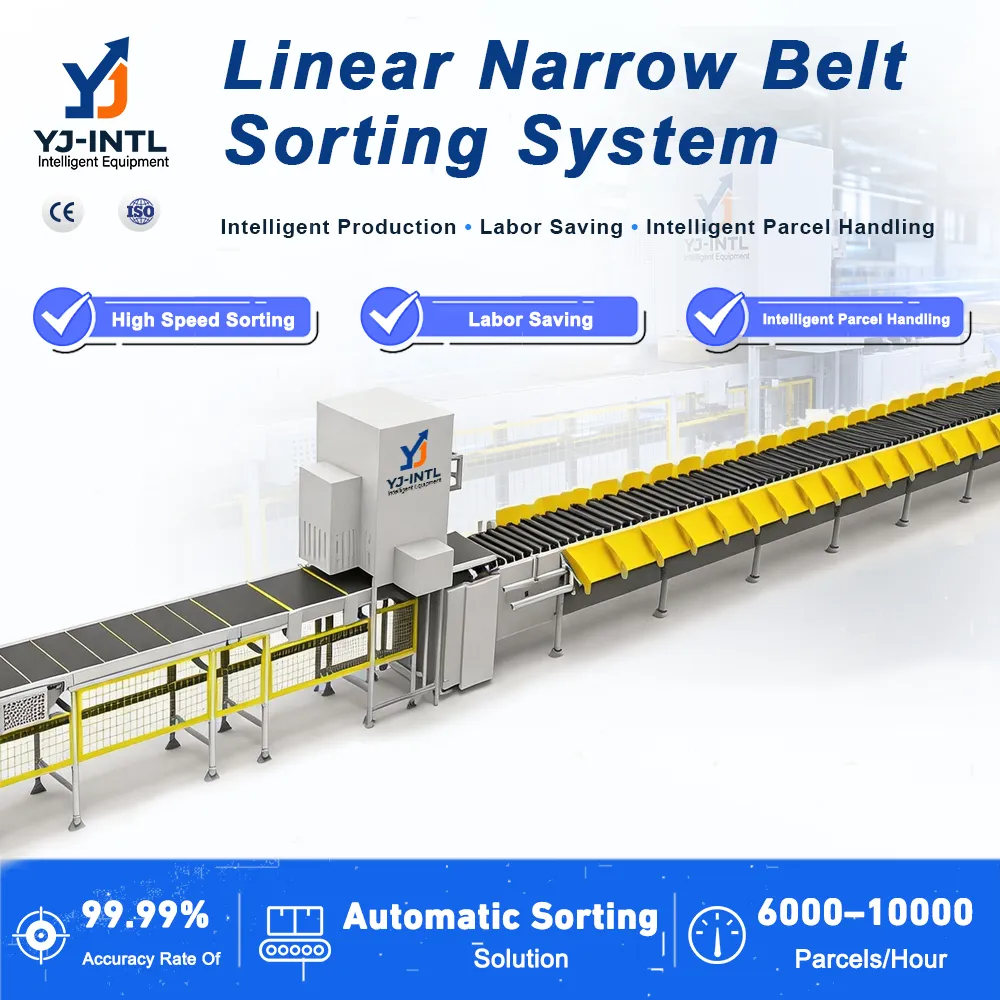

Multi-Destination Linear Narrow Belt Sorter
The YJ-INTL Multi-Destination Linear Narrow Belt Sorter is designed for distribution operations that need to separate a continuous flow of parcels into multiple destinations without relying on manual lane-by-lane sorting.
The system combines parcel induction, identification, carrier-based conveying and automated diverting in one linear sorting line. Its modular configuration allows the number and arrangement of sorting destinations to be adapted to the warehouse layout, parcel profile and downstream handling process.
- Multi-Destination Sorting
- 6,000–9,000 PPH Reference Capacity
- 152.4 mm Carrier Pitch
- 0.1–60 kg Parcel Range
- Up to 1,500 × 1,000 × 700 mm
- 90–180 m/min Variable-Speed Operation
- PLC-Based Automated Control
Technical Parameters
| Specification | Reference Value | Specification | Reference Value |
|---|---|---|---|
| Product Type | Multi-Destination Linear Narrow Belt Sorter | Sorting Application | Parcel Distribution |
| Reference Throughput | ≥6,000 pcs/h | Maximum Reference Throughput | Up to 9,000 pcs/h |
| Operating Speed | 90–180 m/min | Carrier Pitch | 152.4 mm |
| Parcel Weight | 0.1–60 kg/pc | Minimum Parcel Size | 100 × 100 × 10 mm |
| Maximum Parcel Size | 1,500 × 1,000 × 700 mm | Power Supply | 48V DC |
| Drive Method | Variable-Speed Motor + Gear Transmission | Control | PLC-Based |
| Sorting Destinations | Customized | Induction | Manual / Automated |
| Identification | Barcode / OCR / DWS Integration | Downstream | Chute / Conveyor / Cage / Bag |
| Operating Temperature | -10°C to 45°C | Noise Level | ≤76 dB |
| Main Motor | SEW / NORD or Equivalent | PLC | Siemens or Customer-Specified |
| Sensors | SICK or Equivalent | Low-Voltage Components | Schneider or Customer-Specified |
Details
Product Overview
The YJ-INTL Multi-Destination Linear Narrow Belt Sorter is designed for distribution operations that need to separate a continuous flow of parcels into multiple destinations without relying on manual lane-by-lane sorting.
The system combines parcel induction, identification, carrier-based conveying and automated diverting in one linear sorting line. Its modular configuration allows the number and arrangement of sorting destinations to be adapted to the warehouse layout, parcel profile and downstream handling process.
Rather than treating the sorter as an isolated machine, YJ-INTL engineers the complete material flow around the induction rate, parcel spacing, destination quantity, chute arrangement and downstream conveyor capacity.
This approach is important because the actual performance of a sorter depends not only on its mechanical speed, but also on parcel characteristics, induction efficiency, spacing and destination distribution.
Suitable Parcel Types
This narrow belt sorting configuration can be engineered for a mixed parcel stream, including:
- Cartons
- Polybags
- Soft packages
- Flat parcels
- Small and medium cartons
- Retail packages
- E-commerce orders
- Express parcels
- Mixed-size packages
- Suitable irregular parcels
For unstable, deformable or unusually shaped items, representative parcel testing should be completed before final equipment selection.
Core Value Proposition
- Peak Throughput Capability: Handles 80,000+ parcels per day smoothly during high-volume peak periods.
- Ultra-High Sorting Precision: Achieves an industry-leading 99.9% accuracy rate, virtually eliminating mis-sorting and return costs.
- Labor Reduction: Cuts manual sorting personnel requirements by up to 70%, drastically reducing long-term operational overhead.
- Global Compliance & Quality: Built in our certified smart manufacturing facility with CE, RoHS, and FCC international certifications.
Applications & Industry Deployment

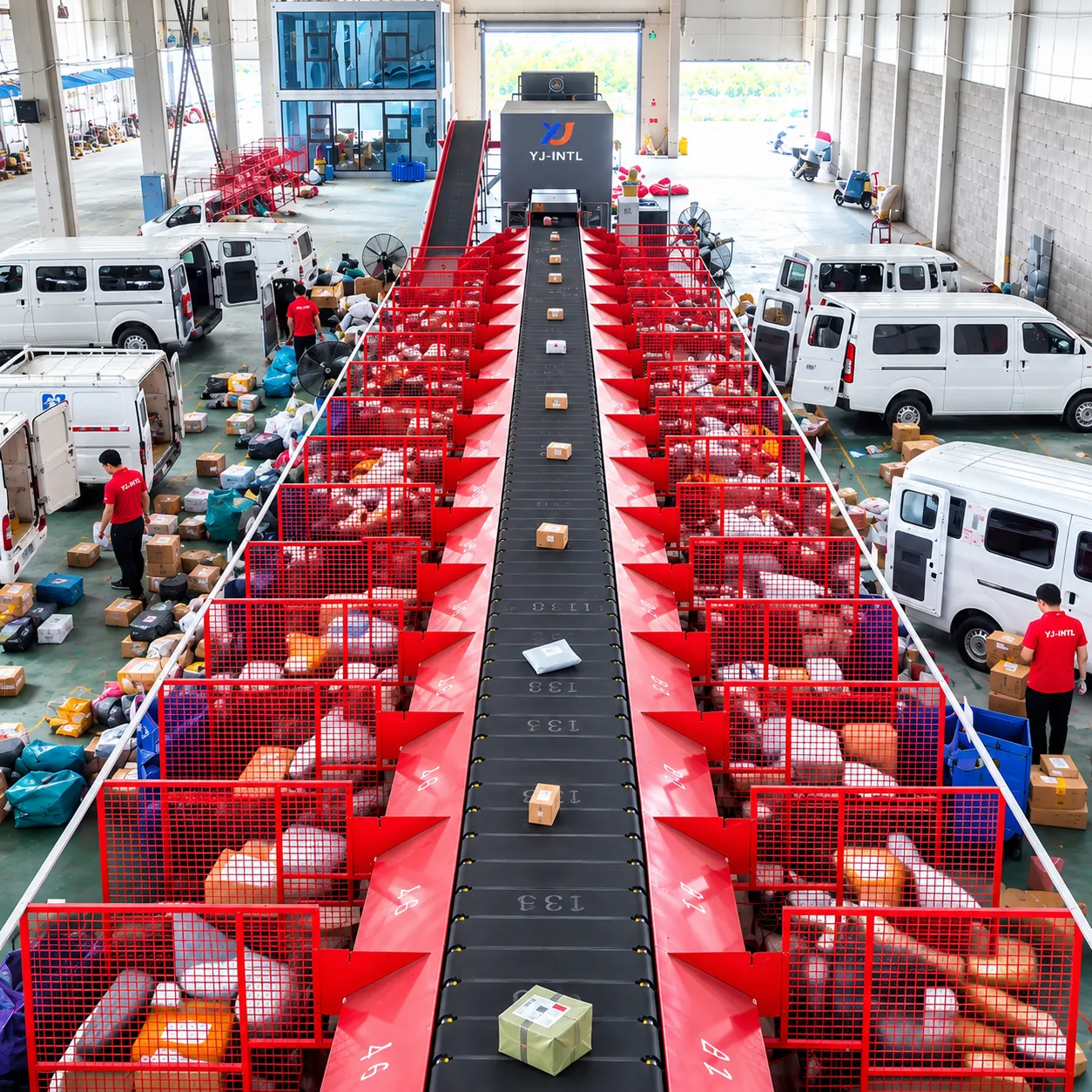

Express Delivery Hubs & Outlets: Designed to handle massive daily parcel pressure during peak hours, reducing sorting times for regional delivery vans.
E-Commerce Fulfillment Centers: Ideal for multi-SKU online retailers processing high volumes of clothing poly bags, small boxed electronics, and packaged consumer goods.
Third-Party Logistics (3PL) Warehouses: Provides flexible routing configurations to sort mixed client inventories into distinct carrier or postal chutes quickly.
Cross-Border Logistics Depots: Works seamlessly in customs clearance centers where speed, accurate barcode tracking, and weight verification are paramount.
The Direct Source Factory Advantage (YJ-INTL)
When investing in core warehouse automation, purchasing directly from the original equipment manufacturer (OEM) ensures technical superior quality, long-term stability, and maximum cost efficiency:
- In-House R&D & Manufacturing: From mechanical engineering and sheet metal fabrication to PLC programming and final assembly, every component is crafted under rigorous ISO quality standards.
- Extensive Patent Portfolio: Supported by national high-tech enterprise recognition and numerous automation patents.
- Direct Factory Pricing (No Middleman Markup): Eliminate broker and distributor markups. Receive original factory quotes directly from our manufacturing base.
- End-to-End OEM/ODM Customization: We customize layout drawings, chute quantities, belt widths, and system footprints to fit your existing warehouse structure.
- Global After-Sales & Engineering Support: Overseas project deployment guidance, remote diagnostic support, and lifetime spare parts availability.
FAQ
A multi-destination linear narrow belt sorter is an automated parcel sorting system that transports parcels along a linear sorting line and diverts them automatically to different destination chutes or downstream conveyors according to their assigned sorting information.
The reference configuration provides a throughput of approximately 6,000 pieces per hour, with a maximum reference capacity of up to 9,000 pieces per hour. Actual throughput depends on parcel size, spacing, induction efficiency, destination distribution and downstream capacity.
The reference parcel envelope ranges from approximately 100 × 100 × 10 mm to 1,500 × 1,000 × 700 mm. Final parcel compatibility should be confirmed according to actual product characteristics.
The reference configuration supports parcels from approximately 0.1 kg to 60 kg per piece. Final load capability should be verified according to parcel dimensions, center of gravity and operating conditions.
The number of destinations is not fixed. The sorting line can be designed with different chute and discharge configurations according to the customer's destination requirements and available space.
Yes. The system can be engineered for mixed cartons, polybags, flat packages and other suitable parcel types. Representative parcel testing is recommended for unstable or irregular products.
Yes. Barcode scanning and DWS equipment can be integrated into the material-flow system so that parcel identity, dimensions and weight can be used as part of the sorting process.
Yes. The sorter can be connected with WMS, WCS, ERP, MES and PLC-based control architectures according to the project interface requirements.
For a preliminary quotation, provide parcel dimensions and weight range, average and peak throughput, number of destinations, warehouse layout, induction method, barcode information, downstream process and WMS/WCS requirements.
Yes. YJ-INTL can provide project-based engineering services covering system design, equipment integration, installation and commissioning. The exact scope depends on the project location, equipment configuration and contract requirements.
