Parcel Processing

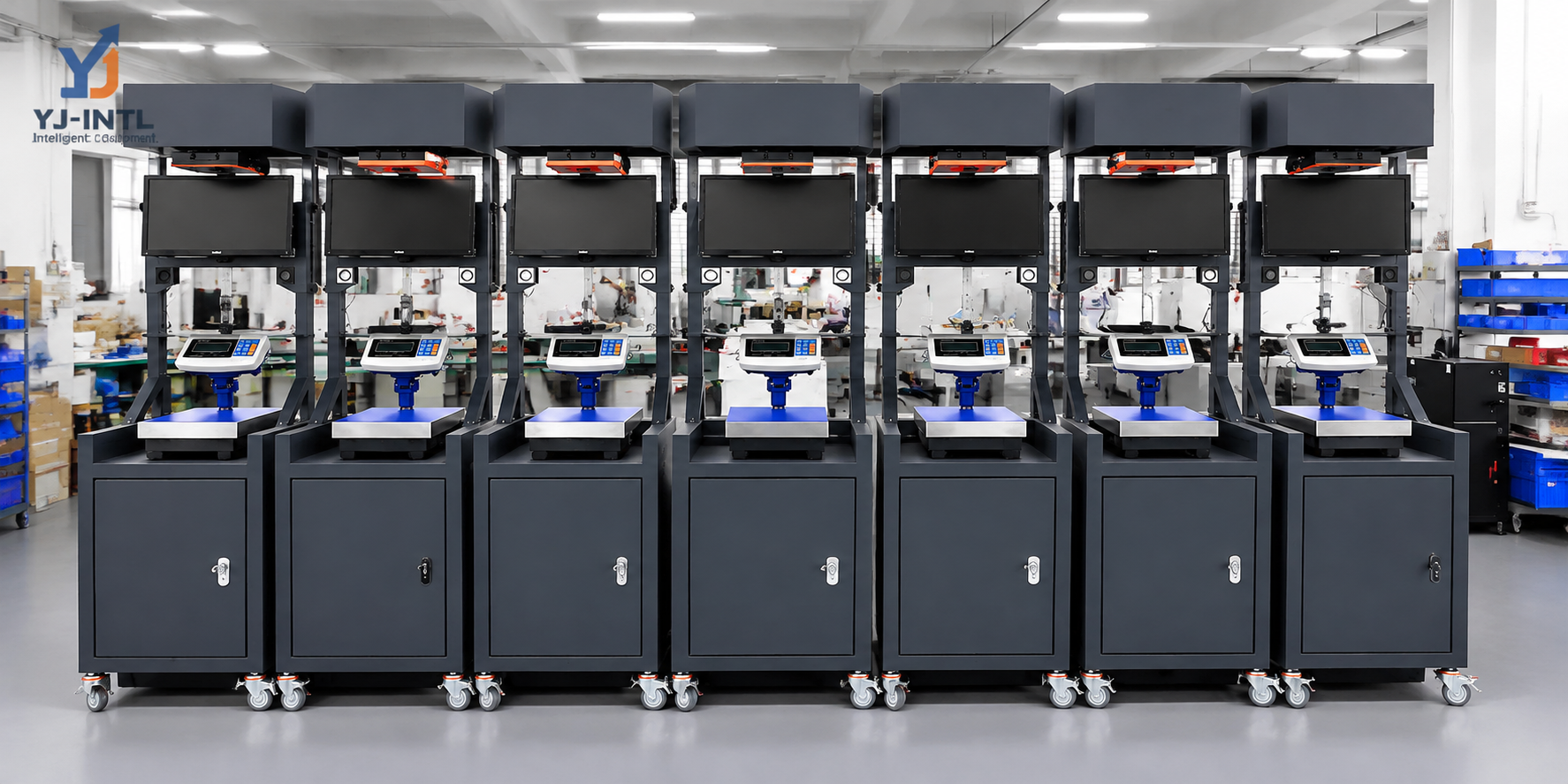

Small DWS System | Static Dimension Weight Scanning Solution
Compact DWS Solution for Efficient Parcel Data Collection
YJ-INTL Small DWS System (Static DWS) is a compact dimension, weight and barcode scanning solution designed for small and medium-volume logistics operations, e-commerce fulfillment centers and express stations. It automatically collects parcel data to improve accuracy and reduce manual measurement.
Static DWS 8-Chute Sorting System for Multi-Destination Parcel Processing
The Static DWS 8-Chute Sorting System is the highest-destination configuration in this static DWS product range, combining parcel identification, weighing, dimension measurement, image capture and automated sorting. With eight sorting outlets , it is designed for operations that need more complex route classification while maintaining a compact station-based architecture. The supplied product materials specify up to 3,000 parcels/hour , support for parcels from 100 g to 15 kg , ±50 g weighing accuracy , ±10 mm dimension accuracy , <0.01% mis-sort rate and operation at up to 1.5 m/s for the listed configuration
Static DWS 6-Chute Sorting System | 3,000 Parcels/Hour
The Static DWS 6-Chute Sorting System integrates parcel identification, dimension measurement, weighing and automatic sorting into one compact solution. With six sorting destinations , the system provides greater routing flexibility than two- or four-destination configurations while remaining suitable for small and medium logistics facilities. The supplied product materials specify up to 3,000 parcels/hour , a 100 g–15 kg parcel range, ±50 g weighing accuracy , ±10 mm dimension accuracy and a mis-sort rate of less than 0.01% for the listed configuration
Static DWS 4-Station Sorting System for Parcel Processing
The Static DWS 4-Station Sorting System combines parcel measurement and four-destination classification within one compact processing line. The system is designed for operations where parcels need to be identified, weighed, dimensioned and then separated into four downstream routes . Compared with a standalone DWS station, it adds physical destination sorting; compared with a larger six- or eight-port system, the four-station layout keeps the equipment footprint and sorting logic more manageable. The product positioning is especially suitable for small-to-medium logistics and e-commerce operations. The source catalog describes the static 4-station concept as an integrated solution combining dimension measurement, weighing, barcode scanning and automatic sorting.
Static 2-Port DWS System for Parcel Measurement and Sorting
The Static 2-Port DWS System combines parcel identification and measurement with two downstream sorting destinations. It is designed for applications where a full multi-chute sorting line is unnecessary, but the warehouse still needs to separate parcels into two clearly defined processing routes. The two-port configuration provides a practical middle ground between a standalone DWS workstation and a larger multi-destination sorting system, making it suitable for compact logistics stations, smaller fulfillment operations and simple outbound classification.
Wholesale Static Parcel Dimensioning, Weighing, and Scanning System
Static DWS Machine is a compact parcel data acquisition station designed to capture key parcel information before downstream handling or sorting. The system combines barcode scanning, weighing and dimension measurement into one workstation, allowing operators to obtain structured parcel data without moving the package through multiple independent measurement devices. The supplied product material specifies a reference weighing capacity of up to 50 kg , a 500 × 500 mm weighing platform , approximately ±50 g weighing accuracy and ±5 mm dimensioning accuracy for the standard configuration shown in the source materia.

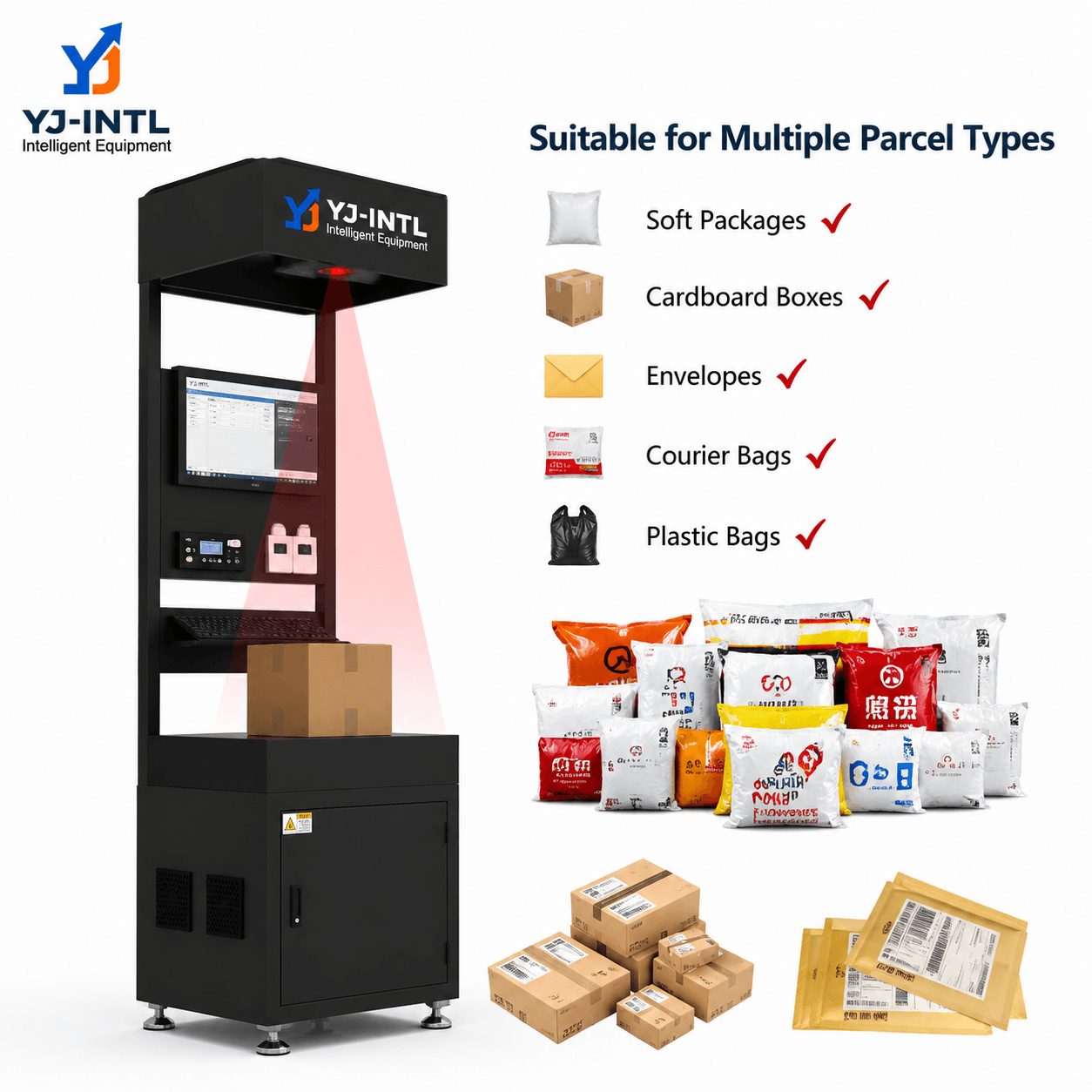

Applications of Small DWS System
E-Commerce Fulfillment Centers
Automated parcel measurement and data collection for online order fulfillment.
Express Delivery Stations
Compact solution for courier stations requiring accurate parcel information.
Small Logistics Warehouses
Improves parcel processing efficiency with limited installation space.
Technical Specifications of YJ-INTL Small DWS System
| Specification | Details | Specification | Details |
|---|---|---|---|
| Sorting Efficiency | 3000 pcs/hour | Sorting Type | Wheel Sorter, Sliding Shoe Sorter, Cross Belt Sorter |
| Voltage | 380V / 220V / 110V | Belt Material | Stainless Steel |
| Speed | Adjustable | Special Feature | Durable & Long Service Life |
| Power (W) | Other | Warranty | 1 Year |
| Condition | New | Applicable Industries | Restaurants, Food & Beverage Processing, Retail, Warehouse, Logistics |
| Brand | YJ-INTL | Place of Origin | Guangdong, China |
| Model Number | YJ-SD-003 | Product Name | Static DWS Machine |
| Scanning Position | Top Scanning | Weighing Capacity | 100g ~ 15kg |
| System Overall Misreading Rate | <0.01% Error Rate | Conveyor Speed | 0–1.5 m/s |
| Dimensioning Accuracy | ±10 mm | Processing Efficiency | 3000 pcs/hour |
| Functions | Dimensioning, Weighing, Barcode Scanning, Photo Capture, Sorting | MOQ | 1 Unit |
| Application | E-commerce Warehouse |
Why Choose YJ-INTL Small DWS System？

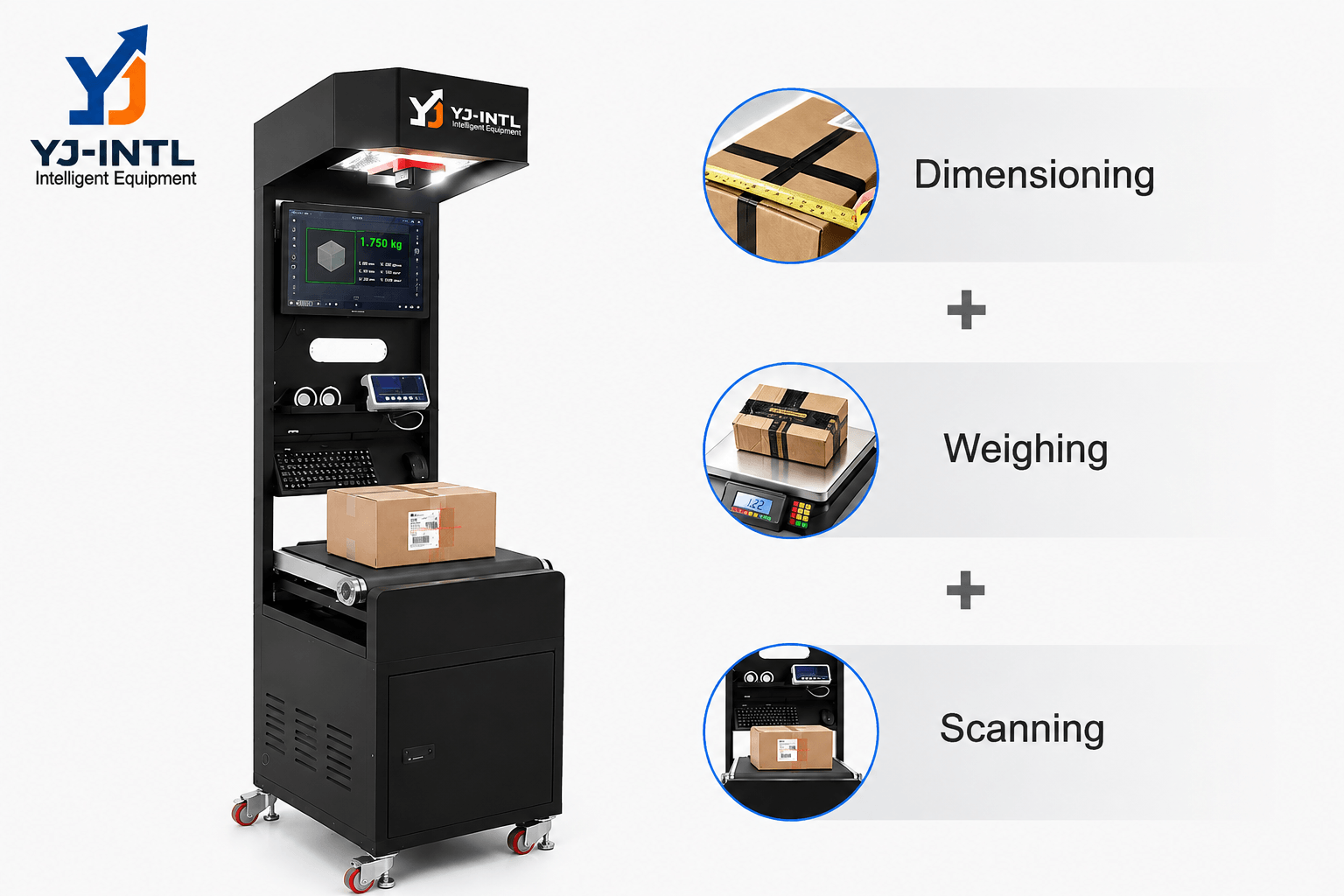

All-in-One Data Collection
Integrates dimensioning, weighing, barcode scanning, and image capture to provide complete parcel information in one process.
Case Studies
Real-world deployments measured by the numbers they deliver.
All Projects
Quanzhou YTO Express Hub: Automated Narrow Belt Sorter Achieving 10,000 PPH Capacity
10,000 PPH99.99%50 kg4–5 Operators
To handle heavy seasonal parcel volume surges in coastal e-commerce centers, Quanzhou YTO Express Hub upgraded its sorting infrastructure with YJ-INTL's narrow belt sorter. Featuring unaligned blind infeed, multi-car linkage for bulky cargo, and precision side-discharge chutes, the line handles up to 10,000 parcels per hour with a 99.99% scan accuracy while requiring only 4-5 operators on site.
"In coastal manufacturing hubs like Quanzhou, parcel profiles range from tiny polybags to heavy footwear cartons. The YJ-INTL narrow belt sorter transformed our operations—allowing operators to drop mixed cargo onto the belt without manual pre-sorting. The multi-car linkage carries oversized bags effortlessly, and our labor footprint dropped from 12 workers to just 4 per shift."
Regional Operations Manager, Quanzhou YTO Express Distribution Hub
FAQ
Static DWS System is an automated dimension, weight and barcode scanning solution designed for manual loading or stationary parcel measurement applications. Operators place parcels on the scanning platform, and the system automatically captures package dimensions, weight and barcode information through cameras, sensors and intelligent software. The collected data can be transferred to warehouse management systems for shipping calculation and operational management.
The main difference is the measurement process. Static DWS systems measure parcels while they are stationary, making them suitable for small warehouses, express stations and applications requiring high measurement accuracy with flexible operation. Dynamic DWS systems measure parcels while moving on conveyors and are mainly used for high-throughput automated sorting lines.
The suitable Static DWS model depends on parcel size range, weight range, daily processing volume, required measurement accuracy and integration requirements. YJ-INTL provides customized recommendations based on customer workflow, warehouse conditions and automation goals.
Yes. Static DWS systems can be configured to measure different package dimensions, weights and shapes. They are commonly used for e-commerce parcels, express packages, cartons and irregular items where accurate dimension and weight data collection is required.
Yes. YJ-INTL Static DWS systems support integration with WMS, ERP and warehouse management platforms through standard communication interfaces such as API and TCP/IP. This enables automatic data transmission for order processing, shipping management and logistics optimization.
Before solution design, customers should provide information including parcel size and weight range, daily processing volume, barcode requirements, existing warehouse workflow, software integration needs and installation space. Based on these details, YJ-INTL engineers can recommend a suitable configuration.
Static DWS systems require regular cleaning of cameras and sensors, checking weighing accuracy and verifying software communication. YJ-INTL provides technical guidance and after-sales support to help customers maintain stable long-term operation.
What Is a Static DWS System?
Static DWS System (Dimension Weight Scanning System) is an automated parcel measurement solution that captures package dimensions, weight and barcode information without manual recording.
Unlike traditional manual measurement methods, Static DWS improves data accuracy, reduces human errors and helps logistics companies optimize shipping, billing and warehouse operations.
It is widely used in:
- E-commerce fulfillment centers
- Express delivery stations
- Small and medium warehouses
- Third-party logistics operations
Workflow:
Parcel Placement → Dimension Measurement → Weight Collection → Barcode Recognition → Data Upload → Warehouse Management
Benefits of Using Static DWS in Logistics Operations
Improve Measurement Accuracy
Manual measurement can result in inconsistent data. Static DWS provides standardized dimension and weight information for every parcel.
Reduce Labor Costs
Automated data collection minimizes repetitive measurement tasks and allows employees to focus on higher-value operations.
Optimize Shipping Cost Calculation
Accurate parcel dimensions and weight help logistics providers calculate transportation costs more efficiently.
Support Warehouse Digitalization
Static DWS provides reliable data input for WMS, ERP and warehouse automation systems.
