Static DWS 6-Chute Sorting System
Static DWS 6-Chute Sorting System | 3,000 Parcels/Hour

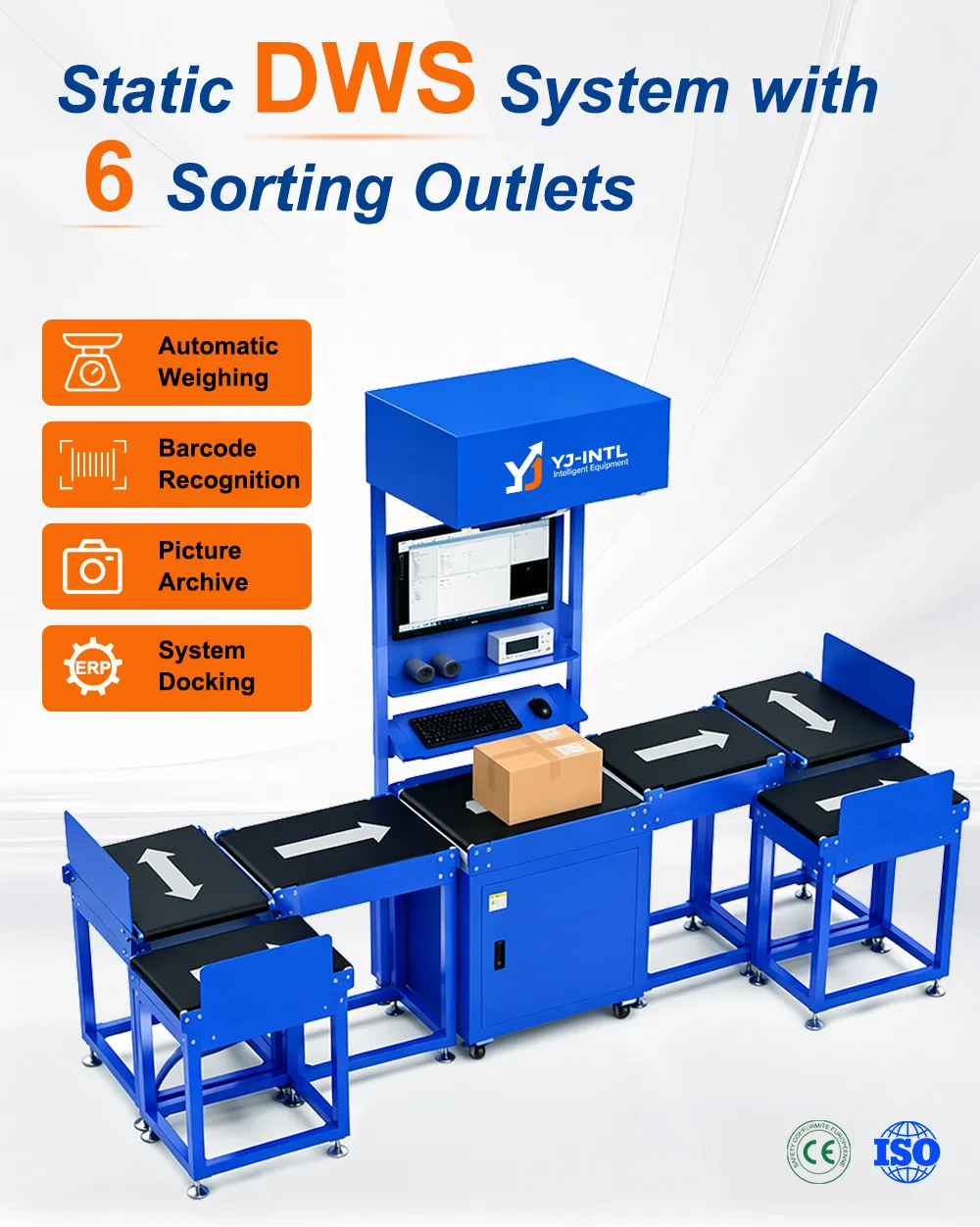

The Static DWS 6-Chute Sorting System integrates parcel identification, dimension measurement, weighing and automatic sorting into one compact solution.
With six sorting destinations, the system provides greater routing flexibility than two- or four-destination configurations while remaining suitable for small and medium logistics facilities. The supplied product materials specify up to 3,000 parcels/hour, a 100 g–15 kg parcel range, ±50 g weighing accuracy, ±10 mm dimension accuracy and a mis-sort rate of less than 0.01% for the listed configuration
- 6 Sorting Chutes
- Up to 3,000 Parcels/Hour
- 100g–15kg Weight Range
- ±50g Weighing Accuracy
- ±10mm Dimension Accuracy
- <0.01% Mis-Sort Rate
- Barcode Scanning
- WMS / WCS / ERP Integration
Specifications Table
| Parameter | Specification |
|---|---|
| Product Type | Static DWS 6-Chute Sorting System |
| Sorting Capacity | Up to 3,000 pcs/hour |
| Weight Range | 100 g–15 kg |
| Weighing Accuracy | ±50 g |
| Dimension Accuracy | ±10 mm |
| Mis-Sort Rate | <0.01% |
| Conveyor Speed | 0–1.5 m/s |
| Scanning Position | Top Scanning |
| Functions | Dimensioning + Weighing + Scanning + Sorting + Photo Capture |
| System Integration | API / WMS / WCS / ERP |
Details
Six-Destination Static DWS Sorting
Designed specifically for small-to-medium fulfillment centers, regional hubs, and express logistics stations, the 6-Destination Static DWS System balances high-efficiency sorting with a remarkably compact footprint. By combining multi-dimensional data capture with six customizable output chutes, it replaces multiple manual processing stations with a single, highly automated workflow.

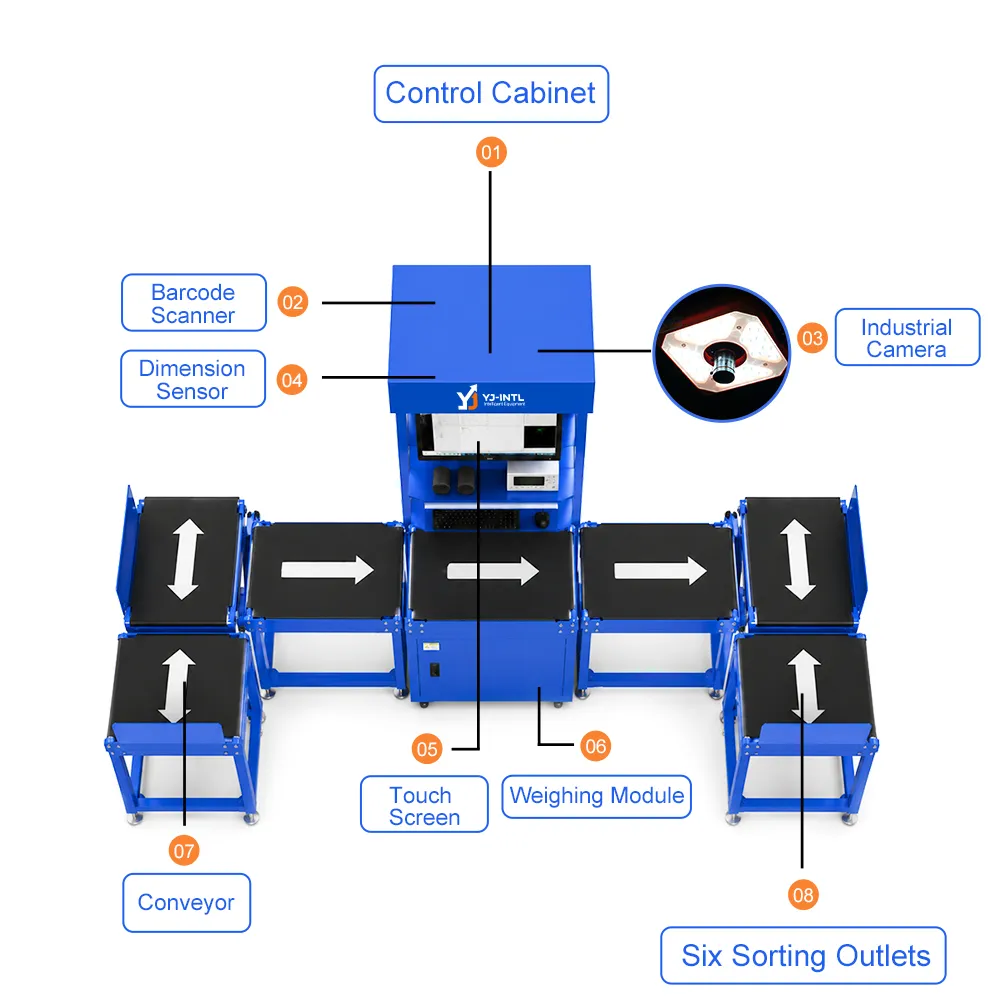

Core Functionality & All-In-One Data Capture
- Single-Pass Data Collection: Barcode reading, dynamic weighing, volume measurement, and high-resolution photo archiving occur simultaneously in under one second per item.
- Unified Data Logging: Converts fragmented metrics into a single, verifiable digital record (ID, weight, dimensions, timestamp, and image) to eliminate manual entry errors and resolve customer shipping disputes instantly.

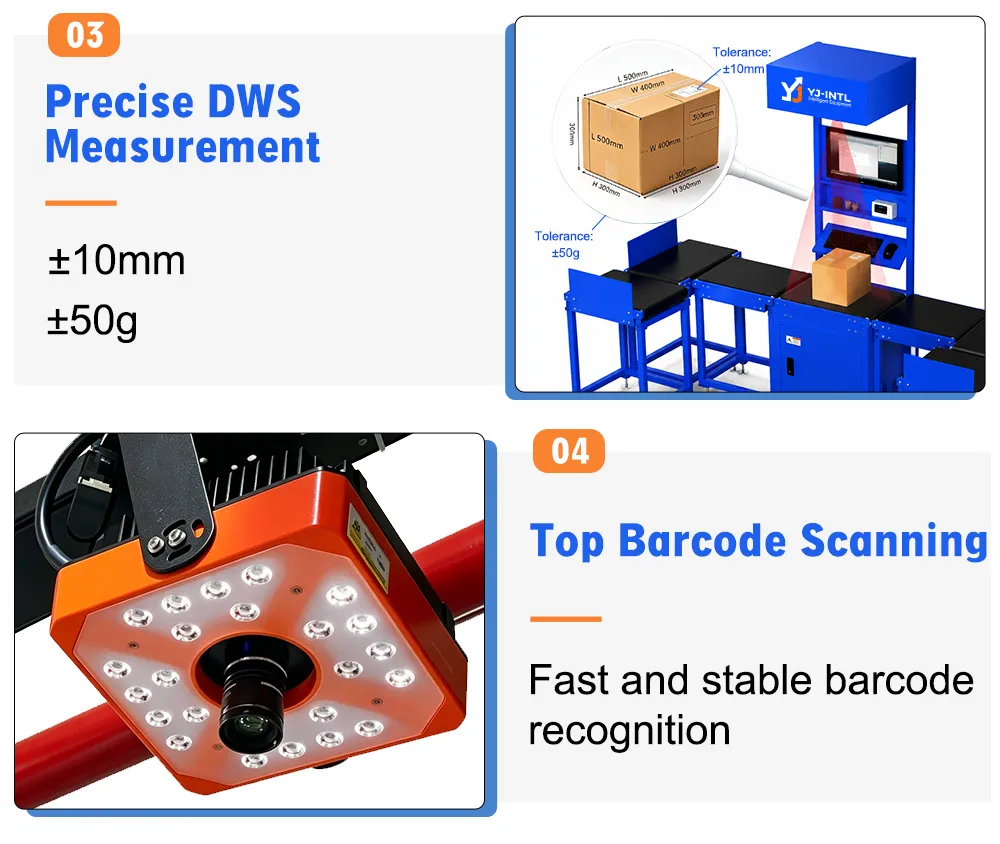

- Industrial Vision System: Equipped with high-performance overhead cameras capable of scanning low-contrast, damaged, or distorted barcodes across varied package surfaces.

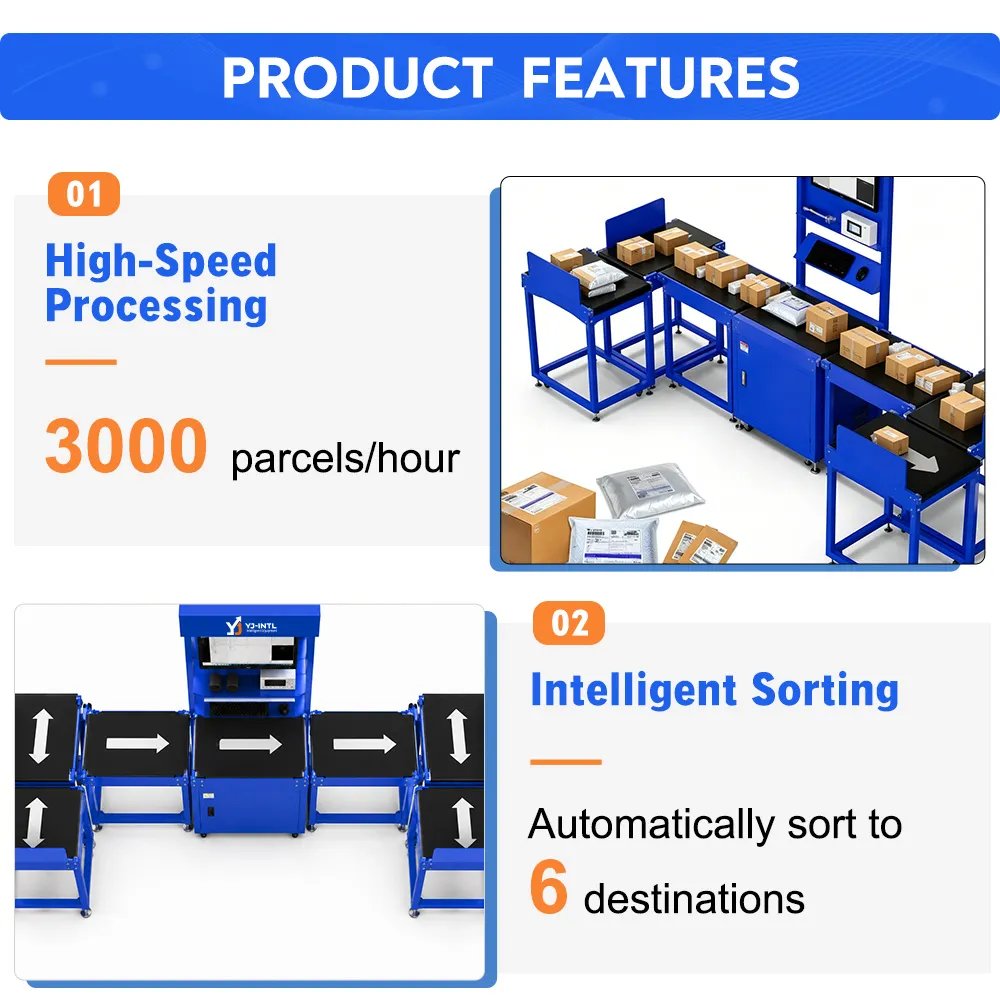

Six-Chute Flexible Routing
The integrated six-outlet bin layout gives operations the freedom to categorize inventory dynamically based on real-time operational needs:
- Postal & Courier Zone: Sort by specific carrier, zip code, or last-mile delivery route.
- Service Level: Separate express, standard, and overnight parcels.
- Exception Handling: Automatically isolate unreadable barcodes, oversized items, or weight discrepancies without stopping the primary line.
- Custom Profiles: Group orders by merchant, SKU type, or fulfillment priority.
Key Advantages & ROI Impact
- Maximized Floor Space Utilization: Delivers the sorting capabilities of larger automated lines while maintaining a minimal static footprint—ideal for facilities with limited square footage.
- Seamless Enterprise Integration: Native API connectivity allows plug-and-play synchronization with existing WMS, WCS, and ERP software platforms for real-time inventory tracking.
- Lower Labor Overhead: Consolidates measuring, weighing, scanning, and physical sorting into one operator station, drastically cutting labor requirements and training time.
- Ergonomic Maintenance-Friendly Build: Designed with modular parts, quick-release components, and an accessible layout for hassle-free routine maintenance and minimal operational downtime.
Why Partner with YJ-INTL?
- R&D Excellence & Custom Innovation As an industry-leading manufacturer with strong in-house R&D and design capabilities, we deliver tailored logistics and automation solutions built on a mature, scalable supply chain.
- Turnkey Warehousing & Sorting Solutions We specialize in high-precision DWS (Dimensioning, Weighing, Scanning) systems, automated sorting lines, and end-to-end smart warehousing setups that streamline your operations.
- Patented Quality & Proven Compliance Backing every build with extensive international certifications and technical patents, we guarantee industrial-grade reliability and regulatory compliance.
- Ergonomic & User-Centric Engineering Our upgraded machine designs prioritize operator comfort and spatial efficiency, ensuring effortless installation, minimal downtime, and simplified routine maintenance.
- Dedicated 24/7 Global Support Driven by an agile, energetic engineering and sales team, we provide round-the-clock technical assistance and responsive after-sales service worldwide.
FAQ
The specified parcel weight range is 100 g to 15 kg.
The listed configuration specifies ±50 g weighing accuracy and ±10 mm dimension accuracy.
The supplied product information specifies a mis-sort rate of less than 0.01%.
Yes. Photo capture is included in the listed system functions.
Yes. API connectivity can support integration with WMS, WCS, ERP and logistics management platforms.
Typical applications include e-commerce warehouses, express delivery stations, distribution centers and small-to-medium logistics facilities.
