Sortation Systems

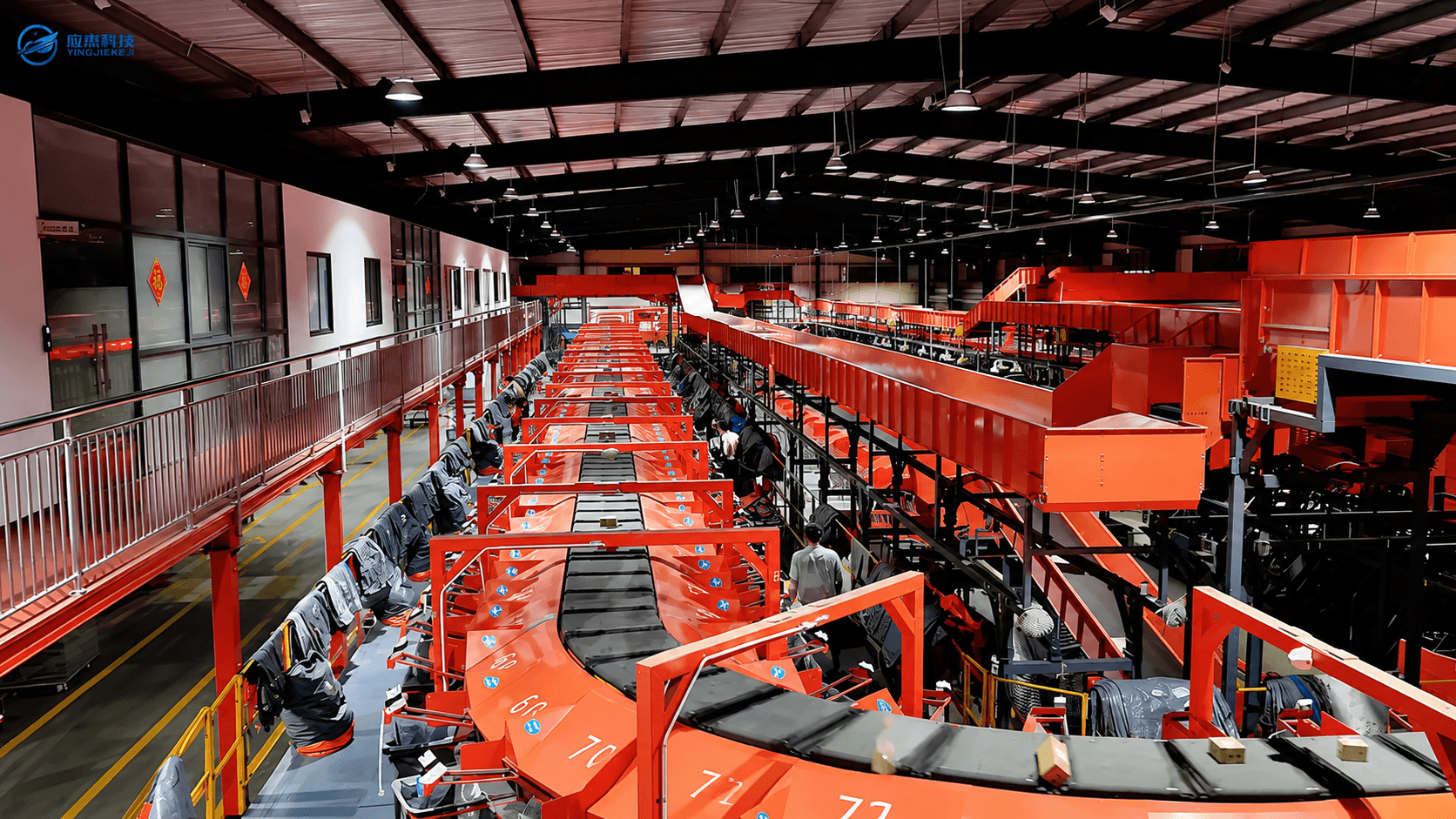

Cross Belt Sorter Systems

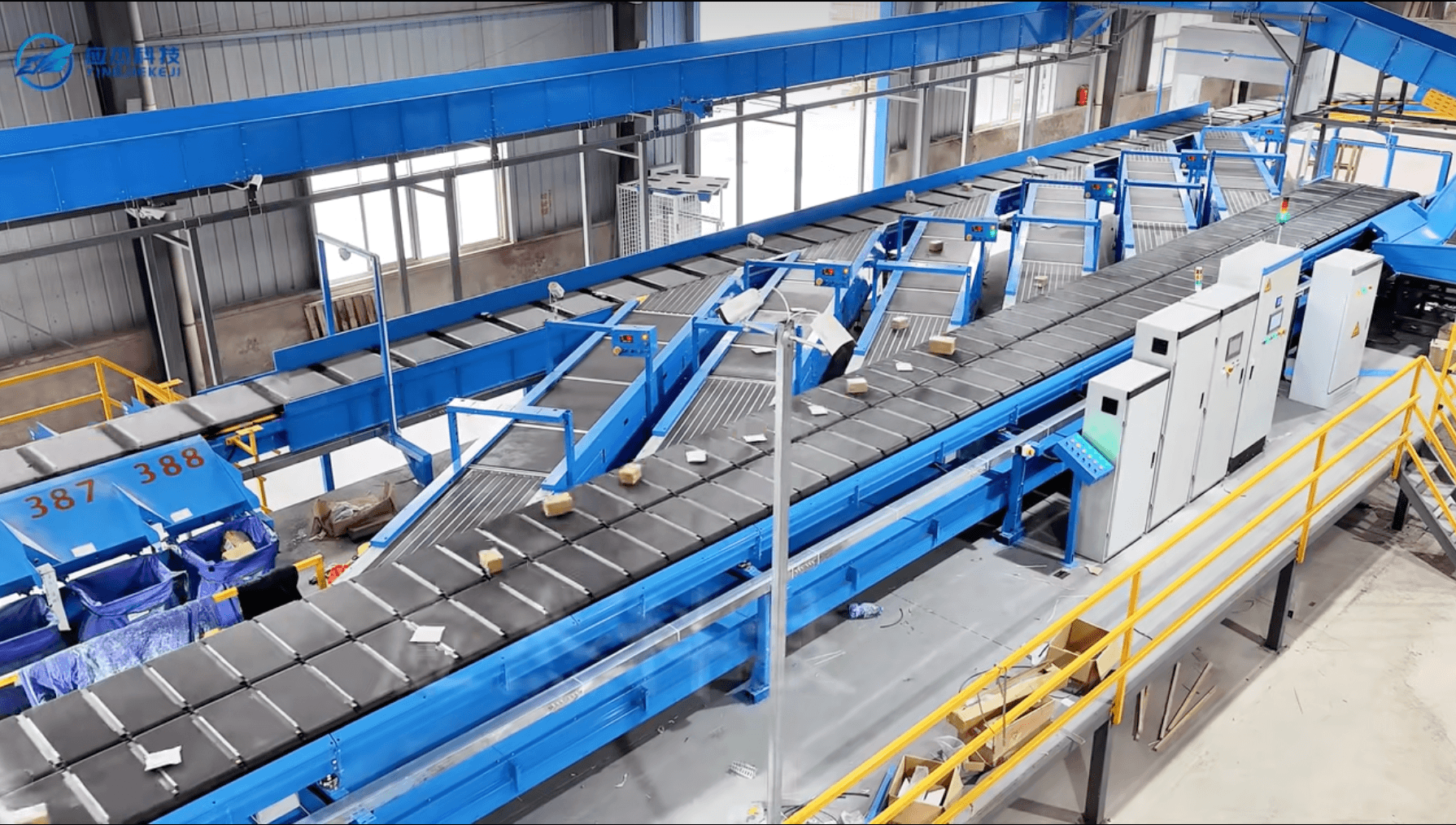

High-Speed Cross Belt Sortation for Intelligent Logistics Automation
YJ-INTL Cross Belt Sorter is an advanced automated parcel sorting solution designed for high-volume logistics hubs, e-commerce fulfillment centers, express delivery networks, and distribution warehouses. The system uses independently controlled carrier belts to achieve precise parcel diverting and supports cartons, poly bags, envelopes, and irregular packages.
With modular mechanical design, intelligent control technology, and integration capability with DWS, barcode scanning, WMS and WCS platforms, YJ-INTL helps customers build scalable and reliable warehouse automation systems.
Our Cross Belt Sorter Systems

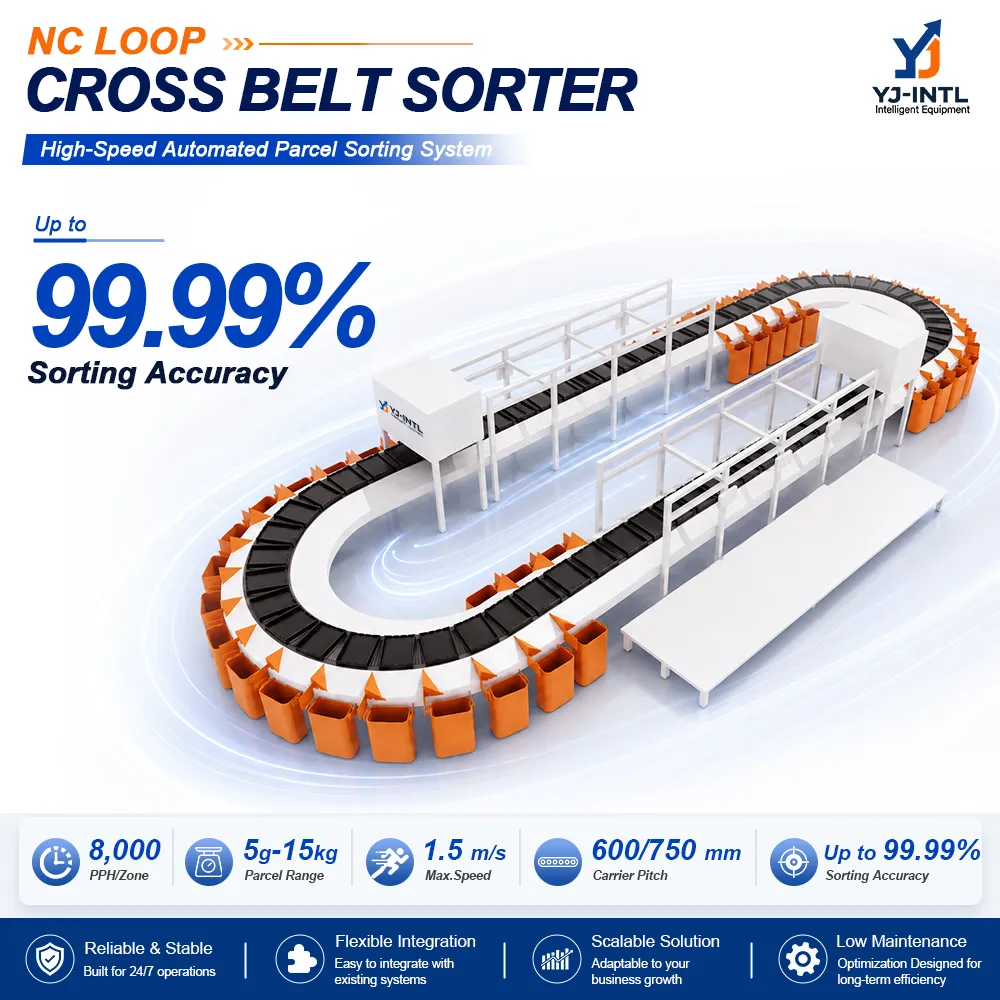

NC Loop Cross-Belt Sorter for Irregular Parcels
The NC Loop Cross-Belt Sorter uses a fixed NC tray-cart with a bi-directional short conveyor belt instead of a traditional tray-tilting mechanism. The result is a continuous closed-loop sorting platform designed to accommodate mixed parcel formats, including soft and stable irregular-shaped packages, while providing controlled lateral discharge to multiple destinations.

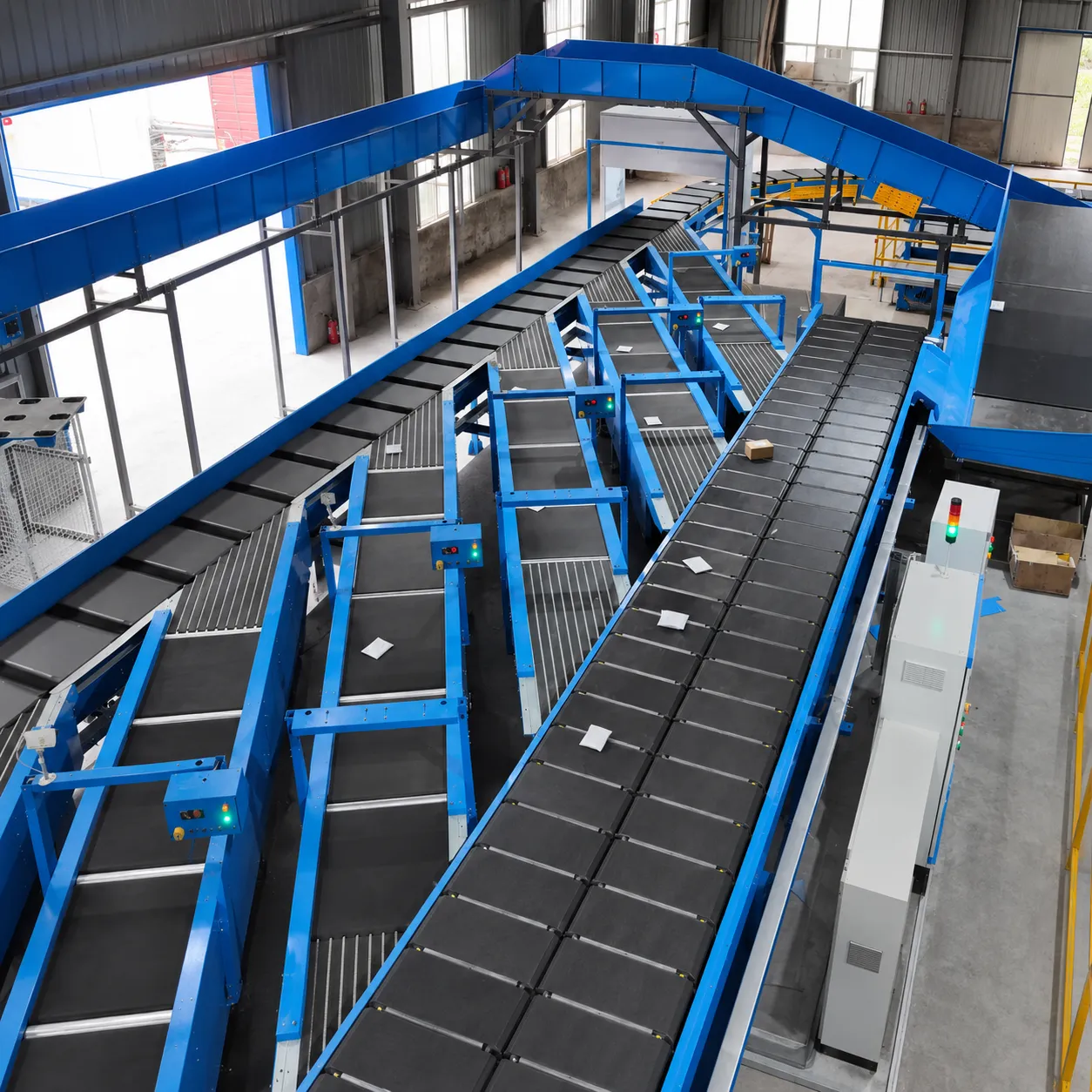

Dual-Channel Automatic Parcel Feeding System
YJ-INTL Dual-Channel Automatic Parcel Feeding System is designed to automate parcel feeding before the sorting process, helping logistics hubs continuously and efficiently transfer parcels into automated sorting lines. The dual-channel configuration provides greater feeding capacity and flexible material flow for express parcels, e-commerce packages, polybags, cartons and other common parcel types. The system can be integrated with conveyors, barcode scanning, DWS and automated sorting equipment to create a complete parcel-processing workflow.

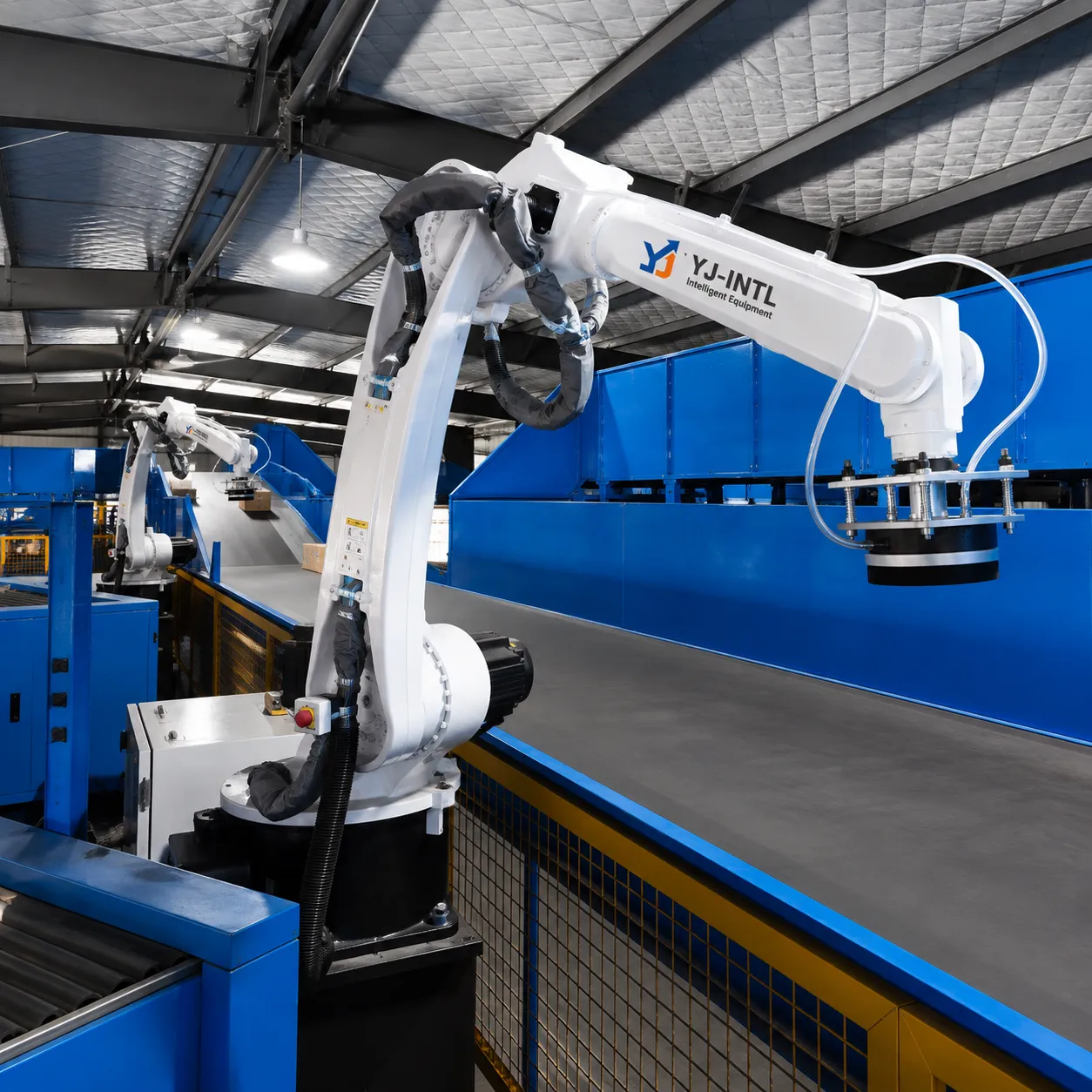

Robotic Parcel Induction System for Automated Parcel Sorting
The Robotic Parcel Induction System automates parcel feeding into sorting and conveying lines with robotic handling technology. Designed for high-volume logistics operations, it reduces manual handling while maintaining a continuous and organized parcel flow. The industrial robotic arm is equipped with a high-precision 3D vision camera and flexible gripping components, enabling 3D object positioning and recognition, posture determination, and flexible, non-destructive gripping. It is widely applicable to various scenarios such as unmanned parcel feeding, sorting and loading, and workpiece handling in express logistics.

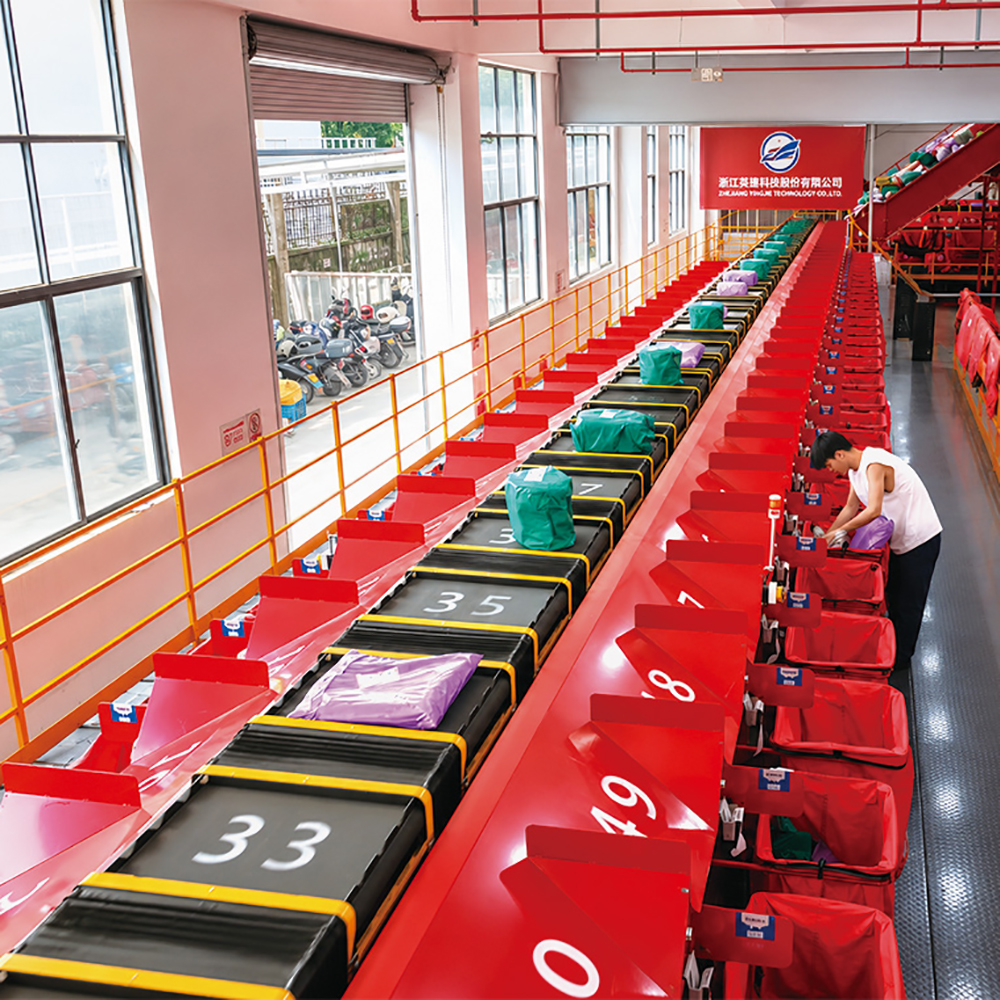

NC Loop Cross Belt Sorter | High-Speed Automated Parcel Sorting System
The core of the all-category cross-belt sorter lies in its unique NC tray-cart. It eliminates the traditional tray-tilting mechanism, instead featuring a fixed platform equipped with a bi-directional short conveyor belt (fitted with baffles). This design enables precise, bi-directional sorting and removes strict limitations regarding item shape—effectively handling soft packages and irregularly shaped items—while delivering outstanding performance in efficiency, accuracy, and space utilization.

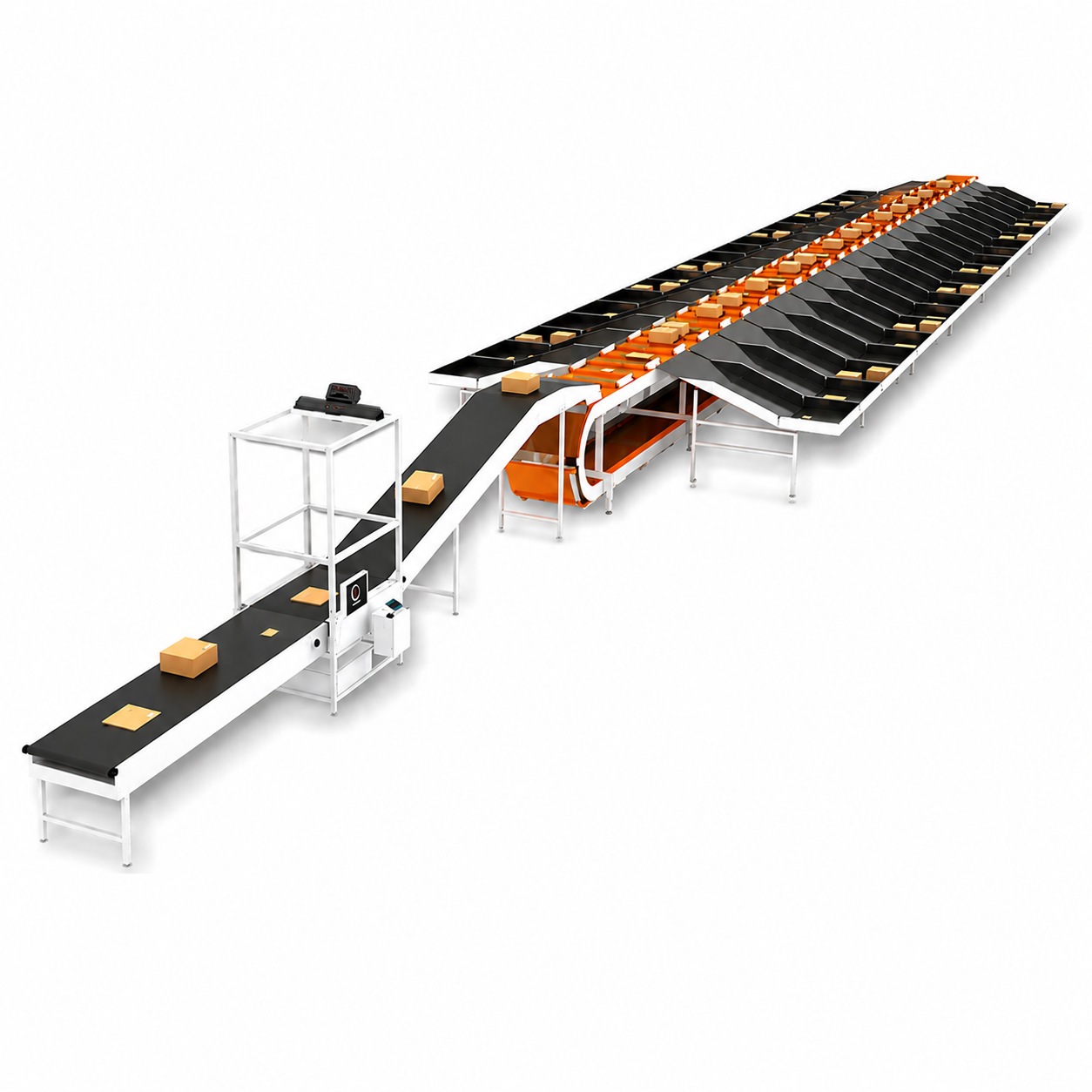

Automated Linear Cross Belt Sortation System | Up to 12,000 PPH
YJ-INTL Automated Linear Cross Belt Sortation System is an integrated parcel sorting solution designed for high-volume logistics, express, e-commerce and distribution operations. The system combines continuous cross-belt conveying, parcel identification, destination routing and controlled lateral discharge into one automated sorting process, with a stated capacity of up to 12,000 pieces per hour . Unlike a standalone sorting machine, the system is engineered around the complete material flow, including induction, scanning, sorting destinations, takeaway conveyors, control logic and warehouse-system integration.

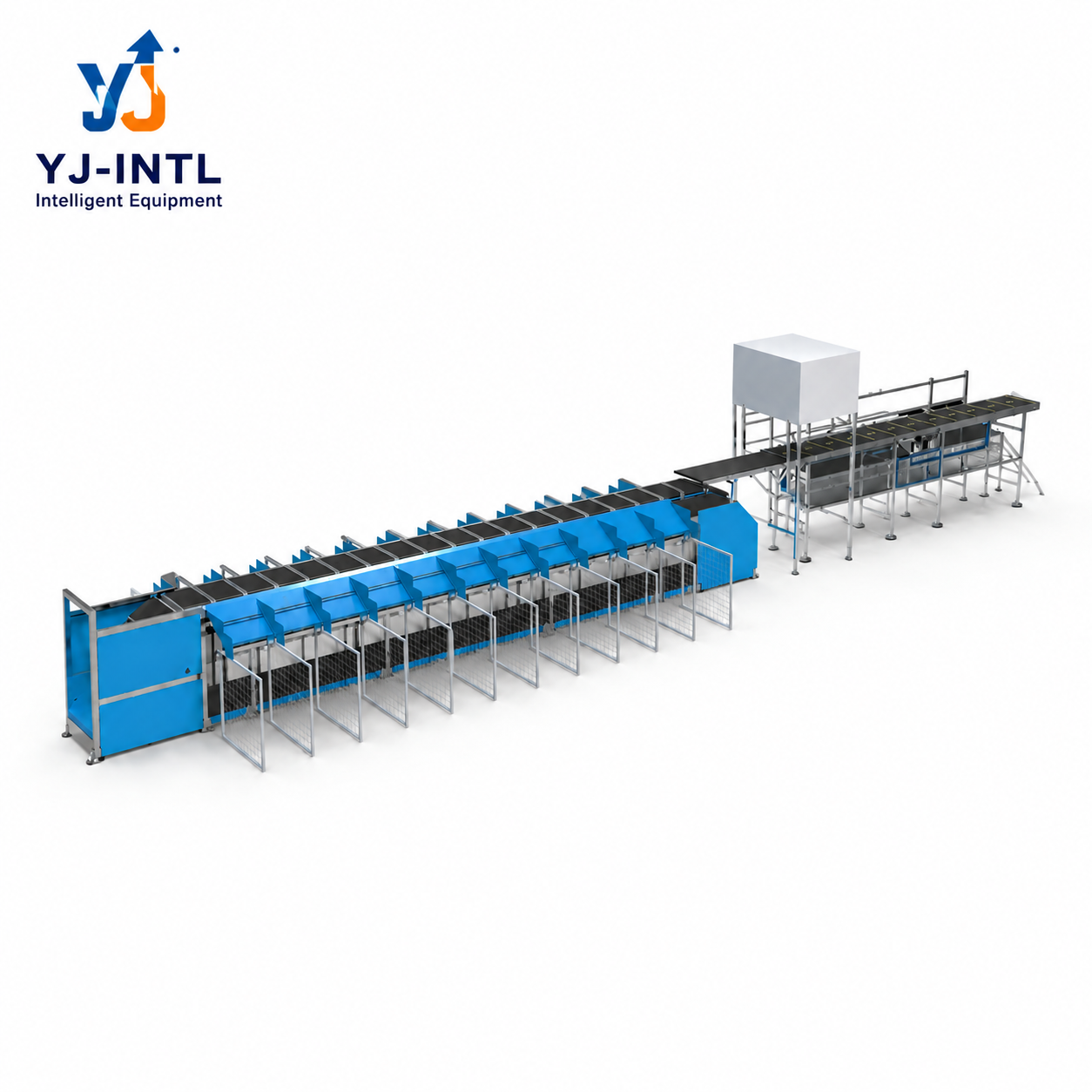

Linear Cross Belt Sorter | Automated Parcel Sortation System
YJ-INTL Linear Cross Belt Sorter is a continuous parcel sortation system designed for high-volume logistics, e-commerce, 3PL and distribution operations. The supplied product material specifies capacity up to 12,000 pieces/hour , while actual throughput depends on parcel profile, induction rate, carrier configuration, destination distribution and downstream capacity. Each parcel is assigned to a carrier and routed to a defined destination, where the cross belt performs controlled lateral discharge. The system can integrate parcel identification, DWS, sorting chutes, takeaway conveyors and WMS/WCS interfaces into a complete automated sorting solution.

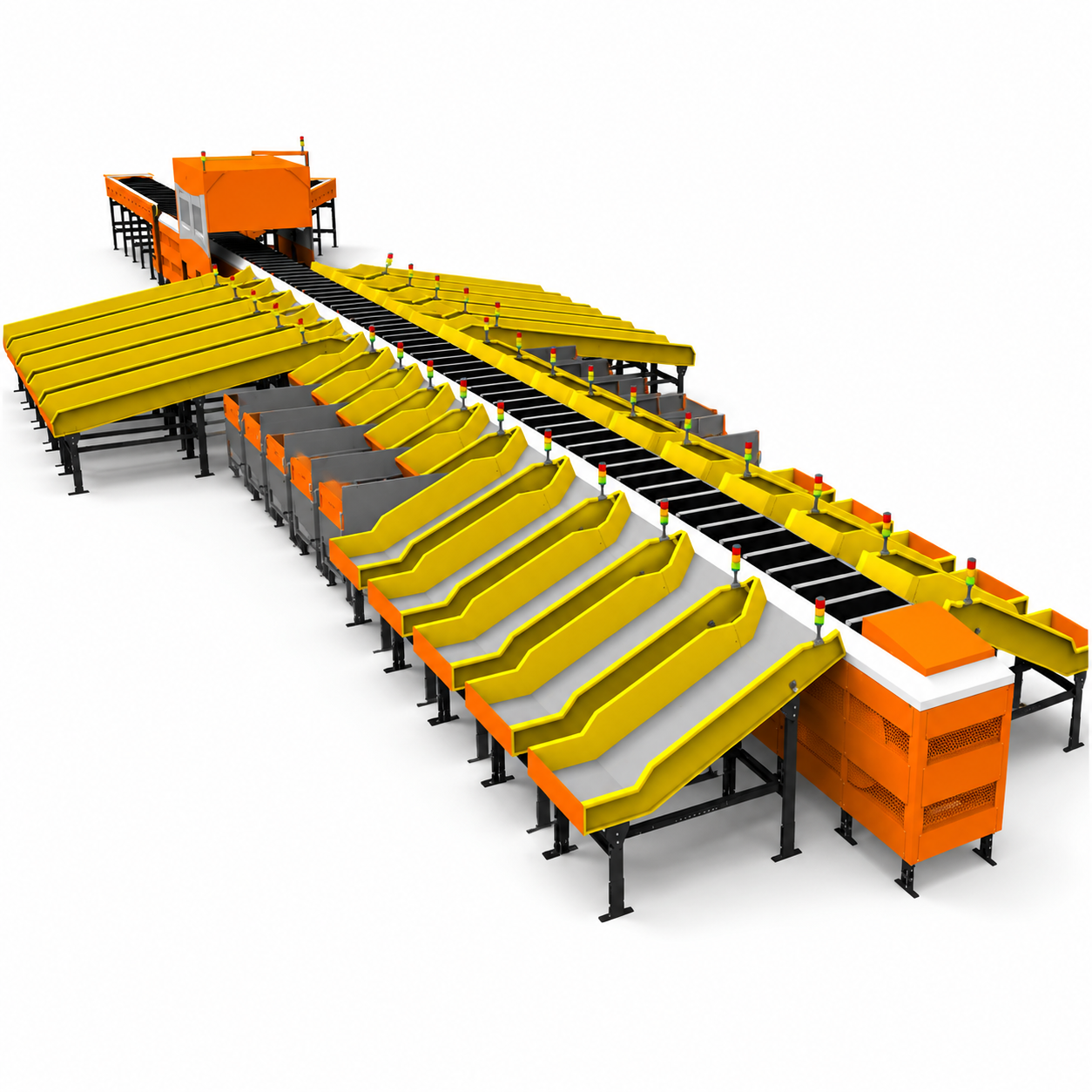

Linear Cross Belt Sorter | Automated Parcel Sorting System
YJ-INTL Linear Cross Belt Sorter is a continuous automated parcel sorting system designed for logistics hubs, e-commerce fulfillment, 3PL and distribution operations. The supplied product material specifies up to 12,000 pieces/hour, while the final throughput, carrier configuration, parcel range and destination layout are engineered according to the application. It integrates parcel induction, identification, carrier tracking and controlled lateral discharge into a continuous sorting flow, with DWS, WMS/WCS and downstream conveyor integration available according to project requirements.

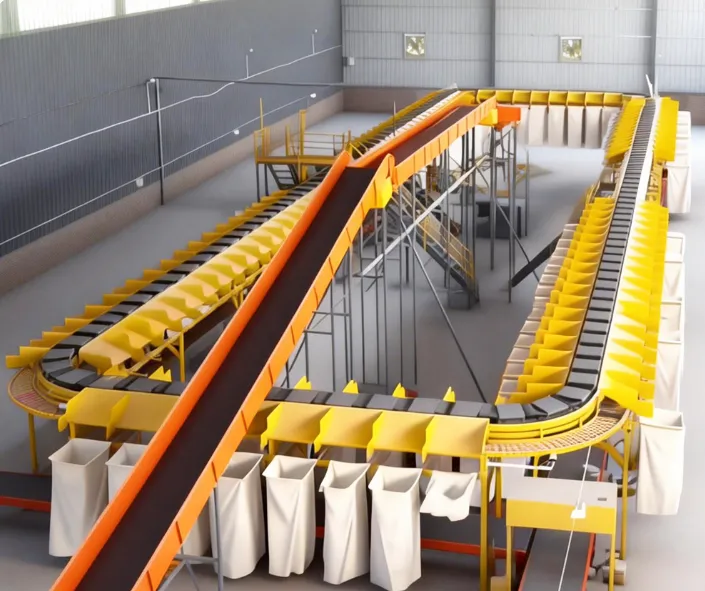

YJ-INTL Mini Loop Cross Belt Sorter System | Parcel Sorting System Manufacturer
YJ-INTL Mini Loop Cross Belt Sorter System Single-layer, double-layer and triple-layer configurations can be engineered according to facility space, parcel profile, destination count, throughput requirements and the complete downstream process.

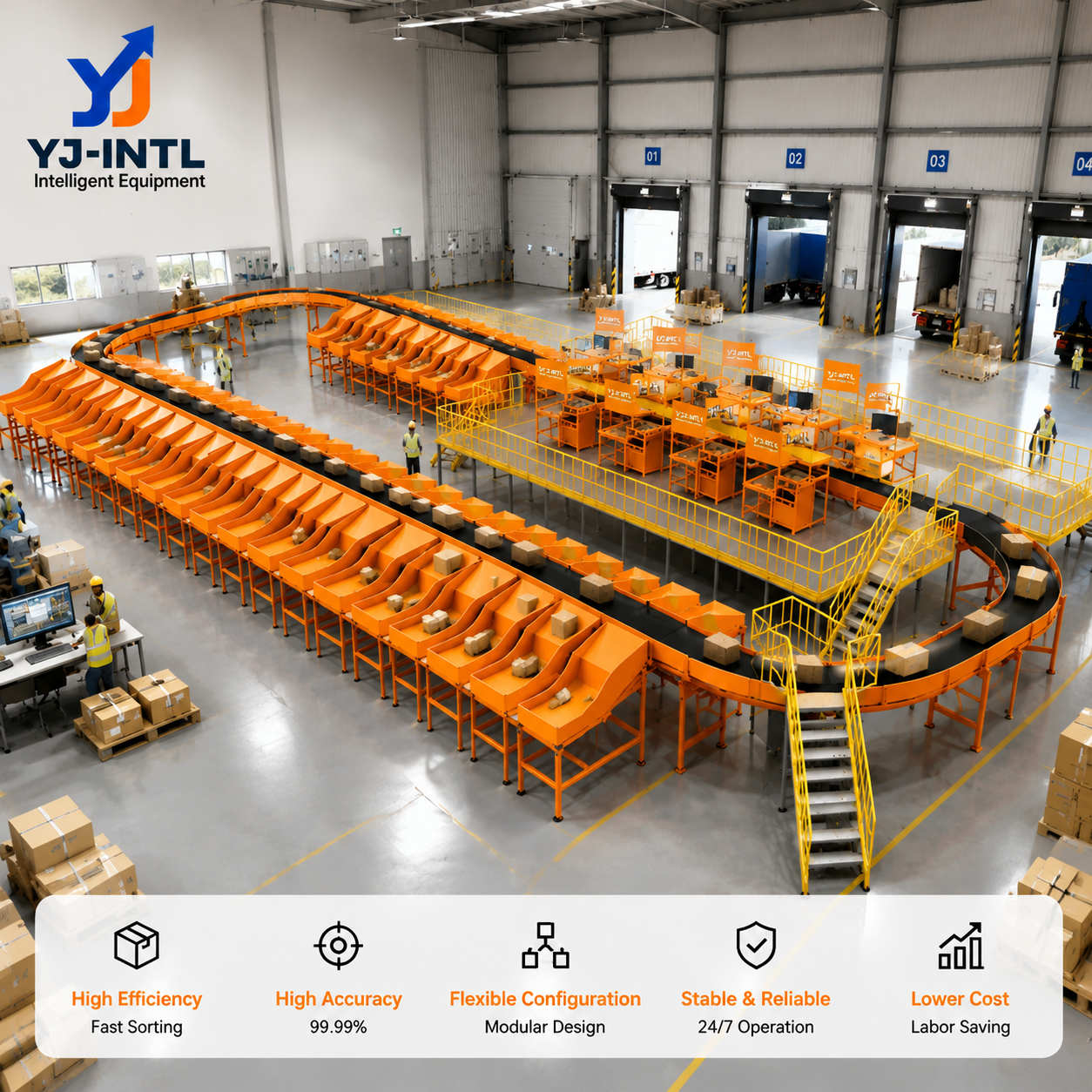

Loop Cross Belt Sorter System | Automated Parcel Sorting Solution
YJ-INTL Loop Cross Belt Sorter System is an automated sorting solution designed for high-volume parcel handling, distribution centers, e-commerce fulfillment, warehousing, and logistics operations. Its continuous loop configuration and independently controlled cross-belt carriers enable parcels to be accurately diverted to designated sorting destinations while maintaining a stable and efficient material flow. The system is available in single-layer, double-layer, and triple-layer configurations, allowing the sorter layout and capacity to be selected according to facility space, sorting requirements, and project throughput.

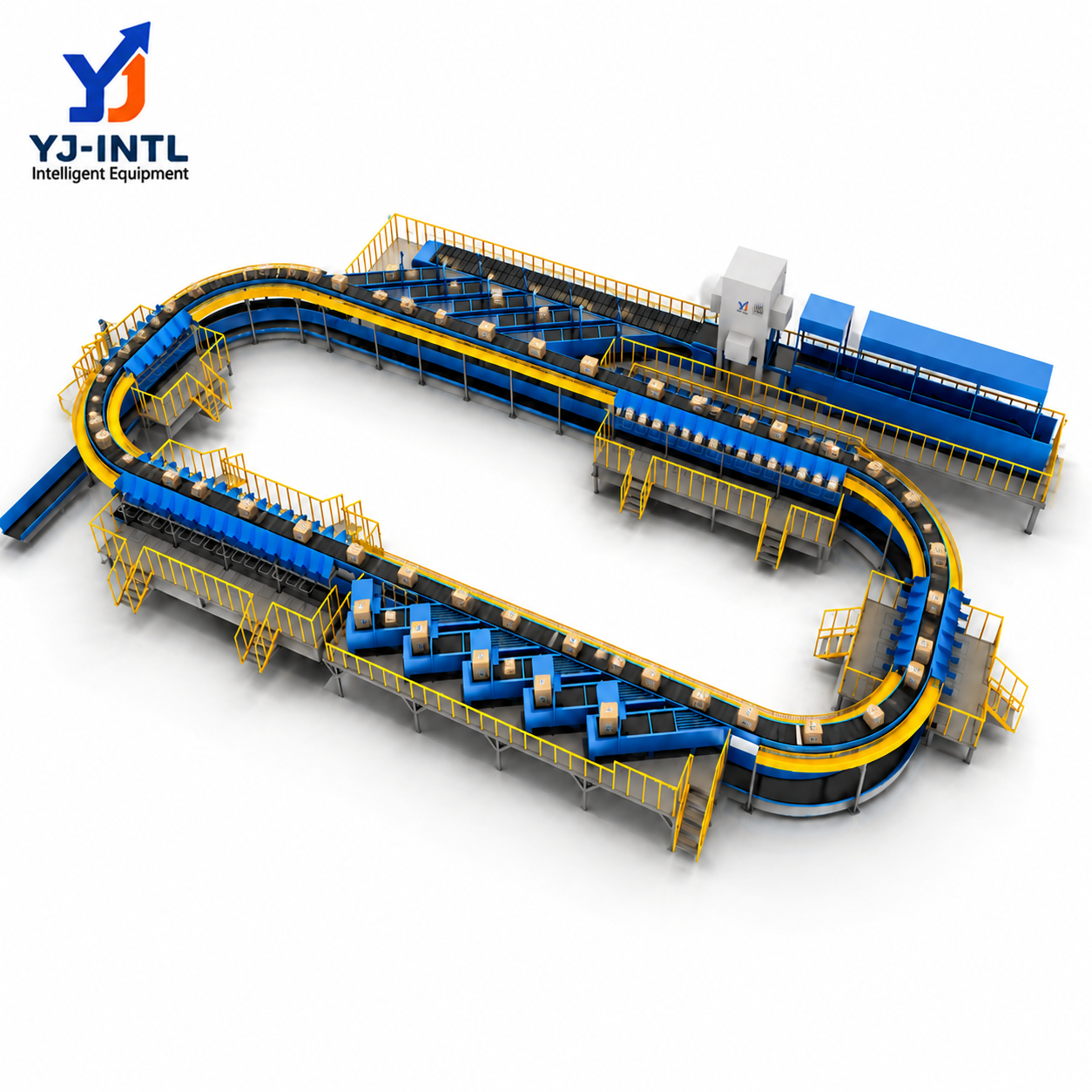

High-Speed Cross-Belt Loop Sorter System
The YJ-INTL High-Speed Cross-Belt Loop Sorter delivers industry-leading throughput of up to 36,000 items per hour with an exceptional sorting accuracy of over 99.99%. Engineered for high-demand e-commerce fulfillment and express courier hubs, this continuous loop system minimizes labor reliance, prevents product damage, and integrates seamlessly with advanced WMS/WCS platforms.
Circular Cross Belt Sorter | High Speed Automated Parcel Sorting System
Cross-Belt Loop Sorter is a high-performance automated sorting solution designed for large-scale parcel processing in express logistics hubs, e-commerce fulfillment centers, and distribution warehouses.
High Speed Cross Belt Sorter | Automated Parcel Sorting System for Logistics & Fulfillment
YJ-INTL High Speed Cross Belt Sorter is an intelligent automated sorting system designed for large-scale parcel processing in express logistics hubs, e-commerce fulfillment centers and distribution warehouses. The system combines independent cross belt carriers, barcode recognition technology, WCS control and conveyor automation to achieve accurate, efficient and reliable parcel sorting.

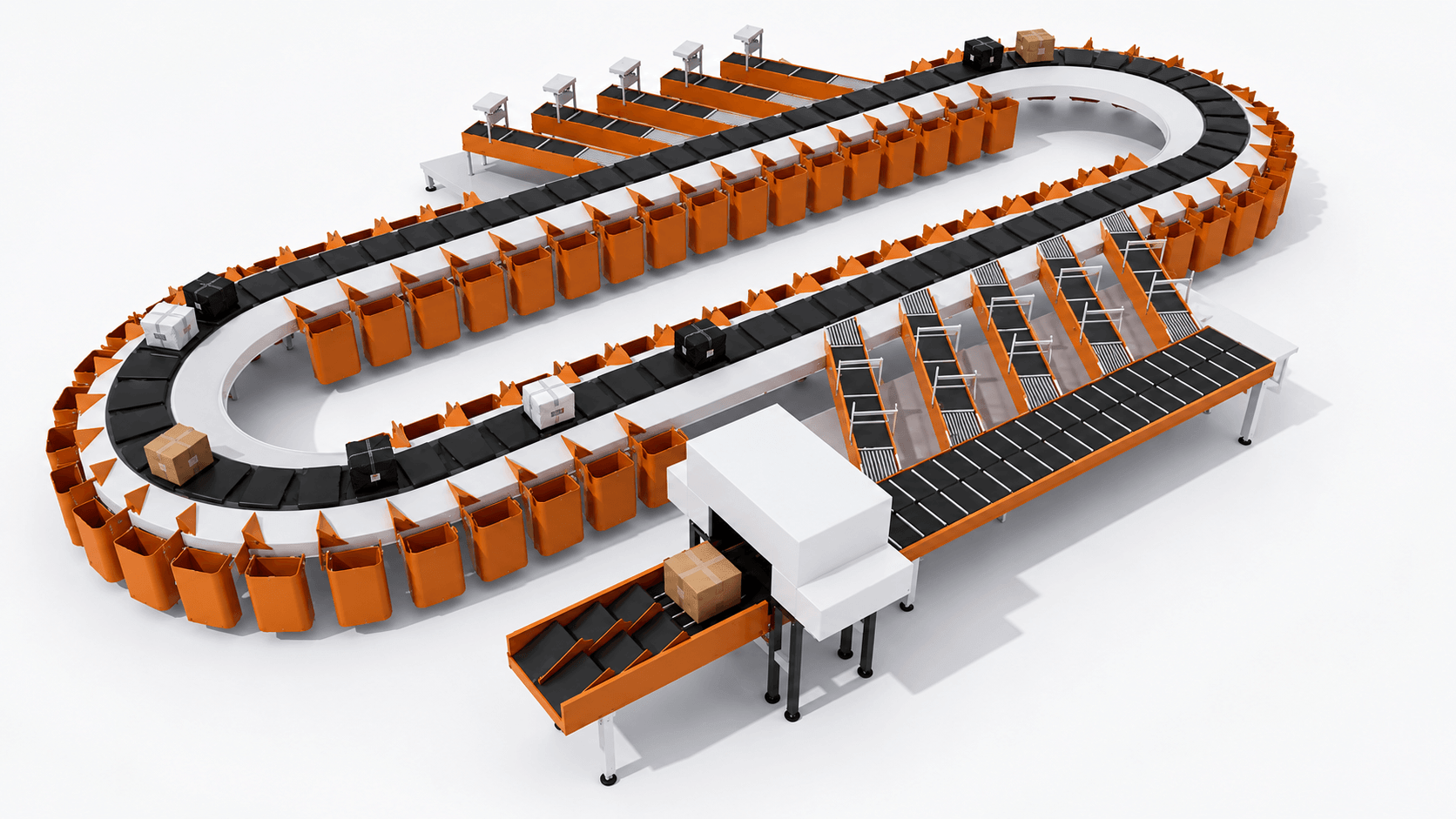

Applications of Cross Belt Sortation Systems
E-commerce Fulfillment Centers
Cross-belt sorters are widely used in large-scale e-commerce fulfillment centers to handle vast volumes of parcels, cartons, and soft-packaged items. These systems help online retailers boost order fulfillment efficiency, reduce reliance on manual sorting, and maintain stable operational performance during peak periods such as promotional events and holidays.

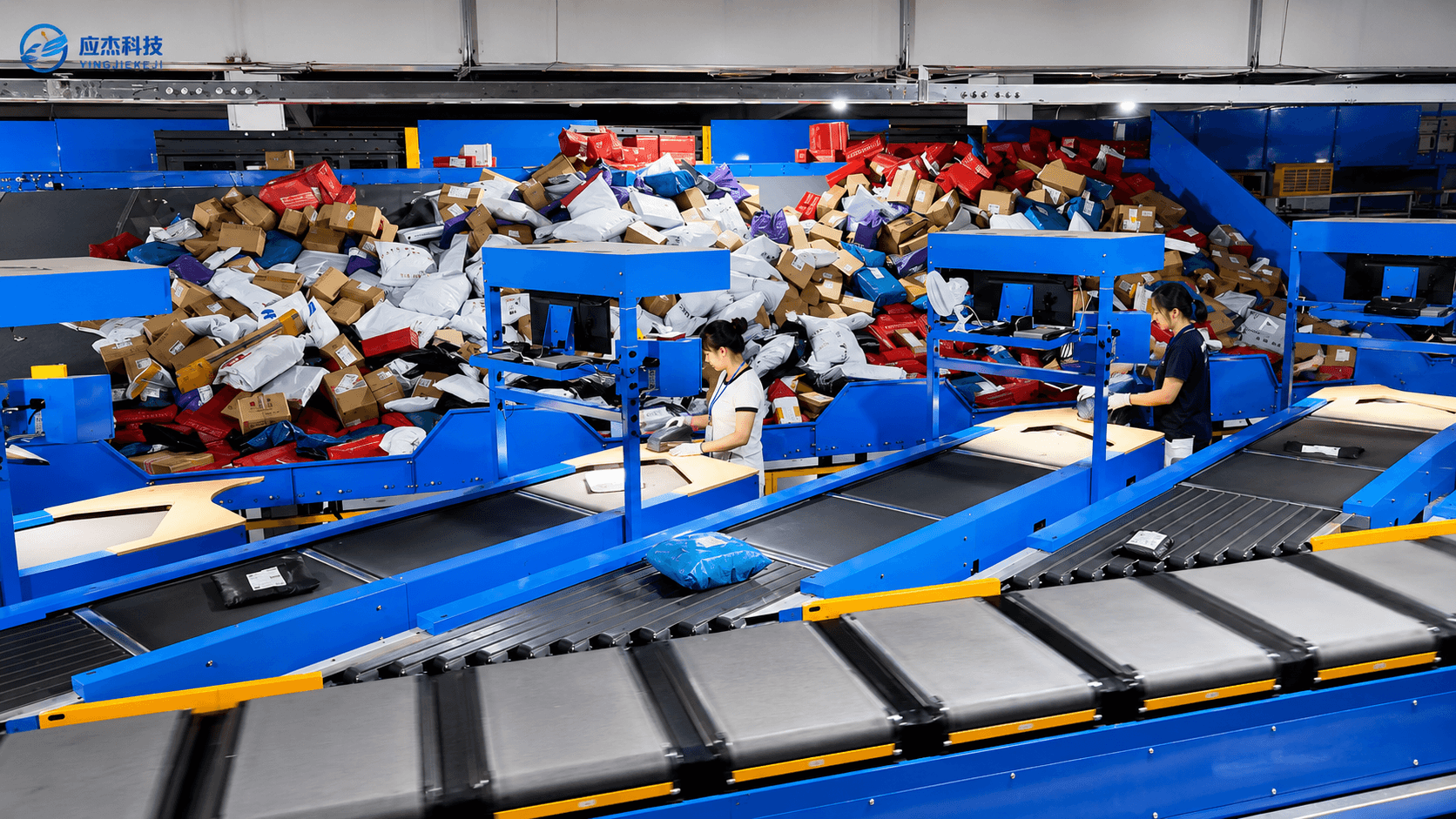

Express & Courier Hubs
Designed specifically for high-speed parcel processing environments, the cross-belt sorter provides a reliable sorting solution for express delivery networks and distribution centers. Our cross-belt system supports automatic parcel identification, high-speed diversion, and multi-destination sorting, helping express companies boost daily processing capacity while enhancing sorting accuracy and delivery efficiency.
3PL Warehouses
With its configurable layout and intelligent control system, the cross-belt sorting system enables 3PL warehouses to manage diverse sorting lanes, various parcel types, and fluctuating order volumes.
Retail Distribution Centers
Retail distribution centers utilize cross-belt sorters to automate store replenishment, inventory allocation, and outbound order sorting. The system enables precise product sorting and efficient material flow management, thereby shortening distribution cycles and reducing operational complexity.
Postal Sorting Facilities
Postal and parcel service operators rely on Cross Belt Sorters for large-scale mail and parcel processing.By integrating barcode scanning, OCR recognition, DWS systems, and warehouse control software, the sorter enables automated routing and efficient handling of diverse parcel sizes and shapes.
Technical Specifications of Cross Belt Sorter
| Specification | Single-Layer Model | Double-Layer Model | Triple-Layer Model |
|---|---|---|---|
| Sorting Capacity | 12,000 - 30,000 parcels/hour | 30,000 - 60,000 parcels/hour | 70,000 - 100,000 parcels/hour |
| Required Floor Space | 800 - 1,500㎡ | 1,000 - 2,000㎡ | 1,000 - 2,000㎡ |
| Operators Required | 10 - 30 | 30 - 60 | 30 - 60 |
| System Structure | Single Layer | Double Layer | Triple Layer |
| Suitable Facility Type | Small & Medium Sorting Centers | Medium & Large Sorting Hubs | National Distribution Centers |
| Conveyor Speed | 2.0 - 2.5 m/s | 2.0 - 2.5 m/s | 2.0 - 2.5 m/s |
| Sorter Pitch | 600 mm | 600 mm | 600 mm |
| Sorting Accuracy | ≥99.99% | ≥99.99% | ≥99.99% |
| Error Rate | <0.01% | <0.01% | <0.01% |
| Barcode Recognition Rate | 99.99% | 99.99% | 99.99% |
| Max Parcel Size | ≤420 × 650 × 400 mm | ≤420 × 650 × 400 mm | ≤420 × 650 × 400 mm |
| Parcel Weight Range | 0.05 - 15 kg | 0.05 - 15 kg | 0.05 - 15 kg |
Why Choose YJ-INTL as Your Cross Belt Sorter Manufacturer

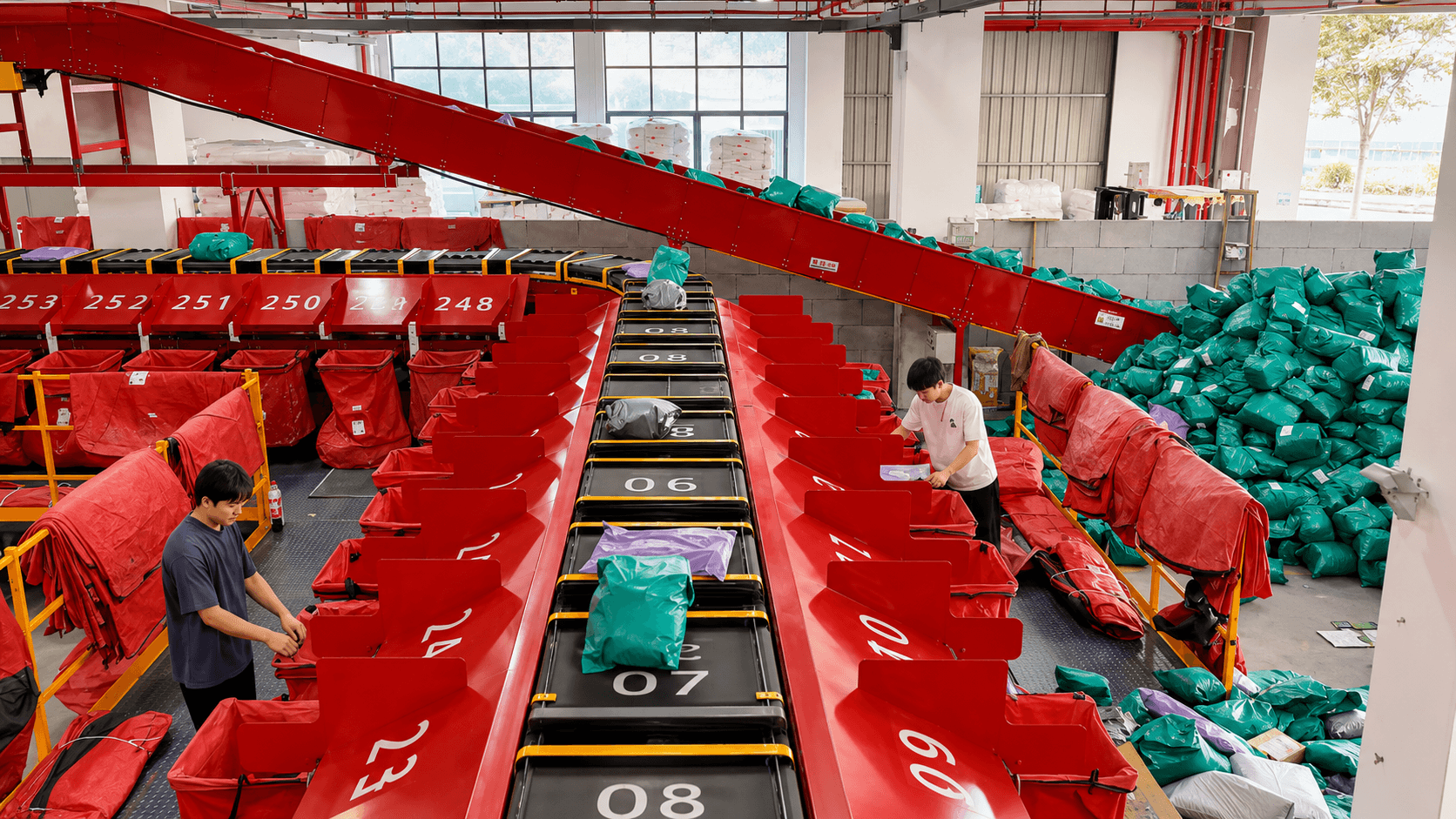

Handles Diverse Package
The belt runs in both directions, enablingprecise sorting of a wide variety of items,including cartons, totes, parcels, apparel,poly mailers, and other irregular packages.
Case Studies
Real-world deployments measured by the numbers they deliver.
All Projects
Yunda Express Shanghai Hub: AI-Powered Dual-Channel Auto-Induction System Integration
500,000 Pcs0% Manual6-Stage Tables6-Sided 3D
YJ-INTL engineered an industry-first dual-channel automatic induction loop system for Yunda Express in Shanghai. Integrating AI vision, dual-channel de-stacking, dual-system 6-sided 3D barcode scanning, and dual-row narrow-belt carriers with smart 6-stage induction tables, this automation solution processes 500,000 parcels daily while completely eliminating manual label flipping and reducing operational costs.
"Operating an express hub in Shanghai means every square meter and labor hour comes at a premium. YJ-INTL's dual-channel automatic induction system enabled us to achieve 500,000 daily parcel volume while completely eliminating manual waybill flipping. The combination of 6-sided 3D barcode reading, automatic centering, and smooth 6-stage induction table flow has delivered exceptional efficiency and cost reduction across our hub operations."
Operations Management Team, Yunda Express Shanghai Hub
FAQ
The selection depends on parcel volume, peak throughput, package dimensions, weight range, sorting destinations, warehouse space and future expansion plans. YJ-INTL provides engineering analysis before recommending a suitable configuration.
The system supports cartons, poly bags, envelopes and irregular parcels with reliable and gentle handling performance.
DWS, barcode scanning and WCS integration enable automatic identification, tracking, sorting decisions and real-time control.
Cost depends on capacity, sorter length, destinations, layout, software integration and customization requirements.
YJ-INTL supports solution design, manufacturing, installation guidance, commissioning, training and technical support.
Cross Belt Sorter Technology Guide
How Cross Belt Sorters Improve Warehouse Efficiency
Automated cross belt sorting enables logistics companies to process increasing parcel volumes with higher accuracy and lower labor dependency. Independent carrier belts provide precise transfer control and stable sorting performance.
Benefits of Automated Cross Belt Sortation
1. High-Speed Automated Sorting
Processes up to 20,000 parcels per hour, enabling distribution centers to efficiently handle peak-season order volumes.
2. 99.99% Sorting Accuracy
Advanced control algorithms and precise positioning ensure parcels are accurately delivered to the correct destinations.
3. Handles Diverse Parcel Types
Designed for cartons, poly mailers, apparel, totes, standard parcels, and irregular items; suitable for mixed-order fulfillment environments.
4. Flexible Sort Destination Configuration
Destination sorting can be customized based on:
(1) Warehouse layout (2) Order volume (3) SKU count (4) Future expansion plans (5) Suitability for small, medium, and large distribution centers.
