NC Loop Cross Belt Sorter | High-Speed Automated Parcel Sorting System
The core of the all-category cross-belt sorter lies in its unique NC tray-cart. It eliminates the traditional tray-tilting mechanism, instead featuring a fixed platform equipped with a bi-directional short conveyor belt (fitted with baffles). This design enables precise, bi-directional sorting and removes strict limitations regarding item shape—effectively handling soft packages and irregularly shaped items—while delivering outstanding performance in efficiency, accuracy, and space utilization.
- Up to 8,000 PPH per Zone
- 5g–15kg Parcel Range
- 99.99% Sorting Accuracy
- Linear Motor Electromagnetic Drive
- 600 / 750mm Carrier Pitch
- Flexible Sorting Port Configuration
- DWS Integration Ready
NC Loop Cross Belt Sorter Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | NC Loop Cross Belt Sorter |
| System Configuration | Loop / Closed-Loop |
| Maximum Throughput | Up to 8,000 PPH per zone* |
| Sorting Accuracy | Up to 99.99%* |
| Parcel Weight | 5g–15kg |
| Maximum Speed | 1.5 m/s |
| Carrier Pitch | 600 / 750 mm |
| Belt Size | Customized according to project requirements |
| Drive System | Linear Motor / Electromagnetic Drive |
| Power Supply | Slip Ring / Non-Contact Inductive Power Supply |
| Operating Noise | ≤70 dB |
| Control System | Siemens control system |
| DWS Integration | Supported |
| Sorting Port | Customized according to project requirements |
| Application | Express logistics, e-commerce, 3PL, retail distribution and parcel hubs |
Details
The NC Loop Cross Belt Sorter is designed for logistics operations that need to process parcels of different sizes, weights and packaging types while serving multiple destinations from a continuous automated flow.
Its closed-loop configuration allows carriers to circulate continuously through the sorting system. Each parcel is transported on an individual carrier and discharged laterally at the assigned sorting port.
Compared with manual destination sorting, this architecture provides a controlled and repeatable sorting process while allowing the system layout to be configured around the customer's destination requirements and facility conditions.
The supplied product material identifies a 5g–15kg parcel range, up to 8,000 PPH per zone, 1.5 m/s maximum speed, and 600/750mm carrier pitch, making the system suitable for high-volume parcel handling applications.
NC Loop Cross Belt Sorting Principle

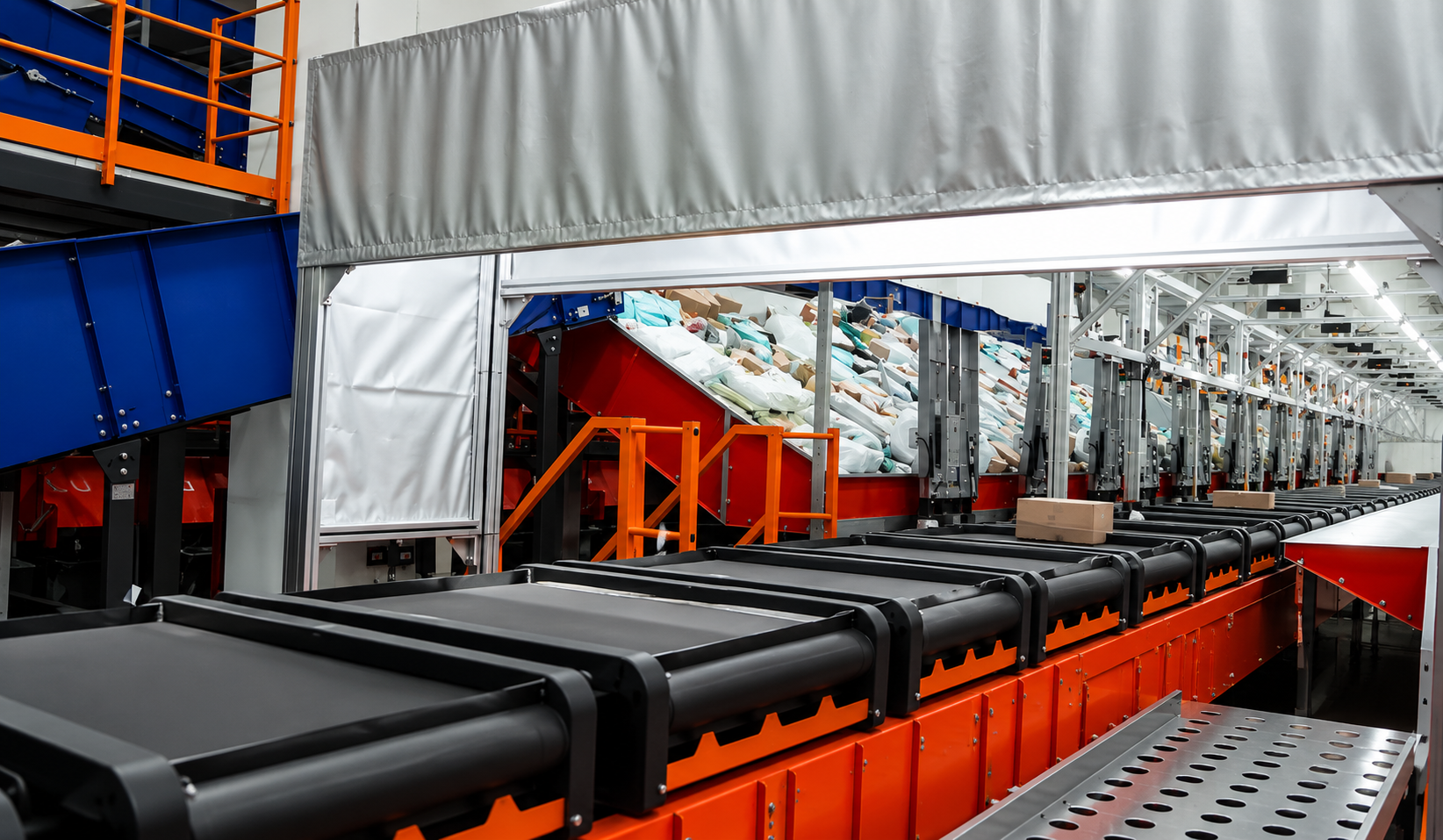

The NC Loop Cross Belt Sorter uses a series of individual carriers connected into a continuous loop.
Each carrier includes a cross belt that transports one parcel through the sorting process.
The basic workflow is:
Parcel Induction → Identification → Carrier Assignment → Loop Transport → Destination Tracking → Cross-Belt Discharge → Takeaway
When a parcel reaches its assigned destination, the cross belt moves laterally and transfers the parcel into the corresponding sorting port, chute or takeaway conveyor.
After discharge, the carrier returns to the circulation path and becomes available for the next sorting cycle.
Handles Diverse Package Types
One of the key characteristics shown in the supplied product material is the ability to handle diverse package types.
The NC Loop Cross Belt Sorter can be engineered for different parcel forms, including:
- Cartons
- Polybags
- Soft parcels
- Small parcels
- E-commerce packages
- Express parcels
- Stable irregular-shaped packages
The actual handling capability depends on parcel dimensions, weight distribution, center of gravity, packaging stability and carrier configuration. For unusually shaped or unstable parcels, application testing is recommended before final equipment selection.
Applications
Express Logistics: The NC Loop Cross Belt Sorter can route parcels to different delivery regions, stations or outbound lanes within a continuous sorting process.
E-Commerce Fulfillment: Suitable for high-volume e-commerce parcel sorting where mixed parcel sizes and multiple destinations need to be processed automatically.
3PL Distribution: Useful for third-party logistics operations serving multiple customers and destination networks.
Retail Distribution: Can sort parcels according to stores, regions or distribution routes.
Parcel Hubs: The closed-loop configuration is suitable for high-volume parcel hubs requiring multiple automated sorting destinations.
Why Choose YJ-INTL NC Loop Cross Belt Sorter?
Flexible Parcel Handling
Supports a stated 5g–15kg parcel weight range and can be engineered for diverse package types.
High-Speed Sorting
Provides a stated maximum throughput of 8,000 PPH per zone.
High Sorting Accuracy
The supplied product material specifies up to 99.99% sorting accuracy.
Linear Motor Drive
Uses linear motor electromagnetic drive technology for continuous carrier movement.
Flexible Sorting Ports
Sorting positions can be customized according to destination and outbound requirements.
DWS Integration
Supports integration of dimensioning and weighing into the automated parcel-processing workflow.
Custom Engineering
Loop configuration, carrier pitch, sorting ports, induction and downstream connections can be designed according to project requirements.
FAQ
The NC Loop Cross Belt Sorter is an automated closed-loop parcel sorting system that uses individual cross-belt carriers to transport parcels and discharge them laterally to assigned destinations. It is designed for continuous multi-destination sorting in logistics, express, e-commerce and distribution operations.
The supplied product specification states a maximum throughput of up to 8,000 pieces per hour per zone. Actual throughput depends on parcel characteristics, induction spacing, carrier configuration, destination distribution, identification performance and downstream capacity.
The supplied specification indicates a parcel weight range of 5g to 15kg. Final parcel compatibility should also be evaluated according to dimensions, shape, packaging stability and center of gravity.
Parcels are inducted onto individual cross-belt carriers and identified before being assigned to destinations. The carriers continuously circulate around the loop, and the cross belt activates at the required destination to discharge each parcel into the corresponding sorting port or takeaway conveyor.
The supplied technical specification lists 600mm and 750mm carrier pitch options. The appropriate pitch should be selected according to parcel characteristics, throughput requirements and system layout.
The NC Loop Cross Belt Sorter uses a linear motor electromagnetic drive system. The supplied specification also identifies slip-ring or non-contact inductive power supply options according to system configuration.
Yes. The system can support DWS integration for parcel weighing and dimensioning. It can also be connected with barcode identification and warehouse control systems according to project requirements.
Yes. Sorting-port positions and configurations can be customized according to destination count, outbound volume, facility layout and downstream conveyor requirements.
Typical applications include express logistics hubs, e-commerce fulfillment, 3PL distribution centers, retail distribution, parcel processing and high-volume outbound sorting operations.
No. 8,000 PPH is the maximum capacity stated in the supplied product material. It should not be treated as a guaranteed sustained throughput for every installation. Final capacity must be validated against actual parcel and operating conditions.
