High-performance circular cross belt sorting solution for express logistics, e-commerce fulfillment and intelligent warehouse automation.

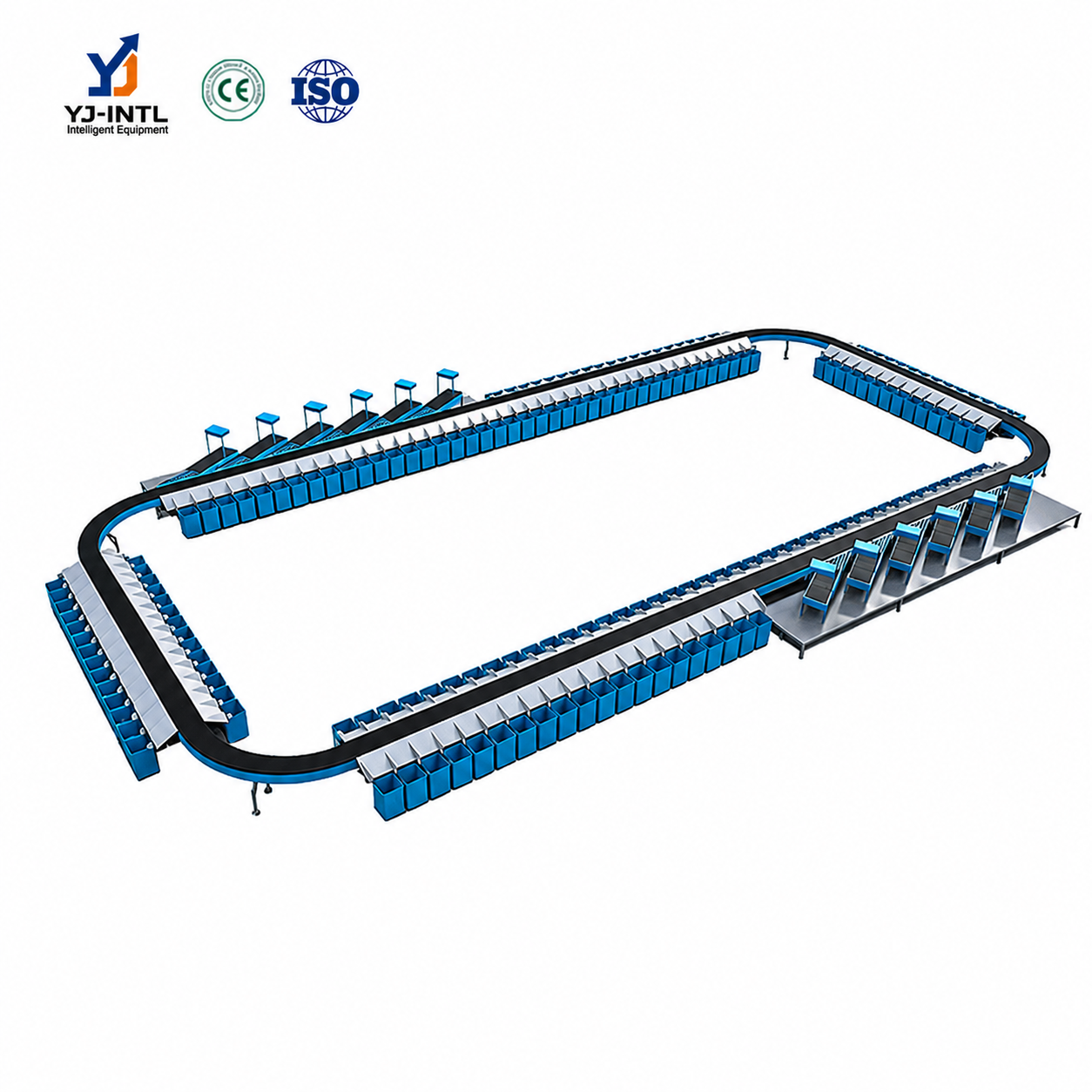

Circular Cross Belt Sorter | High Speed Automated Parcel Sorting System
Cross-Belt Loop Sorter is a high-performance automated sorting solution designed for large-scale parcel processing in express logistics hubs, e-commerce fulfillment centers, and distribution warehouses.
- 24,000–36,000 Parcels/Hour High Throughput
- ≥99.99% Sorting Accuracy
- Linear Motor Drive Technology
- Supports DWS & WMS/WCS Integration
- Flexible Layout for Complex Warehouses
- Handles Parcels up to 35kg
- Low Noise & Energy-Efficient Operation
Technical Specifications of YJ-INTL Circular Cross Belt Sorter
| Technical Parameter | Specification Details | Engineering Benefits |
|---|---|---|
| Product Model | Cross-Belt Loop Sorter | Industrial-grade modular sorting platform designed for continuous operation |
| System Type | Continuous Horizontal / Inclined Cross-Belt Loop Sorter | Flexible installation for different warehouse layouts |
| Sorting Capacity | 24,000 – 36,000 parcels/hour | Supports high-volume parcel processing during peak seasons |
| Sorting Accuracy | ≥99.99% | Minimizes mis-sorting risks and improves delivery efficiency |
| Carrier Dimensions | Customizable (Standard: 600mm × 400mm / 800mm × 500mm) | Suitable for parcels, cartons, polybags and irregular items |
| Maximum Payload | Up to 35kg per carrier | Handles heavy parcels including electronics, apparel and multi-item packages |
| Drive Technology | Linear Synchronous Motor (LSM) / Friction Drive | High efficiency, low noise operation and reduced maintenance requirements |
| Control System | Siemens PLC Control System | Reliable industrial automation control architecture |
| Sorting Direction | Multi-directional Automatic Sorting | Supports flexible destination chute configuration |
| Integration Capability | DWS, Barcode Scanner, OCR, WMS, WCS, ERP | Enables complete intelligent logistics automation |
| Noise Level | <75dB | Creates a more comfortable warehouse working environment |
| Operating Temperature | -10°C to 45°C | Suitable for demanding industrial environments |
| Humidity Range | 10%–95% RH | Reliable operation under different warehouse conditions |
| Parcel Type | Cartons, Bags, Polybags, Irregular Parcels | Flexible handling of diverse parcel formats |
| Application | E-commerce, Express Logistics, 3PL, Distribution Centers | Designed for modern automated fulfillment operations |
Details

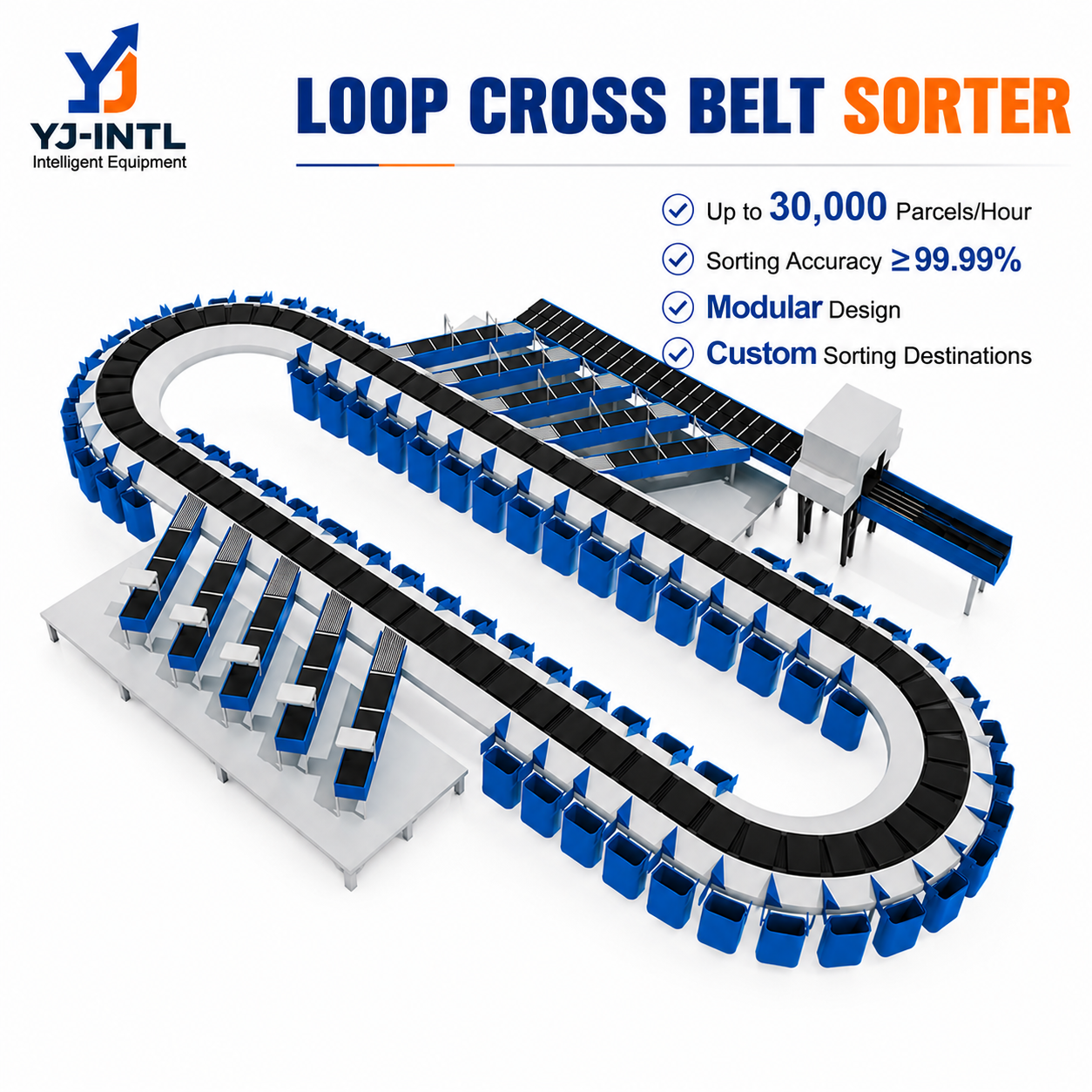

Advanced Cross-Belt Sorting Technology
- High-speed continuous parcel processing
- Accurate multi-destination sorting
- Gentle handling for fragile and irregular parcels
- Flexible warehouse layout configuration
- Stable operation for 24/7 logistics environments

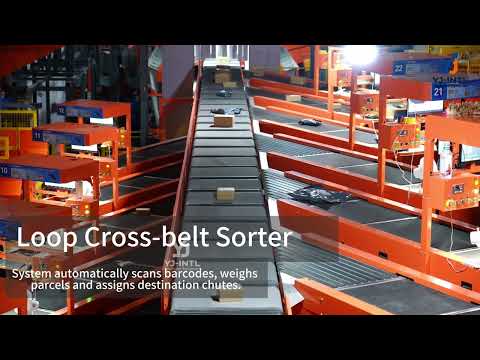

Working Principle of Cross-Belt Loop Sorter
The loop sorting process includes several key steps:
- Parcel Feeding: Packages enter the sorting system through induction conveyors or upstream automation equipment.
- Parcel Identification: Barcode scanners, OCR cameras, or DWS systems collect parcel information including destination, size, and weight data.
- Intelligent Sorting Decision: The WCS system analyzes parcel information and assigns the correct sorting destination.
- Automatic Cross-Belt Discharge: The individual carrier belt moves laterally to discharge the parcel accurately into the assigned chute.
- Collection and Shipping: Sorted parcels are collected for further processing, packaging, or transportation

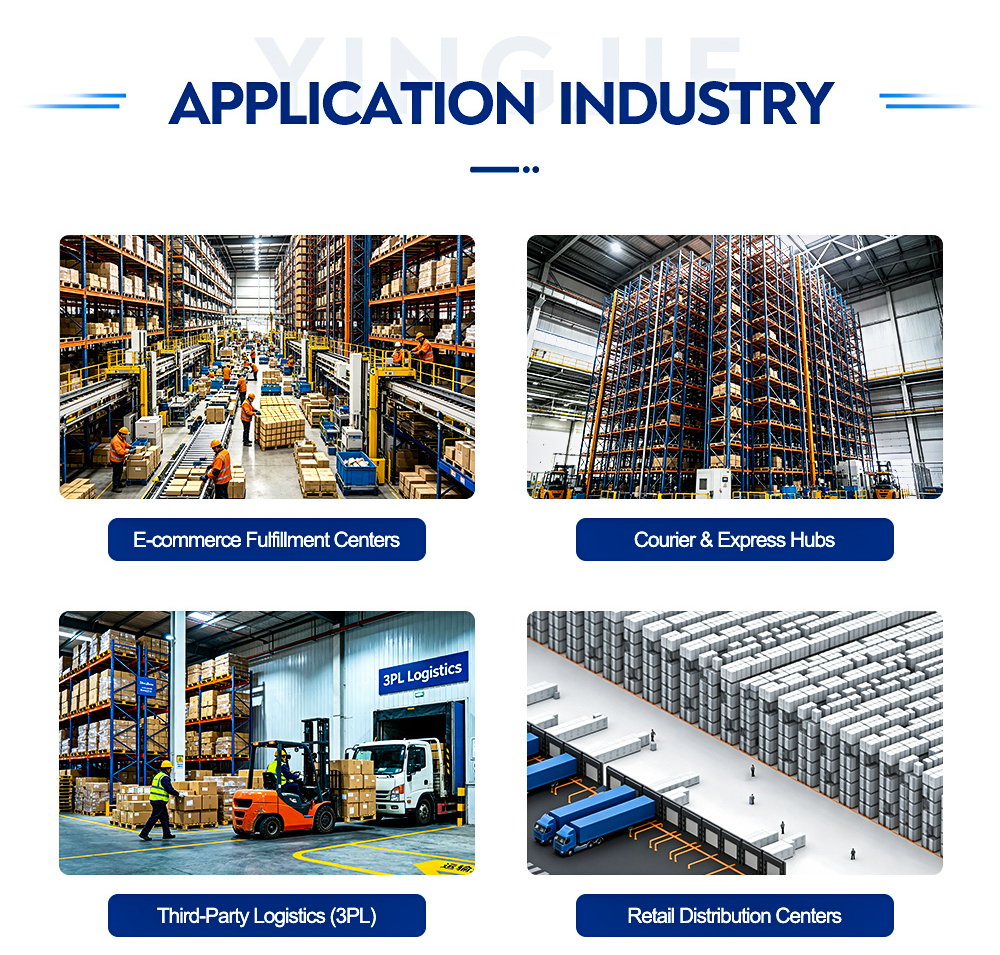

Applications of Cross-Belt Loop Sorter
E-commerce Fulfillment Centers:Automates high-volume order sorting and improves fulfillment efficiency for online retail businesses.
Express Logistics Hubs:Provides fast and accurate parcel distribution for courier companies handling large daily volumes.
Third-Party Logistics (3PL):Supports flexible sorting operations for multiple customers and different delivery channels.
Retail Distribution Centers:Improves store replenishment efficiency through automated product classification.
Cross-Border Logistics:Handles international parcel flows with high accuracy and stable performance

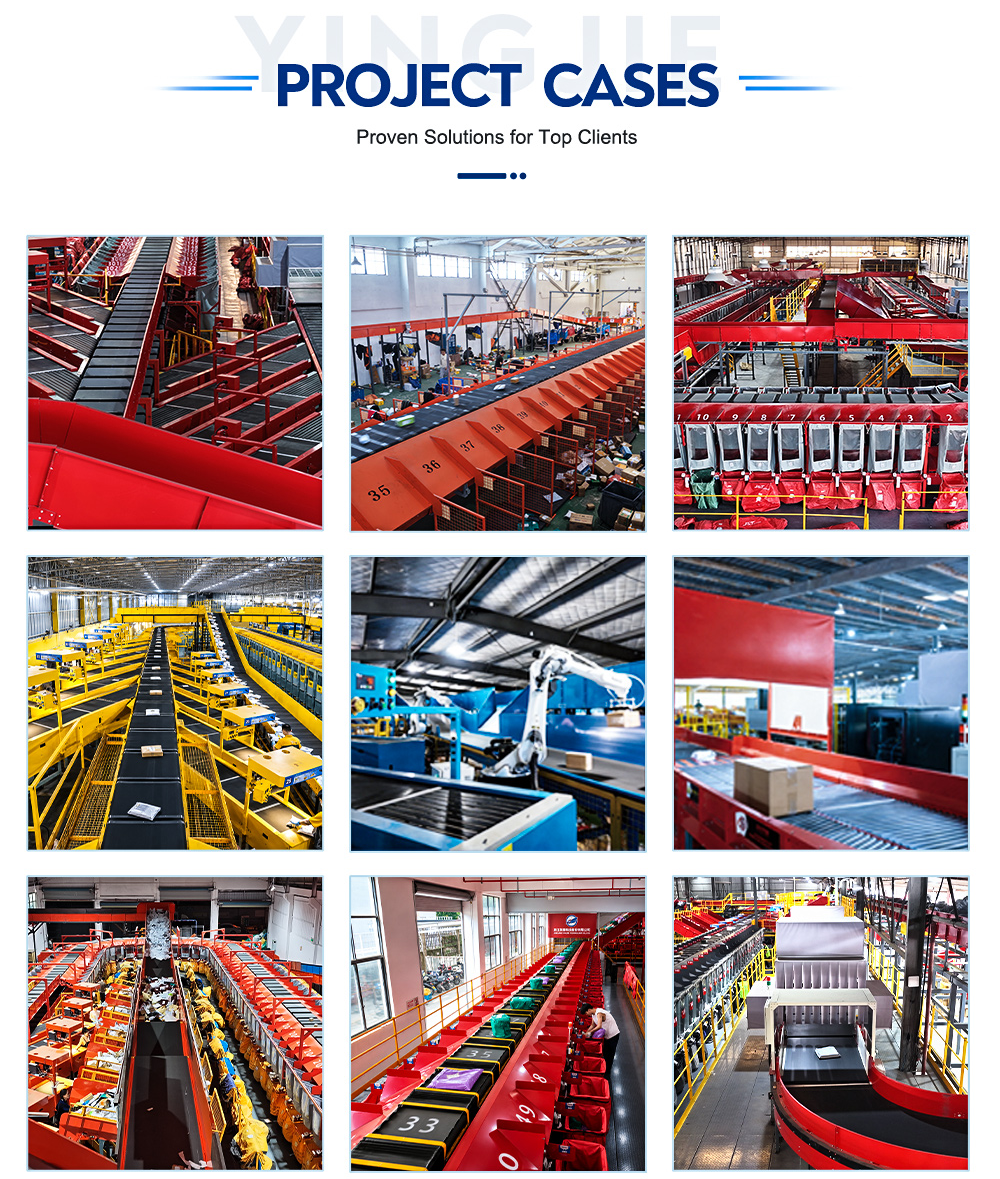

Project Cases
Flexible Configuration for Different Warehouse Requirements
Every logistics facility has different operational requirements. YJ-INTL provides customized cross-belt sorting solutions based on warehouse layout, throughput requirements, parcel characteristics, and future expansion plans.
The system can be customized according to:
Warehouse space and layout
Number of sorting destinations
Parcel volume requirements
Package dimensions and weight range
Integration requirements with existing automation systems
Why Choose YJ-INTL Cross-Belt Loop Sorter?
YJ-INTL specializes in intelligent logistics automation solutions, providing complete services from equipment design and manufacturing to system integration and technical support.
- Professional logistics automation manufacturing capability
- Customized sorting system design
- Integration with global warehouse systems
- Reliable industrial-grade equipment performance
- Complete project implementation support
- Long-term technical service capability
FAQ
The system can achieve a sorting capacity of 24,000–36,000 parcels per hour depending on parcel size, system layout, and operational requirements.
The system can process cartons, polybags, irregular parcels, apparel packages, electronics, and multi-item shipments with payloads up to 35kg.
Yes. The system supports integration with WMS, WCS, ERP, barcode systems, and other warehouse automation equipment to create a complete intelligent logistics solution.
Cross-belt sorters are widely used in e-commerce fulfillment, express delivery, retail distribution, 3PL logistics, and manufacturing supply chains.
