High-Performance Loop Cross Belt Sortation System for Automated Parcel Handling
Loop Cross Belt Sorter System | Automated Parcel Sorting Solution

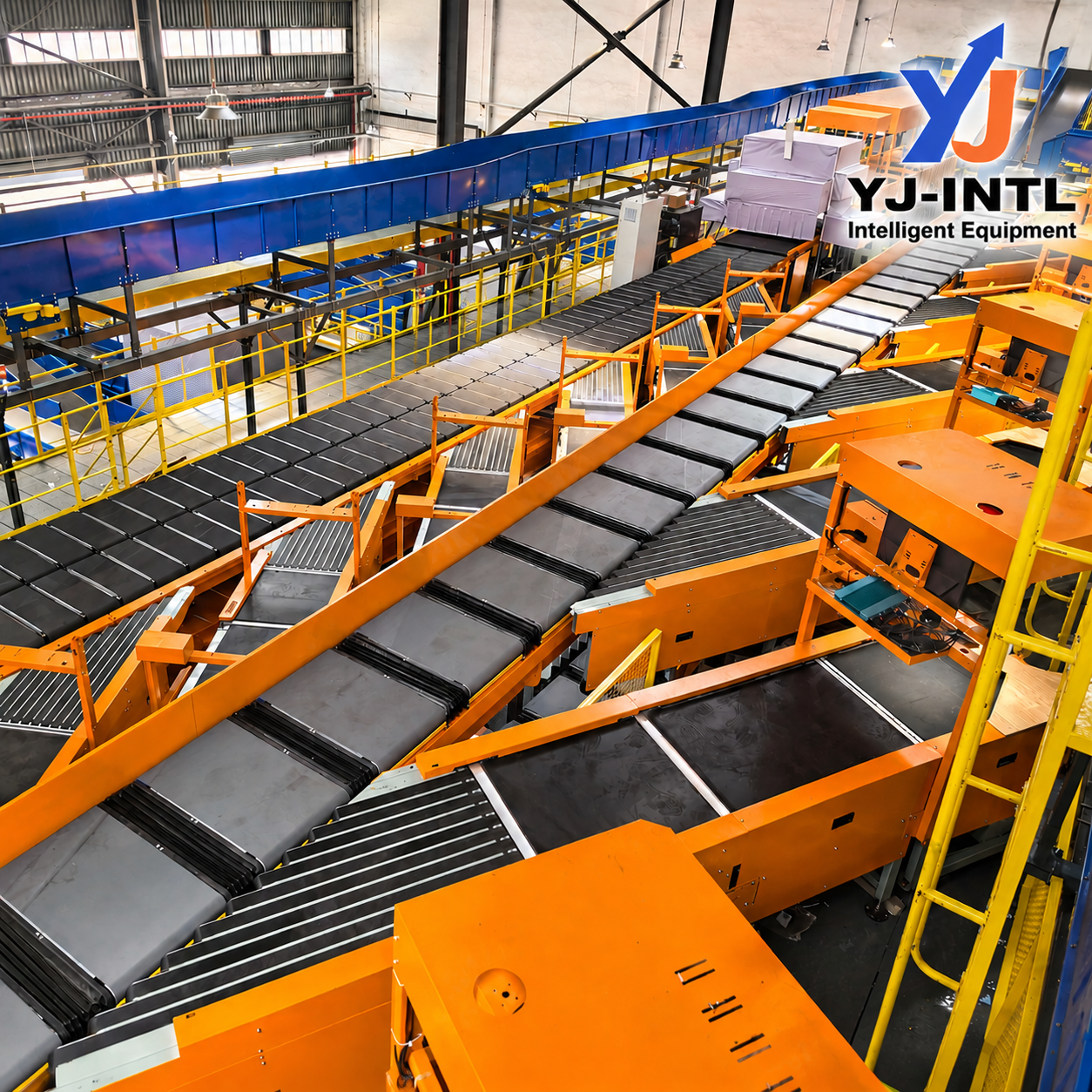

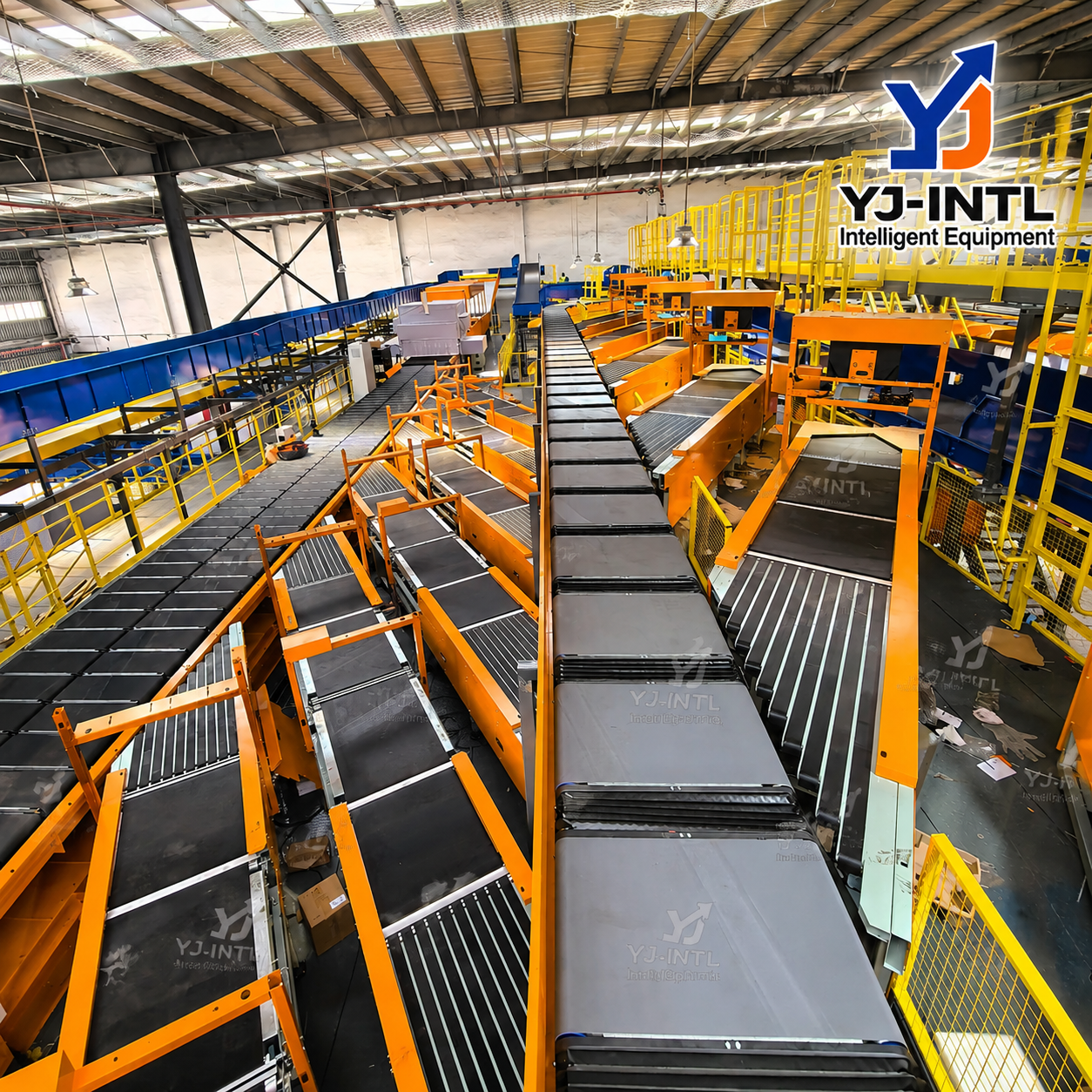

YJ-INTL Loop Cross Belt Sorter System is an automated sorting solution designed for high-volume parcel handling, distribution centers, e-commerce fulfillment, warehousing, and logistics operations. Its continuous loop configuration and independently controlled cross-belt carriers enable parcels to be accurately diverted to designated sorting destinations while maintaining a stable and efficient material flow.
The system is available in single-layer, double-layer, and triple-layer configurations, allowing the sorter layout and capacity to be selected according to facility space, sorting requirements, and project throughput.
- Loop Cross Belt Sortation
- Single / Double / Triple-Layer Configurations
- Flexible Sorting Port Design
- Linear Motor Drive
- Intelligent Weighing Inspection
- Customized System Design
- High-Density Automated Sorting
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Loop Cross Belt Sorter System |
| Sortation Type | Cross Belt Sortation |
| System Structure | Closed-Loop Configuration |
| Available Models | Single-Layer / Double-Layer / Triple-Layer |
| Drive Technology | Linear Motor Drive |
| Sorting Method | Lateral Cross-Belt Diverting |
| Sorting Ports | Customized According to Project Requirements |
| System Layout | Customized |
| Sorting Capacity | Project-Based Configuration |
| Parcel Specifications | Customized According to Application |
| Weighing / Inspection | Intelligent Weighing Inspection Available |
| Control System | Customized According to Project |
| Integration | Customized According to System Requirements |
| Installation Configuration | Project-Based |
| Application | Logistics / E-Commerce / Warehousing / Distribution |
Note: Final technical specifications, including sorter dimensions, carrier configuration, speed, throughput, parcel size and weight range, number of sorting destinations, and other project-specific parameters should be confirmed according to the final engineering design.
Details
Product Overview
YJ-INTL Loop Cross Belt Sorter System is an automated sorting solution designed for high-volume parcel handling, distribution centers, e-commerce fulfillment, warehousing, and logistics operations. Its continuous loop configuration and independently controlled cross-belt carriers enable parcels to be accurately diverted to designated sorting destinations while maintaining a stable and efficient material flow.
The system is available in single-layer, double-layer, and triple-layer configurations, allowing the sorter layout and capacity to be selected according to facility space, sorting requirements, and project throughput.
Available Models
Single-Layer Loop Cross Belt Sorter
The single-layer configuration provides a compact loop sorting structure for projects where a straightforward automated sorting layout is required.
- Standard parcel sorting centers
- E-commerce fulfillment operations
- Distribution centers
- Medium-scale automated sorting applications
Double-Layer Loop Cross Belt Sorter
The double-layer configuration increases the utilization of vertical space and allows the sorting system to accommodate higher-density layouts.
- High-density sorting centers
- Large distribution facilities
- E-commerce logistics
- Projects with limited floor space
Triple-Layer Loop Cross Belt Sorter
The triple-layer configuration provides a multi-level sorting structure for projects requiring higher system density and optimized use of warehouse space.
- Large automated distribution centers
- High-volume parcel operations
- Multi-destination sorting applications
- Facilities requiring optimized vertical utilization
Key Product Highlights
- Loop Cross Belt Sortation — Continuous loop conveyor architecture for automated parcel sorting.
- Single / Double / Triple-Layer Configurations — Multiple structural configurations for different capacity and space requirements.
- Flexible Sorting Port Design — Sorting outlets can be configured according to the required destination layout.
- Linear Motor Drive — Linear motor drive technology supports precise and controlled carrier movement.
- Intelligent Weighing Inspection — Supports intelligent weighing and inspection functions within the sorting process.
- Customized System Design — Sorter dimensions, sorting ports, layout, and system configuration can be adapted to project requirements.
- High-Density Automated Sorting — Suitable for logistics environments requiring multiple destinations and continuous parcel sorting.
 |  |
|---|
Product Details
Flexible Diverter Position Types
The Loop Cross Belt Sorter can be configured with different sorting port positions according to the warehouse layout and downstream process. Flexible sorting-port configuration allows the system to connect with different discharge areas, chutes, conveyors, or destination lanes.
Customized Sorting Port Design
Sorting ports can be customized according to the number of destinations, parcel flow direction, warehouse layout, downstream conveyor configuration, chute arrangement, and shipping requirements.
Linear Motor Drive
The system uses a linear motor drive configuration. The drive technology provides controlled carrier movement around the sorting loop and supports the precise positioning required during automated sorting operations.
Intelligent Weighing Inspection
The system can incorporate intelligent weighing and inspection functions into the parcel handling process. For projects requiring dimensioning, weighing, barcode recognition, or other identification functions, corresponding equipment can be integrated according to the project design.
System Composition
- Parcel induction area
- Cross-belt carrier system
- Closed-loop sorting track
- Linear motor drive system
- Sorting ports / discharge points
- Chutes or downstream conveyors
- Parcel identification system
- Intelligent weighing / inspection equipment
- Control system
- System monitoring and data interface
Working Process
1. Parcel Induction
Parcels are introduced into the cross-belt sorting system through the designated induction area.
2. Parcel Identification
The parcel can be identified through the upstream identification system according to the project configuration.
3. Carrier Transportation
The parcel is transported around the closed sorting loop by an individual cross-belt carrier.
4. Sorting Decision
The control system determines the target destination according to the parcel's sorting information.
5. Cross-Belt Diverting
When the carrier reaches the assigned sorting port, the cross belt moves the parcel laterally toward the corresponding destination.
6. Destination Discharge
The parcel leaves the sorter through the designated sorting port and continues to the downstream processing, packing, storage, or shipping area.
Application Industries
E-Commerce Fulfillment
Suitable for automated order fulfillment and parcel distribution operations requiring multiple sorting destinations.
Logistics & Distribution Centers
The loop cross belt sorter can be used for automated parcel distribution between inbound processing and outbound destinations.
Warehouse Automation
The system can be integrated into automated warehouse material handling processes to improve parcel transportation and sorting efficiency.
Manufacturing & Industrial Warehouses
Suitable for automated movement and distribution of packaged goods, finished products, and other unit loads.
Why Choose YJ-INTL Loop Cross Belt Sorter?
- Flexible Multi-Layer Configuration: Single-layer, double-layer, and triple-layer configurations provide options for different facility layouts and sorting requirements.
- Optimized Space Utilization: Multi-layer configurations can make better use of vertical warehouse space when a higher-density sorting layout is required.
- Customized Sorting Layout: Sorting ports and system configuration can be designed according to the customer's actual warehouse layout and destination requirements.
- Integrated Intelligent Functions: Weighing, inspection, identification, and control functions can be integrated according to the overall system design.
- Complete Automation Solution: The sorter can be incorporated into a larger automated logistics system together with conveyors, scanning equipment, weighing systems, control systems, and downstream handling equipment.
- Project-Based Engineering: YJ-INTL can customize the sorting system based on parcel characteristics, required sorting destinations, facility conditions, and automation requirements.
FAQ
The difference is the structural configuration. Single-layer systems provide a standard layout, while double-layer and triple-layer configurations provide greater vertical utilization and can support higher-density system layouts.
Yes. Sorting-port positions and arrangements can be designed according to the warehouse layout, destination requirements, downstream equipment, and overall system configuration.
Yes. Multiple sorting destinations can be arranged along the loop according to the project requirements.
Yes. The product design includes intelligent weighing inspection. Additional weighing, scanning, dimensioning, and identification functions can be configured according to the project.
Yes. The product materials show a linear motor drive configuration for the Loop Cross Belt Sorter system.
Yes. The overall system can be designed around the customer's facility dimensions, parcel characteristics, sorting destinations, process flow, and automation requirements.

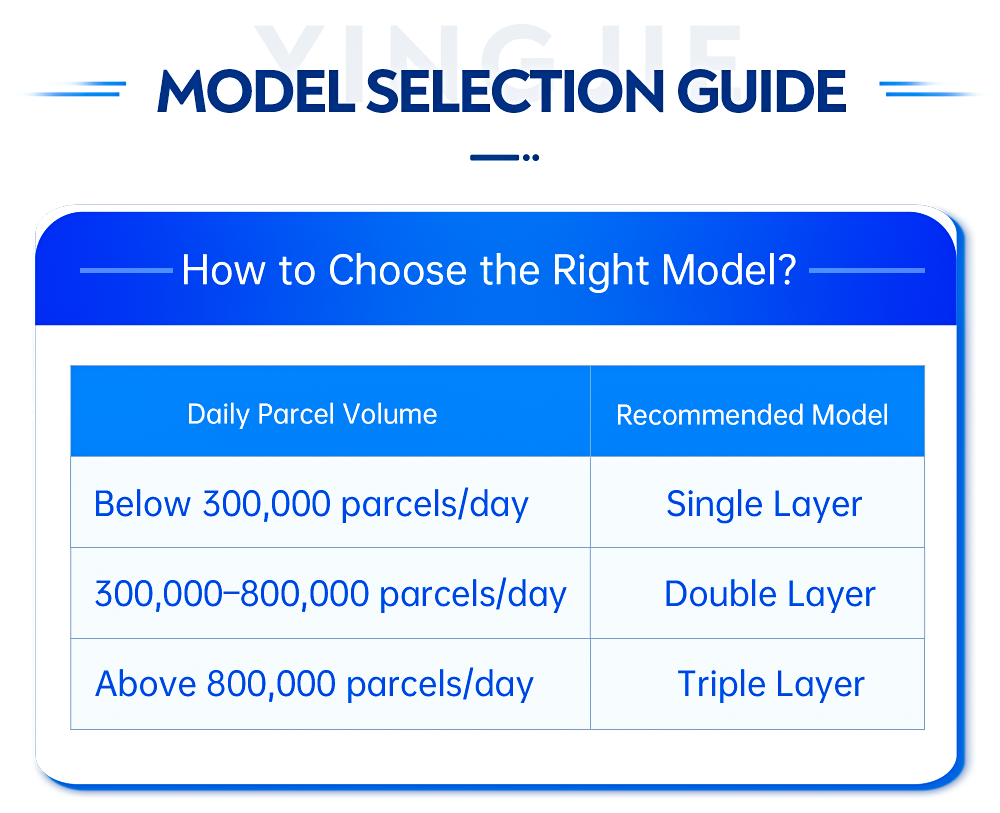

The appropriate configuration depends on required throughput, parcel characteristics, number of destinations, available floor space, vertical space, and sorting process. YJ-INTL can recommend a single-layer, double-layer, or triple-layer configuration based on project requirements.
Yes. The Loop Cross Belt Sorter can be integrated with induction conveyors, identification equipment, weighing systems, chutes, downstream conveyors, and other automation equipment according to the complete system design.
