Next-Generation Intelligent Parcel Sorting & Material Handling Solution for E-Commerce & Express Hubs

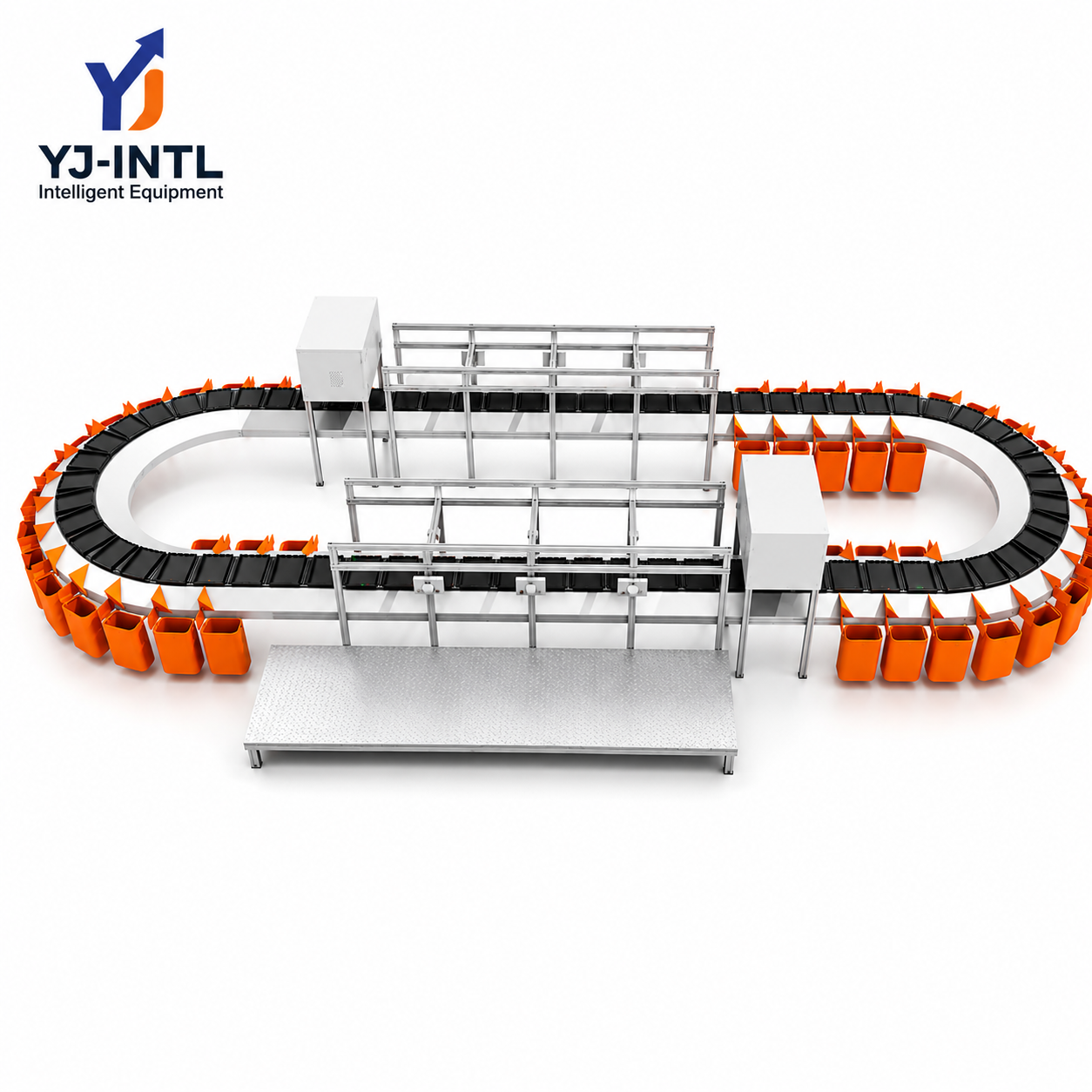

High-Speed Cross-Belt Loop Sorter System
The YJ-INTL High-Speed Cross-Belt Loop Sorter delivers industry-leading throughput of up to 36,000 items per hour with an exceptional sorting accuracy of over 99.99%. Engineered for high-demand e-commerce fulfillment and express courier hubs, this continuous loop system minimizes labor reliance, prevents product damage, and integrates seamlessly with advanced WMS/WCS platforms.
- Ultra-High Throughput
- 99.99% Sorting Accuracy
- Gentle Product Handling
- Energy-Efficient Drive
- Robust Payload Capacity
- Modular Scalability
Technical Specifications Table
| Technical Parameter | Specification Details | Engineering Benefits |
|---|---|---|
| Product Model | Cross-Belt Loop Sorter | Industrial-grade modular platform designed for long-term high-volume operation |
| System Type | Continuous Horizontal / Inclined Cross-Belt Loop Sorter | Flexible layout design for complex warehouse environments and maximum space utilization |
| Sorting Capacity | 24,000 – 36,000 parcels/hour | Supports peak-season parcel volumes for e-commerce and express logistics operations |
| Sorting Accuracy | ≥99.99% | Minimizes mis-sorting risks, operational costs, and delivery exceptions |
| Carrier Size | Customizable (Standard: 600 × 400 mm / 800 × 500 mm) | Handles various parcel formats including polybags, cartons, and irregular packages |
| Maximum Payload | Up to 35 kg per carrier | Suitable for apparel, electronics, household goods, and multi-item parcels |
| Drive Technology | Linear Synchronous Motor (LSM) / Friction Drive | Low-noise operation (<75 dB), high efficiency, and reduced maintenance requirements |
| Operating Environment | Temperature: -10°C to 45°C; Humidity: 10%–95% RH | Reliable performance in demanding industrial warehouse environments |
Details
The YJ-INTL High-Speed Cross-Belt Loop Sorter represents the pinnacle of modern warehouse automation technology. Engineered for ultra-high-throughput fulfillment centers, cross-border e-commerce hubs, and express courier distribution networks, this continuous loop sorting system delivers exceptional sorting accuracy (>99.99%) while operating continuously under heavy industrial workloads.
By merging heavy-duty mechanical engineering with advanced modular control architecture, our loop sorter minimizes product damage, optimizes floor space utilization through multi-tier configurations, and dramatically reduces manual labor reliance. Designed with EEAT principles in industrial automation excellence, Yingjie provides robust engineering validation, transparent technical specifications, and global deployment expertise.
Features
1. Advanced Structural Architecture
The loop sorter is built on a heavy-duty extruded aluminum and steel frame designed for structural rigidity and long-term durability. Each independent carrier is equipped with brush-less servo motors and polyurethane belts, allowing ultra-precise parcel discharge into destination chutes.
2. Seamless DWS Integration
The system synchronizes in real-time with dynamic Dimension-Weight-Scanning (DWS) stations. Automated data capture occurs instantaneously as items merge onto the loop carriers, ensuring absolute trace-ability across the entire fulfillment network.
3. Intelligent Redundant Control
Powered by distributed industrial PLCs and real-time Ethernet protocols (PROFINET / EtherCAT), the system features self-diagnostics, predictive maintenance alerts, and fail-safe redundancy to guarantee 24/7 continuous operation.
Advanced Structural Features & Innovations
Modular Carrier Design
Each carrier features quick-release polyurethane belts driven by high-response brushless servo motors. This enables precise drop-off positioning and gentle discharge of fragile items, preventing package jamming and surface abrasion.
Intelligent Induction & DWS Integration
The system synchronizes seamlessly with dynamic Dimension-Weight-Scanning (DWS) stations. Automated barcode reading and volume profiling occur milliseconds before items merge onto the loop carrier, ensuring flawless tracking.
Redundant Control Architecture
Equipped with distributed industrial PLCs and real-time industrial Ethernet bus protocols (PROFINET / EtherCAT), ensuring fail-safe operations, real-time diagnostics, and predictive maintenance alerts.
Energy-Regenerative Braking
Incorporates smart power feedback modules that capture kinetic energy during deceleration and braking, feeding power back into the facility grid to reduce total operational carbon footprint.
Operational Benefits & ROI Analysis
- Labor Optimization: Reduces sorting staff requirements by up to 70%, mitigating warehouse labor shortages and rising labor costs.
- Unmatched Flexibility: Handles a wide variety of SKUs simultaneously—including apparel, books, cosmetics, electronics, and irregular polybags.
- Rapid Deployment & Scalability: Modular rail and carriage design allows for rapid installation and future chute expansion without full system downtime.
- Data-Driven Transparency: Integrates with advanced Warehouse Execution Systems (WES) to deliver real-time throughput metrics, bottleneck analysis, and heatmaps.
Industry Applications
- Cross-Border E-Commerce Fulfillment: High-frequency sorting for small parcels requiring precise destination chutes.

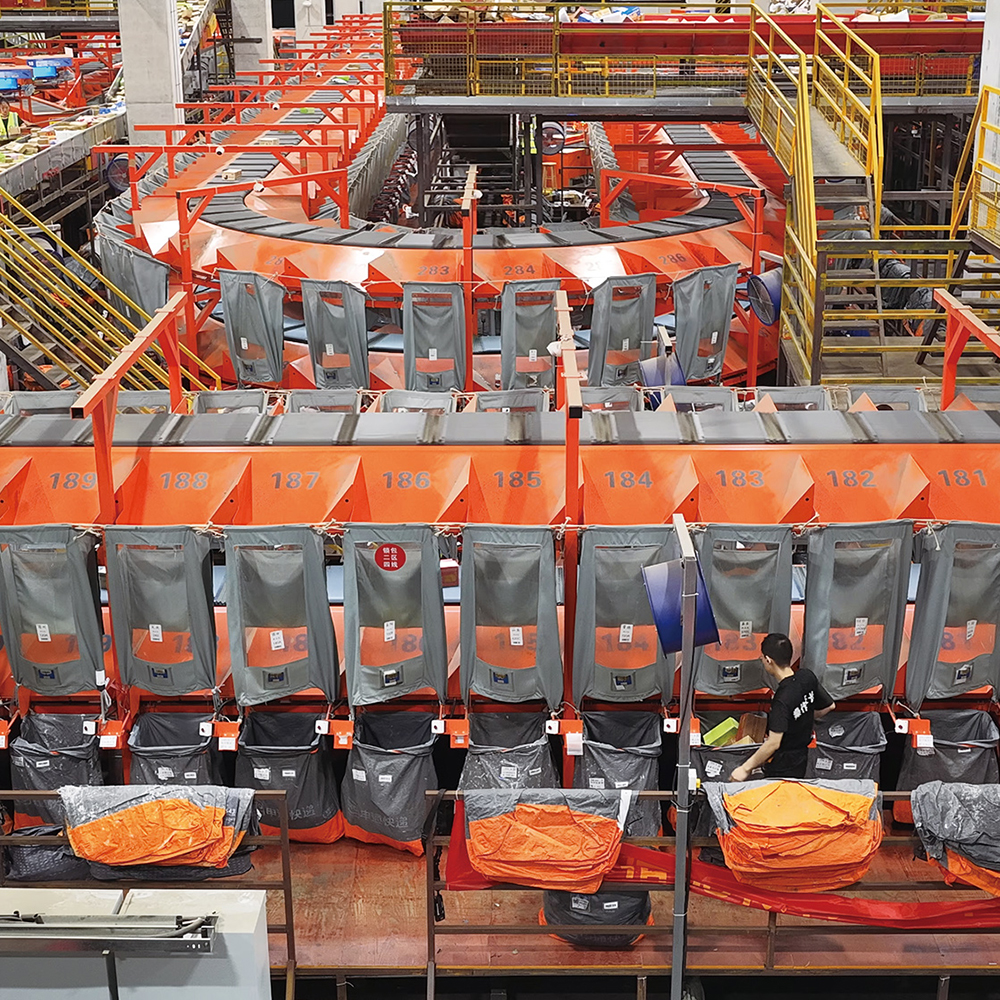

- Express Courier Sorting Hubs: Primary hub sorting for regional distribution and last-mile dispatch.
- Apparel & Retail Distribution: Hanging and flat-pack garment sorting with high-speed redirection.
- Pharmaceutical & Cosmetics: Traceable, clean-room compatible batch sorting with high precision requirements.
FAQ
The system is engineered to handle between 24,000 to 36,000 parcels per hour depending on carrier size and layout configuration.
Yes, the precision cross-belt carriers and gentle drop-off mechanism are specifically designed to handle polybags, rigid boxes, apparel, and irregular parcels without jamming.
The Linear Synchronous Motor (LSM) technology eliminates mechanical friction wear found in traditional chain drives, significantly reducing routine maintenance requirements and downtime.
Yes, Yingjie provides global engineering deployment, on-site installation supervision, WMS/WCS integration assistance, and comprehensive operator training.
