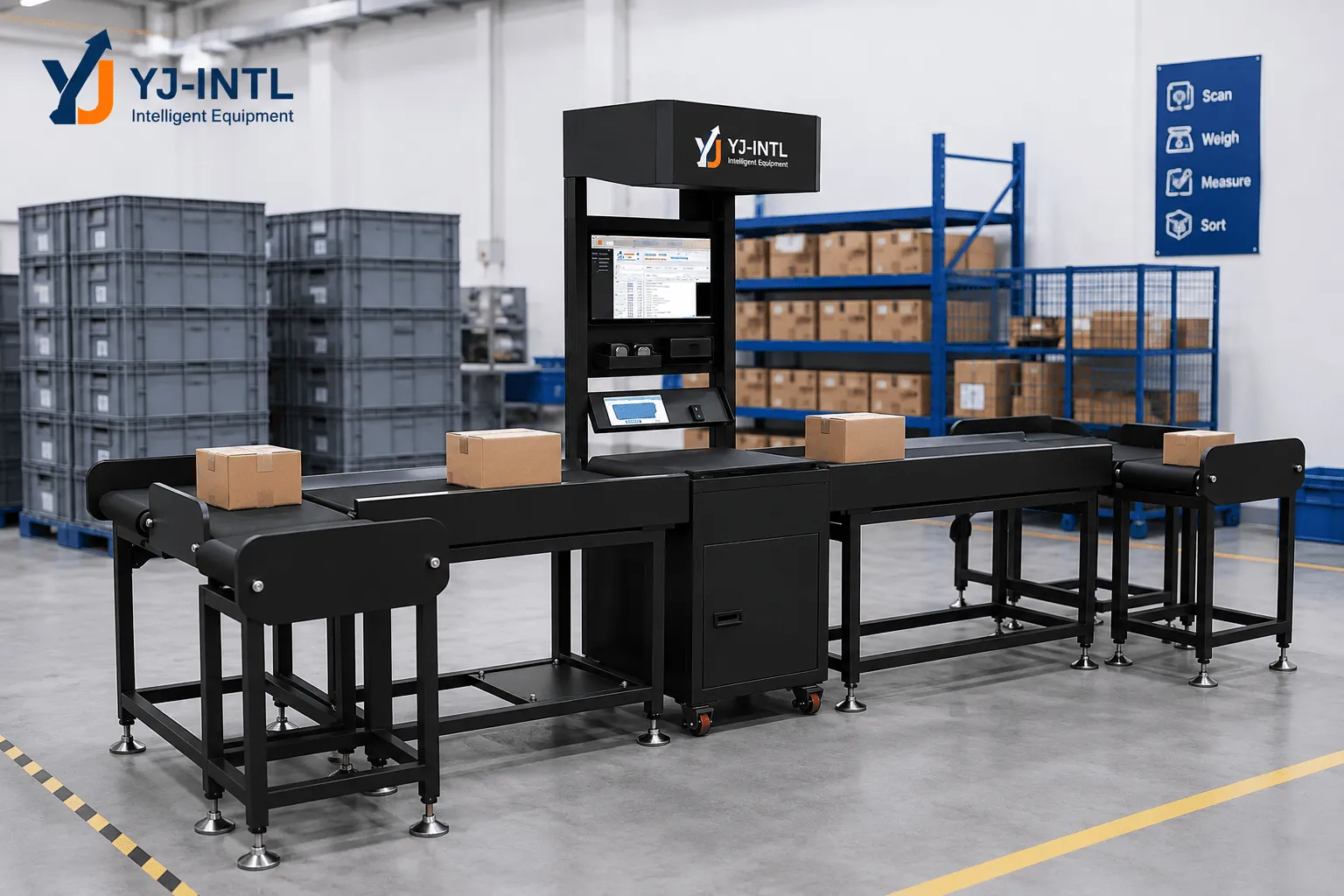

Static DWS 8-Chute Sorting System

Static DWS 8-Chute Sorting System for Multi-Destination Parcel Processing

The Static DWS 8-Chute Sorting System is the highest-destination configuration in this static DWS product range, combining parcel identification, weighing, dimension measurement, image capture and automated sorting.

With eight sorting outlets, it is designed for operations that need more complex route classification while maintaining a compact station-based architecture. The supplied product materials specify up to 3,000 parcels/hour, support for parcels from 100 g to 15 kg, ±50 g weighing accuracy, ±10 mm dimension accuracy, <0.01% mis-sort rate and operation at up to 1.5 m/s for the listed configuration

8 Sorting Chutes
Up to 3,000 Parcels/Hour
100g–15kg Parcel Weight Range
±50g Weighing Accuracy
±10mm Dimension Accuracy
<0.01% Mis-Sort Rate
Photo Capture
Top Scanning
API Integration

Request a Quote

Specifications Table

Parameter	Specification
Product Type	Static DWS 8-Chute Sorting System
Sorting Capacity	Up to 3,000 pcs/hour
Weight Range	100 g–15 kg
Weighing Accuracy	±50 g
Dimension Accuracy	±10 mm
Mis-Sort Rate	<0.01%
Conveyor Speed	0–1.5 m/s
Scanning Position	Top Scanning
Functions	Dimensioning + Weighing + Scanning + Photo Capture + Sorting
System Integration	API / WMS / WCS / ERP

Details

Eight-Destination Static DWS Sorting

The 8-Chute configuration is designed for logistics operations where parcels need to be classified into a larger number of destinations within one compact automated station.

Full Parcel Data Processing

The system integrates: Scanning → Weighing → Dimensioning → Photo Capture → Sorting

This enables the parcel's physical and identification data to be processed before the final routing decision.

Eight Sorting Destinations

Eight outlets provide a wider route matrix than the 2-port, 4-station or 6-chute configurations.

Potential sorting logic includes:

Delivery region
Route
Customer
Order type
Service level
Outbound lane
Exception handling

High Processing Capacity

The listed configuration supports up to 3,000 parcels/hour, providing a higher processing ceiling for a compact static sorting architecture.

Data Accuracy

The supplied product material specifies:

±50 g weighing accuracy
±10 mm dimension accuracy
<0.01% mis-sort rate

The actual performance should be validated against parcel size, shape, labeling quality and operating conditions.

API-Based Integration

The system can communicate with WMS, WCS, ERP and logistics management platforms through API connectivity.

11. Product Advantages

Highest Destination Density in the Static Range

Eight chutes allow the system to handle more classification rules without expanding into a much larger sorter architecture.

Full Parcel Information

The combination of scanning, weighing, dimensioning and photo capture creates a richer parcel record.

Compact Alternative to Large Sorters

For small-to-medium facilities, the 8-chute system can offer multi-destination automation without requiring a large cross-belt or narrow-belt sorting line.
