Capable of processing 1,000–3,000 parcels per hour with an accuracy of 50 grams.
Wholesale Static Parcel Dimensioning, Weighing, and Scanning System

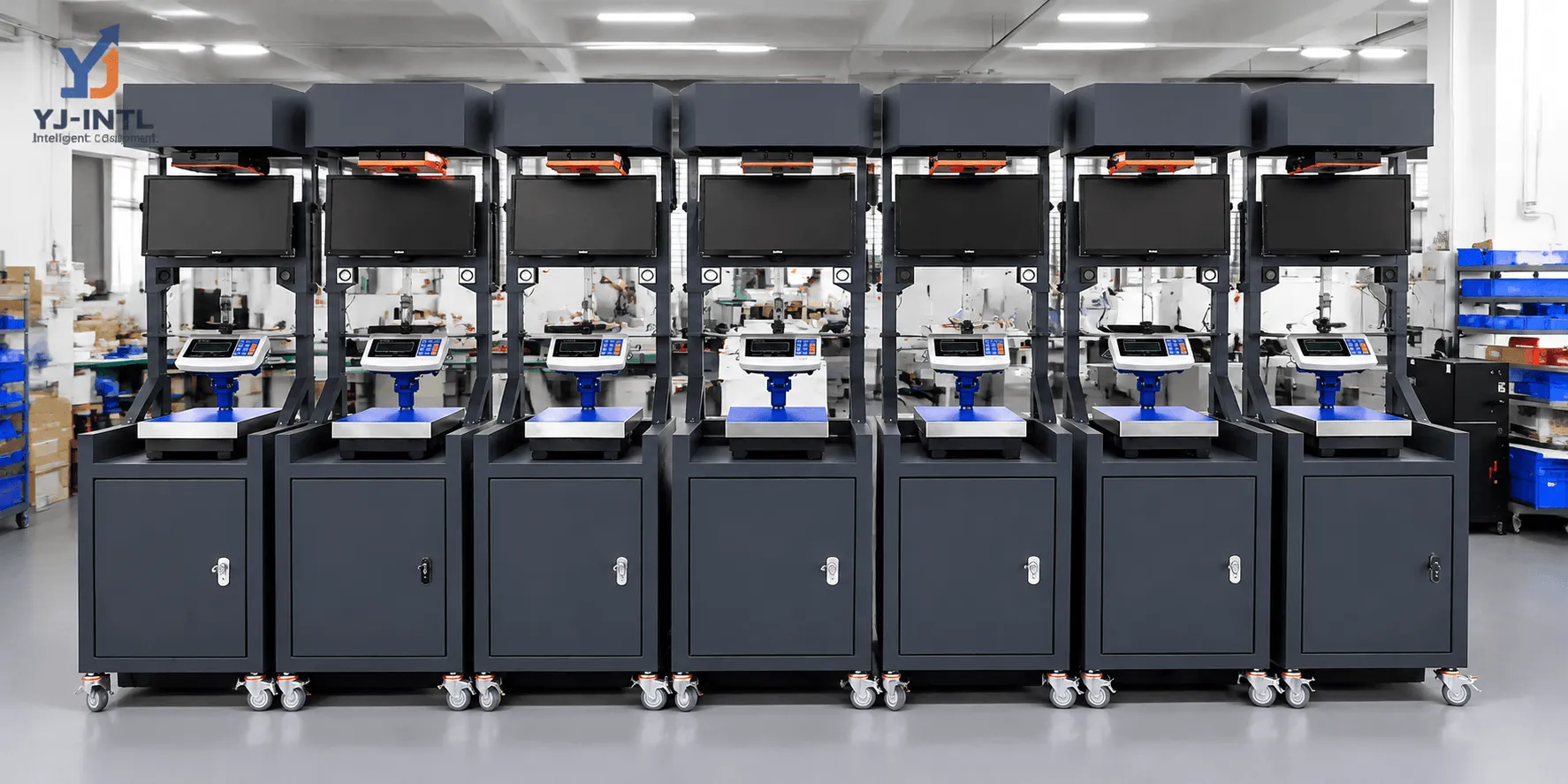

Static DWS Machine is a compact parcel data acquisition station designed to capture key parcel information before downstream handling or sorting.

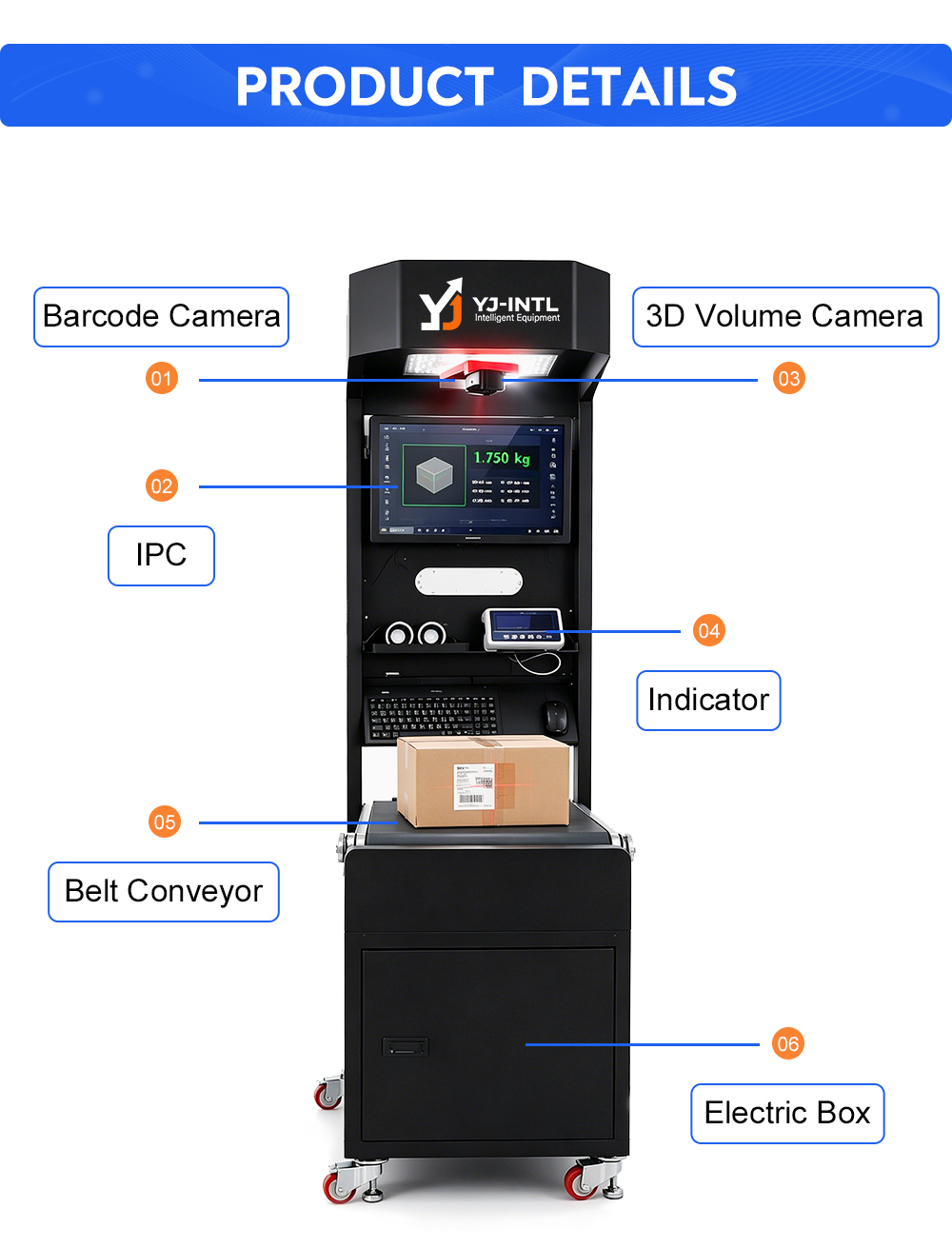

The system combines barcode scanning, weighing and dimension measurement into one workstation, allowing operators to obtain structured parcel data without moving the package through multiple independent measurement devices.
The supplied product material specifies a reference weighing capacity of up to 50 kg, a 500 × 500 mm weighing platform, approximately ±50 g weighing accuracy and ±5 mm dimensioning accuracy for the standard configuration shown in the source materia.
- Barcode Identification
- Parcel Weighing
- Automatic Dimension Measurement
- Up to 50kg Reference Capacity
- ±50g Weighing Accuracy
- ±5mm Dimension Accuracy
- Compact Measurement Workstation
Specifications Table
| Parameter | Specification |
|---|---|
| Product Type | Standard Static DWS Machine |
| Functions | Dimensioning + Weighing + Barcode Scanning |
| Reference Weighing Capacity | Up to 50 kg |
| Weighing Accuracy | ±50 g |
| Dimensioning Accuracy | ±5 mm |
| Weighing Platform | 500 × 500 mm |
| Scanning | Barcode Identification |
| System Type | Static / Station-Based |
| Application | Logistics / E-commerce / Warehouse |
| Integration | Conveyor / WMS / WCS / ERP — Project Based |
Details
Wholesale Standard Static DWS for Complete Parcel Data Collection
Static DWS system is useful when parcel information needs to be captured at a controlled workstation before the package enters the next warehouse process.
Instead of recording parcel weight and dimensions separately, the operator can complete the measurement process at one station while the system associates the collected information with the parcel's barcode.

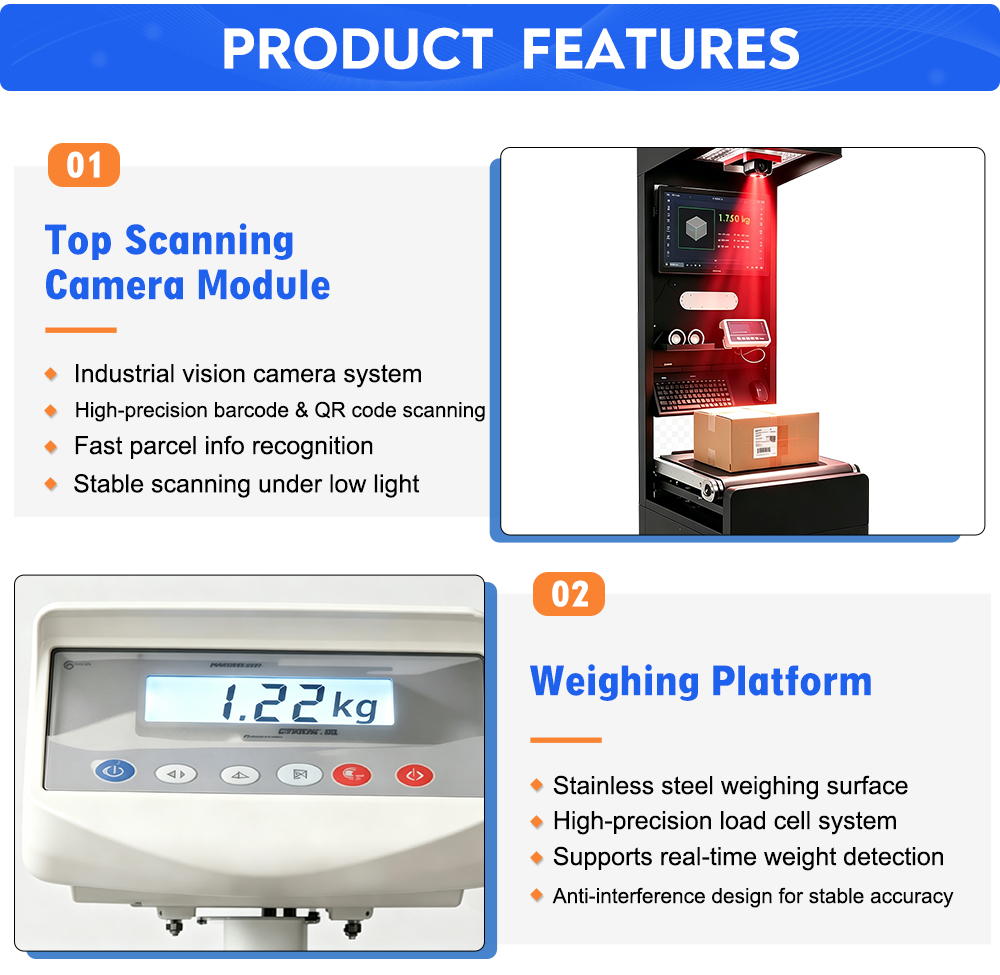

Barcode Identification
The scanning system provides parcel identification so that measurement data can be linked to the correct package record.
Static Weighing
The package is placed on the weighing platform and its weight is captured before the next operation.
Dimension Measurement
The dimensional measurement section records the parcel's key dimensions for shipping, storage or sorting management.
Structured Parcel Data
The combined data can include:
Barcode + Weight + Length + Width + Height
This can be transferred to the customer's warehouse or logistics management system according to the project architecture.
Product Advantages
One Workstation for Three Functions
Combines barcode scanning, weighing and dimension measurement within one station.
Controlled Measurement Environment
Static operation allows the parcel to be positioned and measured under controlled conditions.
Useful for Downstream Sorting
The collected information can be used as input for sorting, shipping verification or warehouse processing.
Compact Deployment
The station can be positioned near receiving, picking, packing or sorting areas.

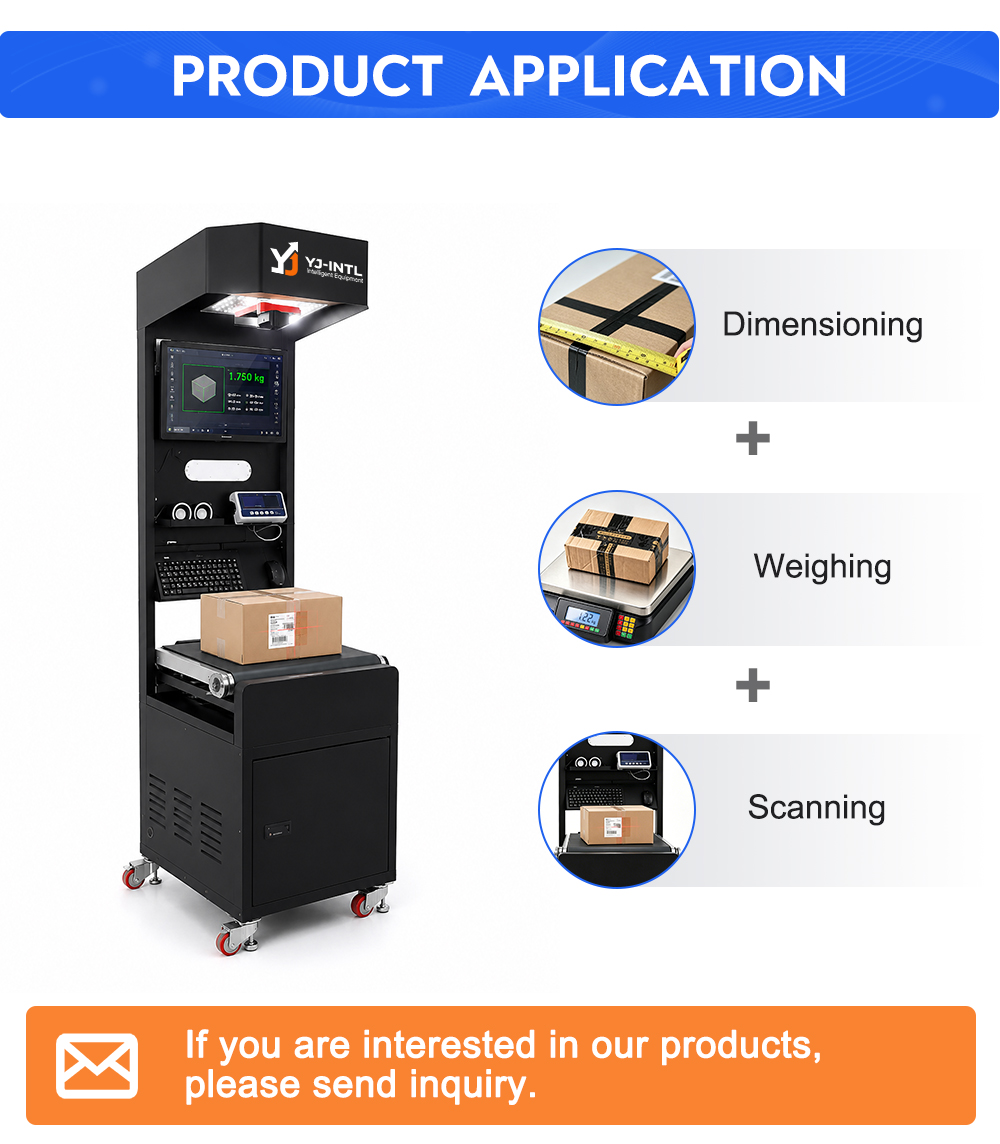

Typical Applications
- E-commerce fulfillment
- Express parcel processing
- 3PL warehouses
- Shipping verification
- Distribution centers
- Parcel receiving
FAQ
The standard configuration combines parcel identification, weighing and dimension measurement within one workstation.
The supplied reference configuration supports a weighing capacity of up to 50 kg.
The source specification indicates approximately ±50 g weighing accuracy and ±5 mm dimensioning accuracy for the standard configuration.
Yes. Barcode scanning is used to associate parcel identification with the collected measurement information.
The suitable parcel range depends on the selected weighing platform, dimensioning system and project configuration.
Yes. WMS, WCS, ERP or other warehouse systems can be integrated according to the required communication architecture.
Static DWS requires the parcel to be positioned at a measurement station, while dynamic DWS captures parcel data while the parcel is moving through the system.
