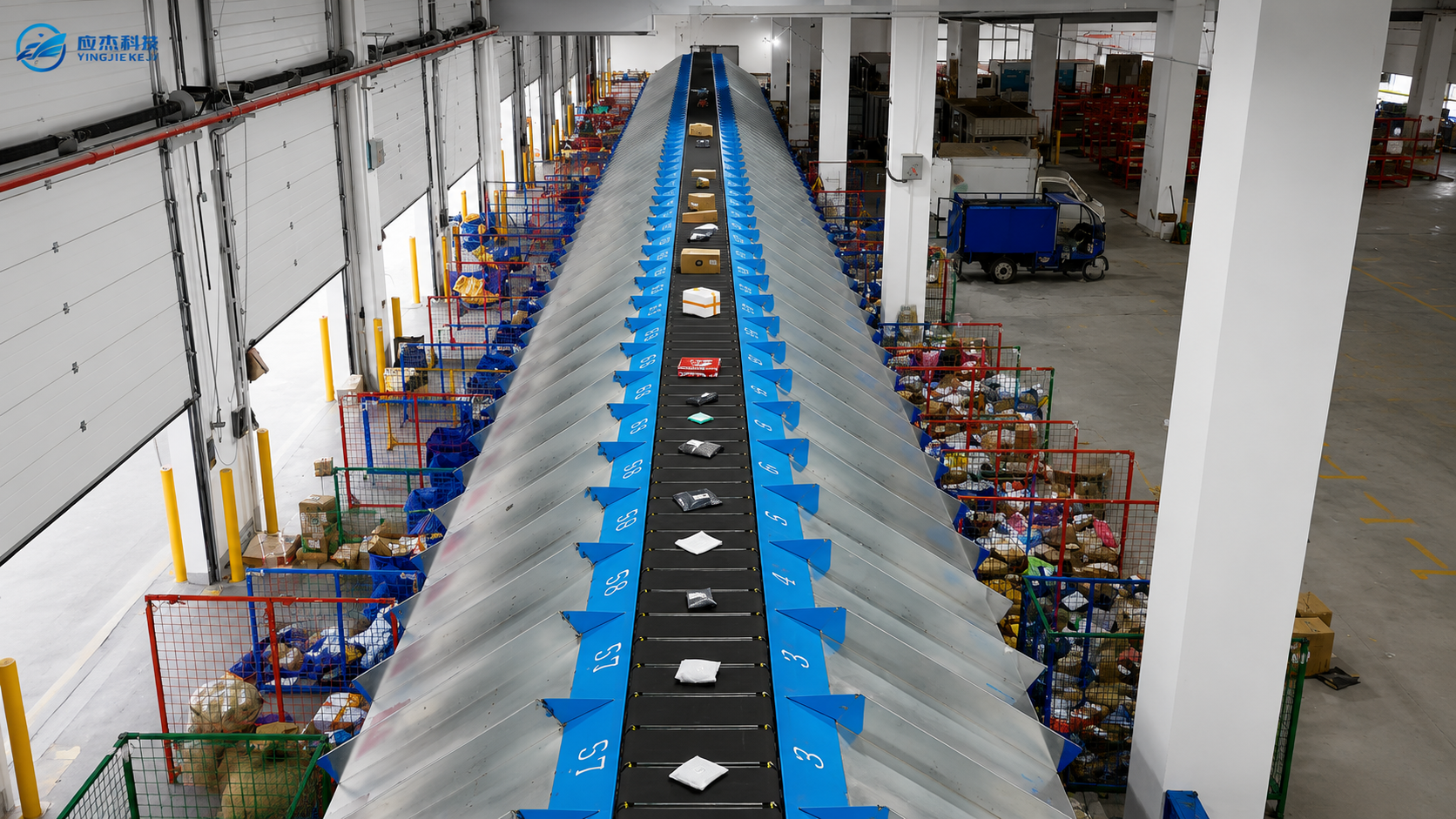

Linear Narrow Belt Parcel Sorter
Linear Narrow Belt Parcel Sorter | 8,000–12,000 PPH
The Linear Narrow Belt Parcel Sorter is a high-speed automated sorting system designed for e-commerce, express delivery and distribution operations. Its linear conveying structure provides continuous parcel transport and accurate destination sorting while supporting different package types, including soft parcels, flat pieces, sacks, cartons and irregular parcels with a stable center of gravity.
With a reference throughput of 8,000–12,000 pieces per hour and a maximum load of 50kg, the system can be configured with different belt widths, carrier pitches and induction methods to match specific parcel profiles and sorting requirements.
- 8,000–12,000 PPH
- Up to 50kg Load
- 200 / 300mm Pitch
- 800 / 1000mm Belt Width
- Manual or Automatic Induction
- Wide Parcel Compatibility
Configurable Sorting Parameters
| Configuration | Available Specification |
|---|---|
| Sorting Throughput | 8,000–12,000 pcs/h |
| Maximum Load | Up to 50kg |
| Maximum Package Size | 1200 × 900 × 700mm |
| Pitch | 200 / 300mm |
| Belt Width | 800 / 1000mm |
| Induction | Manual / Automatic |
| Sorting Configuration | Customized |
| Application | E-commerce / Express / Distribution |
| Parcel Types | Soft / Flat / Sack / Carton / Irregular |
Note: Actual system performance depends on parcel dimensions, weight, package stability, induction rate, spacing, destination quantity and overall system configuration.
Details
The Linear Narrow Belt Parcel Sorter is engineered around eight practical advantages that directly affect sorting capacity, equipment configuration and daily operation.
Product Advantages
01. Modular Components
Flexible System Configuration
The sorter adopts a modular equipment concept, allowing key sections to be configured according to the required sorting layout.
The system can be arranged according to:
- Sorting line length
- Induction position
- Number of destinations
- Chute arrangement
- Conveyor connection
- Available installation space
This makes the system suitable for both standard sorting lines and customized logistics projects.

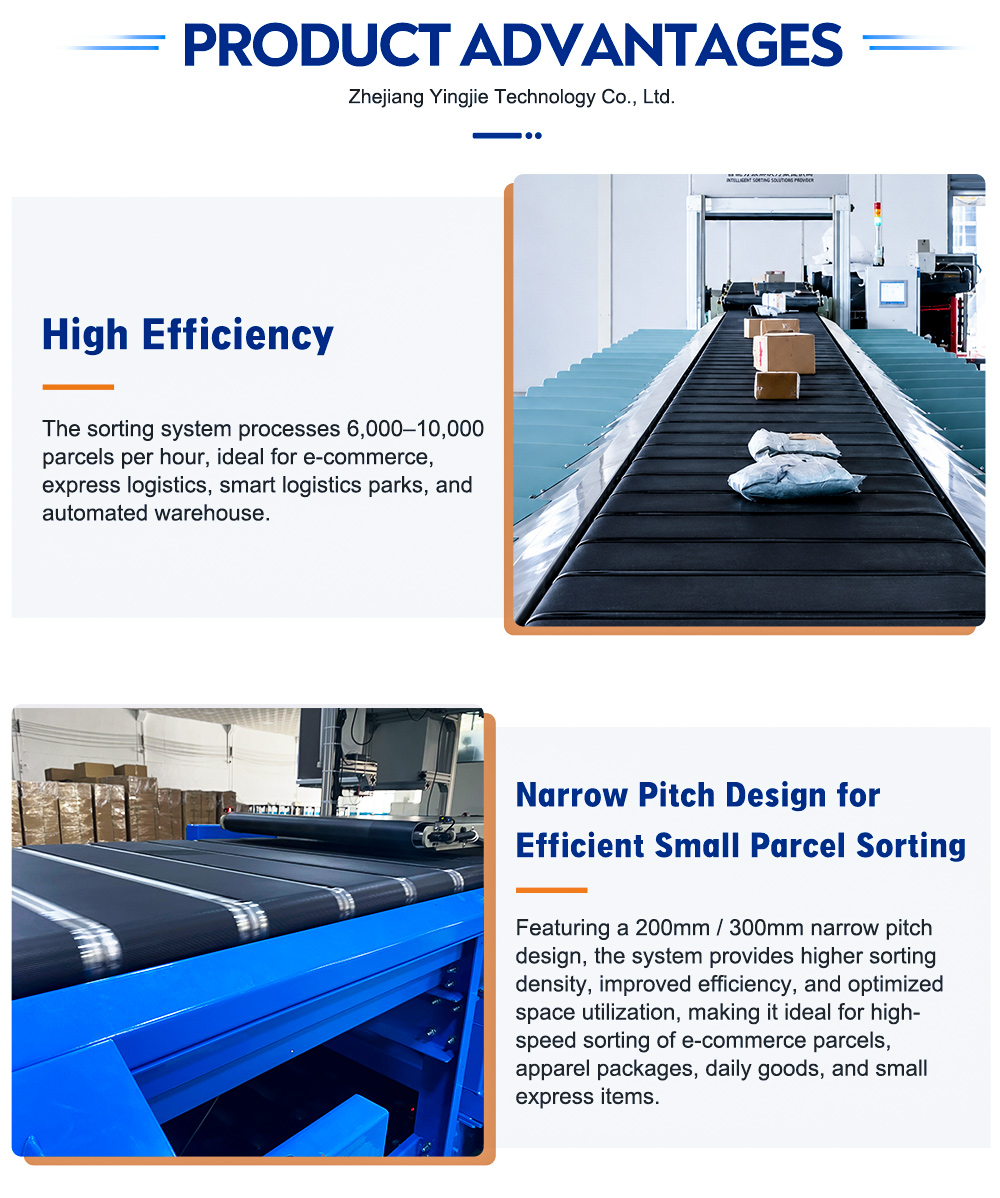

02. High-Speed Sorting
Up to 8,000–12,000 Pieces per Hour
The Linear Narrow Belt Sorter is designed for continuous high-volume parcel processing.
The stated throughput range of 8,000–12,000 pieces/hour provides sufficient capacity for many e-commerce, express and distribution applications.
Actual throughput depends on parcel size, weight, induction rate, spacing, sorting destinations and downstream equipment configuration.
03. High Sorting Accuracy
Controlled Parcel Routing
Each parcel is assigned to its corresponding destination according to the sorting control system.
The typical process is:
Parcel Induction → Identification → Routing Decision → Sorting → Destination Discharge
When integrated with barcode scanning or DWS equipment, parcel information can be captured before the sorting decision is executed.
This creates a more controlled and repeatable sorting process than manual destination handling.

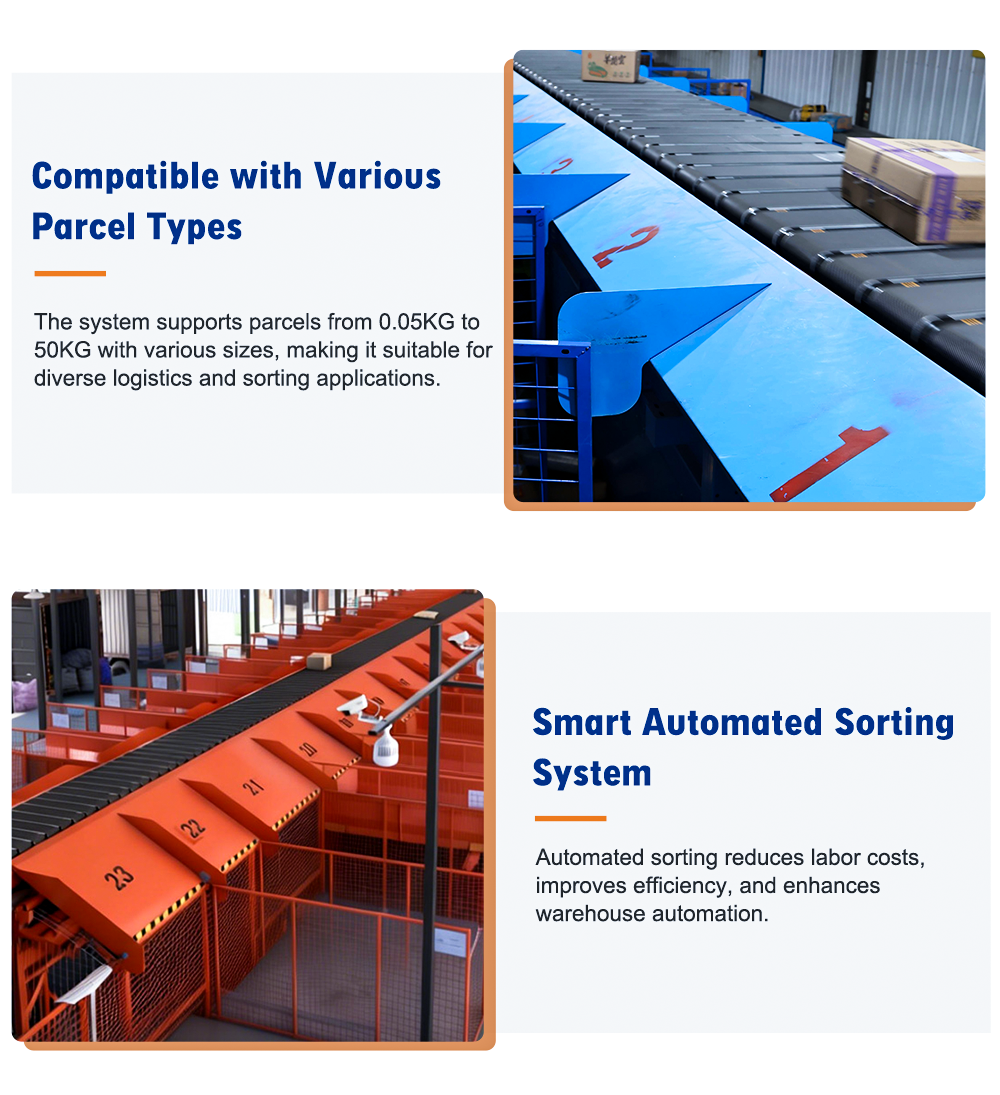

04. Wide Application Range
One Sorter for Multiple Parcel Types
The supplied product information identifies the following suitable parcel types:
- Soft parcels
- Flat pieces
- Sacks
- Cartons
- Irregular parcels with a stable center of gravity
The system is therefore suitable for mixed parcel environments where package formats are not completely standardized.
05. High Sorting Efficiency
Continuous Material Flow
The linear configuration keeps parcels moving through the sorting process instead of requiring operators to repeatedly stop, identify and manually relocate individual packages.
A typical automated process can be organized as:
Induction → Scan → Sort → Chute → Outbound
This reduces unnecessary manual handling and provides a more consistent parcel flow.
06. High Load Capacity
Up to 50kg per Parcel
The system supports a stated maximum load of 50kg, allowing it to serve applications involving heavier e-commerce and logistics packages.
The supplied material also specifies a maximum package size of:1200 × 900 × 700mm
Final suitability should be confirmed based on the actual package shape, weight distribution and loading conditions.
07. Low-Noise Operation
Designed for Continuous Warehouse Operation
Low operating noise is one of the product advantages identified in the supplied product material.
This makes the system suitable for continuous operation in logistics warehouses, distribution centers and e-commerce fulfillment facilities. The actual noise level depends on the equipment configuration, operating speed, building environment and surrounding equipment.
08. Flexible Configuration
Different Pitch, Belt Width and Induction Options
The sorter supports multiple configuration options:
Pitch: 200 / 300mm
Belt Width: 800 / 1000mm
Induction: Manual / Automatic
This allows the equipment configuration to be matched with different parcel sizes, throughput requirements and facility layouts.

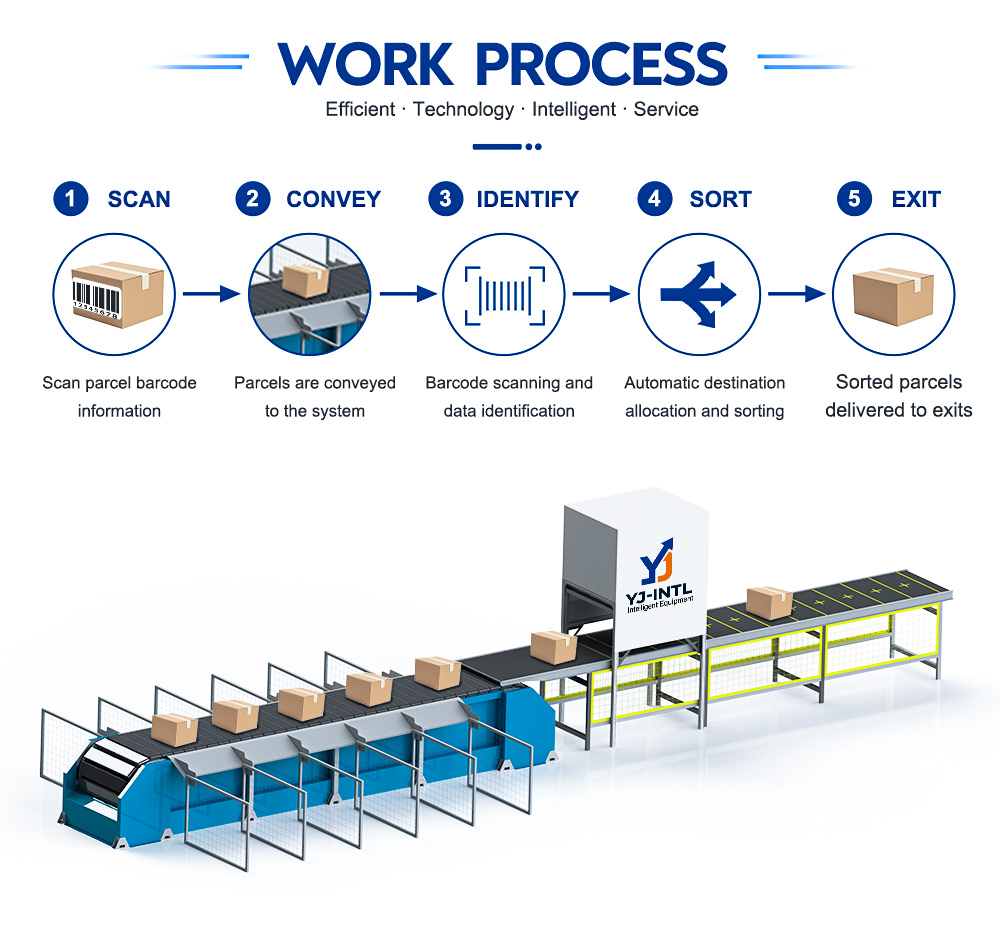

Work Process
Applications
E-Commerce Fulfillment: For sorting large volumes of mixed e-commerce orders according to destination, route or outbound lane.
Express Distribution Centers: For automated parcel distribution and multi-destination sorting.
3PL Warehouses: For third-party logistics operations handling multiple customers and destination requirements.
Parcel Hubs: For centralized sorting of parcels before regional distribution.
Distribution Centers: For automated outbound sorting and order consolidation.
Why Choose the Linear Narrow Belt Sorter?
High Throughput: Up to 8,000–12,000 PPH reference sorting capacity.
Broad Parcel Compatibility: Supports soft parcels, flat pieces, sacks, cartons and applicable irregular parcels.
Heavy Load Capability: Handles parcels up to 50kg according to the supplied specification.
Flexible Configuration: Multiple pitch, belt-width and induction configurations are available.
Space-Efficient Linear Layout: The straight-line structure can be adapted to different warehouse layouts and sorting processes.
Automation Ready: Can be integrated with barcode scanning, DWS and WMS/WCS-based sorting processes.
Modular Design: System sections can be configured according to throughput, destination count and facility requirements.
Suitable for Continuous Operation: Designed for high-volume logistics environments requiring stable and repeatable parcel flow.
FAQ
The supplied product specification indicates a reference sorting throughput of 8,000–12,000 pieces per hour. Actual throughput depends on parcel size, weight, spacing, induction rate, destination quantity and system configuration.
The system is designed for soft parcels, flat pieces, sacks, cartons and applicable irregular parcels with a stable center of gravity.
The supplied specification indicates a maximum parcel load of up to 50kg.
The supplied product material specifies a maximum package size of up to 1200 × 900 × 700mm. Actual compatibility should be confirmed according to parcel shape, weight and stability.
The available pitch options shown in the supplied material are 200mm and 300mm.
The available belt-width options shown in the supplied material are 800mm and 1000mm.
Yes. The system supports standard manual induction and automatic induction configurations. The appropriate solution depends on the upstream process and required automation level.
Yes. The sorter can be integrated with DWS equipment for parcel dimensioning, weighing and identification according to project requirements.
Yes. The supplied product material identifies irregular parcels with a stable center of gravity as one of the applicable parcel types. Actual compatibility depends on the specific parcel characteristics.
Yes. The linear sorting system can be configured according to the available installation space, sorting destinations, induction position, chute arrangement and downstream conveyor requirements.
Actual throughput depends on parcel dimensions, weight, package stability, induction rate, parcel spacing, destination distribution, sorting configuration and downstream conveyor capacity. The stated 8,000–12,000 PPH is a reference specification rather than a guaranteed throughput for every parcel profile.
