High-Speed Automated Parcel Sorting System
Automated Narrow Belt Sorter (200mm/300mm Pitch)

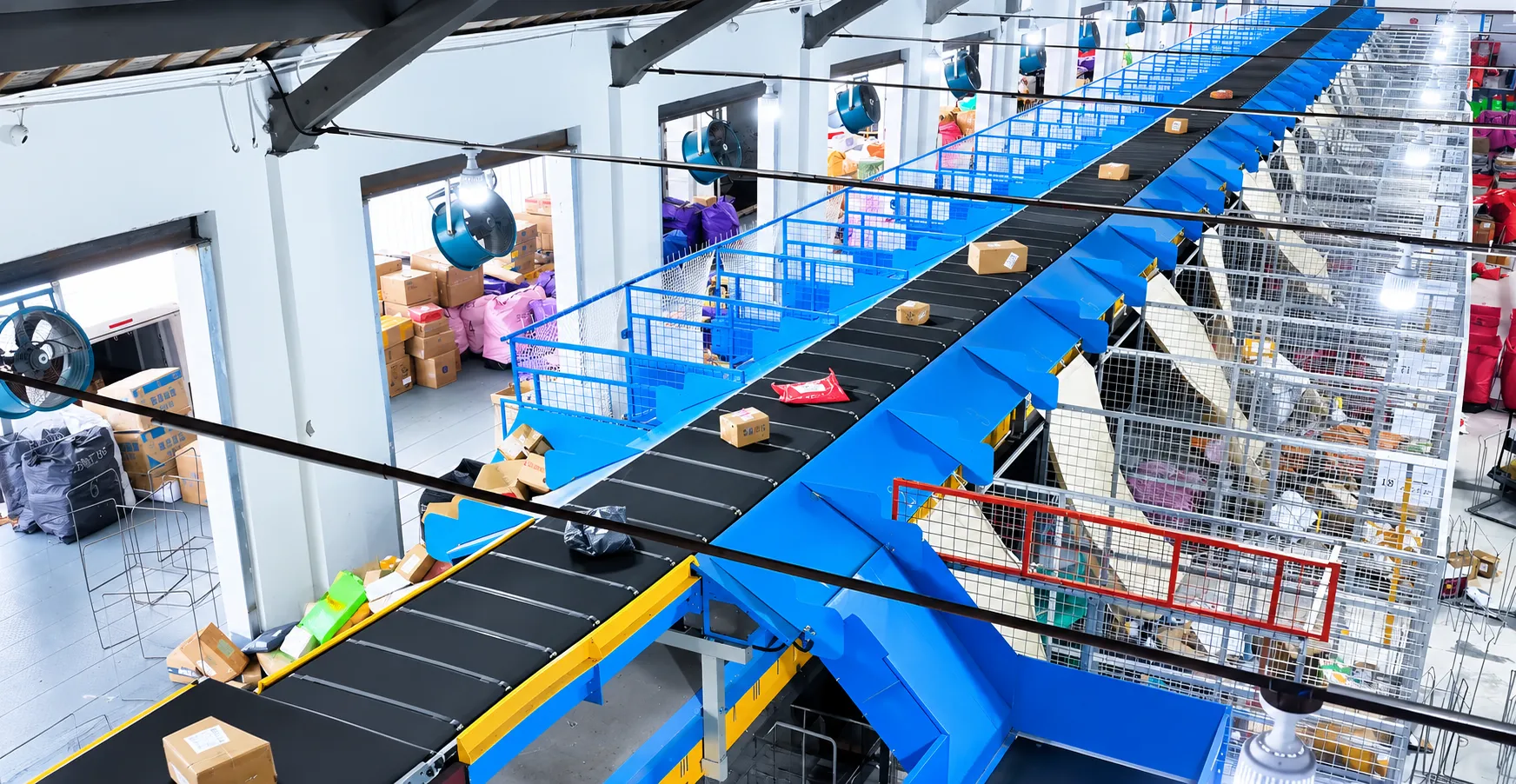

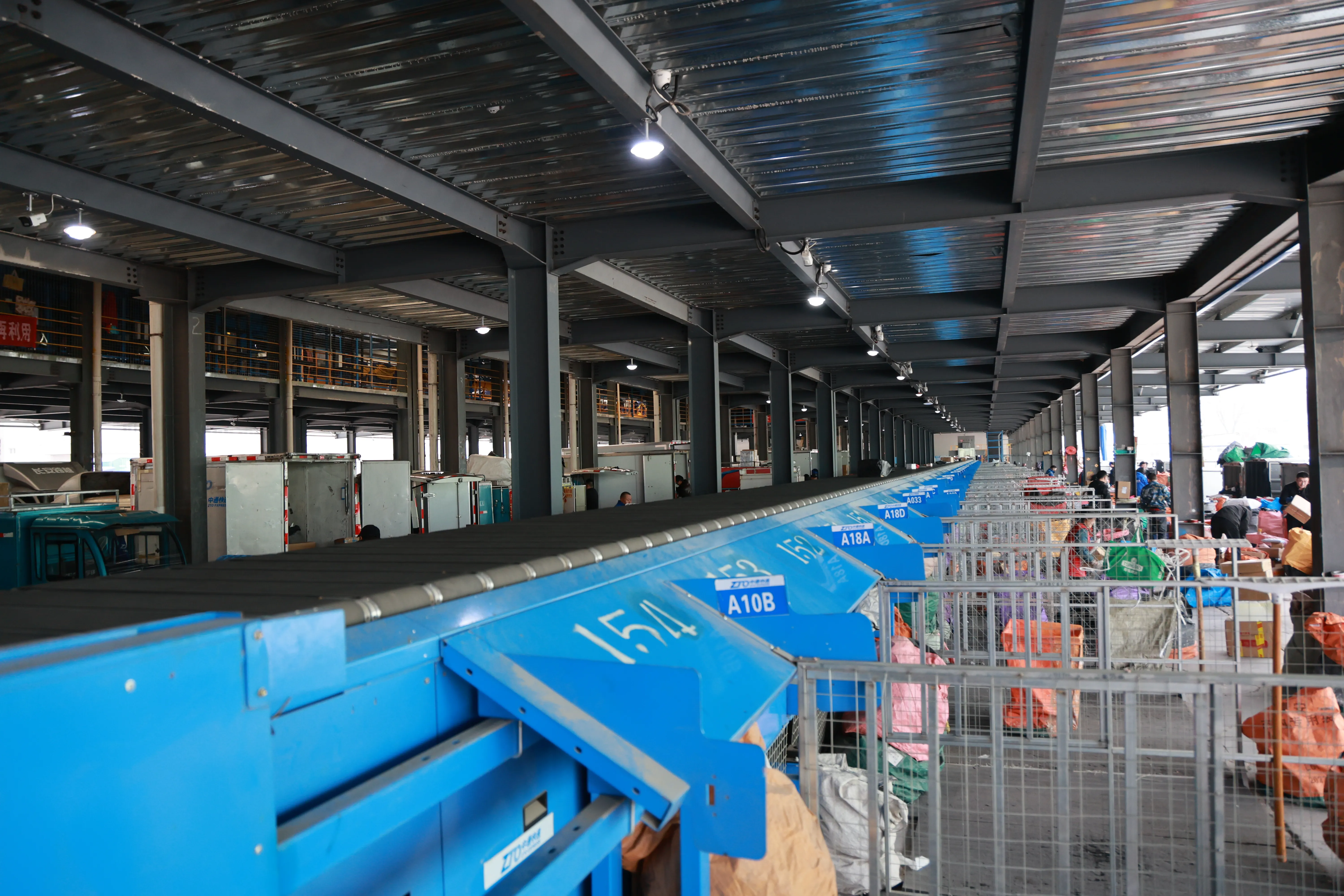

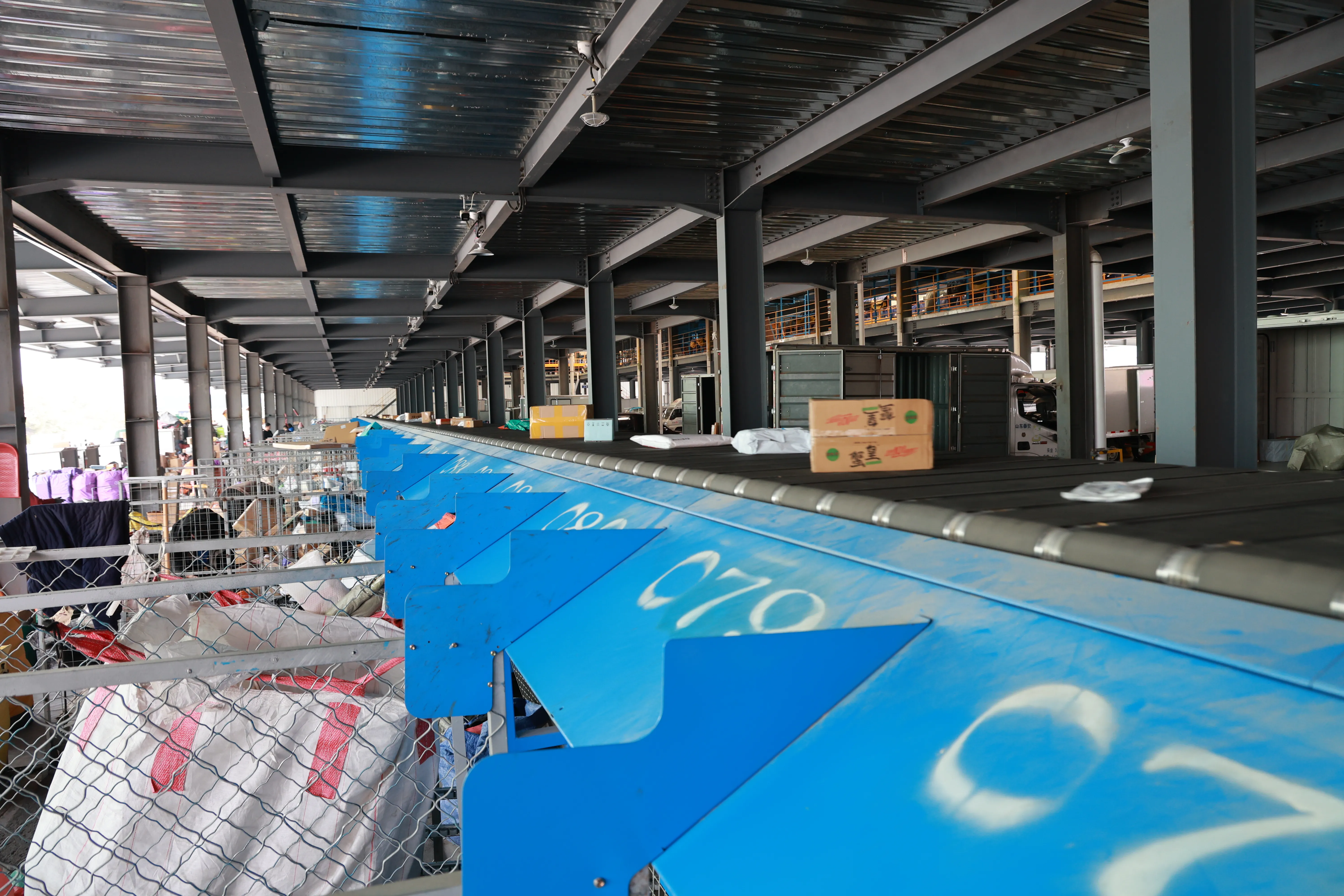

The YJ-INTL Narrow Belt Sorter is an automated parcel sorting system designed for high-volume logistics, express delivery, e-commerce fulfillment, 3PL warehouses and distribution centers.
Using a continuous narrow-belt conveying structure and controlled lateral diversion, the system automatically routes parcels to different destinations according to barcode information and predefined sorting rules. With 7,000–10,000 parcels per hour reference throughput, 2–2.5 m/s operating speed, and support for parcels from 0.05 kg to 50 kg, it provides a practical automation solution for facilities that need higher sorting capacity without relying on a large manual workforce.
The system supports 200 mm and 300 mm carrier pitch, with a maximum recommended parcel profile of 1200 × 900 × 700 mm for the configuration shown in the product specification.
- 7,000–10,000 Parcels/Hour
- 2–2.5 m/s Operating Speed
- 200 / 300 mm Carrier Pitch
- 0.05–50 kg Parcel Load
- Up to 1200 × 900 × 700 mm
- <0.03% Reference Mis-Sorting Rate
- 99.99% Barcode Recognition Rate
YJ-INTL Narrow Belt Sorter Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product Name | Narrow Belt Sorter | Brand | YJ-INTL |
| Sorting Capacity | 7,000–10,000 parcels/hour | Operating Speed | 2–2.5 m/s |
| Carrier Pitch | 200 / 300 mm | Sorting Error Rate | <0.03% |
| Barcode Recognition Rate | 99.99% | Parcel Size | ≤1200 × 900 × 700 mm |
| Parcel Weight | 0.05–50 kg | Floor Space | 100–500 m² |
| Labor Requirement | 4–5 operators | Sorting Method | Automated Lateral Diversion |
| Induction | Manual / Automatic | Identification | Barcode / DWS |
| Control | PLC / Sorting Controller | Integration | WMS / WCS* |
| Application | Express / E-Commerce / 3PL / Distribution | Equipment Investment | RMB 500,000–1,500,000 |
*Configuration and final project cost depend on parcel characteristics, number of destinations, line length, induction system, scanning equipment, downstream conveyors, software integration and warehouse layout.
Details
Key Selling Points
7,000–10,000 PPH：High-throughput automated parcel sorting for demanding logistics operations.
2–2.5 m/s：Continuous high-speed conveying for stable parcel flow.
200 / 300 mm Pitch：Flexible carrier spacing for different parcel profiles and throughput requirements.
0.05–50 kg：Designed to handle a broad range of parcel weights.
99.99% Barcode Recognition：Reliable parcel identification when paired with suitable scanning equipment and barcode quality.
4–5 Operators：Reduced manual sorting requirements compared with traditional labor-intensive workflows.
Manual Parcel Sorting Becomes a Bottleneck as Volume Grows
As parcel volumes increase, manual sorting can become one of the most labor-intensive processes in a distribution operation.
Rising Labor Costs
Large sorting teams are required to repeatedly identify and move parcels to different destinations.
Peak-Season Pressure
Promotional events, holidays and seasonal peaks can quickly exceed manual sorting capacity.
Higher Error Risk
Manual identification and destination handling can result in mis-sorting, missed parcels and inconsistent operating performance.
Limited Scalability
Adding more operators does not always provide a practical solution when floor space, labor availability and management costs are limited.
The YJ-INTL Approach
Automate the repetitive sorting process while keeping the system flexible enough to adapt to different parcel profiles and warehouse layouts.
Product Advantages
- Blind loading, no pre-processing required: Supports direct loading of various large items, eliminating the need for manual sorting and complex pre-processing.
- Multi-vehicle coordination, handling large items: Multiple vehicles operate collaboratively, easily handling the efficient and stable transport of large items.
- Streamlined manpower, reduced costs: Significantly simplifies on-site operation processes, optimizes personnel allocation, and significantly reduces labor costs.
- Highly efficient flow, increased throughput: Significantly improves the loading efficiency of large items and the overall flow speed of the sorting process.
 |  |
|---|
Configure the Narrow Belt Sorter Around Your Operation
Standard Parcel Configuration
Designed for conventional cartons, e-commerce parcels and regular packages.
Large Parcel Configuration
Designed around larger packages requiring sufficient conveying width, pitch and load capacity.
Mixed Parcel Configuration
Suitable for operations handling multiple package sizes and packaging formats.
Irregular Parcel Configuration
Suitable for selected irregular packages after evaluating shape, weight distribution and conveying stability.
High-Density Sorting Configuration
For operations with many destinations, the system can be engineered around chute density, floor space and parcel flow.
Your Narrow Belt Sorter Partner From Equipment to System
Product Engineering
Design the sorter around actual parcel and throughput requirements.
System Integration
Connect sorting equipment with DWS, barcode, WMS, WCS and conveyor systems.
Customized Layout
Develop destination layouts based on warehouse space and parcel flow.
Project Support
Support system design, equipment integration, installation and commissioning according to project requirements.
Complete Automation Portfolio
The narrow belt sorter can be combined with YJ-INTL conveying, DWS, cross-belt, wheel sorter and other logistics automation equipment to build a complete material-handling system. YJ-INTL's current website positions its product portfolio around integrated warehouse automation and parcel sortation rather than standalone machines.
FAQ
The reference configuration shown in the supplied product specification provides a sorting capacity of approximately 7,000–10,000 parcels per hour. Actual throughput depends on parcel dimensions, weight, carrier pitch, induction rate, parcel spacing, destination quantity and overall system configuration.
The stated operating speed is approximately 2–2.5 m/s. Actual operating speed should be selected according to parcel characteristics, required throughput, carrier pitch and sorting stability.
The supplied product specification indicates a maximum parcel size of up to 1200 × 900 × 700 mm. Final compatibility should also consider parcel weight, shape, center of gravity, loading orientation and conveying stability.
The stated parcel weight range is approximately 0.05–50 kg. The actual maximum load should be confirmed according to the final sorter configuration and parcel characteristics.
The system supports 200 mm and 300 mm carrier pitch options. The appropriate pitch can be selected according to parcel dimensions, throughput requirements, sorting density and warehouse layout.
The supplied product specification indicates a barcode recognition rate of up to 99.99%. Actual recognition performance depends on barcode quality, label position, scanner configuration, parcel orientation and operating environment.
The reference sorting error rate is below 0.03%. Actual sorting performance depends on barcode quality, parcel spacing, system configuration, control logic and operating conditions.
Yes. The system can be considered for large and suitable irregular parcels. For unstable, highly deformable or unusually shaped packages, YJ-INTL recommends testing representative parcel samples before finalizing the equipment configuration.
Yes. The system can be integrated with DWS, barcode scanners, WMS, WCS and other warehouse automation systems according to project requirements. The exact communication architecture depends on the customer's existing software and automation infrastructure.
Yes. The system can support manual or automatic induction. Automatic induction can be selected when the project requires higher feeding consistency and reduced manual handling.
The supplied product specification indicates an approximate floor-space requirement of 100–500 m². Actual space requirements depend on sorting line length, number of destinations, induction configuration, chute arrangement and downstream equipment.
The reference configuration indicates approximately 4–5 operators. Actual labor requirements depend on the degree of automation, induction method, bagging process, downstream handling and warehouse operating model.
The supplied product material indicates an equipment investment range of approximately RMB 500,000–1,500,000. This is a reference range rather than a fixed quotation. Final project cost depends on throughput, sorter length, number of destinations, induction equipment, scanning and DWS systems, chutes, conveyors, software integration, installation and other project requirements.
For preliminary system design, provide parcel dimensions, parcel weight range, average and peak throughput, number of sorting destinations, parcel types, warehouse layout, induction method and existing WMS/WCS/DWS or barcode systems. These details allow YJ-INTL to evaluate the complete sorting process.
Yes. YJ-INTL can customize the sorting layout, carrier configuration, induction method, destination arrangement, conveyor connections and system integration according to the customer's parcel flow and warehouse requirements.
Yes. YJ-INTL provides project-based engineering support covering system design, equipment integration, installation, commissioning and related technical services. The exact service scope depends on project location, configuration and contractual requirements.
