Auto Bagging Machine

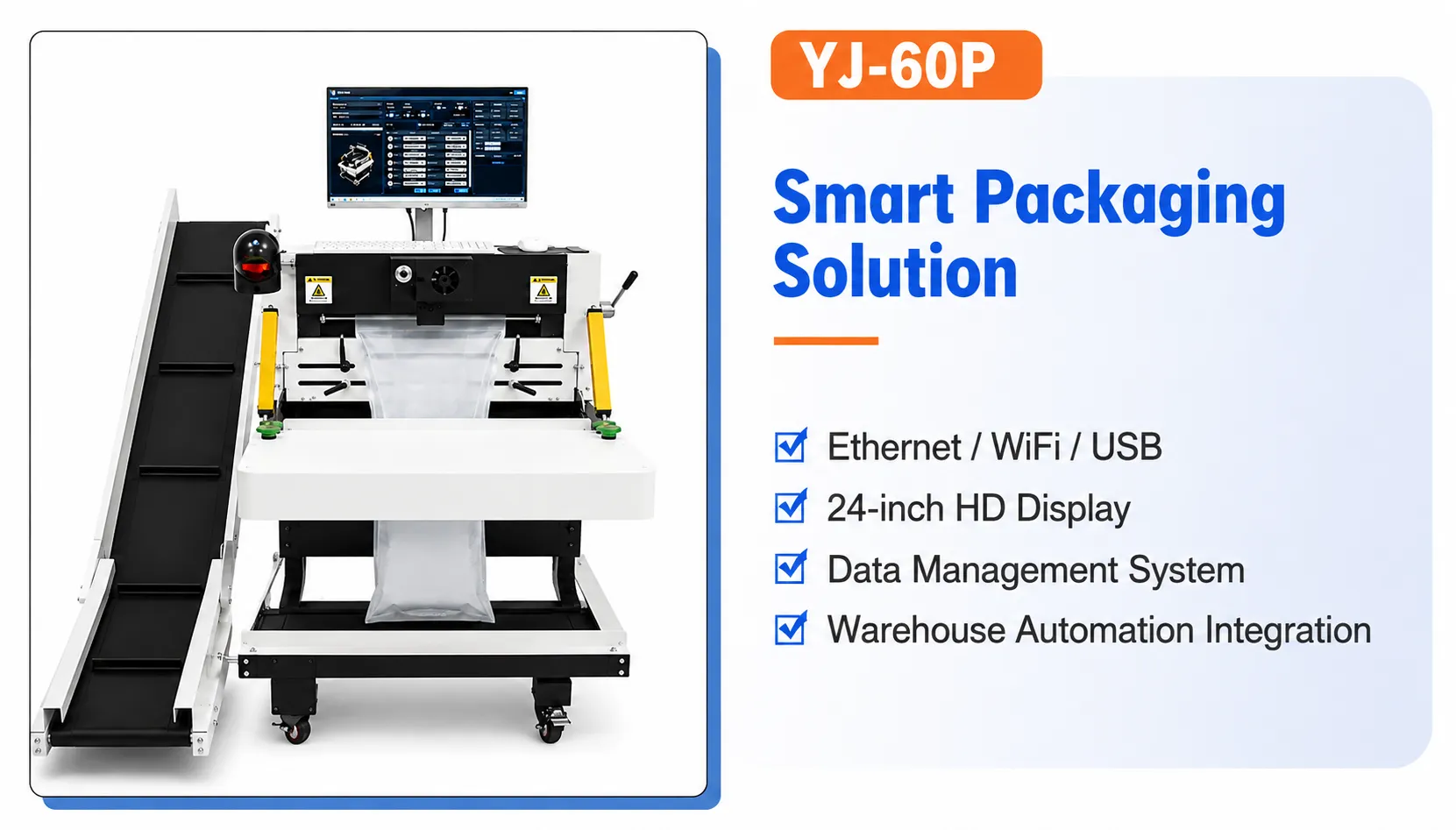

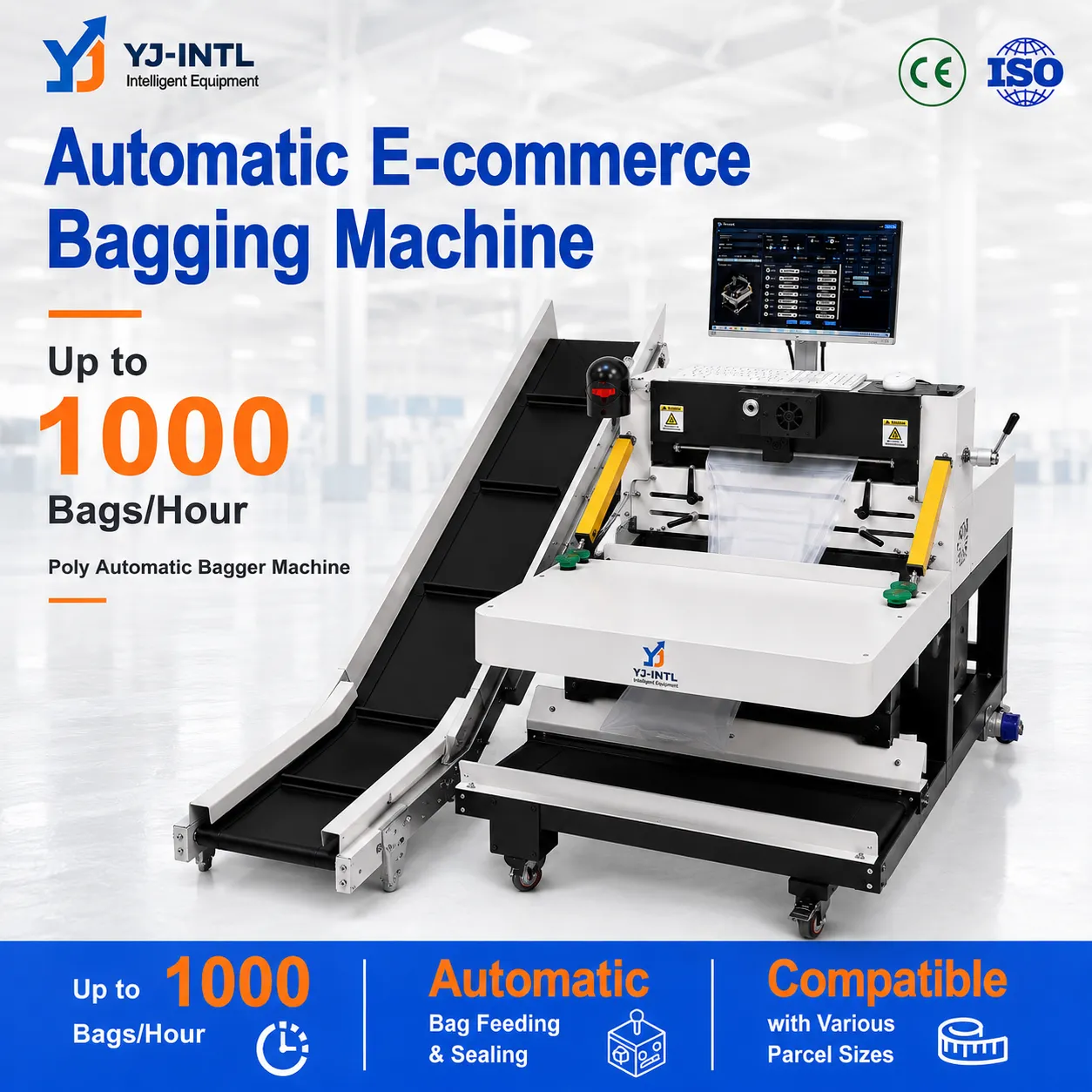

YJ-60P E-commerce Auto Bagger with Printer and Conveyor Machine
The YJ-60E is an integrated automatic bagging solution for e-commerce and logistics operations, combining automatic bag feeding, parcel bagging, sealing, printing and conveyor output in one compact system.
With a throughput of up to 1,000 bags per hour, the system helps fulfillment centers streamline repetitive packaging processes while maintaining consistent sealing and labeling performance.
- Up to 1,000 Bags/Hour
- Automatic Bag Feeding & Sealing
- Integrated Printing System
- Continuous Conveyor Infeed
- Supports Multiple Parcel Sizes
- Adjustable Bagging Parameters
- Compact All-in-One Design
TECHNICAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Model | YJ-60P |
| Product Type | E-commerce Auto Bagger |
| Maximum Throughput | Up to 1,000 bags/hour |
| Bag Feeding | Automatic |
| Bag Opening | Automatic |
| Bag Sealing | Automatic |
| Printing | Integrated printing system |
| Labeling | Supported within packaging workflow |
| Conveyor | Integrated parcel conveyor |
| Application | E-commerce & logistics packaging |
| Parcel Compatibility | Various parcel sizes |
| Control | Intelligent control system |
| Configuration | Customizable according to application |
Note: Final machine dimensions, bag specifications, conveyor configuration, printer configuration and electrical parameters should be confirmed according to the actual project requirements.
Details

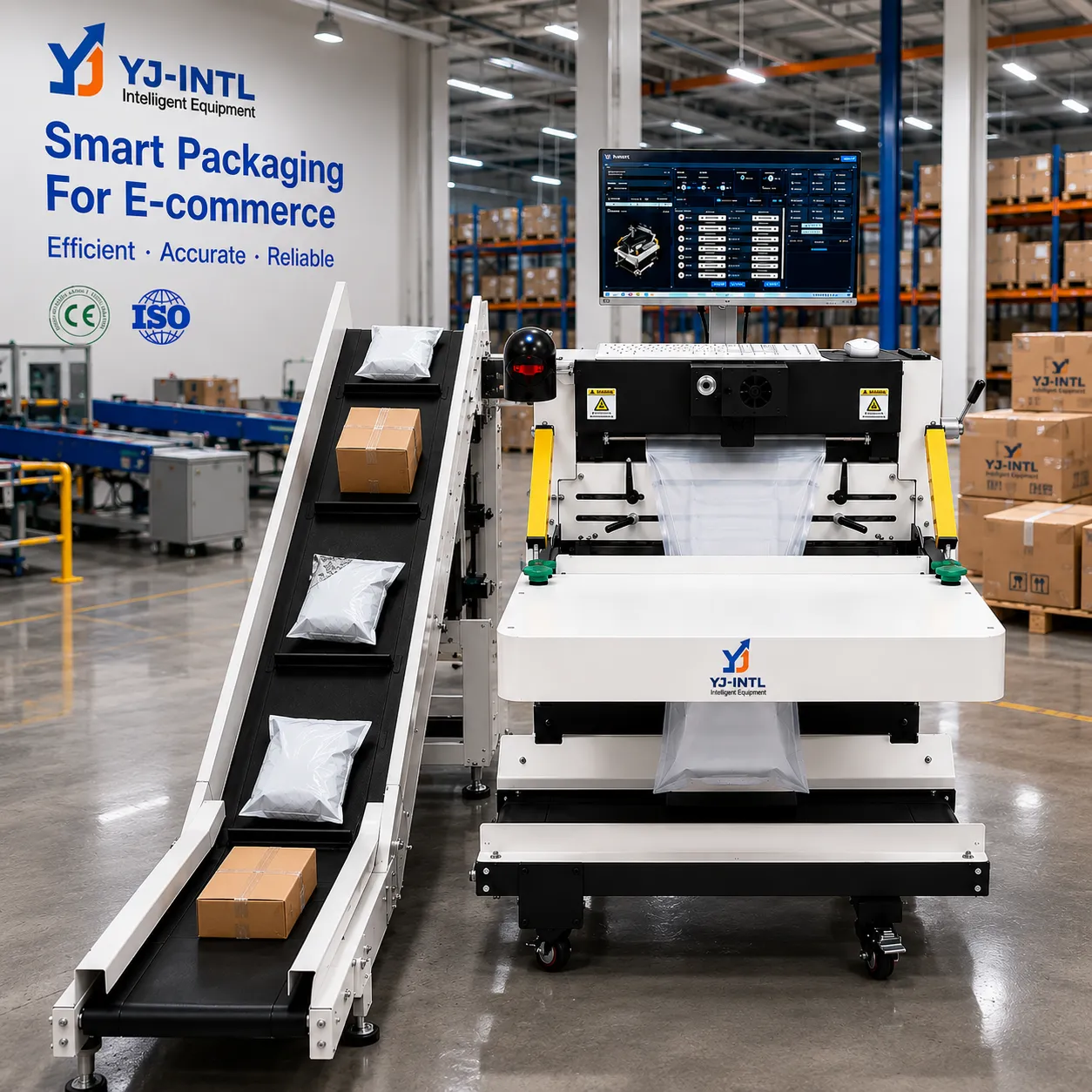

Automated Bagging, Printing and Conveying in One System
The YJ-60P E-commerce Auto Bagger integrates several packaging operations into a continuous automated workflow.
Instead of relying on separate manual stations for bag preparation, parcel insertion, sealing and labeling, the system brings these processes together into one coordinated solution.
The integrated conveyor provides a continuous path for parcels entering and leaving the machine, making the YJ-60E suitable for e-commerce fulfillment centers, courier operations, warehouse packaging lines and other high-throughput parcel handling environments.
The system can be configured around the customer's packaging process and connected with upstream and downstream equipment to create a more efficient automated packaging line.
Product Highlights
Up to 1,000 Bags/Hour
Designed for high-volume parcel packaging operations and continuous fulfillment workflows.
Automatic Bag Feeding
Automatically feeds and opens packaging bags before the parcel enters the bagging process.
Integrated Printing
Supports automatic printing and labeling as part of the packaging workflow.
Automatic Sealing
Seals the filled bag after the parcel has been inserted, helping create a consistent finished package.
Conveyor Output
The integrated conveyor transfers completed parcels to the next handling or sorting process.
Flexible Parcel Compatibility
Designed to accommodate parcels of different sizes and packaging requirements.
 |  |
|---|

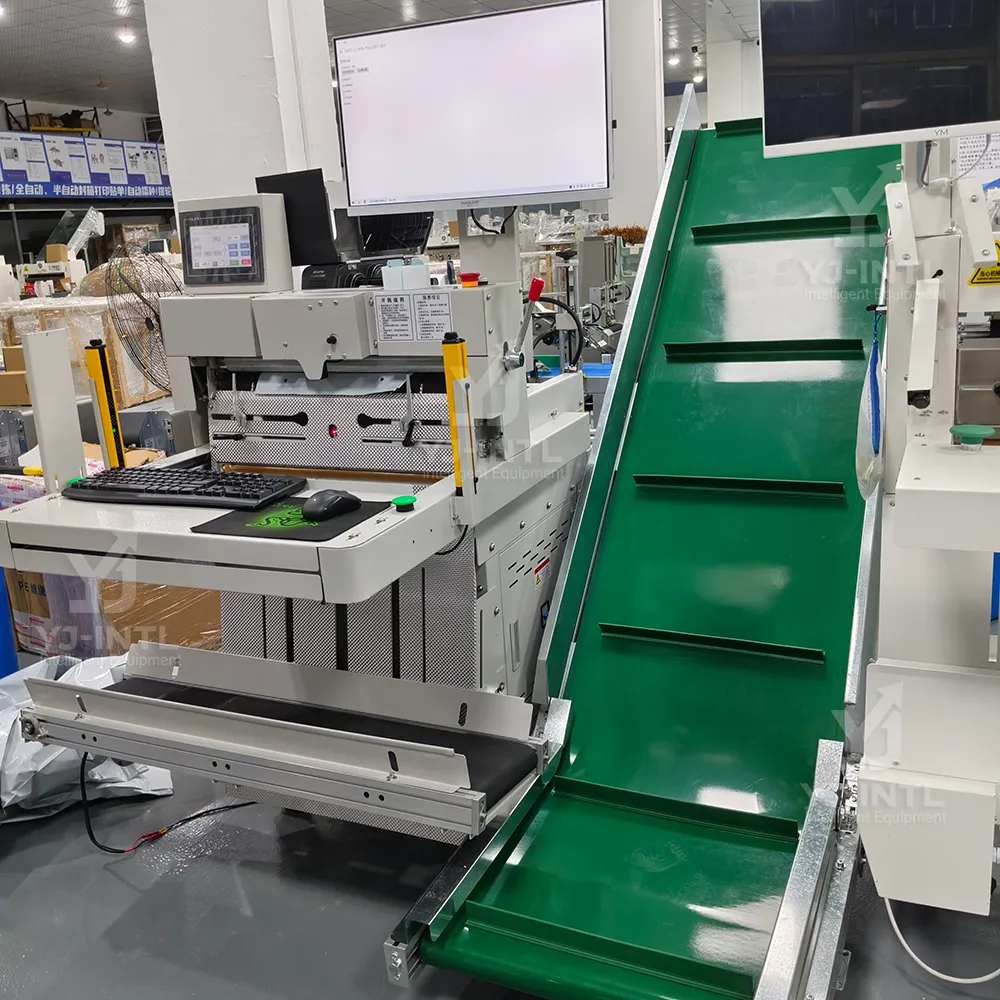

PRODUCT STRUCTURE
Integrated Auto Bagger Configuration
The YJ-60P combines the major packaging modules into one coordinated system.
Main Components
- Automatic bag feeding module
- Bag opening mechanism
- Parcel feeding conveyor
- Bagging section
- Automatic sealing unit
- Printing / labeling module
- Control system
- Finished parcel conveyor
- Safety protection components
The modular structure makes it easier to integrate the machine into an existing fulfillment line or develop a customized packaging solution around the customer's parcel flow.
KEY FEATURES
01. High-Speed Packaging
With a rated throughput of up to 1,000 bags per hour, the YJ-60P is designed for repetitive, high-volume packaging applications.
02. Automated Bag Handling
Automatic bag feeding and opening reduce repetitive manual operations and help maintain a consistent packaging cycle.
03. Integrated Printing
Printing can be incorporated directly into the packaging workflow, reducing the need for a separate labeling station.
04. Consistent Sealing
The automated sealing process helps standardize the final package appearance and closure.
05. Conveyor Integration
The output conveyor allows finished parcels to move directly toward downstream equipment.
06. Multi-Size Parcel Compatibility
The system is designed to handle parcels across different sizes, making it suitable for diversified e-commerce orders.
07. Compact Integrated Design
Multiple packaging operations are combined into a single solution, helping reduce the number of independent workstations required.
SUPPORTED PACKAGING
Flexible Packaging for Different Parcel Requirements
The YJ-60P can be configured for different packaging requirements according to parcel characteristics and customer packaging materials.
Typical Packaging Options
- Poly mailer bags
- Co-extrusion bags
- E-commerce shipping bags
- Express packaging bags
- Custom printed bags
The final bag material, dimensions and sealing configuration can be selected according to the customer's packaging process.
APPLICATIONS
E-commerce Fulfillment Centers
Suitable for high-volume online orders requiring rapid packaging and shipping preparation.
Courier & Express Operations
Helps automate parcel packaging before packages enter the sorting and dispatch process.
3PL Warehouses
Supports third-party logistics providers handling orders from multiple customers and product categories.
Retail Distribution
Can be incorporated into centralized retail fulfillment operations where standardized parcel packaging is required.
Warehouse Packaging Lines
The integrated conveyor makes the machine suitable for connection with existing material handling and logistics automation systems.
FAQ
The YJ-60P is an automated packaging system designed for e-commerce and parcel fulfillment applications, combining automatic bagging, printing, sealing, and conveyor handling in one integrated solution.
Parcels are delivered to the bagging station through the conveyor, where the YJ-60P coordinates bag feeding, parcel insertion, printing, sealing, and package discharge to create a continuous packaging workflow.
The YJ-60P can achieve a maximum throughput of up to 1,000 bags per hour under suitable operating conditions. Actual output depends on parcel characteristics, bag specifications, feeding efficiency, and the selected system configuration.
Yes. The YJ-60P is designed to automate bag feeding and sealing, helping reduce repetitive manual operations and improve packaging consistency in high-volume fulfillment environments.
Yes. The YJ-60P can be equipped with an integrated printing function for shipping labels, order information, or other required package identification information during the packaging process.
The YJ-60P can work with several flexible packaging formats, including co-extrusion bags, poly mailer bags, express bags, and custom printed bags. The final bag material and dimensions should be confirmed according to the packaging application.
The YJ-60P is intended for products suitable for flexible mailer packaging, including apparel, consumer products, accessories, soft goods, and other e-commerce items within the machine's applicable size and weight range.
Yes. The system can be configured to accommodate different parcel dimensions. Parcel size, weight, and product characteristics should be provided during the engineering stage to determine the appropriate configuration.
The conveyor provides continuous parcel feeding to the bagging unit and helps connect the packaging process with upstream or downstream warehouse operations, reducing unnecessary manual parcel transfer.
Yes. Conveyor length, working height, feeding direction, and connection arrangement can be customized according to the customer's warehouse layout and packaging workflow.
Yes. The YJ-60P is suitable for e-commerce fulfillment centers, 3PL warehouses, parcel processing facilities, and other operations that require automated packaging and consistent handling of high order volumes.
Yes. The YJ-60P can be incorporated into an existing conveyor or automated sorting workflow. Integration requirements depend on the customer's conveyor layout, control architecture, and upstream and downstream equipment.
Yes. YJ-INTL can configure the YJ-60P according to bag specifications, parcel dimensions, printing requirements, target throughput, conveyor arrangement, and available installation space.
For a YJ-60P quotation, customers should provide parcel dimensions and weight, daily and peak order volume, required throughput, bag type and size, printing requirements, conveyor layout, available installation space, and details of existing upstream or downstream equipment.
