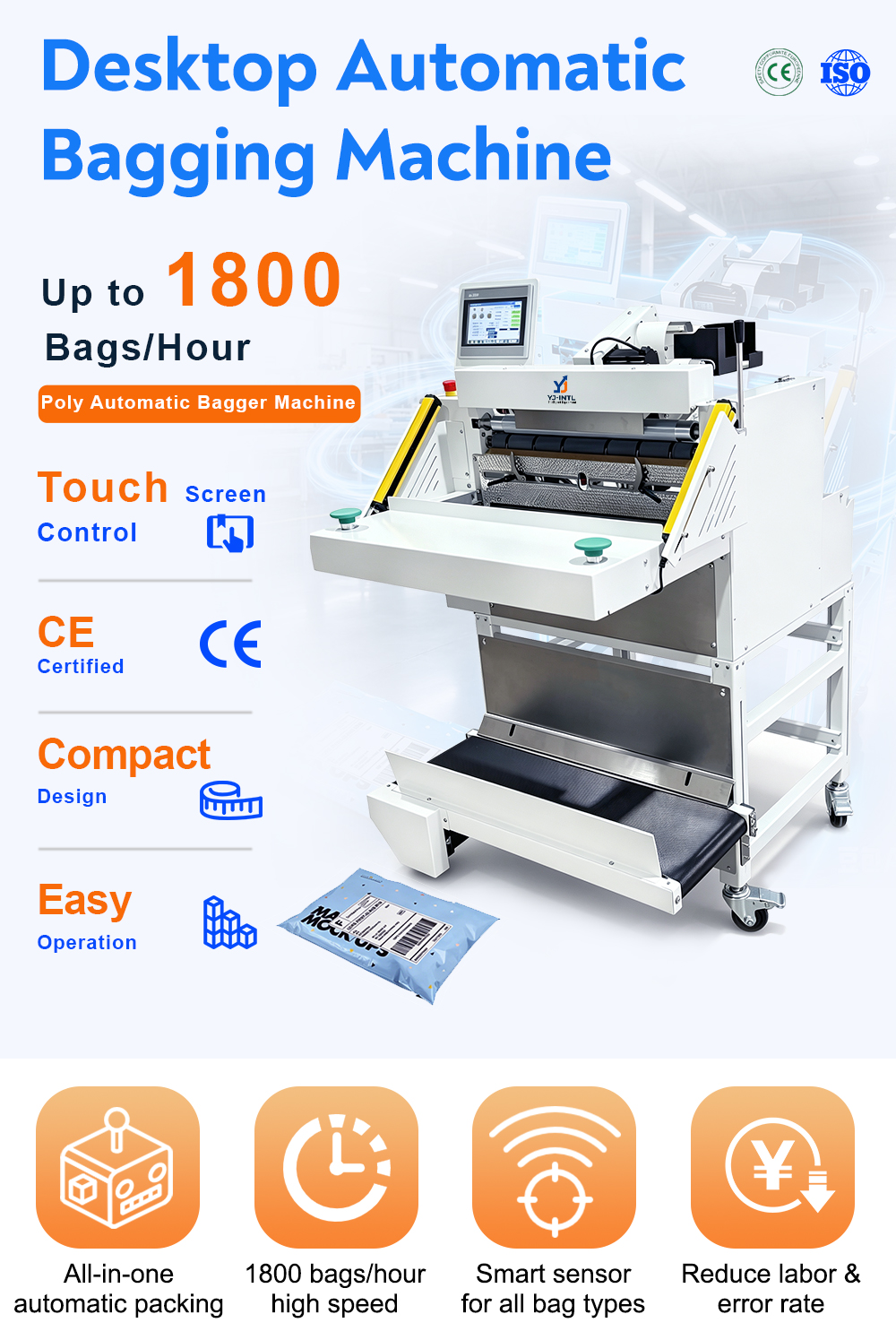

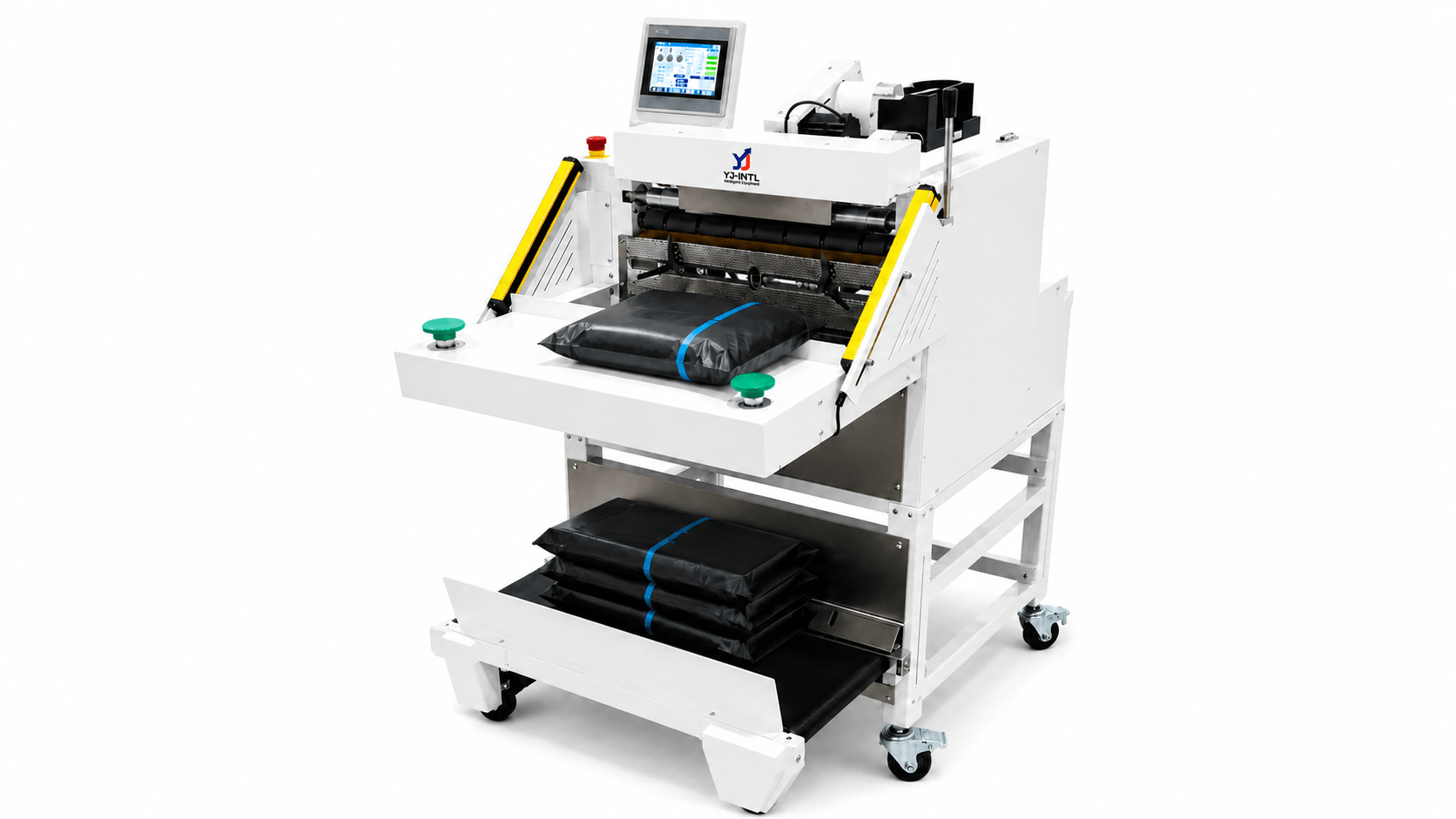

YJP-40E Automatic Bagging Machine
YJP-40E Automatic Bagging Machine for E-commerce Fulfillment
YJP-40E Automatic Packaging Machine is a high-performance desktop packaging machine designed for overseas e-commerce and parcel fulfillment applications. It combines automated bagging and sealing functions with intelligent heating control, high-precision positioning and touchscreen operation.
The machine uses an independent power supply, intelligent heating algorithm and pure-copper closed-loop stepper motor to support stable sealing, accurate positioning and continuous operation. Its compact structure makes it suitable for e-commerce packaging stations and other parcel-processing environments. The source catalog specifies up to 1,600 pieces/hour, with support for applicable bag, label and package size ranges.
- Up to 1,600 Pieces/Hour
- High-Definition Capacitive Touchscreen
- Intelligent Heating Control
- High-Precision Positioning
- Pure-Copper Closed-Loop Stepper Motor
- Low-Noise Stable Operation
- Anti-Interference Design
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | YJP-40E |
| Display | Capacitive Touchscreen |
| Power Supply | AC220V 50/60Hz |
| Rated Power | 400W |
| External Communication | RS485 |
| Machine Weight | 100kg |
| Machine Size | 1060 × 940 × 1250 mm |
| Packaging Throughput | Up to 1,600 pieces/hour |
| Applicable Package Size | 100 × 150 mm to 400 × 600 mm |
| Applicable Bag Thickness | 0.03–0.12 mm |
| Applicable Label Size | 30 × 40 mm to 200 × 100 mm |

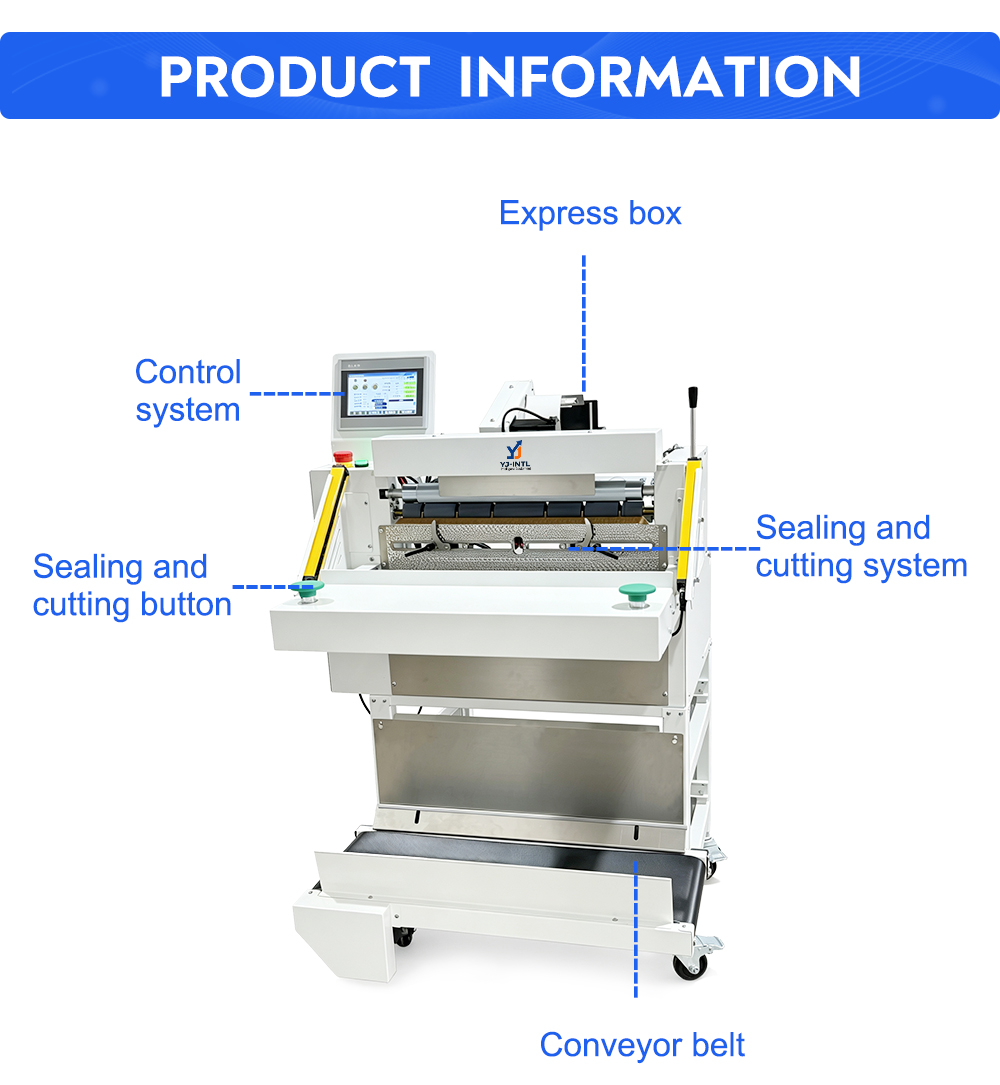

Details
High-Performance Desktop Packaging for E-commerce
YJP-40E is designed for parcel packaging operations that require a compact machine, stable sealing and consistent positioning.
The machine combines packaging control, heating, sealing and positioning into one workstation, allowing operators to complete parcel packaging without moving between multiple independent machines.

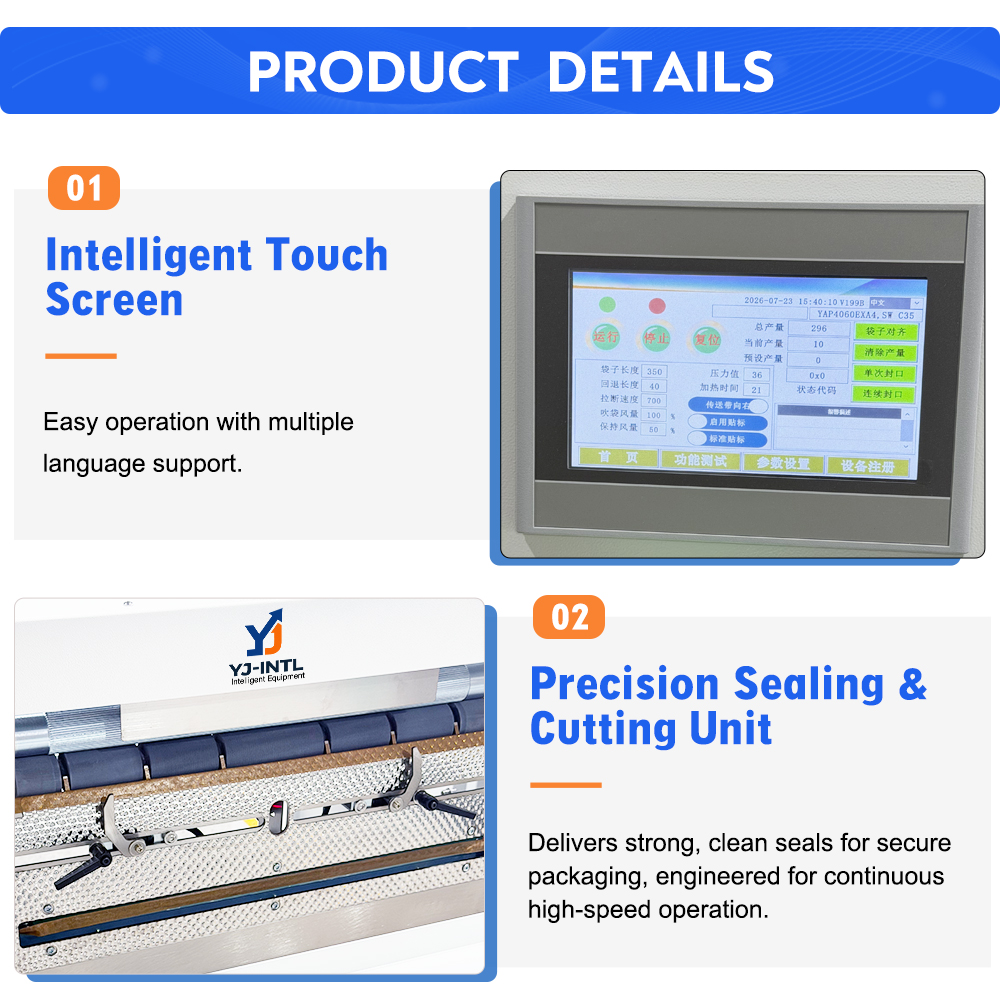

Intelligent Heating Control
The machine uses an intelligent heating algorithm to maintain stable sealing performance and provide consistent packaging quality.
High-Precision Positioning
A pure-copper closed-loop stepper motor provides accurate movement and positioning while helping maintain stable, low-noise operation.

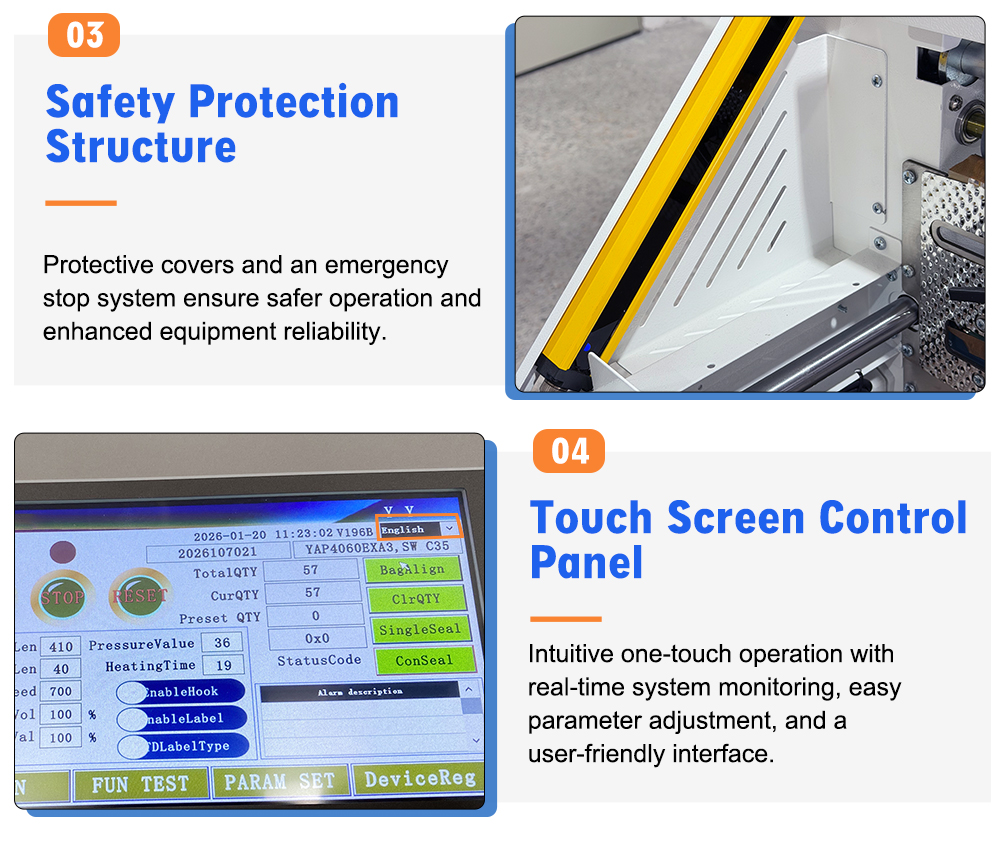

Capacitive Touchscreen
The high-definition capacitive touchscreen provides a direct operator interface and is designed for quick response and simple machine operation.
Anti-Interference Design
The control system uses a customized shielded inductor and independent power architecture to improve operating stability under overseas working conditions.
Compact Desktop Configuration
The compact machine size allows the YJP-40E to be placed directly within e-commerce packing and parcel processing workstations.

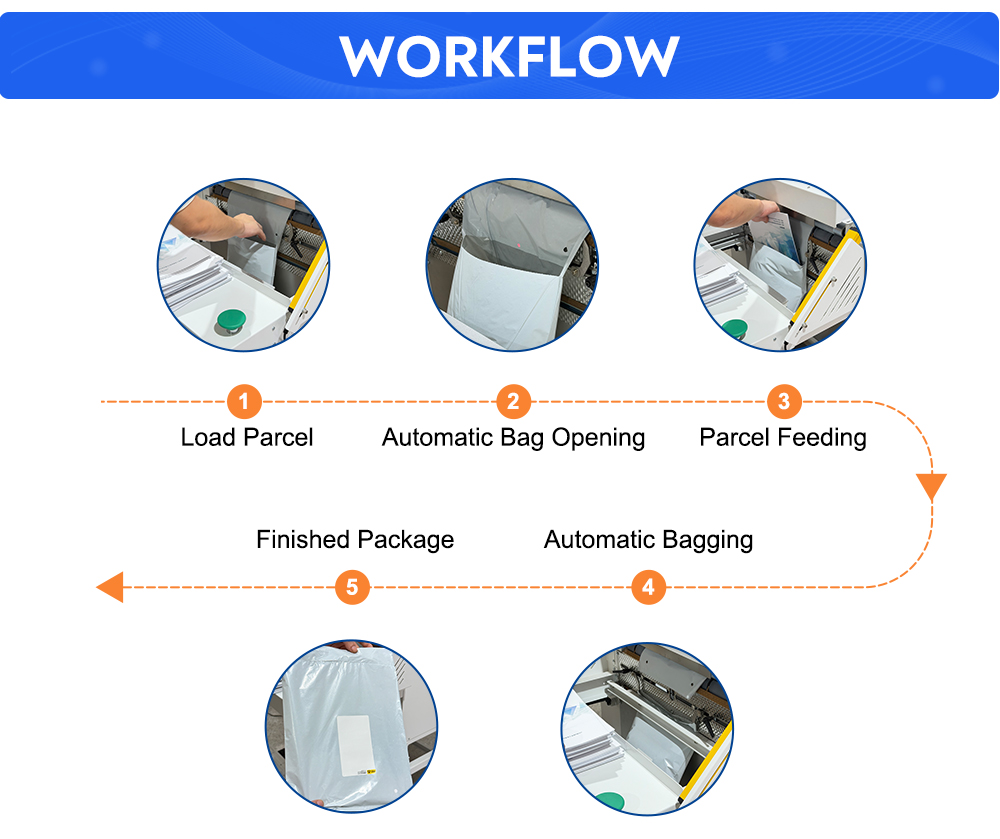

WorkFlow
Product Applications
- E-commerce order packaging
- Parcel fulfillment
- Warehouse packing stations
- Logistics packaging
- Small and medium parcel operations
Why Choose YJP-40E?
YJP-40E is the right choice for operations that primarily need:
- Standard parcel packaging
- Stable sealing
- Compact installation
- Simple operation
- High daily packaging efficiency
- A lower-complexity packaging solution
FAQ
The YJP-40E is a high-performance desktop bagging machine designed for parcel and e-commerce packaging applications. It integrates packaging control, heating, sealing and positioning into one compact workstation.
The supplied product specification indicates packaging throughput of up to 1,600 pieces per hour. Actual operating throughput depends on package characteristics and operating conditions.
The catalog specifies an applicable package size range of 100 × 150 mm to 400 × 600 mm.
The machine uses a capacitive touchscreen and a high-performance control architecture for machine operation and coordination.
The specified power supply is AC220V 50/60Hz, with a rated machine power of 400W.
Yes. The specified external communication interface is RS485.
Yes. Its compact desktop structure and automated packaging functions make it suitable for e-commerce fulfillment and parcel packaging stations.
Key features include intelligent heating control, high-precision positioning, a pure-copper closed-loop stepper motor, capacitive touchscreen operation and anti-interference design.
