Z Type Belt Sorter
Z-Type Belt Sorter | Automated Parcel Sorting Conveyor

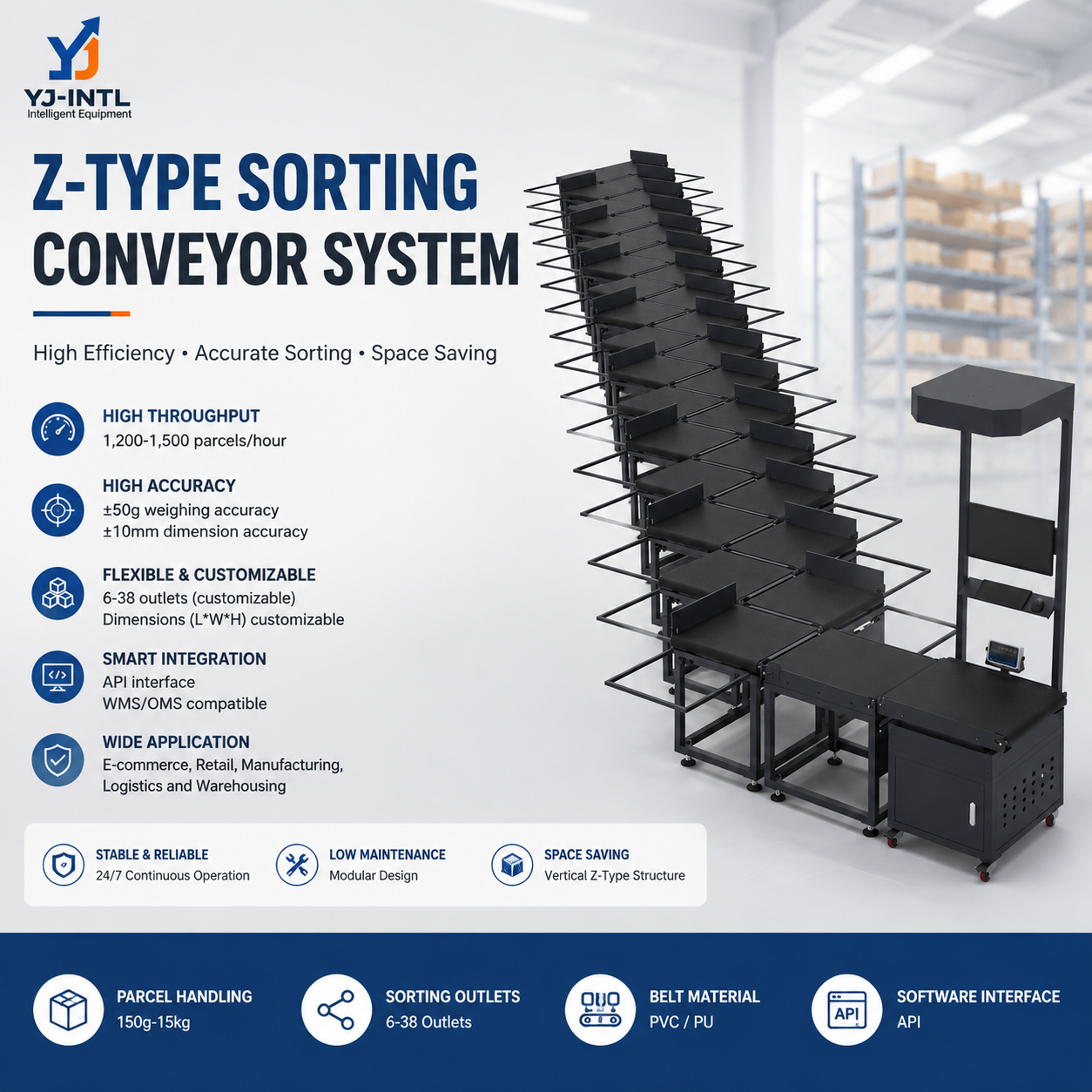

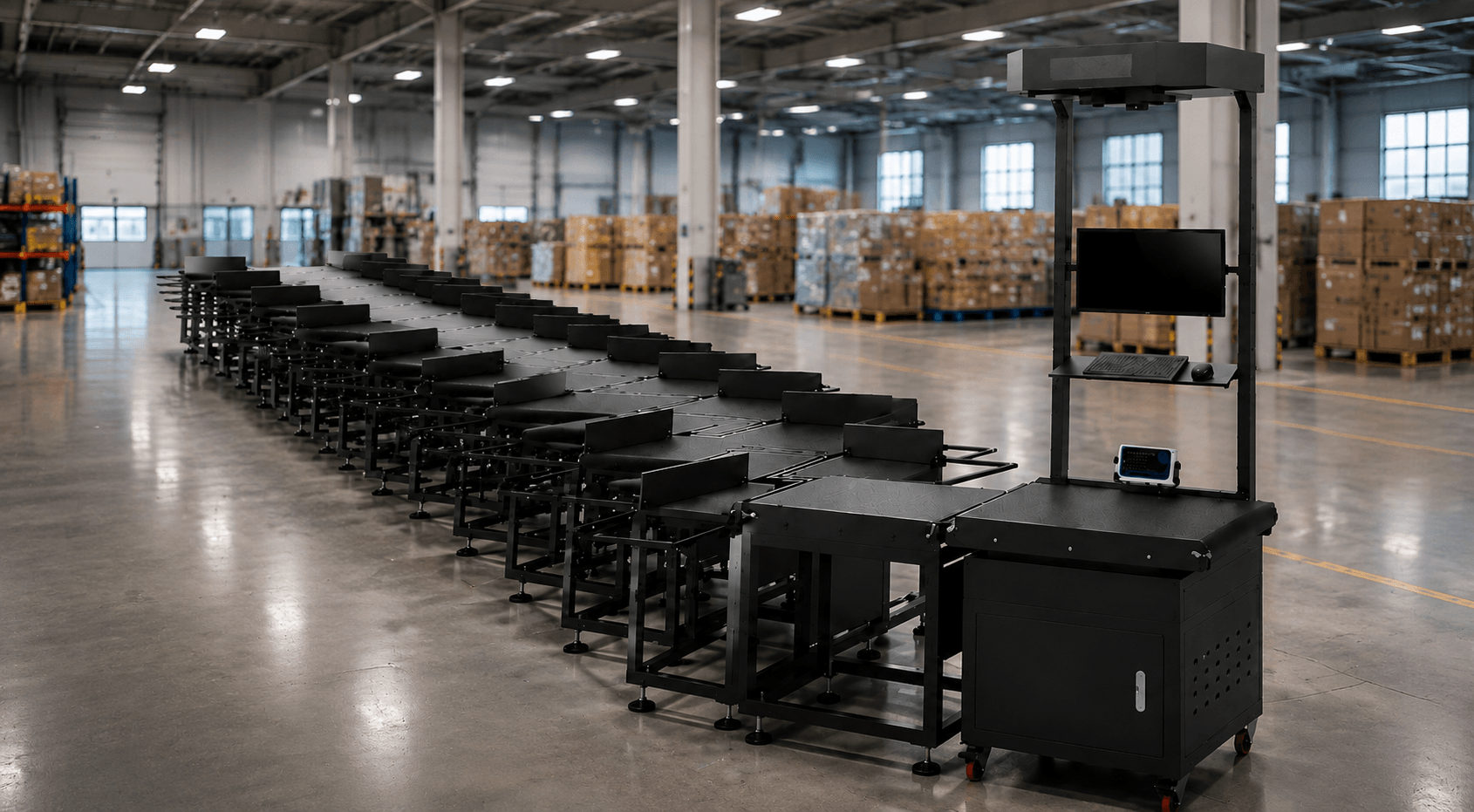

The Z-Type Belt Sorter is an automated sorting conveyor designed with a Z-shaped belt arrangement to make better use of vertical and horizontal space within logistics facilities. Its compact configuration combines conveying, sorting and destination transfer into a flexible system that can be adapted to different material-handling layouts.
The system is suitable for parcel distribution, e-commerce fulfillment, express logistics, warehouse automation and other applications requiring controlled product flow and space-efficient conveyor design.
- Space-Efficient Z-Shaped Layout
- Modular Conveyor Configuration
- Intelligent Sorting Control
- Stable Continuous Conveying
- Flexible System Integration
- Suitable for Multiple Applications
Configuration Specifications Table
| Requirement | Conventional Straight Conveyor | Z-Type Belt Sorter |
|---|---|---|
| Long-distance horizontal conveying | Suitable | Suitable |
| Compact layout | Limited | Strong advantage |
| Multi-position connection | Requires additional layout | Flexible |
| Elevation change | Additional equipment may be required | Integrated Z-shaped configuration |
| Space utilization | Depends on layout | Designed for compact deployment |
| System customization | Available | Available |
| Automation integration | Available | Available |
Details
The Z-Type Belt Sorter is designed around the practical requirements of modern material-handling facilities: limited floor space, changing conveyor layouts, continuous product flow and the need for automated control.
PRODUCT ADVANTAGES
- Space-Saving Z-Shaped Configuration
- Build the Conveyor Around the Process
- Designed for Continuous Warehouse Operation
- High-Precision Weighing Integration
- Automated Material Flow Management
Product Features
Z-Shaped Belt Arrangement
The Z-shaped configuration combines horizontal and inclined conveying sections to provide a compact material-flow solution.
It can help connect equipment installed at different positions or elevations while reducing the footprint required by a conventional straight conveyor layout.
Modular & Fault-Tolerant Design
The modular architecture allows individual functional sections to be configured and maintained more conveniently.
A modular structure also provides greater flexibility when the system needs to be expanded or modified.
High-Resolution Industrial Sensors
Sensors can be integrated into the conveyor system to monitor material position and operating status.
Sensor selection and quantity depend on the actual system design and control requirements.
High-Precision Industrial Weighing
The system can incorporate weighing modules for applications that require real-time weight acquisition.
This is particularly useful in parcel logistics and industrial material-handling processes where weight data is part of the operational workflow.
Why Choose YJ-INTL Z-Type Belt Sorter?
Engineering-Based Design
The equipment is configured according to the actual material-flow process rather than using a fixed conveyor layout.
Space-Efficient Configuration
The Z-shaped structure provides an alternative solution for facilities where floor space or conveyor routing is constrained.
Modular Equipment
Functional sections can be configured according to the application.
Automation Integration
Supports integration with sensors, weighing, identification, WCS and WMS.
Customized Layout
Conveyor dimensions, transfer direction and system arrangement can be designed according to site requirements.
Complete Logistics Automation Capability
The Z-Type Belt Sorter can be integrated with other YJ-INTL equipment to create a complete material-handling solution.
FAQ
Typical applications include e-commerce fulfillment, express logistics, distribution centers, warehouse automation and manufacturing material handling.
Yes. The Z-shaped configuration can provide a more compact material-flow route than a long conventional straight conveyor in applications where space or conveyor routing is constrained.
Yes. Conveyor length, width, height, inclination and transfer direction can be customized according to the product characteristics and site layout.
Yes. The product design shown in the supplied material includes high-precision industrial weighing as an available functional feature. The weighing configuration is selected according to the application requirements.
Yes. The system can be integrated with WMS and WCS as part of a larger warehouse automation solution.
Yes. Barcode scanners and other identification equipment can be integrated according to the required material-flow and sorting process.
The system can be configured for different products and parcels according to their dimensions, weight, shape, conveying stability and operating requirements. Final compatibility should be confirmed during system engineering.
Yes. The Z-Type configuration can be used in e-commerce warehouses for parcel conveying, transfer and automated material handling where the layout benefits from a compact conveyor route.
Yes. YJ-INTL can customize the Z-Type sorting conveyor according to throughput, product characteristics, conveyor dimensions, site layout, sorting requirements and automation integration needs.
