Automated Sorting in a Compact Z-Shaped Configuration

Traditional sorting lines often require considerable horizontal space to accommodate feeding, conveying and destination discharge.

The Z-Type Sorter uses a Z-shaped conveyor arrangement to make more effective use of the available installation area. The system can combine conveying, identification, weighing and sorting functions within a coordinated automation process.

For warehouses where the sorting line must fit around existing equipment, structural columns, working areas or limited floor space, the Z-type configuration provides a practical alternative to a long straight sorting line.

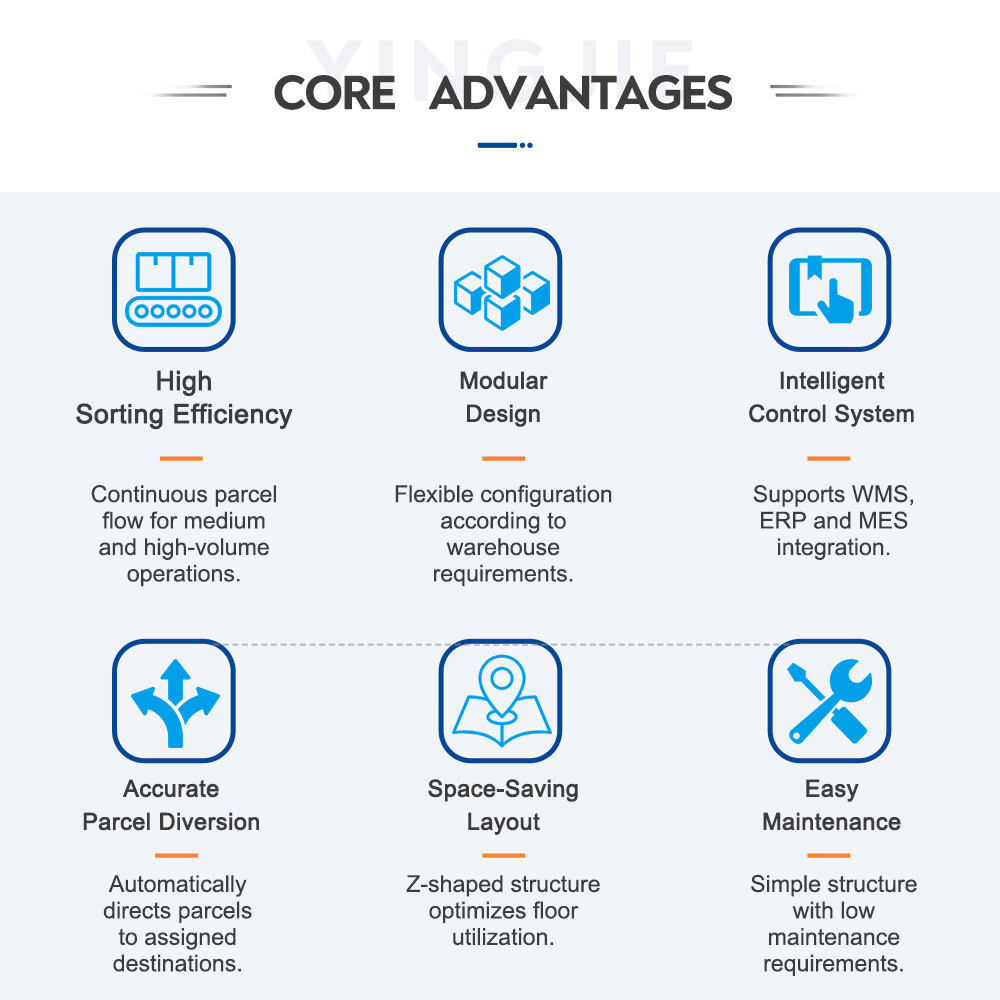

CORE ADVANTAGES

High Sorting Efficiency

Continuous parcel flow for high-volume sorting operations.

Modular Design

Flexible configuration according to project requirements.

Intelligent Control System

Supports automated equipment coordination and system integration.

Accurate Parcel Diversion

Automatically directs parcels to assigned destinations.

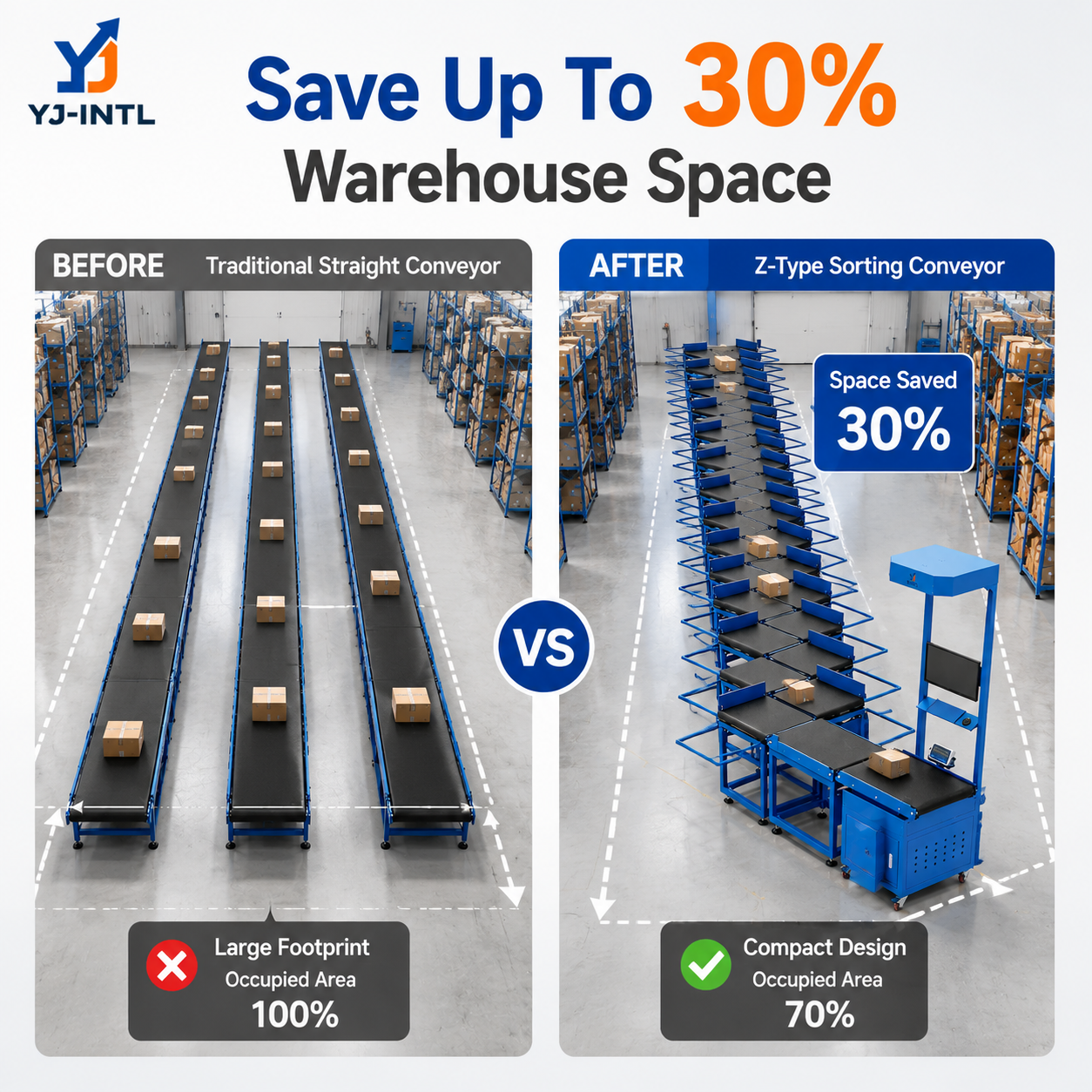

Space-Saving Layout

Z-shaped structure helps improve installation space utilization.

Easy Maintenance

Modular construction simplifies inspection and maintenance.

Z-Type Sorting Machine Structure

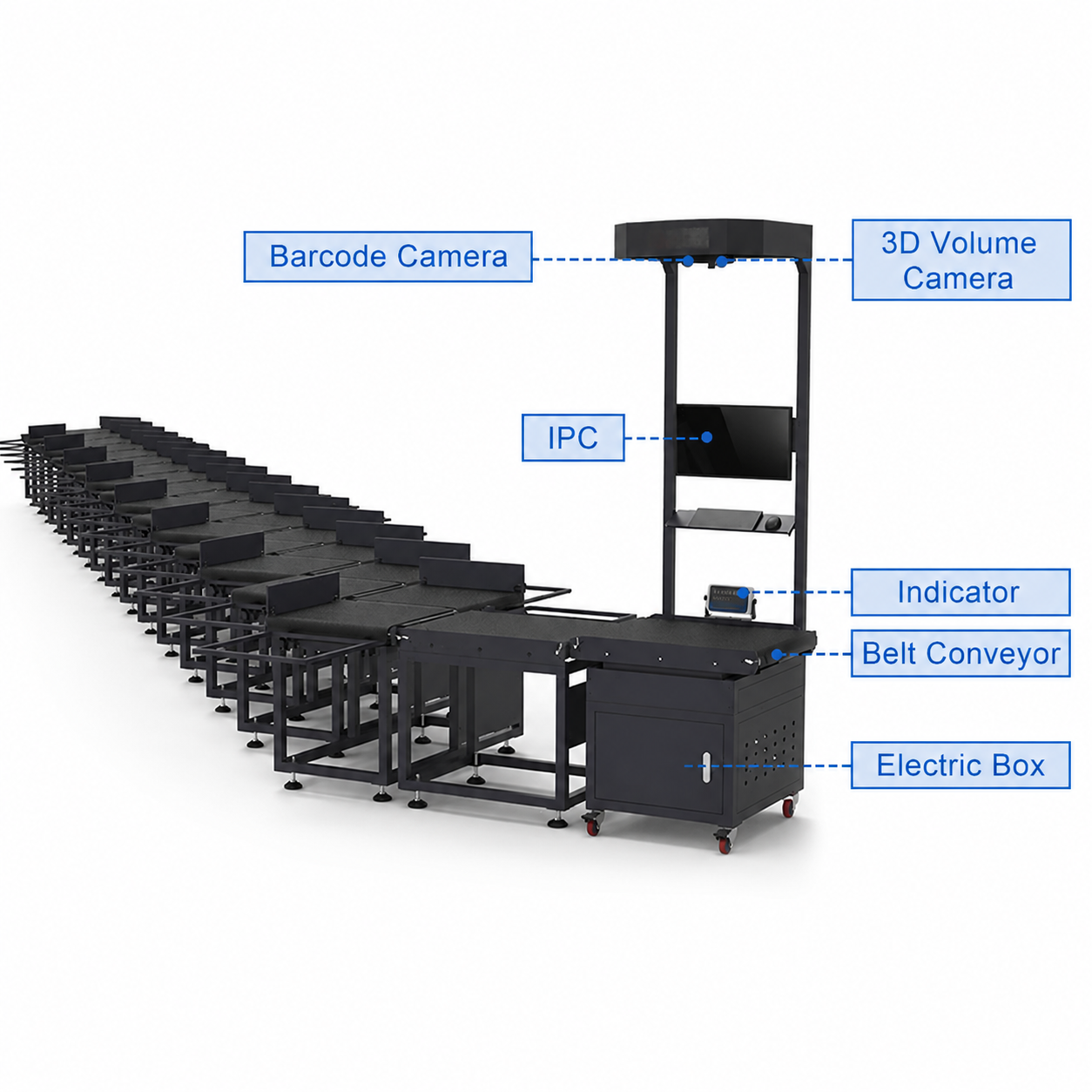

A typical Z-Type Sorter can be configured around the following functional sections:

Feeding Section

Introduces parcels into the automated sorting process and maintains a stable product flow.

Conveying Section

Moves parcels through the Z-shaped system according to the configured process route.

Identification Section

Barcode scanners or other identification equipment can be added to collect parcel information.

Weighing Section

Electronic weighing can be integrated when parcel weight data is required.

Sorting Section

The control system coordinates parcel diversion according to the assigned destination.

Discharge Section

Sorted parcels are transferred to the corresponding chute, conveyor, workstation or downstream process.

Control System

Coordinates sensors, motors, weighing equipment and sorting operations.

Product Features

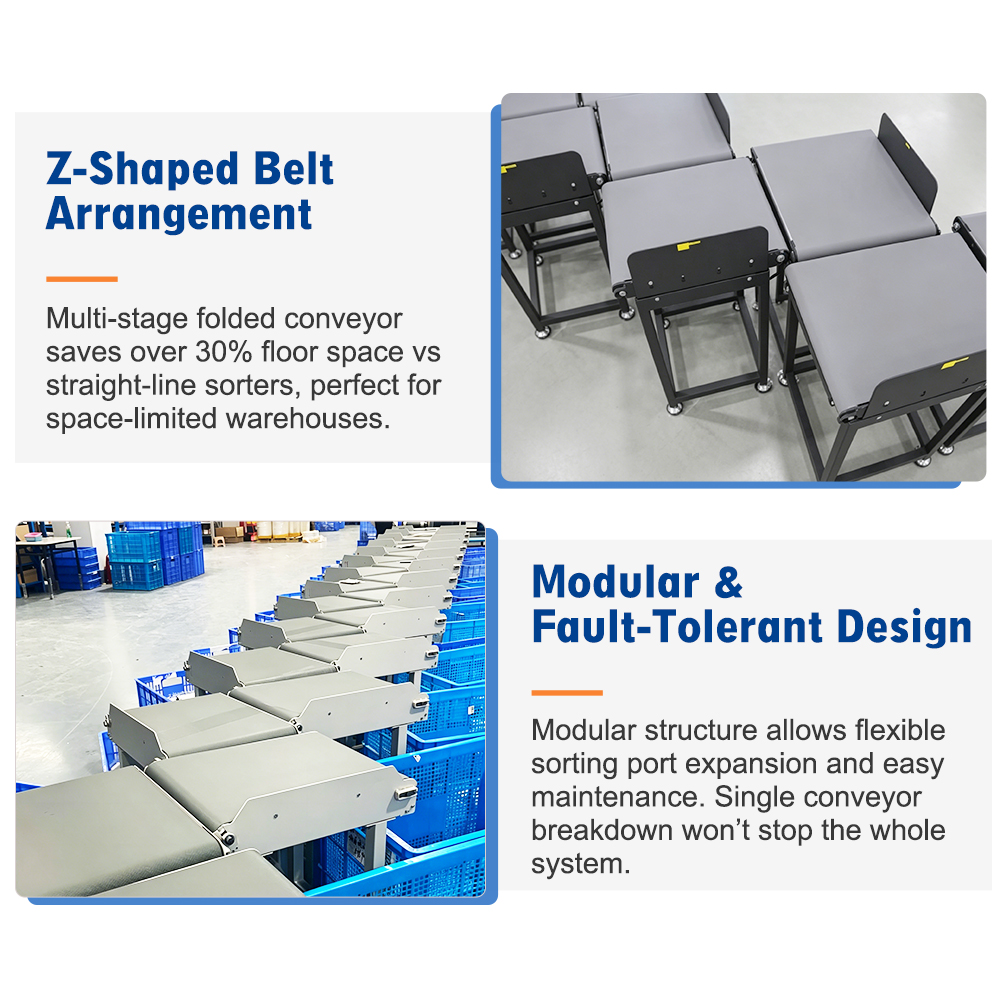

Z-Shaped Sorting Arrangement

The Z-shaped conveyor structure creates a compact material-flow route and provides greater flexibility when designing the equipment layout.

It is especially useful for projects where a conventional straight sorting line would require excessive floor space.

Modular & Fault-Tolerant Design

The modular structure allows different functional units to work together within the same sorting system.

This design approach provides flexibility for system configuration, maintenance and future adjustment.

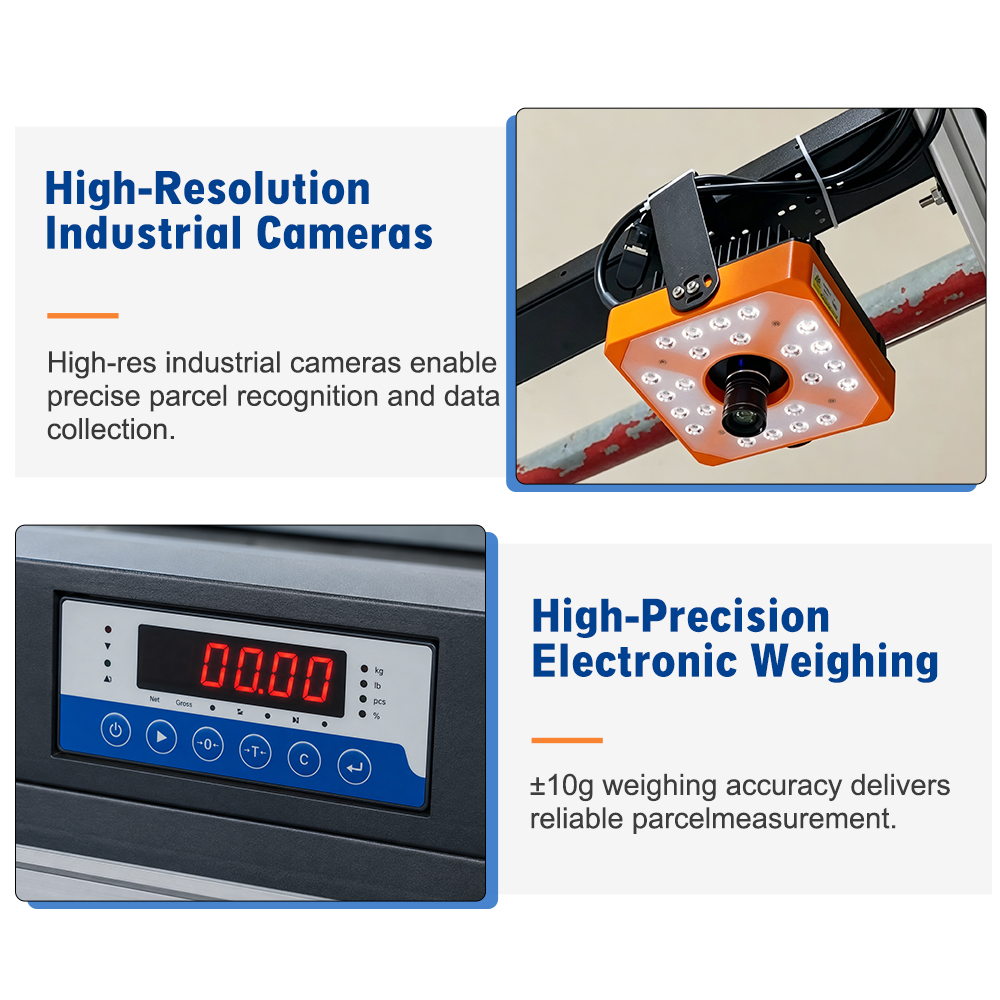

Industrial Detection System

Industrial sensors can be used to monitor parcel position and equipment operating conditions.

The sensor configuration is selected according to the actual sorting process and control requirements.

Electronic Weighing

The system can integrate electronic weighing to collect parcel weight during the handling process.

The reference product material specifies +10 g weighing accuracy for the displayed electronic weighing solution.

What Problems Can the Z-Type Sorter Solve?

Problem 1: The sorting line takes up too much floor space.

Solution:The Z-shaped configuration provides a more compact equipment arrangement and can make better use of the available installation area.

Problem 2: Manual sorting creates inconsistent destination accuracy.

Solution:Automated parcel identification and diversion can reduce dependence on repetitive manual destination selection.

Problem 3: The warehouse needs both sorting and parcel data collection.

Solution:Identification and electronic weighing can be integrated into the sorting process.

Problem 4: The customer's warehouse layout is not standardized.

Solution:The modular structure allows the conveyor and sorting configuration to be engineered according to site conditions.

Problem 5: The sorting system needs to connect with existing automation.

Solution:The system can be configured for integration with sensors, weighing, WCS, WMS and other automation equipment.
