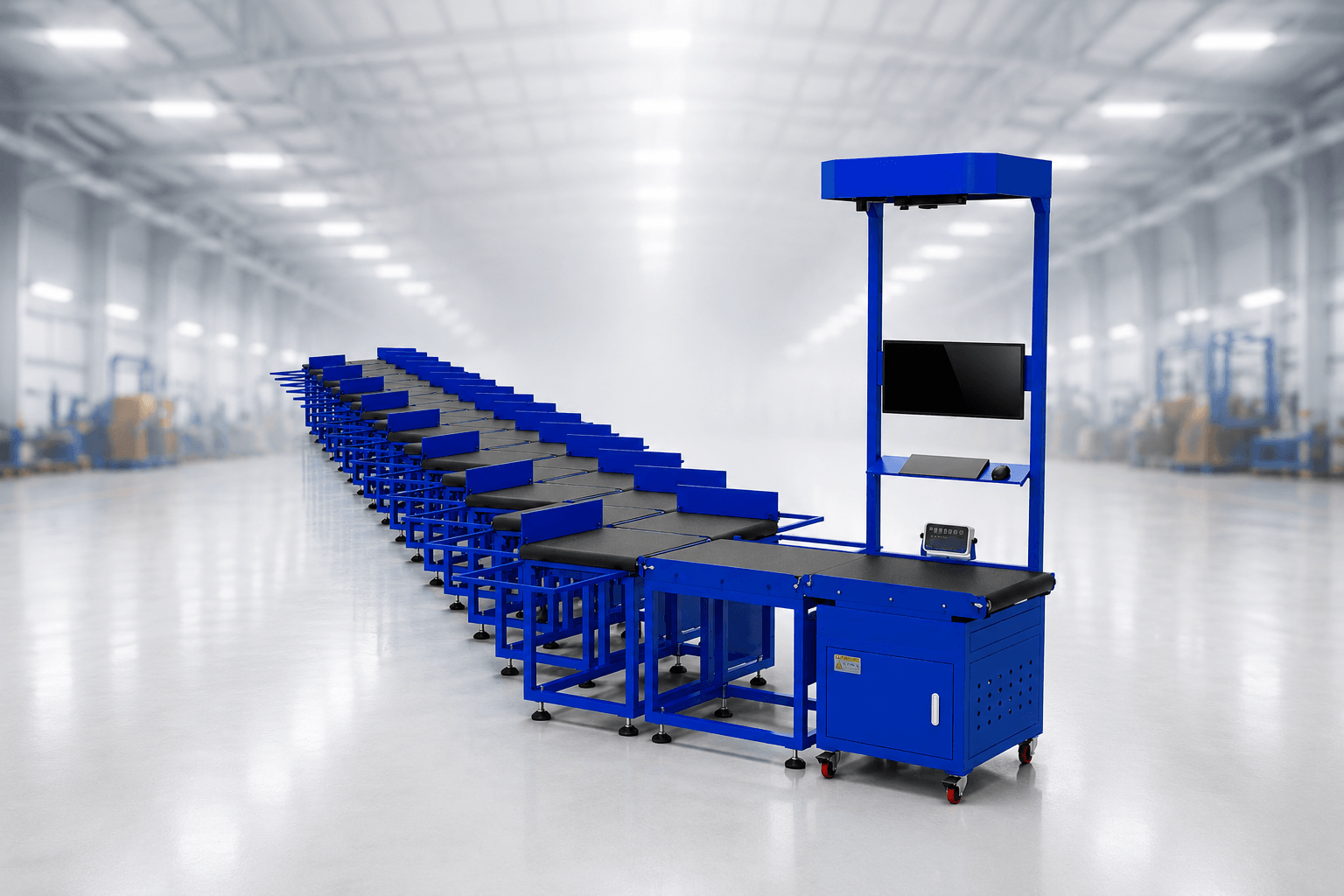

Z-Type Parcel Sorting Conveyor System for Automated Warehouse Sorting

YJ-INTL Z-Type Sorting Conveyor System is developed for parcel handling operations where space utilization, process integration and automated destination sorting are important.

Unlike a simple straight conveyor, the Z-type configuration allows the conveying path to change elevation or direction within a compact system layout. This makes the equipment suitable for warehouses where available floor space is limited or where the sorting process needs to connect different conveyor levels.

The system can also be configured with parcel weighing, barcode scanning and volume measurement, allowing multiple parcel-processing functions to be combined into one automated workflow.

Product Advantages

01. Space-Saving Z-Type Configuration

The Z-shaped structure provides greater flexibility when designing conveyor routes around existing warehouse infrastructure.

It can be configured to connect different operating levels, transfer parcels between process sections and reduce unnecessary conveyor runs.

• Limited warehouse space
• Multi-level conveyor layouts
• Existing warehouse retrofit
• Compact sorting lines
• High-density logistics facilities

02. Weighing, Scanning and Volume Measurement Integration

The Z-Type Sorting Conveyor can be configured as part of a parcel processing line.

Depending on the project requirements, the system can integrate:

• Parcel weighing
• Barcode scanning
• Volume measurement
• Data collection
• Sorting control
• WCS/WMS communication

This allows parcel information to be collected before the package reaches its assigned sorting destination.

03. Modular System Architecture

The system is built around modular conveyor sections and functional units.

Instead of designing every project around a fixed machine configuration, YJ-INTL can adjust:

• Conveyor length
• Conveyor height
• Belt configuration
• Processing stations
• Sorting destinations
• Scanning position
• Weighing position
• Volume measurement position

This makes the equipment suitable for both new warehouse installations and existing facility upgrades.

04. Stable Parcel Transfer

The conveying structure is designed to maintain controlled parcel movement between different sections of the system.

For logistics operations handling cartons, bags, soft parcels and other regular shipment units, stable transfer helps reduce parcel accumulation and improves the consistency of downstream sorting.

For parcels with unusual dimensions or special handling requirements, the conveyor configuration can be reviewed and adjusted during project design.

05. Automated Sorting Control

The Z-Type sorter can work as part of a larger warehouse automation architecture.

A typical system can connect:WMS → WCS → Sorting Control → Conveyor → Destination

The WMS provides order or parcel information, while the WCS manages equipment commands and routing logic.

This architecture allows the Z-Type sorting conveyor to become part of a complete automated material-handling system rather than operating as an isolated conveyor.

06. Designed for Long-Term Operation

For logistics applications, equipment availability is often more important than simply achieving a high peak throughput.

The Z-Type system therefore emphasizes:

• Modular components
• Accessible maintenance points
• Standardized electrical control
• Replaceable mechanical components
• System diagnostics
• Project-specific safety configuration
  This helps reduce maintenance complexity during long-term operation.

Applications

E-Commerce Fulfillment

For order fulfillment centers that need to process a large number of parcels and route them to different destinations.

Express & Courier

Suitable for parcel distribution centers where identification, conveying and destination sorting need to be integrated.

3PL Warehouses

Can be configured according to different customers, SKU profiles and sorting requirements.

Distribution Centers

Used to connect receiving, processing, sorting and outbound operations.

Warehouse Automation Retrofit

The compact Z-type configuration can be considered when an existing facility needs additional conveying or automated sorting capability without completely rebuilding the warehouse layout.

Why Choose YJ-INTL Z-Type Sorting Solutions?

Engineering-Based Equipment Design

YJ-INTL focuses on logistics automation equipment and complete material-handling solutions rather than supplying a single standardized conveyor.

Customized Project Configuration

Equipment dimensions, conveyor routes, processing stations and sorting destinations can be configured according to the customer's warehouse.

Complete Automation Integration

The Z-Type system can be integrated with:

• Conveyors
• DWS systems
• Barcode scanners
• Volume measurement
• WCS
• WMS
• Other sorting equipment

Project-Oriented Support

The solution can cover:

Layout Design → Equipment Manufacturing → Control Integration → Installation → Commissioning → After-Sales Support
