Automatic Telescopic Belt Conveyor for Truck Loading & Unloading
The Automatic Telescopic Belt Conveyor is designed to bring powered conveying directly into truck loading, unloading and warehouse handling areas. Its telescopic structure extends the conveyor toward the working position, reducing the distance operators need to manually move cartons and parcels.
The system shown in the product material focuses on adjustable height, heavy-duty construction, fast conveying, flexible configuration and easier operation. Optional components such as casters and remote-control functions allow the conveyor to be adapted to different warehouse layouts and loading conditions.
- Adjustable Working Height
- Heavy-Duty Belt Structure
- High-Speed Material Transfer
- Telescopic Reach
- Mobile Configuration Available
- Remote Control Option
- Flexible Conveyor Configuration
- Suitable for Truck Loading & Unloading
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Automatic Telescopic Belt Conveyor |
| Conveyor Type | Belt Conveyor |
| Height | Adjustable |
| Telescopic Structure | Extendable |
| Drive | Motorized |
| Conveyor Speed | Project Based / Configurable |
| Frame | Heavy-Duty Structure |
| Mobility | Optional Caster Configuration |
| Remote Control | Optional |
| Conveyor Width | Customized |
| Conveyor Length | Customized |
| Telescopic Length | Customized |
| Belt Type | Customized |
| Application | Loading / Unloading / Parcel Transfer |
| Installation | Mobile / Fixed Interface Available |
Details
Automated Conveying Where Fixed Conveyors Cannot Reach
The Automatic Telescopic Belt Conveyor is designed for one of the most labor-intensive tasks in warehouse operations: moving cartons between a fixed warehouse conveyor and a truck or loading area.
A conventional fixed conveyor ends at a fixed position, while the vehicle or loading point may vary. This often leaves operators carrying cartons manually between the conveyor and the actual loading location.
A telescopic belt conveyor changes this workflow by extending the powered conveying surface directly into the working area.
Product Advantages
01. Telescopic Reach into Loading Areas
The key advantage is the ability to extend the conveyor toward the actual loading or unloading position.
Instead of manually carrying packages back and forth, operators can work much closer to the conveyor end.
This can help:
- Reduce walking distance
- Reduce repeated manual carrying
- Improve loading consistency
- Create a more continuous material flow
02. Adjustable Working Height
The product material highlights Adjustable Height as one of the main selling points.
The conveyor height can be configured according to:
- Truck bed height
- Dock height
- Fixed conveyor elevation
- Loading platform
- Warehouse transfer point
This makes the equipment more adaptable than a fixed-height conveyor.
03. Heavy-Duty Conveyor Frame
The product image specifically emphasizes a Heavy Duty Belt Frame.
The reinforced structure is designed for continuous material handling environments where the conveyor may be subjected to repeated carton loading and unloading.
This makes the product suitable for demanding warehouse and logistics applications.
04. High-Speed Material Transfer
The page highlights fast conveying as one of the core advantages.
The motorized belt allows cartons and parcels to move continuously instead of depending on operators to push products manually.
For high-volume loading and unloading environments, this can help maintain a more stable material flow.
05. Easier Operation
The product material highlights easier operation as one of the reasons to choose the equipment.
The operator can focus more on loading and unloading tasks while the conveyor performs the main material transfer.
Optional remote-control functionality can further reduce unnecessary movement around the equipment.
06. Flexible Mobile Configuration
The customization section shows optional caster configurations.
A mobile configuration allows the telescopic conveyor to be repositioned when:
- Different loading bays are used
- Warehouse layouts change
- Temporary loading areas are required
- One conveyor needs to serve multiple operating points
07. Remote Control Option
A remote-control configuration can be added according to the project.
This can simplify operation when the conveyor needs to be adjusted or controlled from a different working position.
The actual remote-control functions should be defined according to the selected electrical configuration.
08. Configurable for Different Projects

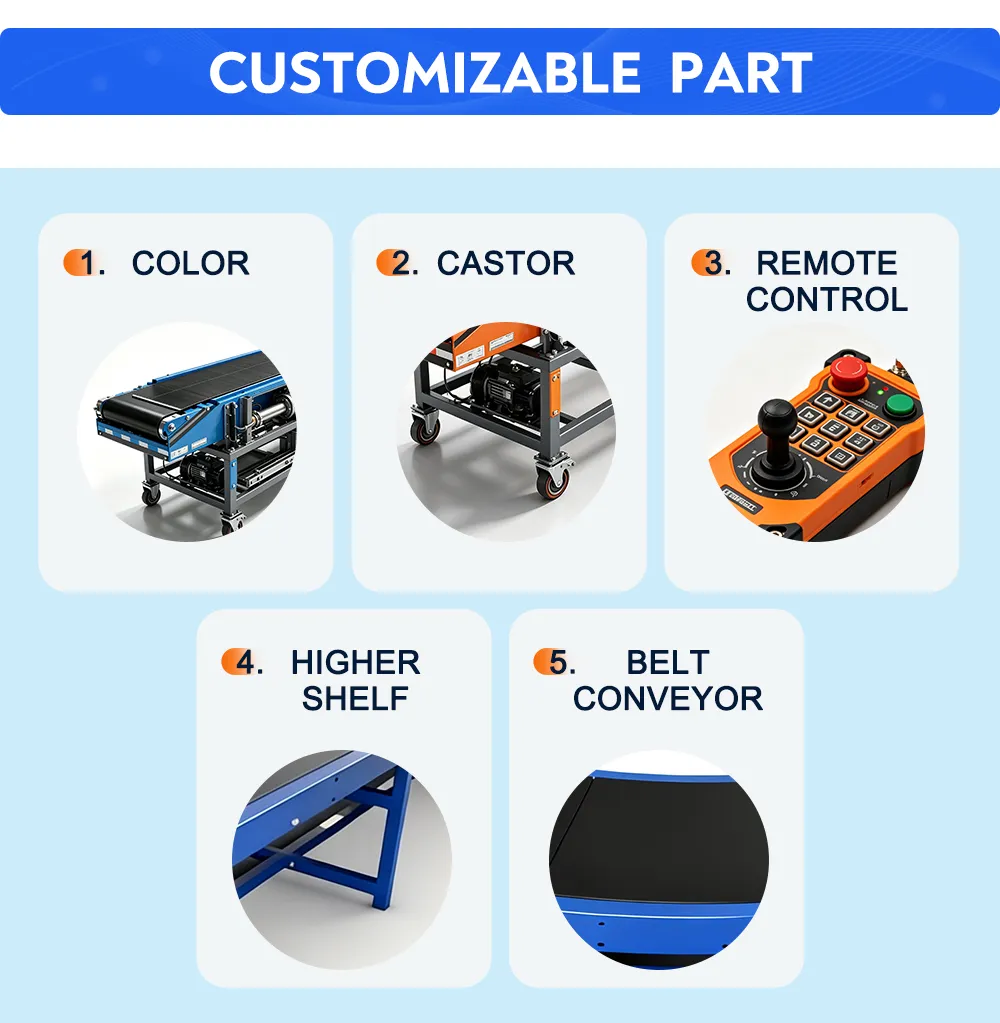

The screenshot includes a dedicated CUSTOMIZABLE PART section, indicating that this is not intended as one fixed machine configuration.
Potential configurable elements include:
- Conveyor frame
- Caster arrangement
- Remote control
- Support structure
- Belt conveyor section
- Telescopic structure
The final configuration can be engineered according to the customer's warehouse and loading environment.
Different Telescopic Belt Conveyor Configurations
The telescopic belt conveyor can be designed in different configurations according to:
- Conveyor extension requirements
- Available installation space
- Loading position
- Vehicle dimensions
- Height requirements
- Required conveyor reach
Configuration Selection
Standard Configuration
Suitable for general loading and unloading applications.
Extended Configuration
Provides greater reach for deeper loading areas.
Customized Configuration
Designed around specific warehouse, truck and conveyor interfaces.
Why Choose YJ-INTL Telescopic Belt Conveyor?
Designed for Real Loading Conditions
The conveyor is engineered around the actual relationship between warehouse equipment, dock height and vehicle position.
Flexible Configuration
Height, length, width, mobility and control options can be configured according to the project.
Heavy-Duty Construction
The equipment is designed for repeated loading and unloading operations.
Mobile Deployment
Optional caster configurations make it possible to serve multiple loading positions.
Complete Conveyor Integration
The telescopic belt conveyor can connect with fixed warehouse conveyors and other logistics automation equipment.
Project-Based Engineering
YJ-INTL can develop the mechanical and control configuration according to the actual site conditions.
FAQ
An automatic telescopic belt conveyor is a powered belt conveyor with an extendable structure designed to transport cartons and packages between fixed warehouse equipment and loading or unloading areas.
The conveyor is positioned at the required location, the height is adjusted to match the working level, and the telescopic section is extended toward the truck or loading area. The powered belt then transfers products continuously.
Its main advantage is that it brings powered conveying directly into areas that are difficult to reach with a permanent fixed conveyor, reducing manual carrying during loading and unloading.
Yes. The product configuration is designed with adjustable working height so the conveyor can accommodate different dock, truck and warehouse elevations.
The available extension distance depends on the selected conveyor configuration and project design. Final telescopic length should be determined according to the required loading reach and site conditions.
Yes. A mobile configuration with caster wheels can be provided for operations where one conveyor needs to serve multiple loading areas or workstations.
Yes. The product configuration can include a remote-control option. The specific remote-control functions depend on the electrical design.
The conveyor is suitable for cartons, parcels, packaged goods and other unit loads that can be transported safely on a belt conveyor.
Yes. Telescopic belt conveyors are particularly useful for truck loading because the conveyor can extend into the vehicle and reduce manual carrying distance.
Yes. The conveyor can be extended toward the truck or unloading area and transfer goods from the vehicle to the warehouse conveyor or staging area.
Yes. Belt width, conveyor length, extension distance, working height and other mechanical elements can be customized according to project requirements.
Yes. The telescopic belt conveyor can be configured to connect with fixed conveyors, sorting equipment, packing lines and other warehouse material-handling equipment.
Important information includes package size and weight, truck type, loading height, required throughput, desired extension distance, conveyor dimensions, available floor space and required control or integration functions.
