Compact footprint + Mobile design + Easy installation + Flexible loading/unloading + Space-efficient warehouse operation
Mini Compact Type Telescopic Conveyor
The YJ-INTL Mini Telescopic Belt Conveyor is a compact material-handling solution designed for loading and unloading areas where available floor space is limited but operators still need a more efficient way to move cartons, parcels and packaged goods between the warehouse and vehicle.
Unlike long multi-section telescopic conveyors designed primarily for deep trailer access, the Mini Telescopic Conveyor focuses on compact installation, flexible positioning and practical operator access. Its integrated belt conveying structure brings the transport surface closer to the loading point while reducing unnecessary manual carrying.
The compact configuration makes it suitable for warehouses, distribution facilities, parcel handling areas, manufacturing plants and other operations that need a flexible conveyor without installing a large permanent loading system.
- Compact Telescopic Conveyor Design
- Space-Efficient Loading Solution
- Flexible Truck & Dock Operations
- Integrated Belt Conveying
- Mobile Configuration Available
- Operator-Friendly Control System
- Suitable for Parcel & Carton Handling
Technical Information
| Specification | Configuration |
|---|---|
| Product Type | Mini Telescopic Belt Conveyor |
| Design | Compact Telescopic Conveyor |
| Conveying Method | Belt Conveyor |
| Application | Loading and Unloading |
| Installation | Compact / Mobile Configuration Available |
| Typical Material | Cartons, Parcels and Packaged Goods |
| Control | Independent Electrical Control Cabinet |
| Application Areas | Warehouses, E-commerce, 3PL, Logistics, Manufacturing |
| Customization | Available according to project requirements |
| System Integration | Conveyors and Warehouse Automation Systems |
Engineering Note: Conveyor dimensions, extension range, belt width, load capacity, conveying speed, motor configuration, electrical requirements and other technical parameters should be confirmed according to the final project design.
Details
Why a Mini Telescopic Conveyor?
Not every warehouse needs a 10–17 meter telescopic conveyor.
For smaller loading bays, compact warehouses, secondary shipping areas and facilities with limited dock space, a large telescopic system can occupy more space than the actual operation requires.
The Mini Telescopic Belt Conveyor addresses a different requirement:
Use less space → bring the conveyor closer to the loading point → reduce manual carrying → simplify daily handling.
It is designed for facilities where flexibility and footprint efficiency are as important as conveying performance.
Compact Design for Space-Constrained Warehouses
The most visible characteristic of the Mini Telescopic Conveyor is its compact overall configuration.

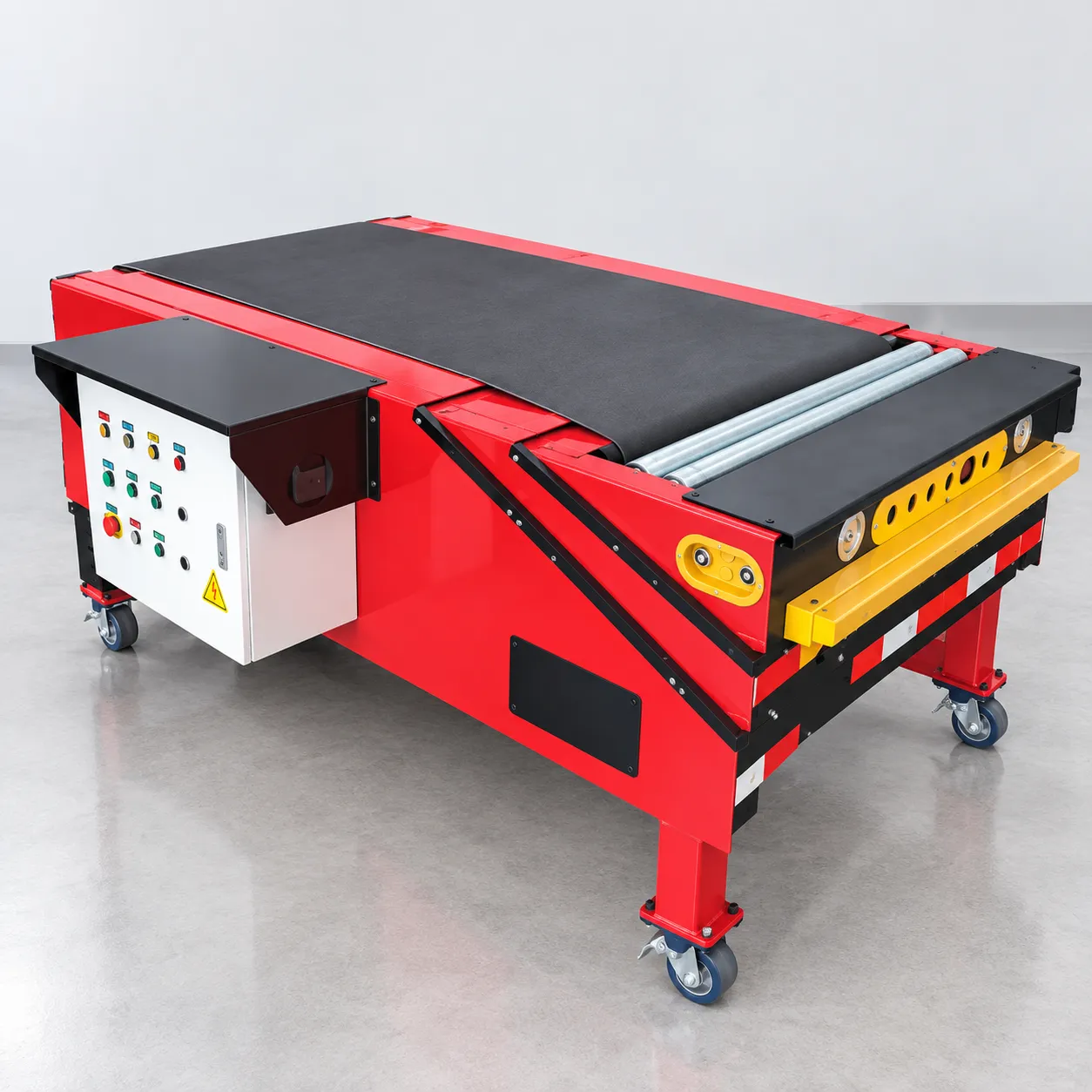

The machine shown in the product images uses a relatively compact conveyor body with an integrated control cabinet and supporting structure.
This makes it easier to consider in environments such as:
- Small and medium-sized warehouses
- Limited loading docks
- Parcel dispatch areas
- Retail backrooms
- E-commerce shipping areas
- Manufacturing dispatch zones
- 3PL warehouses
- Temporary or flexible loading stations
For a facility where every square meter matters, the objective is not to install the longest possible conveyor. It is to install the right amount of conveying reach for the actual workflow.
What Makes This Mini Conveyor Different?
The Mini Telescopic Conveyor is differentiated by how it fits into the warehouse, rather than simply by maximum extension.
Compact Footprint: Suitable for operations where floor space is limited.
Flexible Positioning: The mobile configuration shown allows the machine to be positioned according to the loading workflow.
Direct Operator Interface: The integrated control cabinet supports straightforward daily operation.
Reduced Manual Travel: The conveying surface can move closer to the loading point.
Easy Integration: It can serve as the interface between fixed conveyors and manual loading areas.
Broad Application Potential: Suitable for parcel logistics, e-commerce, 3PL, warehousing and manufacturing dispatch.
How to Choose the Right Mini Telescopic Conveyor?
Before requesting a quotation, we recommend preparing the following information:
01. Warehouse Layout
Provide the loading dock layout and available installation space.
02. Vehicle Information
Specify truck or trailer types and approximate loading height.
03. Package Information
Provide typical and maximum package dimensions and weight.
04. Daily Throughput
Estimate daily or hourly loading volume.
05. Loading Method
Explain whether products are manually inducted or transferred from another conveyor.
06. Required Mobility
Confirm whether the conveyor needs to serve multiple loading positions.
07. Integration Requirements
Specify whether the conveyor needs to connect with an existing conveyor, sorter, DWS or warehouse control system.
With these inputs, YJ-INTL can evaluate whether the Mini configuration is appropriate or whether a longer telescopic model would provide better operational value.
Application in Manufacturing Logistics
The Mini Telescopic Conveyor is not limited to parcel logistics.
Manufacturing facilities can also use compact telescopic conveyors for:
- Finished goods loading
- Carton transfer
- Warehouse dispatch
- Production-to-shipping transfer
- Packaging line discharge
- Truck loading
This makes the product suitable for factories that need a flexible loading solution without building a dedicated fixed conveyor for every loading bay.
 |  |  |
|---|---|---|
 |  |  |
FAQ
A Mini Telescopic Belt Conveyor is a compact extendable belt conveyor designed to bring the conveying surface closer to a loading or unloading point while occupying less space than larger long-reach telescopic configurations.
Its primary purpose is to reduce unnecessary manual carrying between a warehouse-side conveyor and the vehicle or loading area. It is particularly useful where a compact and flexible material-transfer solution is preferred.
Typical applications include warehouses, e-commerce shipping areas, 3PL facilities, parcel distribution operations, manufacturing dispatch areas and other loading or unloading environments.
The Mini configuration focuses on compactness, flexibility and practical deployment. Longer two-, three-, four- and five-section conveyors are more appropriate when the project requires substantially greater reach into trucks or trailers.
Yes. The Mini Telescopic Conveyor can be used as a conveyor interface for truck loading when its reach, height and capacity are correctly matched to the customer's vehicle and loading environment.
Yes. It can also be configured for unloading workflows, transferring packaged goods from the vehicle toward the warehouse-side conveying system.
Yes. Compact warehouses and loading areas with limited floor space are among the applications where a Mini configuration can be particularly useful.
The product shown in the supplied images uses a mobile-style supporting configuration. Whether one machine can serve multiple loading positions depends on the final configuration, floor conditions, loading layout and required operating procedure.
The conveyor can be used for suitable packaged products such as cartons, parcels, e-commerce packages and finished goods. Final compatibility should be confirmed using actual product dimensions, weight and packaging characteristics.
Yes. The conveyor can be engineered to interface with fixed belt conveyors, roller conveyors or other material-handling equipment. Interface height, belt width, speed and controls should be confirmed during system design.
Yes. It can be used as the outbound connection between e-commerce packing or consolidation operations and delivery vehicles, particularly where the facility needs a compact loading solution.
Yes. YJ-INTL can customize the conveyor according to the customer's layout, vehicle conditions, conveying requirements, control system and integration needs.
Yes. YJ-INTL can provide more than the individual conveyor, including conveyor systems, parcel sortation, DWS, scanning and other warehouse automation equipment depending on project requirements.
For quotation and engineering evaluation, customers should provide the warehouse layout, loading-dock dimensions, vehicle information, package dimensions and weight, expected throughput, loading method, required mobility and existing conveyor interface.
Choose according to the actual required reach, available installation space, vehicle type, material characteristics and loading frequency. The Mini model is intended for compact applications; longer telescopic configurations should be considered when deep vehicle access is required.
