Movable Truck Loading Telescopic Belt Conveyor
The Truck Loading Telescopic Belt Conveyor is designed specifically for loading and unloading cartons, parcels and packaged goods between warehouse facilities and trucks.
Its telescopic belt structure allows the conveying section to extend toward the vehicle, while the adjustable-height and hydraulic positioning structure helps adapt the conveyor to different loading elevations. The product configuration shown in the source material also emphasizes a heavy-duty belt frame, high-speed conveying and customized dimensions, making it suitable for demanding warehouse and logistics loading operations.
- Truck Loading & Unloading
- Adjustable Working Height
- Hydraulic Positioning
- Heavy-Duty Belt Frame
- High-Speed Conveying
- Telescopic Reach
- 800 mm Belt Width
- Customized Dimensions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Truck Loading Telescopic Belt Conveyor |
| Conveyor Structure | Telescopic Belt Conveyor |
| Belt Width | 800 mm |
| Height Adjustment | Adjustable |
| Positioning System | Hydraulic |
| Frame | Heavy Duty |
| Conveyor Speed | High-Speed / Project Based |
| Dimensions | Customized |
| Application | Truck Loading / Unloading |
| Installation | Warehouse Loading Area |
| Belt Configuration | Customized |
| Power Supply | Project Based |
| Telescopic Length | Customized |
Details
Built for the Last Mile of Warehouse Material Flow
In many warehouses, the most labor-intensive part of material handling happens at the loading dock.
The fixed conveyor can transport cartons efficiently inside the warehouse, but the truck compartment is mobile and the loading position changes. This creates a gap between automated warehouse conveying and actual truck loading.
The Truck Loading Telescopic Belt Conveyor is designed to bridge this gap.
The conveyor extends toward the vehicle and carries cartons directly into or out of the truck, creating a continuous material path between the warehouse and transport vehicle.
Typical Flow
Warehouse Conveyor → Telescopic Belt Conveyor → Truck
Truck → Telescopic Belt Conveyor → Warehouse Conveyor
Product Advantages
01. Designed Around Truck Loading
This product is specifically suited to the loading-dock environment where the conveyor needs to reach into a vehicle rather than stop at a fixed warehouse position.
The telescopic section helps move the conveying point closer to the actual loading location.
Benefits
- Reduced manual carrying
- Shorter transfer distance
- More continuous loading process
- Better loading-dock efficiency
02. Adjustable Height for Different Loading Conditions
The product material highlights Adjustable Height as a key feature.
The working elevation can be adapted to different:
- Truck bed heights
- Loading platforms
- Warehouse floors
- Dock positions
- Conveyor connection points
This allows one equipment structure to serve a wider range of loading conditions.
03. Hydraulic Positioning
The visible product structure includes a hydraulic positioning system.
Hydraulic adjustment can be used to support smooth equipment positioning and working-height adjustment during loading and unloading operations.
This is particularly useful when the conveyor needs to reach different vehicle or dock elevations.
04. Heavy-Duty Belt Frame

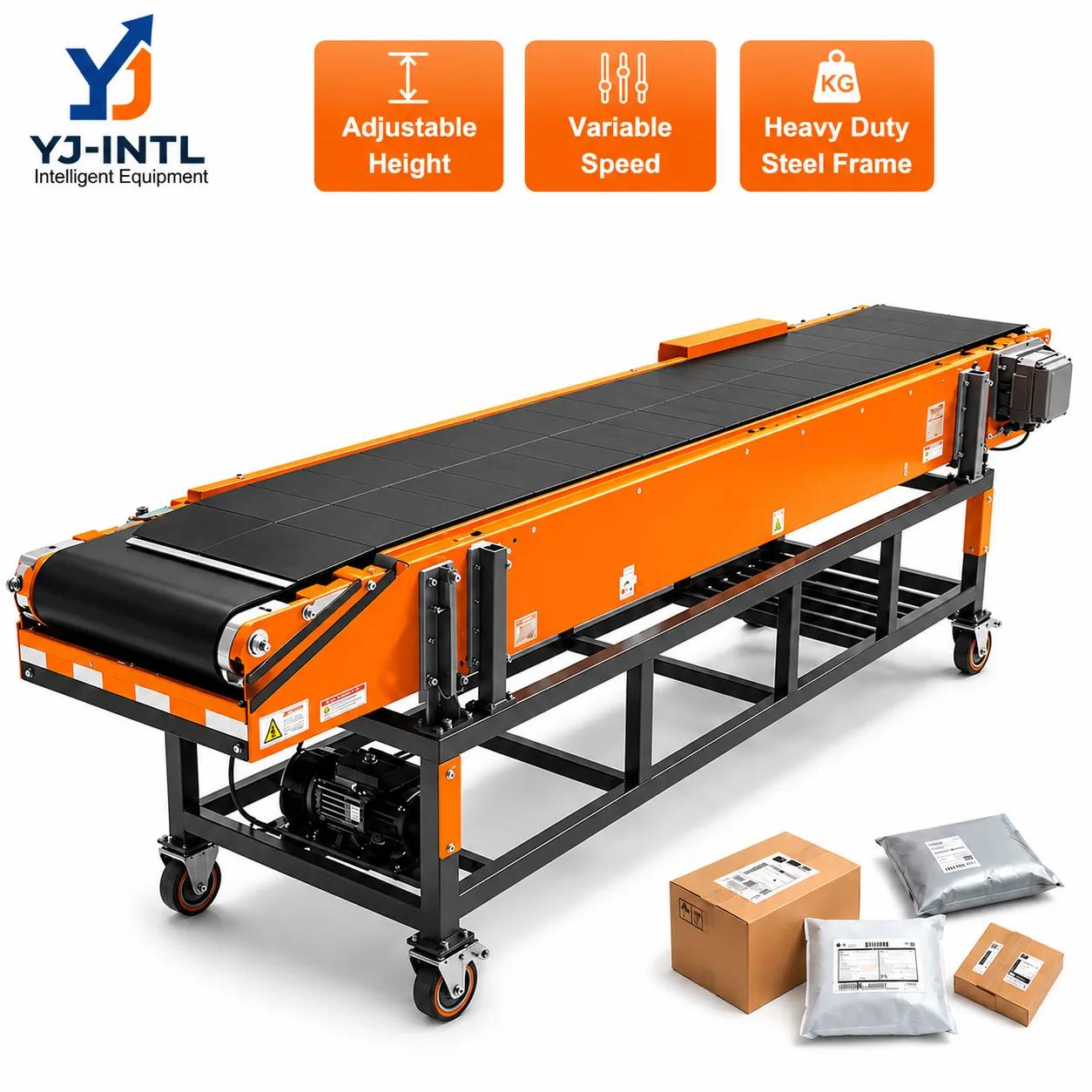

The product image specifically highlights a Heavy Duty Belt Frame.
The reinforced frame is intended for repeated industrial loading and unloading operations where cartons and parcels are continuously moved across the conveyor.
This makes the product more suitable for logistics environments with demanding daily workloads.
05. High-Speed Conveying
The source material emphasizes high-speed operation as one of the product selling points.
Powered belt conveying allows packages to move continuously instead of relying on operators to manually push or carry each item.
This is particularly valuable in high-frequency loading and unloading environments.
06. Long-Reach Telescopic Structure
The telescopic configuration allows the conveyor to extend toward the interior of the truck or loading area.
This reduces the gap between the fixed warehouse conveyor and the actual loading position.
The final extension length can be configured according to:
- Truck size
- Loading depth
- Warehouse layout
- Required working reach
07. Foot Stool & Support Structure

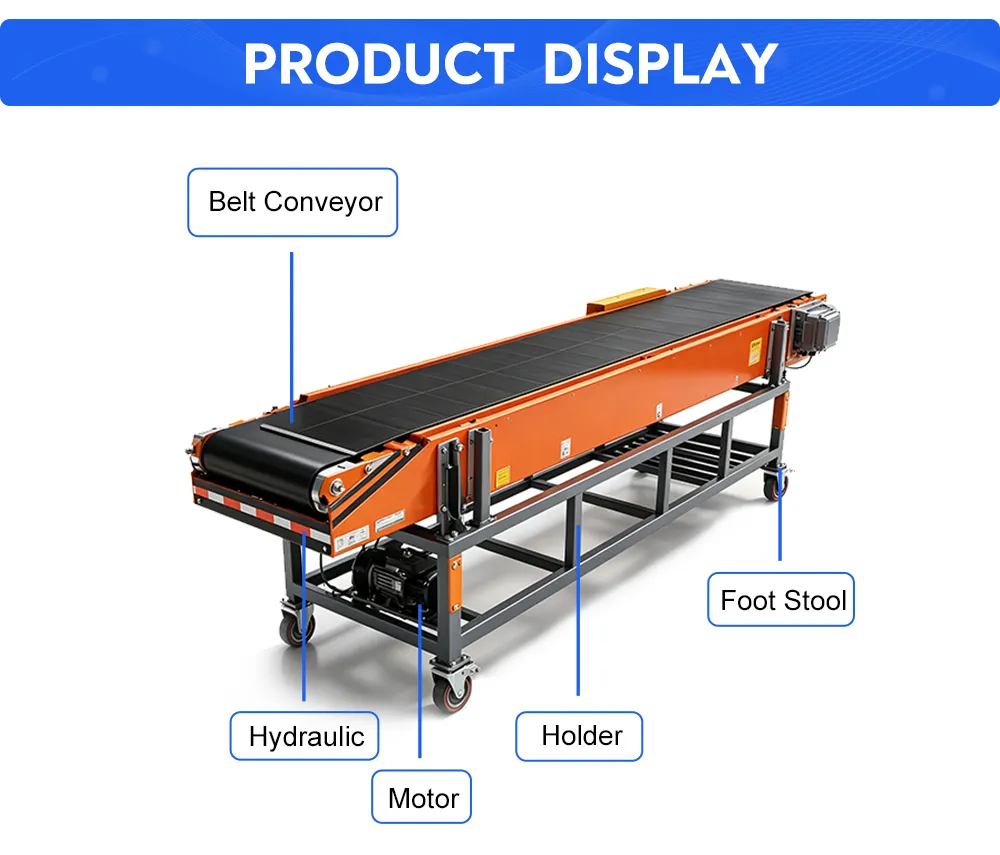

The product image clearly shows a supporting foot-stool/frame structure designed to stabilize the telescopic conveyor.
The support structure is important for maintaining equipment stability while the conveyor is extended and operating under load.
08. Customized Dimensions
The product information shown in the source image identifies Customized Sizes.
This allows the conveyor to be designed according to:
- Belt width
- Overall conveyor length
- Telescopic reach
- Working height
- Truck loading conditions
- Existing conveyor dimensions
Product Applications
Truck Loading
The telescopic belt extends into the vehicle to reduce manual transport during outbound loading.

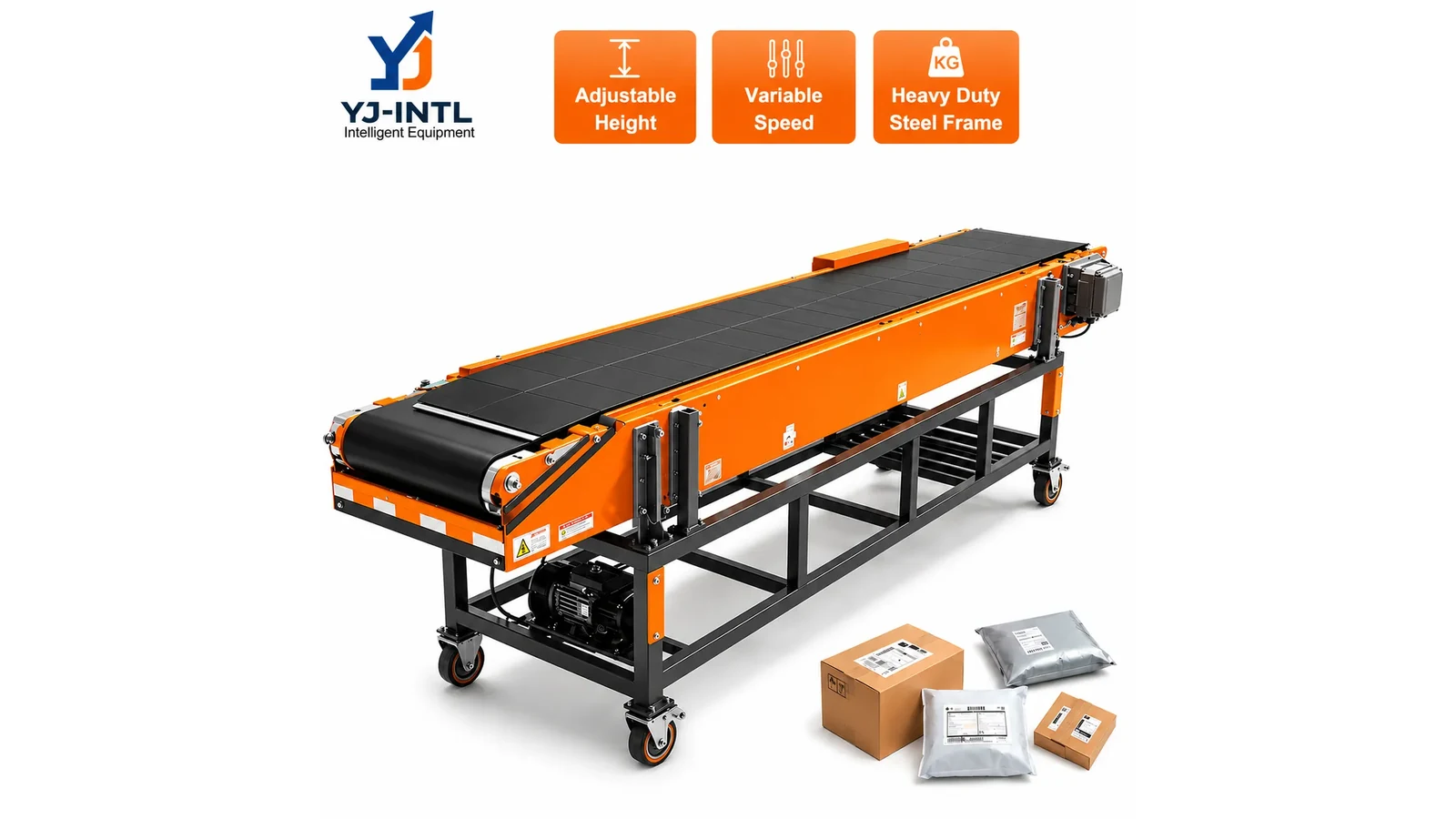

Truck Unloading
Products can move from the vehicle directly toward a warehouse conveyor or staging area.
Distribution Centers
Suitable for facilities with frequent loading and unloading operations.
E-commerce Warehouses
Can connect parcel packing or sorting areas with outbound vehicles.
Express Logistics
Suitable for high-frequency parcel loading and unloading operations.
Manufacturing Dispatch
Can transfer finished goods from production or storage areas to transport vehicles.
Product Highlights
Adjustable Height
The adjustable-height structure helps the conveyor match different truck and loading-dock elevations.
This feature is especially useful for warehouses that work with multiple vehicle types or loading environments.
Hydraulic Positioning
The hydraulic structure provides controlled adjustment of the conveyor's working position.
This allows the operator to establish a suitable loading angle before starting continuous material movement.
Heavy-Duty Belt Frame
The frame is designed for repeated use in warehouse and logistics loading operations.
A robust support structure helps maintain conveyor stability when handling cartons continuously.
Wide 800 mm Belt
The pictured configuration shows an 800 mm belt width, providing a relatively broad conveying surface for carton and parcel handling.
This can be useful when the product range contains larger or wider packages.
Final belt width can be customized according to project requirements.
Telescopic Reach
The extendable belt section brings powered conveying closer to the truck compartment.
This can reduce the distance between the warehouse conveyor and the operator's actual loading position.
FAQ
A truck loading telescopic belt conveyor is a powered extendable conveyor designed to transfer cartons and parcels between a warehouse conveyor and a truck or other loading area.
Its main purpose is to bring powered conveying closer to the actual loading or unloading position, reducing the distance operators need to manually carry cartons between the warehouse and vehicle.
Yes. The product configuration includes adjustable working height so the conveyor can be adapted to different loading elevations and vehicle conditions.
The hydraulic positioning system supports controlled adjustment of the conveyor's working position and height according to the loading environment.
A heavy-duty belt frame provides structural support for continuous material handling and repeated loading and unloading operations in warehouse and logistics environments.
The configuration shown in the source material uses an 800 mm belt width. Other widths can be designed according to package size and project requirements.
Yes. The product can be customized according to carton dimensions, loading conditions, required conveying capacity and installation space.
The telescopic section extends toward the truck interior, allowing cartons to be conveyed closer to the actual loading position and reducing repetitive manual carrying.
Yes. The same conveyor can be used to transfer goods from a truck toward the warehouse, depending on the loading and unloading workflow.
Yes. The conveyor can be configured as a connection between fixed warehouse conveyors and truck loading areas, subject to interface dimensions and project requirements.
Yes. Conveyor length, telescopic reach, belt width, working height and other mechanical dimensions can be customized according to the application.
Important information includes truck dimensions, loading height, package size and weight, required throughput, desired telescopic reach, belt width, available floor space and existing conveyor interfaces.
Yes. The equipment is suitable for e-commerce warehouses, express logistics, distribution centers, manufacturing dispatch and other operations with frequent loading and unloading requirements.
