China Logistics Hub: Automated Narrow Belt Sorter with Integrated Dynamic Weighing System

Project Background: Next-Generation Hub Automation for High-Density Express Logistics

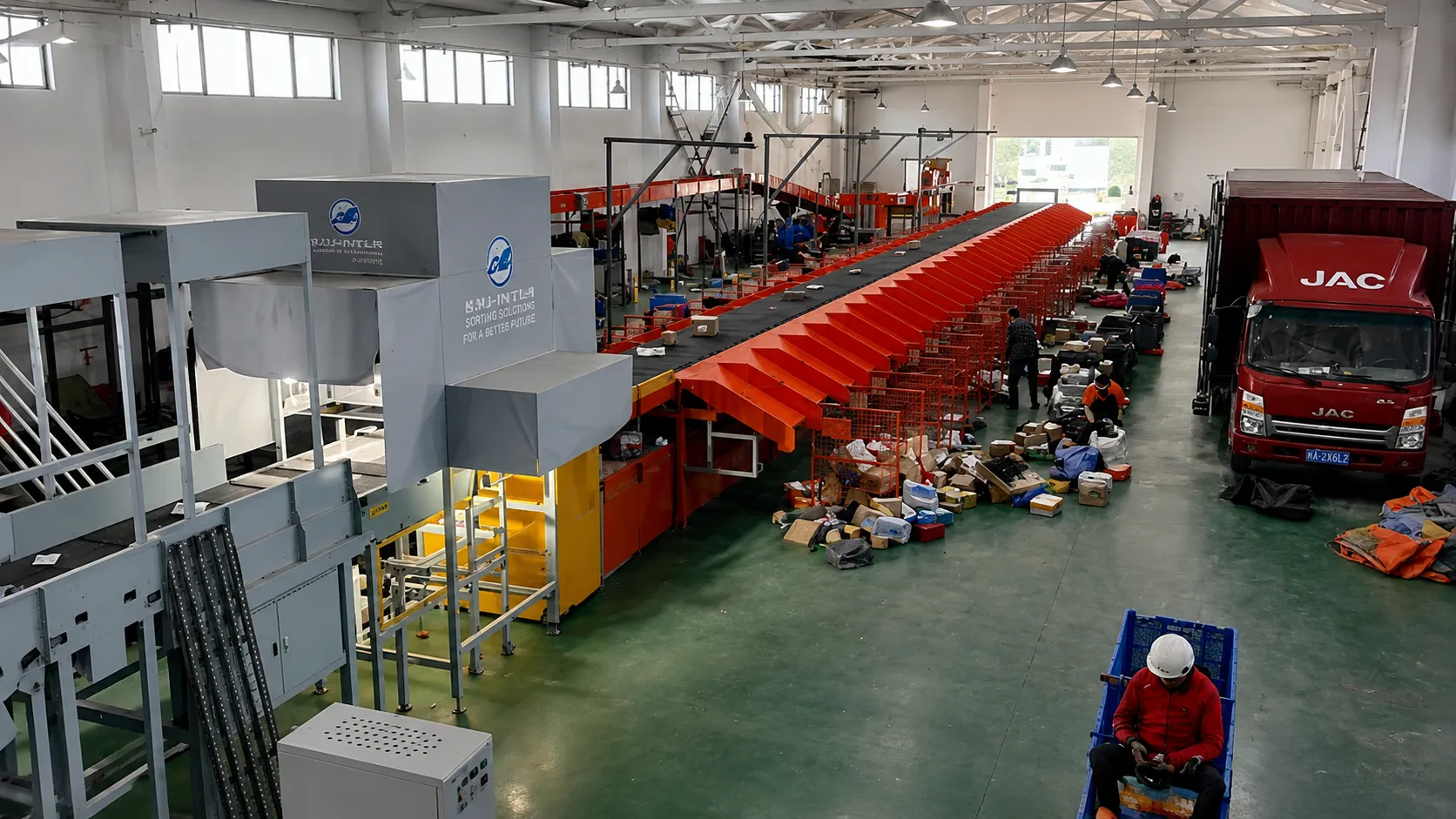

As express parcel volumes and e-commerce poly-bag shipments surge, regional express hubs face critical bottlenecks around parcel singulation, accurate weight verification, and manual bagging labor. To address tight site footprints and rising operational costs, YJ-INTL deployed a turnkey Automated Narrow Belt Sorter & Integrated Bagging System at the Xiaoshan Gongpai express dispatch hub in Hangzhou, China.

This project merges upstream AI-assisted separation, inline dynamic weighing, 6-sided barcoding scan coverage, and downstream direct-to-bag drop chutes, achieving continuous, unassisted parcel flow from unloading to outbound dispatch bag bundling.

Customer Operational Challenges

• High Dependency on Manual Singulation: Overlapped packages and stacked poly mailers required dedicated manual separation prior to feeding.
• Space Constraints & High Footprint Costs: Traditional loop sorters exceeded available floor space, requiring a compact linear narrow belt layout.
• Multi-Step Weighing Bottlenecks: Separate manual weighing stations reduced hourly throughput and increased data discrepancy risks in WMS logging.
• Inaccessible Bottom/Side Barcodes: Random package orientations led to frequent scan re-reads and manual exception handling.

YJ-INTL Customized Solution Architecture

YJ-INTL engineered a modular narrow belt sortation line designed for versatile package geometries ranging from rigid corrugated boxes to soft, irregular mailer bags:

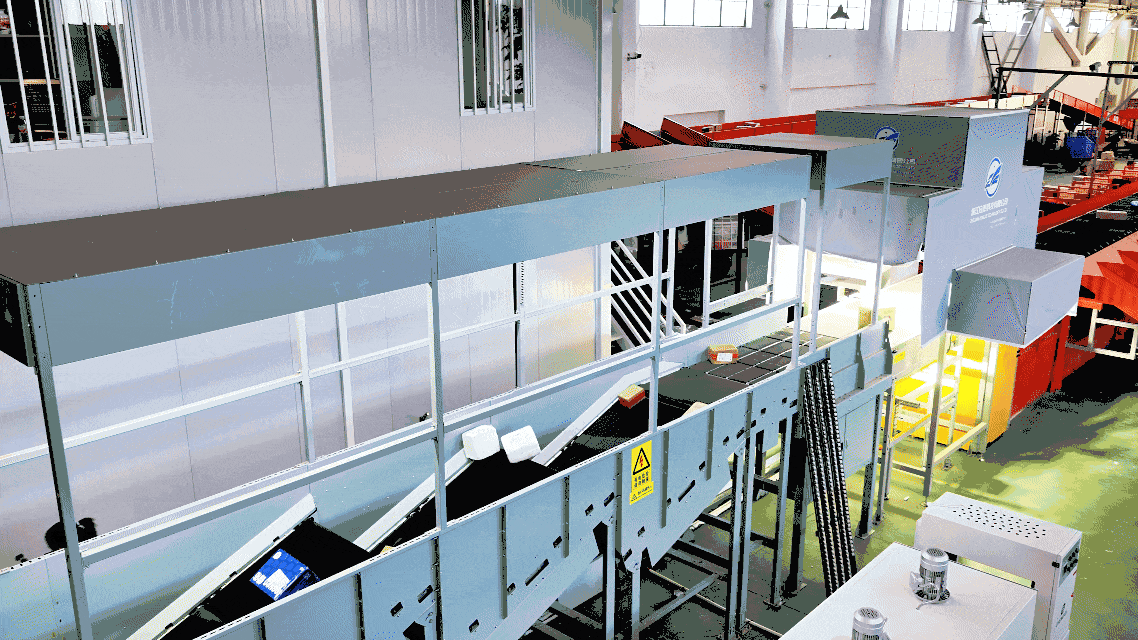

• 4×5 Matrix Singulation Module: Features 20 individually speed-controlled mini-belt units powered by vision recognition to automatically separate stacked, side-by-side, or entangled parcels into an orderly single file without operator intervention.
• 15° Diagonal Centering Roller Section: Smoothly aligns incoming packages along a unified baseline at high linear velocity, preparing parcels for optimal optical scanning.
• 6-Side Optical Scanning & Dynamic Weighing: Combines upward-looking cameras with five multi-angle optical sensors for >99.8% barcode read rate, while an inline dynamic load cell binds precise weight metrics to parcel IDs in real time.

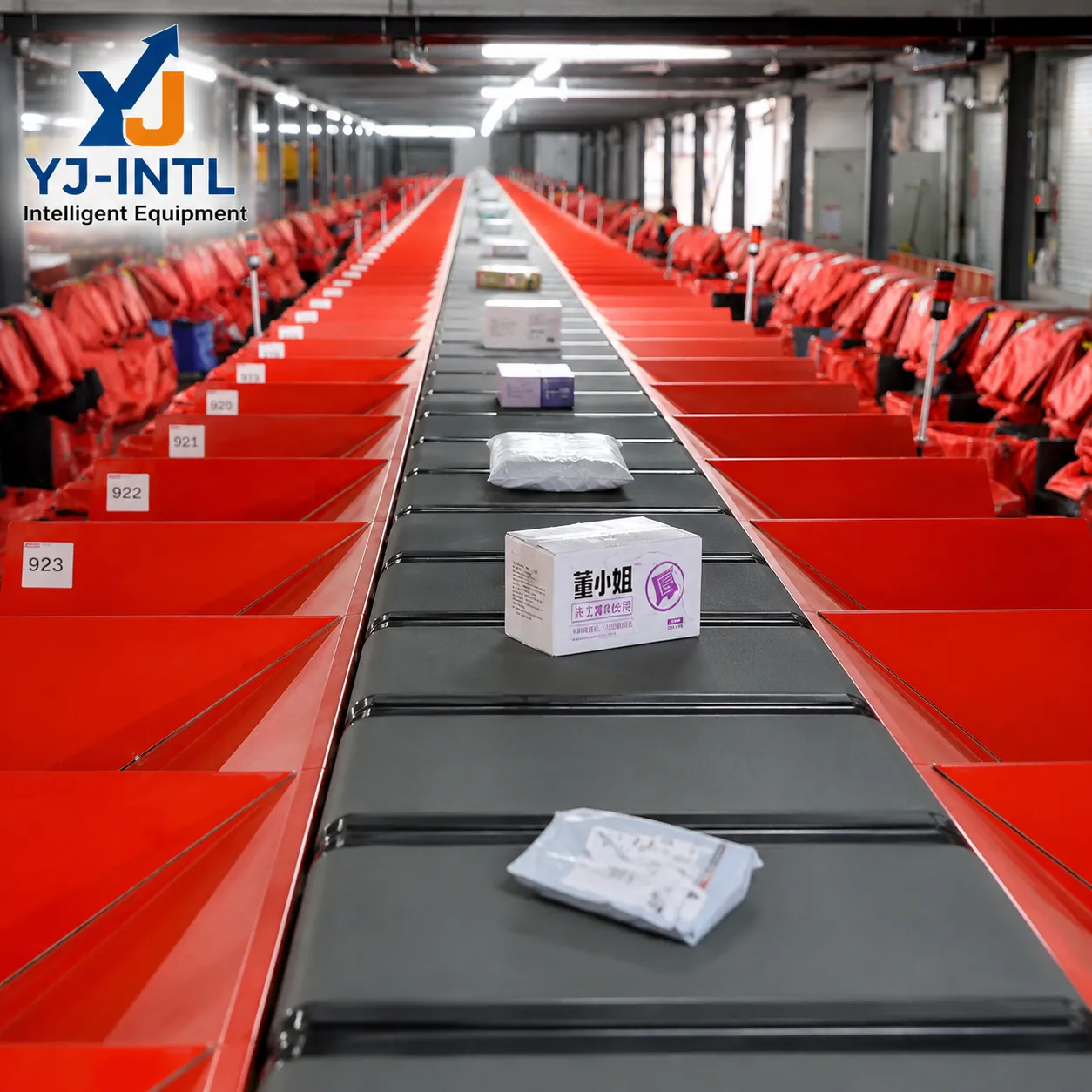

Engineering Features & Retractable Outbound Bagging Integration

Unlike conventional belt sorters that require separate bagging tables, the YJ-INTL solution integrates ergonomic bag-hanging arm structures directly under the sorting chutes. The system utilizes retractable mechanical baffles and automated pneumatic diverting arms to guide parcels directly into collection bags or drop chutes, significantly shortening the handling cycle.

The entire control system communicates via high-speed TCP/IP API protocols directly with the client's Warehouse Management System (WMS) and Warehouse Control System (WCS), tracking parcel movement from singulation to outbound container loading with zero latency.

Verified Business Benefits & Performance Metrics

• Up to 12,000 PPH Sorting Capacity: Streamlined parcel flow enables continuous high-density distribution during peak volume periods.
• 60% Labor Reduction: Automated singulation, scanning, dynamic weighing, and direct bagging cut direct manual labor dependency on the sorting line.
• 45% Floor Space Savings: High-density linear narrow belt structure maximizes vertical and horizontal spatial efficiency.
• >99.8% First-Pass Read Rate: 6-side vision system practically eliminates barcode misreads and manual rework loops.
