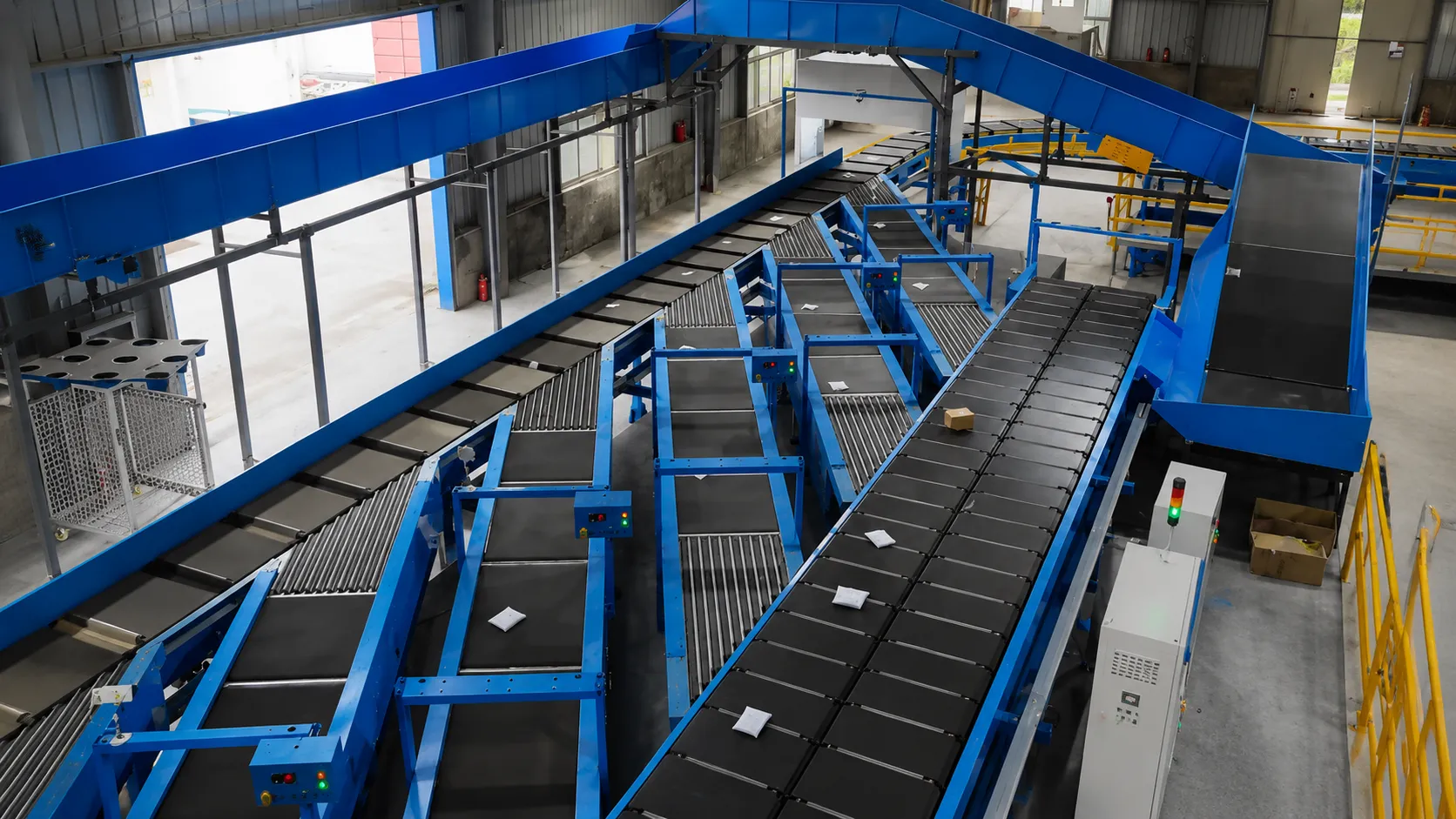

ZTO Express JiangXi Hub: Dual-Channel Dual-Narrowband Auto-Induction System Integration

Project Background: Scaling Regional Express Hub Capacity in China's Pen Capital

Jinxian County in Jiangxi Province, known as China's Pen Capital, yields nearly 7.5 billion pens annually. To handle the massive, fast-paced parcel outflow generated by regional e-commerce manufacturing, the ZTO Express Jinxian Distribution Center required a robust logistics automation upgrade.

Traditional single-channel infeed lines frequently encounter bottlenecking during volume surges, requiring heavy manual feeding and causing induction delays. YJ-INTL delivered a self-developed dual-channel dual-narrowband auto-induction system integrated into a cross-belt sorter loop to solve these efficiency constraints.

Key Operational Challenges

• High Peak Volume: Extremely dense daily parcel outflow demanding sustained 20,000 pcs/hour sorting speeds across dual zones.
• Labor Dependency & Costs: Manual infeed and parcel positioning required high staff counts and caused human fatigue errors.
• Diverse Packaging Media: High proportion of soft polybags, small cartons, and varied express packaging requiring automated singulation.
• Future Expansion Readiness: Need for modular structural engineering that allows seamless capacity upgrades without replacing primary sorter frameworks.

YJ-INTL Engineering Solution & System Architecture

The deployed sorting solution combines high-speed mechanical separation, advanced vision-guided correction, and scalable structural frameworks:

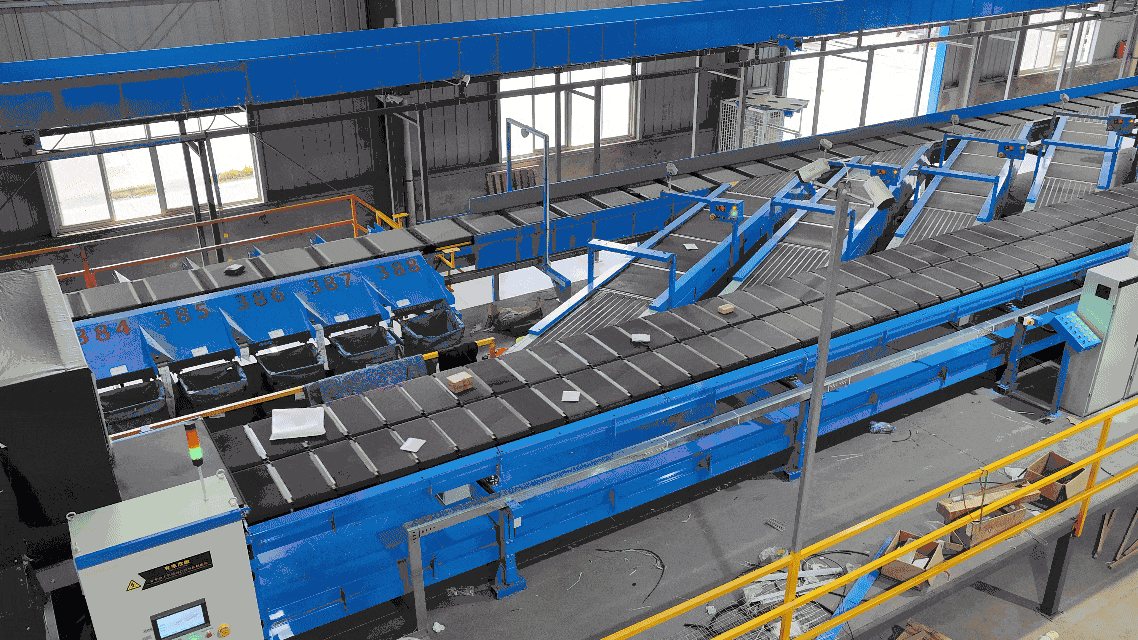

• Flexible Modular Frame: Built on a single-tier layout equipped with pre-engineered structural frames, allowing rapid upgrade to a double-tier loop system by adding sorting carts as business grows.
• Front-End Singulation: Incorporates a 3-stage 3D de-stacker coupled with a 4x5 single-piece separator to singulate stacked cartons and soft polybags into clear, single-file streams.

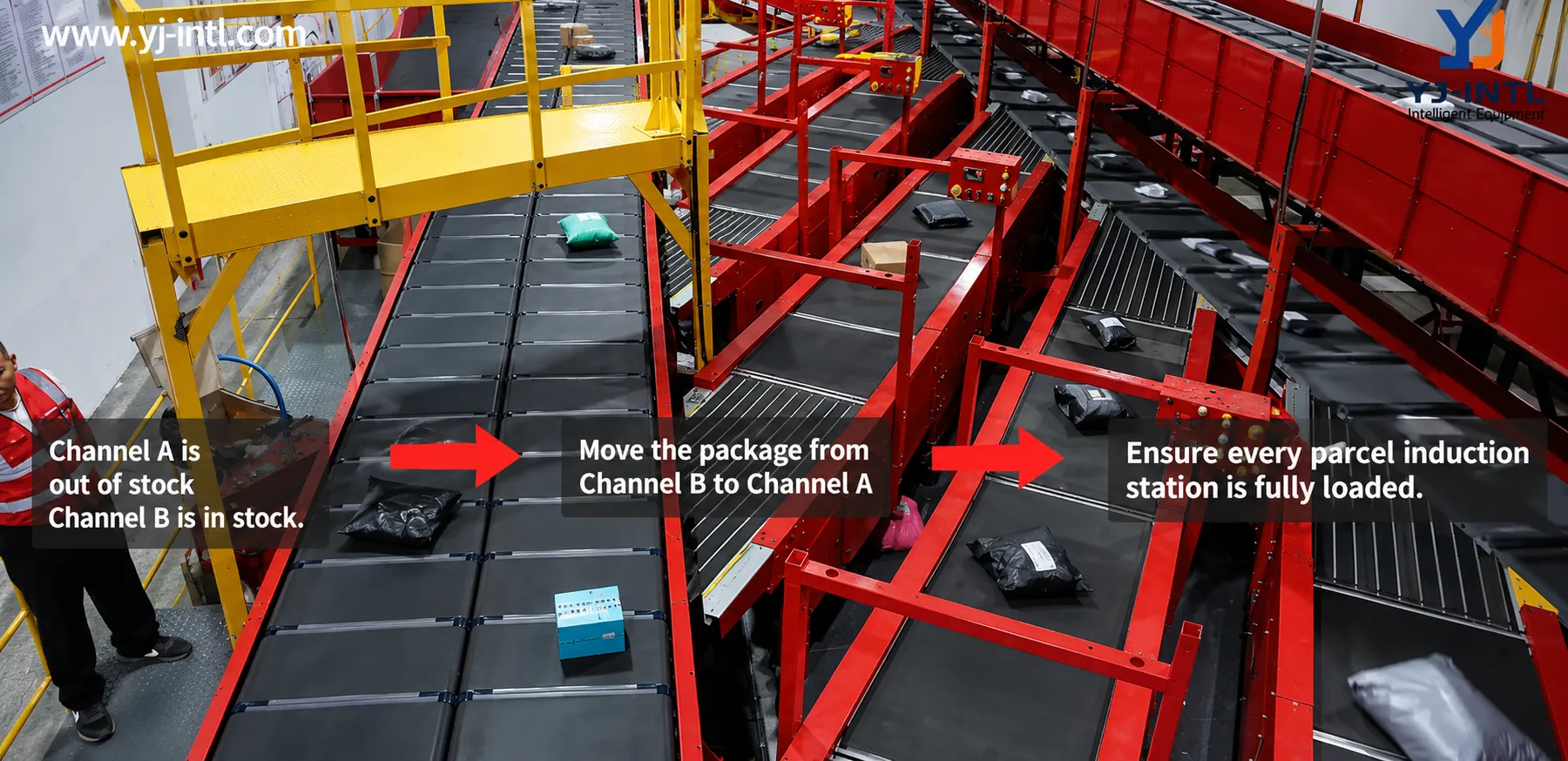

• Dual-Channel Narrowband Auto-Induction: Utilizes dual narrow-belt channels that intelligently group parcels by dimension, maximizing loading efficiency onto cross-belt carts.
• Grayscale Vision Alignment: An overhead vision camera monitors parcel posture in real time, executing automated corrective alignment for precise chute dropping.
• 6-Side Barcode & Dual-Row Recognition: Features dual-set narrow-gauge trolleys with 6-side scanning, achieving parallel scanning without speed deceleration.

Operational Impact & Business Benefits

The implementation of YJ-INTL's auto-induction technology transformed the Jinxian hub from a labor-intensive sorting center into an automated, data-driven operation.

Quantifiable Results

• 200,000+ Daily Capacity: Consistently handles over 200,000 parcels per day during peak operating windows.
• 80%+ Labor Reduction: Facility operates seamlessly with just over 10 staff members across manual exception and monitoring zones.
• 10,000 Pcs/Hr Per Zone: Each circular induction zone achieves 10,000 parcels/hour throughput, eliminating single-channel infeed bottlenecks.
• Human-AI Collaborative Closed Loop: Automated induction handles standard packages while minimal staff manage exceptions and damaged goods.
• Low Initial Investment ROI: Zero down payment deployment model enabled fast ROI and solved labor shortages during growth phases.
