Pendulum Wheel Sorting Module for Automated Parcel Sorting
The Pendulum Wheel Sorting Module is a compact automated parcel diversion solution designed for conveyor-based sorting systems. Its modular structure allows the sorting unit to be integrated into existing conveyor lines while providing controlled directional movement for parcel handling.
Available in different configurations, including high-vertical and heavy-load versions, the module is designed to accommodate different conveyor layouts, parcel handling requirements and system integration conditions. Its energy-efficient design also helps reduce power consumption during continuous operation.
- Compact Modular Design
- Flexible Sorting Direction
- High Vertical Version Available
- Heavy Load Configuration
- Low Power Consumption
- Easy System Integration
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Pendulum Wheel Sorting Module |
| Sorting Method | Wheel-Based Directional Diversion |
| Configuration | Standard / High Vertical / Heavy Load |
| Structure | Modular |
| Application | Parcel & Material Sorting |
| Installation | Integrated into Conveyor Line |
| Sorting Control | Automatic |
| Drive Design | Energy-Saving |
| System Integration | Conveyor / PLC / WCS / WMS |
| Application Environment | Logistics / E-commerce / Warehouse / Distribution |
| Customization | Available |
| Safety Configuration | Project Dependent |
Details
Pendulum Wheel Sorting Module for Flexible Parcel Handling
The Pendulum Wheel Sorting Module is developed for automated material diversion where parcels need to be transferred from a main conveying line toward different directions or processing lanes.
Unlike a complete standalone sorter, the module can function as a sorting unit within a larger conveyor system. This makes it suitable for logistics facilities that need to introduce automatic diversion into an existing conveying architecture without rebuilding the entire material handling line.
Its compact construction allows multiple modules to be arranged according to the required sorting layout. Depending on the project, the system can be configured with different module orientations, conveyor heights and load requirements.
Product Structure

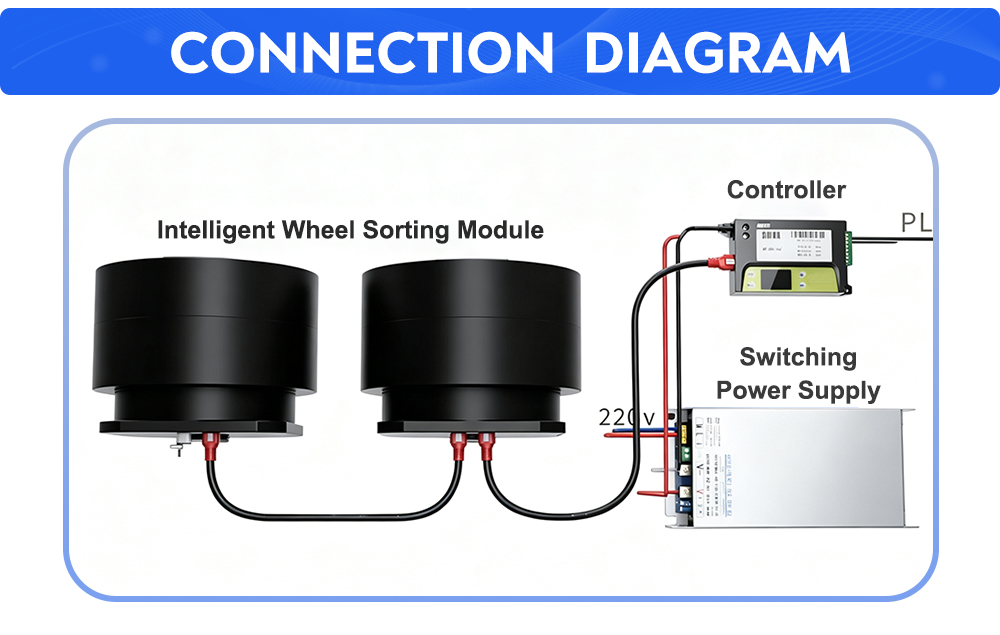

The module consists of the main sorting body, wheel/roller mechanism, drive components, electrical connection and control interface.
Its modular construction allows the sorting mechanism to be installed within a conveyor section rather than requiring an entirely independent sorting machine.
Main Components
- Sorting wheel module
- Drive mechanism
- Supporting frame
- Conveyor integration structure
- Electrical connection
- Control interface
- Safety protection components
Note: The exact component configuration depends on the selected model and project requirements.
From Sorting Module to Complete Automation System
For customers requiring more than a standalone sorting module, YJ-INTL can develop the complete system around the actual warehouse process.
The engineering scope can include: Process Analysis → Layout Design → Mechanical Design → Electrical Design → Control System → WCS Integration → Equipment Manufacturing → Installation → Commissioning
This enables the pendulum wheel module to become part of an integrated parcel handling solution rather than an isolated piece of equipment.

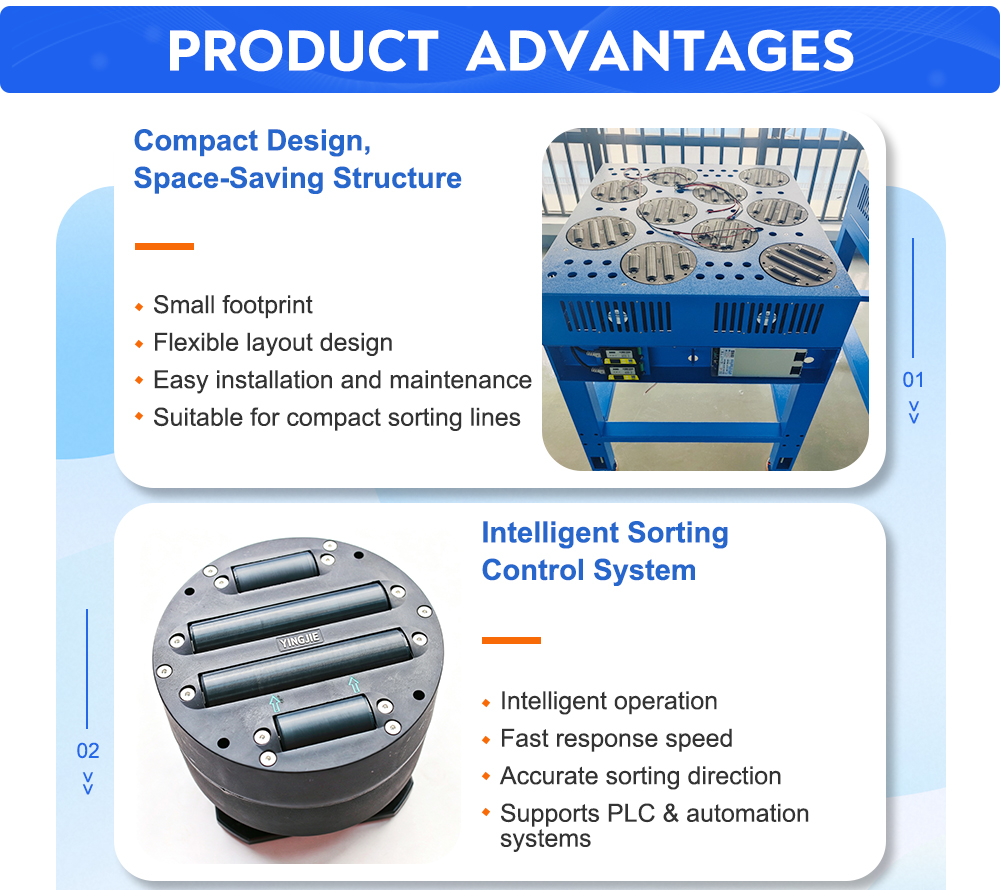

Product Advantages
01. Compact Structure for Space-Constrained Layouts
02. Modular Configuration for Different Conveyor Layouts
03. High-Vertical Configuration

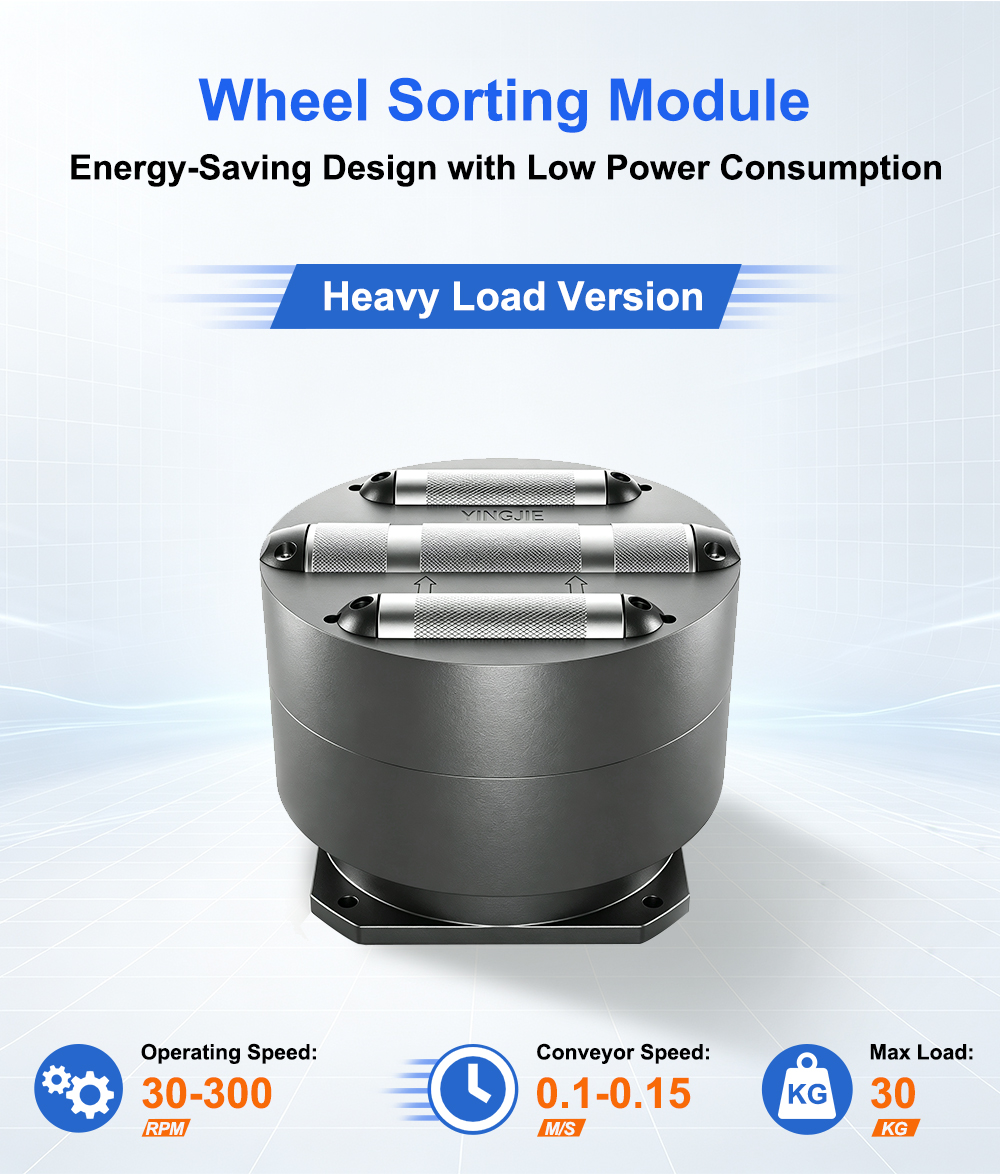

04. Heavy-Load Version

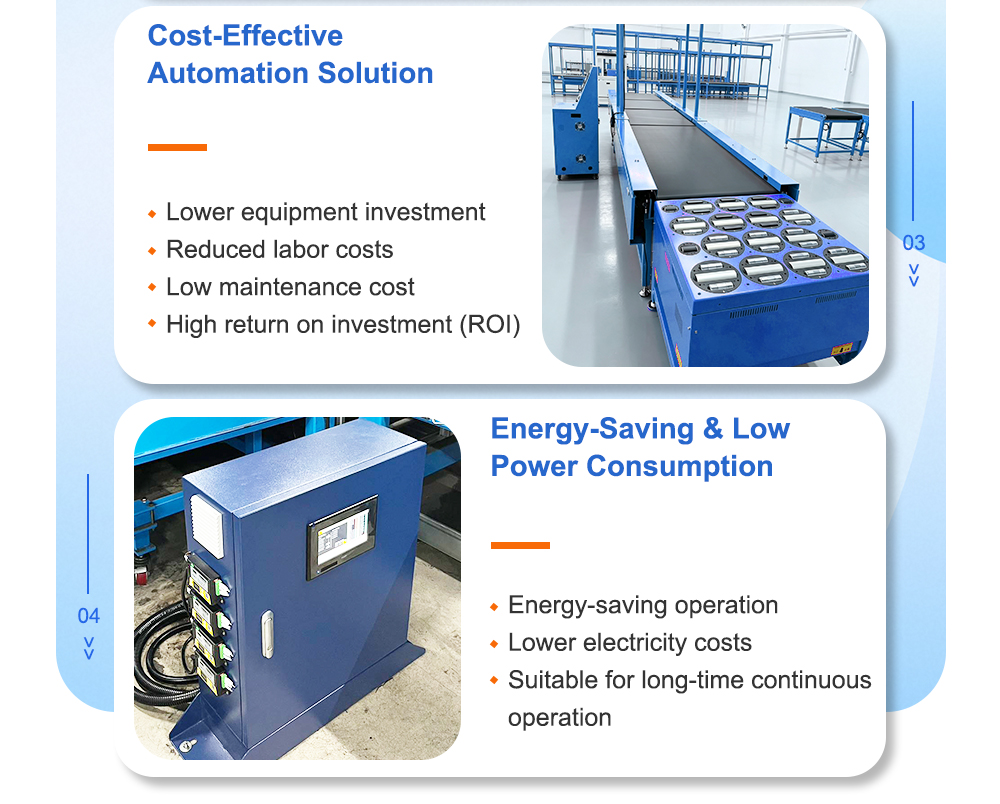

05. Energy-Saving Design
06. Suitable for Automated Sorting Lines
Why Choose This Pendulum Wheel Sorting Module?
Reduce Sorting Space
Compact modular construction helps reduce the space required for directional sorting points.
Improve Automation
Automated diversion reduces dependence on manual parcel routing.
Adapt Existing Conveyors
The module can be integrated into conveyor sections, making it suitable for customized conveyor upgrades.
Support Different Loads
High-vertical and heavy-load configurations provide additional options for different project requirements.
Lower Energy Consumption
The energy-saving design is intended for efficient continuous operation.
Build Scalable Sorting Lines
Multiple sorting modules can be incorporated into larger conveyor and destination networks.

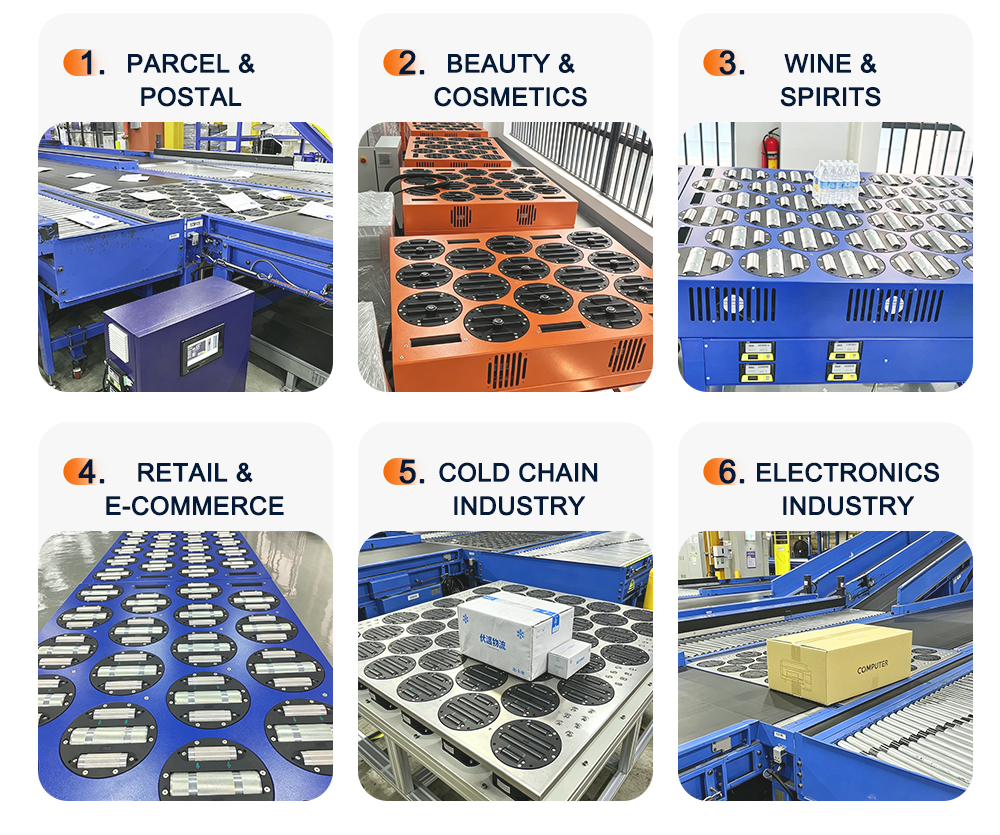

Application Cases
FAQ
The module can be used for parcel and material handling applications where items need to be diverted between different conveyor directions. The final applicable parcel range should be determined according to package dimensions, weight, center of gravity and the selected module configuration.
The high vertical version is intended for conveyor layouts requiring a higher vertical installation arrangement, while the heavy load version is designed for applications with higher package loading requirements. The appropriate configuration should be selected according to the project conditions.
Yes. The module is designed for integration into conveyor systems and can be incorporated into customized conveyor layouts. Engineering confirmation is required to match the module with the existing conveyor dimensions, height, controls and package flow.
Yes. The module can be incorporated into an automated sorting architecture that includes PLC, conveyor control, WCS, WMS, barcode scanning and other warehouse automation equipment. The exact interface depends on the customer's system architecture.
Yes. The supplied product material specifically highlights an energy-saving design with low power consumption. Actual energy consumption depends on the selected configuration, operating conditions and complete sorting system.
Yes. YJ-INTL can design the sorting arrangement according to the customer's warehouse layout, parcel characteristics, sorting destinations, throughput requirements and existing automation equipment.
For an accurate quotation, customers should provide parcel dimensions and weight range, required throughput, number of sorting destinations, conveyor layout, available installation space, operating environment and WMS/WCS integration requirements.
