Dynamic DWS Weighing Dimensioning and Scanning System

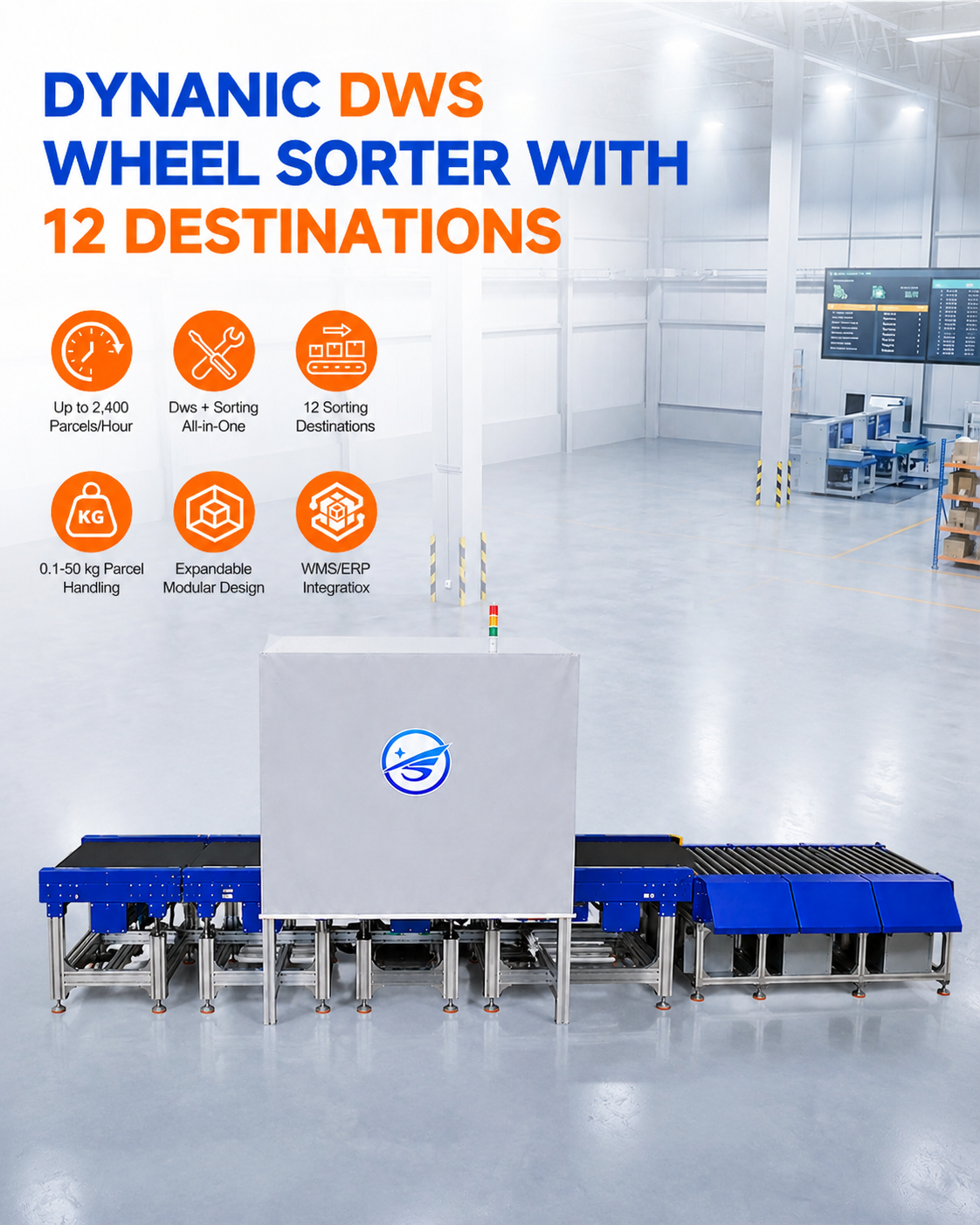

Dynamic DWS Wheel Sorter with 12 Destinations

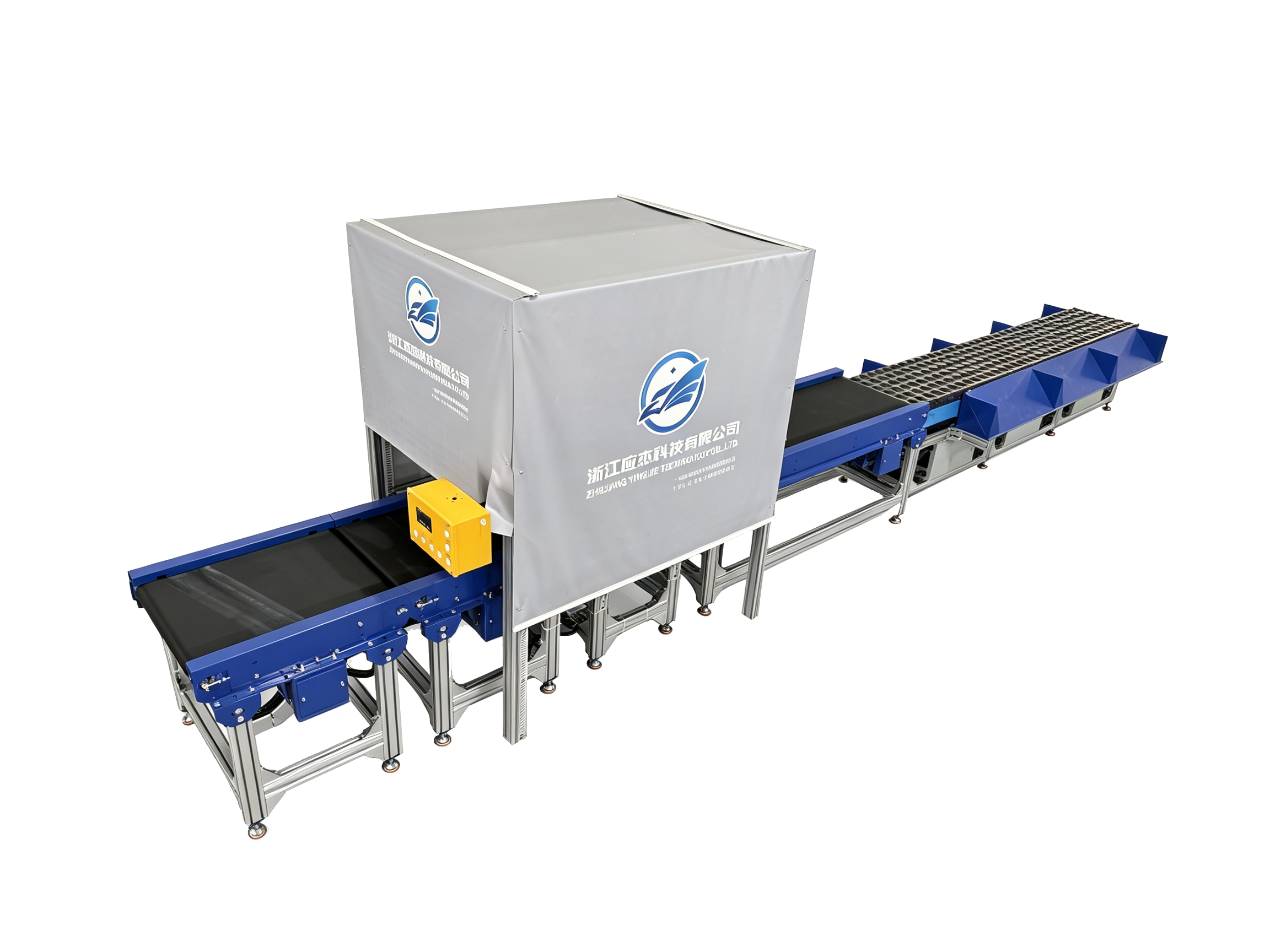

The Dynamic DWS Wheel Sorter integrates dynamic weighing, dimensioning, barcode scanning and automated wheel sorting into one parcel handling solution. After parcels are identified and measured, the system automatically transfers them to the assigned destination through the wheel sorting section.
Designed for e-commerce fulfillment, express logistics and distribution operations, the system supports up to 2,400 parcels per hour, 12 sorting destinations and parcel handling from 0.1 to 50 kg, according to the configuration shown in the product solution.
- Up to 2,400 Parcels/Hour
- 12 Sorting Destinations
- 0.1–50 kg Parcel Handling
- Dynamic Weighing & Dimensioning
- Integrated Barcode Scanning
- Modular Wheel Sorting Design
- WMS/ERP Integration
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Dynamic DWS Wheel Sorter |
| Sorting Method | Wheel Sorting |
| Max. Throughput | Up to 2,400 parcels/hour |
| Sorting Destinations | Up to 12 |
| Parcel Weight | 0.1–50 kg |
| Weighing | Dynamic Weighing |
| Dimensioning | Dynamic Dimension Measurement |
| Identification | Barcode Scanning |
| Conveyor Type | Belt Conveyor + Wheel Sorting Section |
| System Design | Modular |
| Control | Automated Control System |
| System Integration | WMS/ERP Integration |
| Application | Parcel Sorting & Distribution |
| Installation | Customized According to Project |
Details

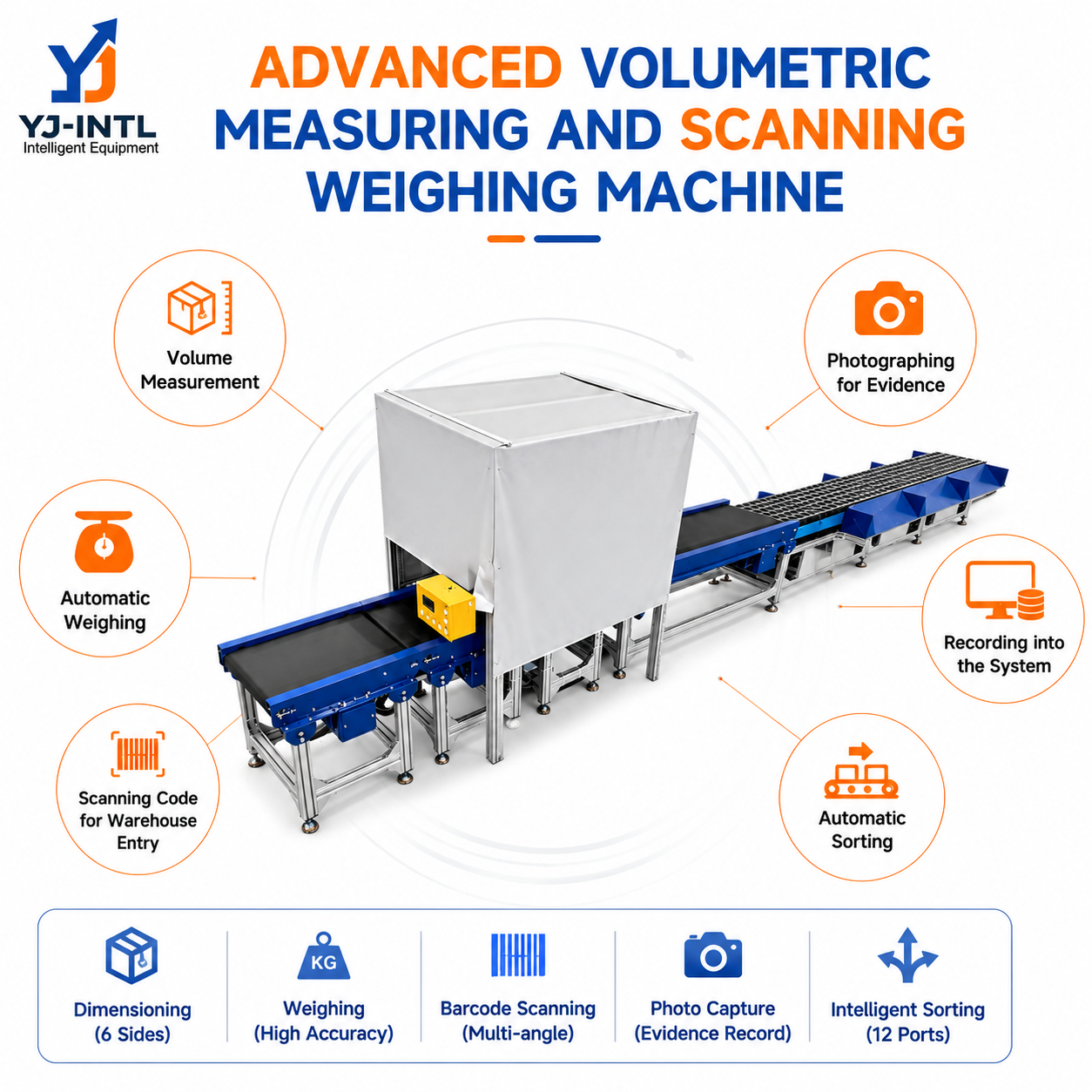

Integrated DWS and Wheel Sorting in One Workflow
Traditional parcel sorting processes often require separate equipment for identification, weighing, dimensioning and destination sorting. The Dynamic DWS Wheel Sorter combines these operations into a coordinated workflow.
Parcels enter the DWS section for barcode scanning, dynamic weighing and dimension measurement. The collected parcel information is then used by the control system to determine the sorting destination. The wheel sorter subsequently diverts each parcel to its assigned outlet.
This configuration reduces the need for separate manual processing steps and provides a more structured automation solution for parcel distribution centers.
Product Features
Dynamic DWS Processing
Integrated weighing, dimensioning and scanning provides parcel information during continuous conveyor movement.
Automated Wheel Sorting
The wheel sorting section automatically diverts parcels according to the assigned destination.
12-Destination Configuration
The displayed solution supports up to 12 sorting destinations for multi-route parcel distribution.
Modular Layout
The equipment structure can be configured according to the number of destinations, conveyor arrangement and available space.
Parcel Data Collection
Weight, dimensions and barcode information can be collected as part of the automated parcel handling process.
Integrated Control
The DWS and sorting equipment can be connected with the control architecture of the overall logistics system.

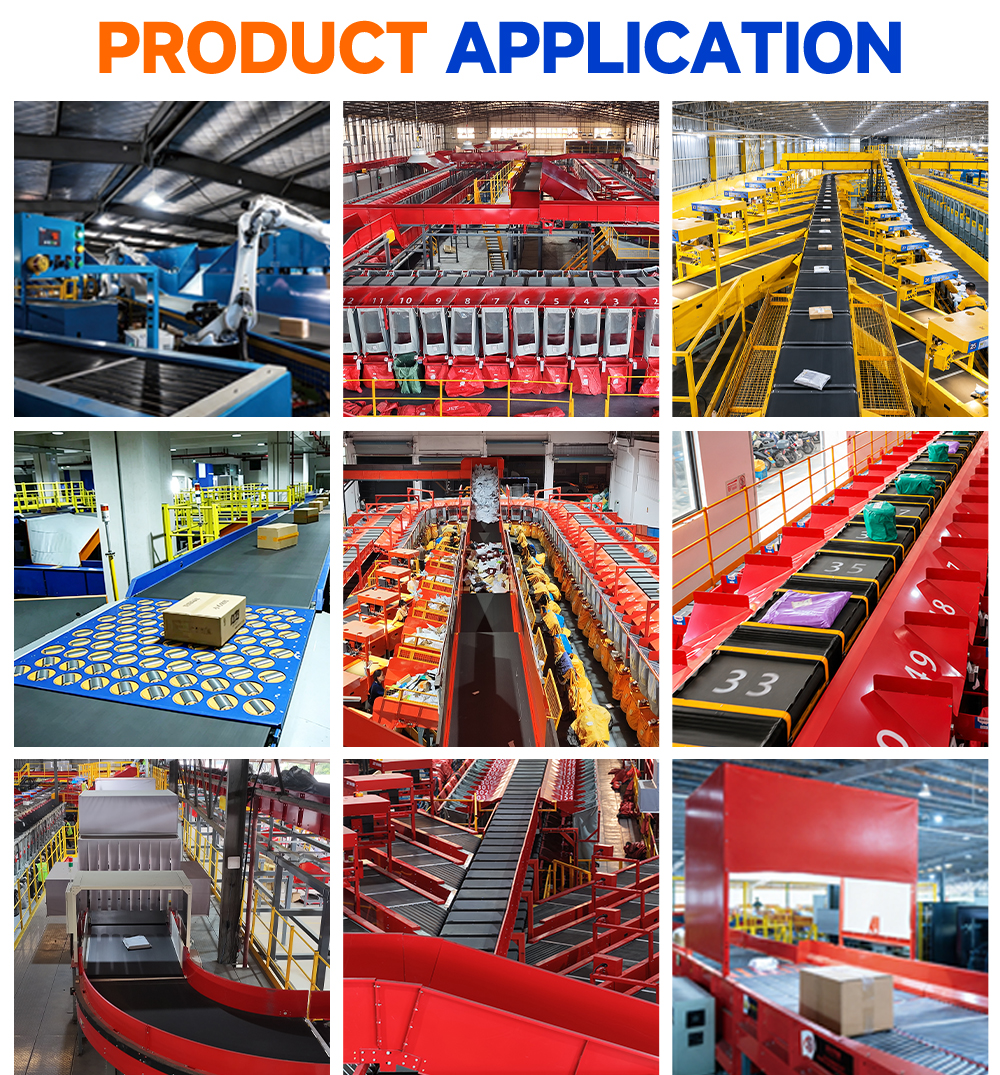

Applications
E-commerce Fulfillment Centers
The system can process parcels from online orders and automatically route them to different outbound destinations.
Express Logistics
Suitable for parcel distribution operations where packages need to be identified, measured and automatically diverted according to delivery routes.
Distribution Centers
The multi-destination configuration can help distribute parcels to different zones, routes or downstream processing lines.
Warehouse Automation
The integrated DWS and wheel sorting structure can be incorporated into larger automated material handling systems.
What Problems Does It Solve?
Manual Sorting Dependency
Automated identification and wheel diverting reduce the amount of repetitive manual parcel routing work.
Separate Processing Stations
Weighing, dimensioning, scanning and sorting can be connected into one continuous workflow.
Multiple Sorting Destinations
The 12-destination configuration allows one main processing line to distribute parcels to multiple outbound areas.
Parcel Data Collection
Weight and dimensional information can be collected together with barcode information, providing structured parcel data for downstream operations.
Limited Warehouse Space
The modular conveyor structure allows the sorting line to be planned around the customer's available installation space.
FAQ
The configuration shown in the product material supports up to 12 sorting destinations. The actual number of destinations can be determined according to the required sorting layout and project configuration.
The configuration shown supports throughput of up to 2,400 parcels per hour. Actual throughput depends on parcel characteristics, spacing, conveyor configuration, sorting logic and overall system design.
The product configuration shown supports parcel handling from 0.1 to 50 kg. The final operating range should be confirmed according to parcel size, packaging characteristics and project requirements.
Yes. Dynamic weighing and dimension measurement are integrated into the DWS section so parcel data can be collected while the parcel is moving through the conveyor.
Yes. Barcode scanning can be integrated into the DWS process to identify parcels and associate parcel information with the corresponding sorting decision.
Yes. The DWS section and wheel sorter can operate as one coordinated parcel processing workflow, connecting identification and measurement data with the physical sorting operation.
Yes. The system can be designed for integration with WMS, ERP and warehouse control systems according to the customer's communication interface and project architecture.
Yes. The number and arrangement of sorting destinations can be configured according to the required parcel routes, warehouse layout and downstream processing requirements.
Yes. The conveyor layout, DWS configuration, wheel sorting section, destination arrangement, control system and integration requirements can be customized according to the existing warehouse conditions.
The system is suitable for e-commerce fulfillment centers, express logistics, distribution centers, warehouse automation and other operations requiring automated parcel identification, measurement and multi-destination sorting.
