Pop-Up Wheel Sorter
Pop-Up Wheel Sorter | Automated Parcel Sorting System
The Pop-Up Wheel Sorter is a compact automated sorting module designed to divert cartons, parcels and other suitable items from a main conveyor to different destinations.
Powered wheel modules provide controlled lateral movement while maintaining a continuous material flow through the conveyor line. Its modular structure allows the sorter to be integrated with existing conveyors, barcode identification, weighing, DWS and warehouse control systems.
- Multi-Directional Parcel Diverting
- Stable Product Transfer
- Compact Sorting Structure
- Modular System Design
- Flexible Conveyor Integration
- WMS / WCS Compatible
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Pop-Up Wheel Sorter |
| Sorting Method | Powered Wheel Diverting |
| Sorting Direction | Left / Right / Customized |
| Conveyor Integration | Belt / Roller Conveyor |
| Wheel Configuration | Customized |
| Conveyor Width | Customized |
| Conveyor Height | Customized |
| Package Size | Customized |
| Package Weight | Customized |
| Sorting Destinations | Customized |
| Control Method | PLC Control |
| Barcode Scanning | Optional |
| Weighing | Optional |
| Dimensioning | Optional |
| DWS Integration | Available |
| WCS Integration | Available |
| WMS Integration | Available |
| Application | Logistics / E-Commerce / Warehouse / Manufacturing |
Manual Sorting vs Wheel Sorting
| Item | Manual Sorting | Pop-Up Wheel Sorting |
|---|---|---|
| Sorting decision | Operator | Control system |
| Parcel handling | Manual | Automated |
| Multi-destination sorting | Requires more labor | Multiple lanes possible |
| Sorting consistency | Operator dependent | System controlled |
| Data integration | Limited | Scanner / DWS / WCS / WMS |
| Continuous operation | Labor dependent | Automated |
| Scalability | Add operators | Add sorting modules / lanes |
| Material flow | Interruptions possible | Continuous conveyor flow |
Details
Product Advantages
01. Multi-Directional Sorting
The wheel sorting mechanism allows products to be diverted from the main conveyor toward different destinations.
Depending on the system layout, sorting can be configured for:
- Left-side discharge
- Right-side discharge
- Multiple destination lanes
- Sequential sorting
- Zone-based distribution
This makes the system suitable for warehouses where one main conveying line needs to serve multiple downstream processes.
02. Compact Sorting Structure
The wheel sorter is installed directly into the conveyor line, reducing the need for a separate large transfer mechanism.
This configuration is particularly useful where the customer needs to:
- Add sorting points to an existing conveyor
- Reduce conveyor footprint
- Create multiple discharge lanes
- Optimize warehouse floor space
- Connect different processing areas
The final mechanical layout should be determined according to the customer's site and package characteristics.

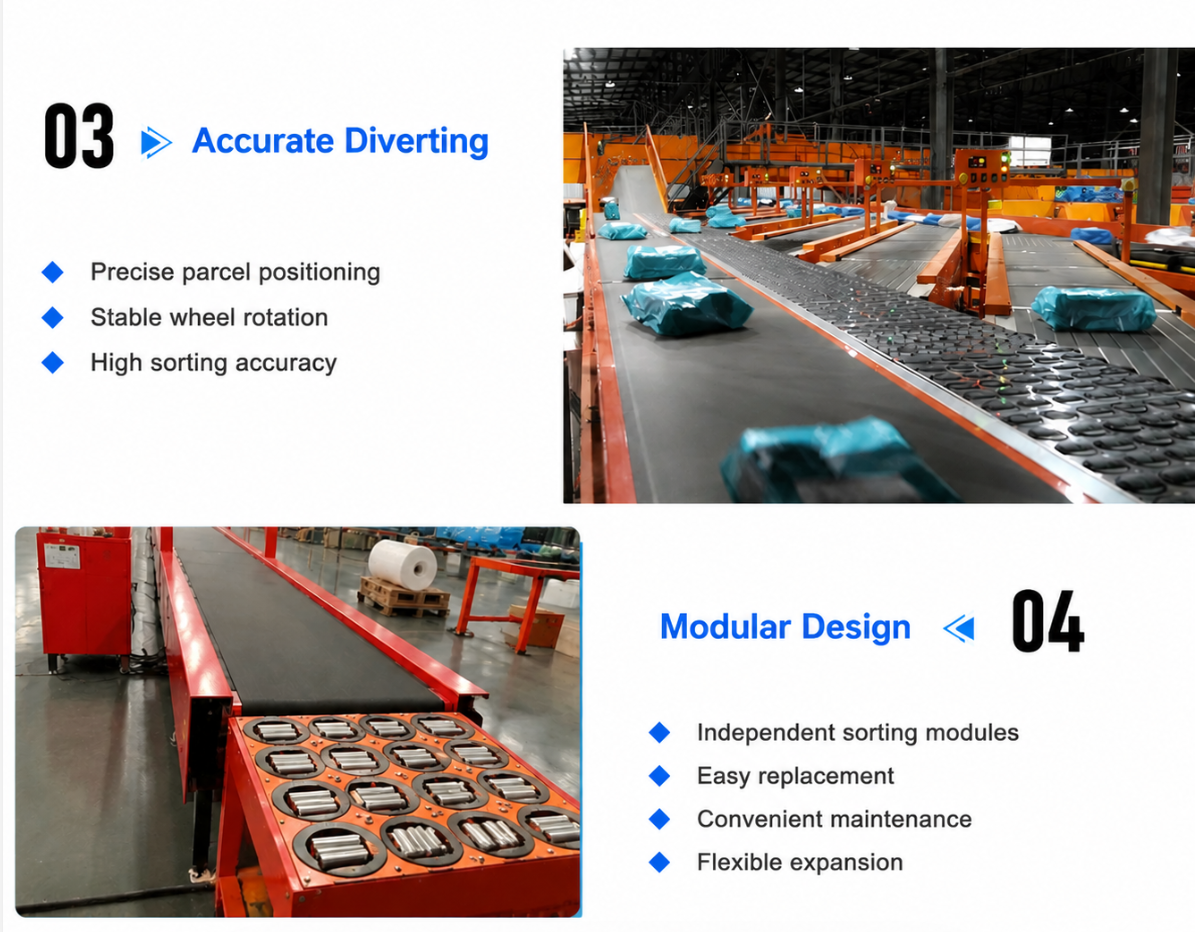

03. Stable Parcel Diversion
The sorting wheels provide controlled contact with the underside of the package and generate lateral movement toward the target lane.
For suitable products, this enables consistent diverting without requiring manual handling at every sorting point.
The system is particularly suitable for cartons, totes, trays and parcels with a relatively stable bottom surface.
04. Modular Configuration
The sorting module can be configured according to the required conveyor width, sorting direction, destination quantity and material-flow process.
05. Intelligent Sorting Control
The wheel sorter can work with sensors and identification equipment to determine when and where a parcel should be diverted.
A typical automated process is:
Detect → Identify → Decide → Divert → Discharge
Sorting instructions can be generated according to barcode, order, destination, zone or other customer-defined rules.
06. Easy Integration
The wheel sorter can be integrated with upstream and downstream equipment rather than operating as an isolated machine.
Pop-Up Wheel Sorter Product Features

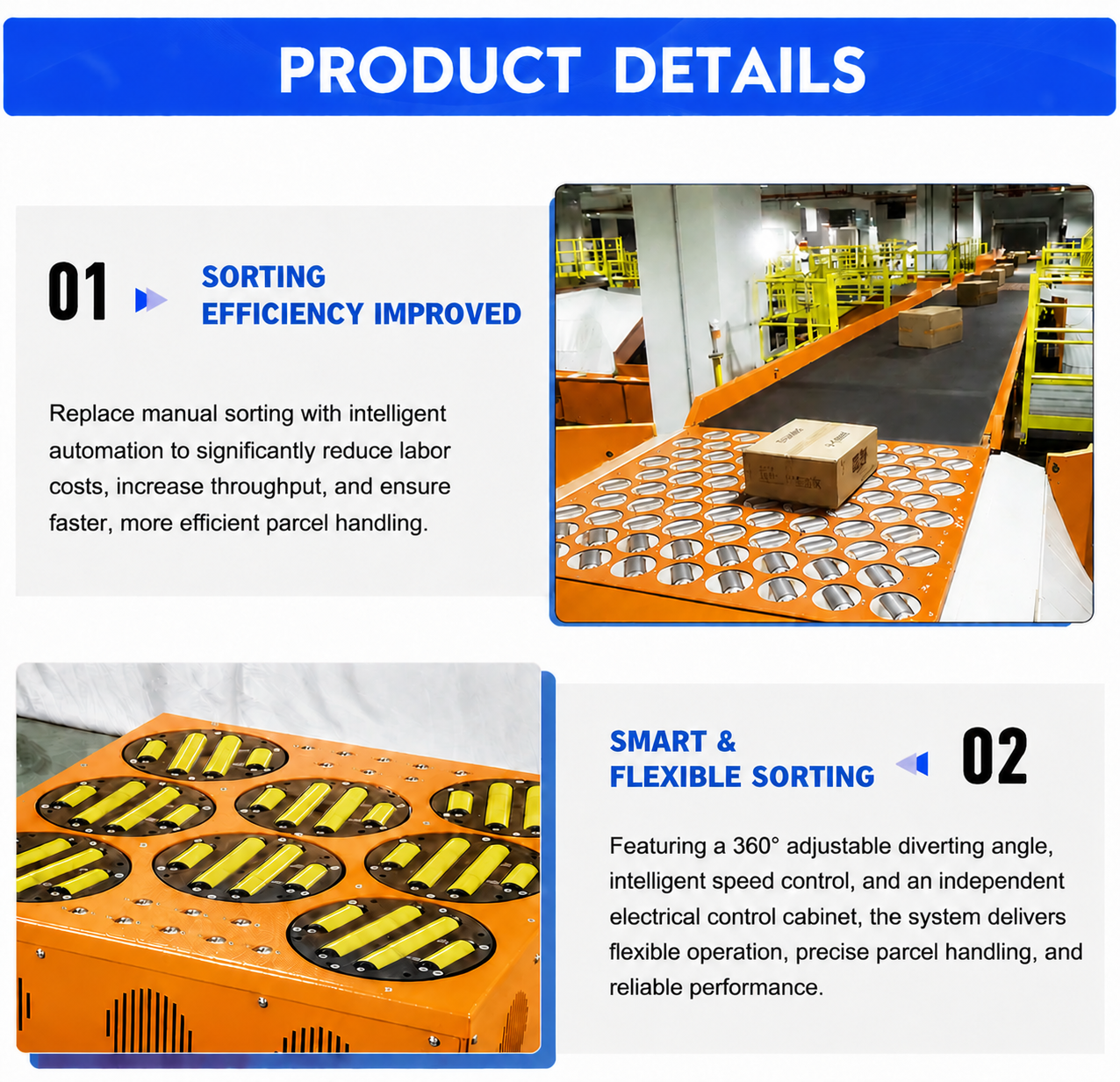

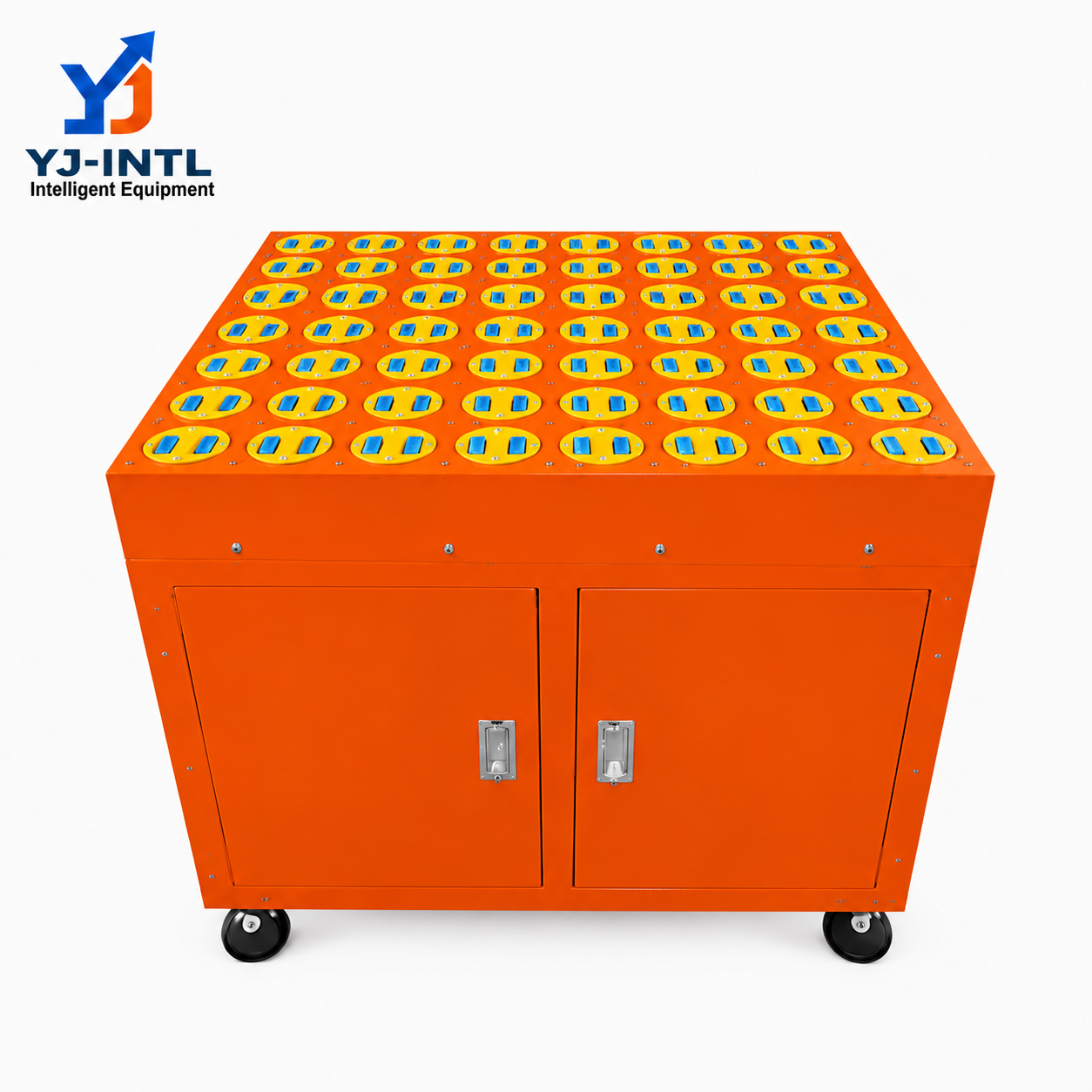

01 — Pop-Up Wheel Mechanism
The powered wheel module rises above the conveying surface when a sorting action is required and creates lateral movement toward the designated destination. The mechanism can be configured according to the required sorting direction and conveyor design.
02 — Multi-Directional Diverting
The wheel arrangement can be designed for different material-flow requirements.

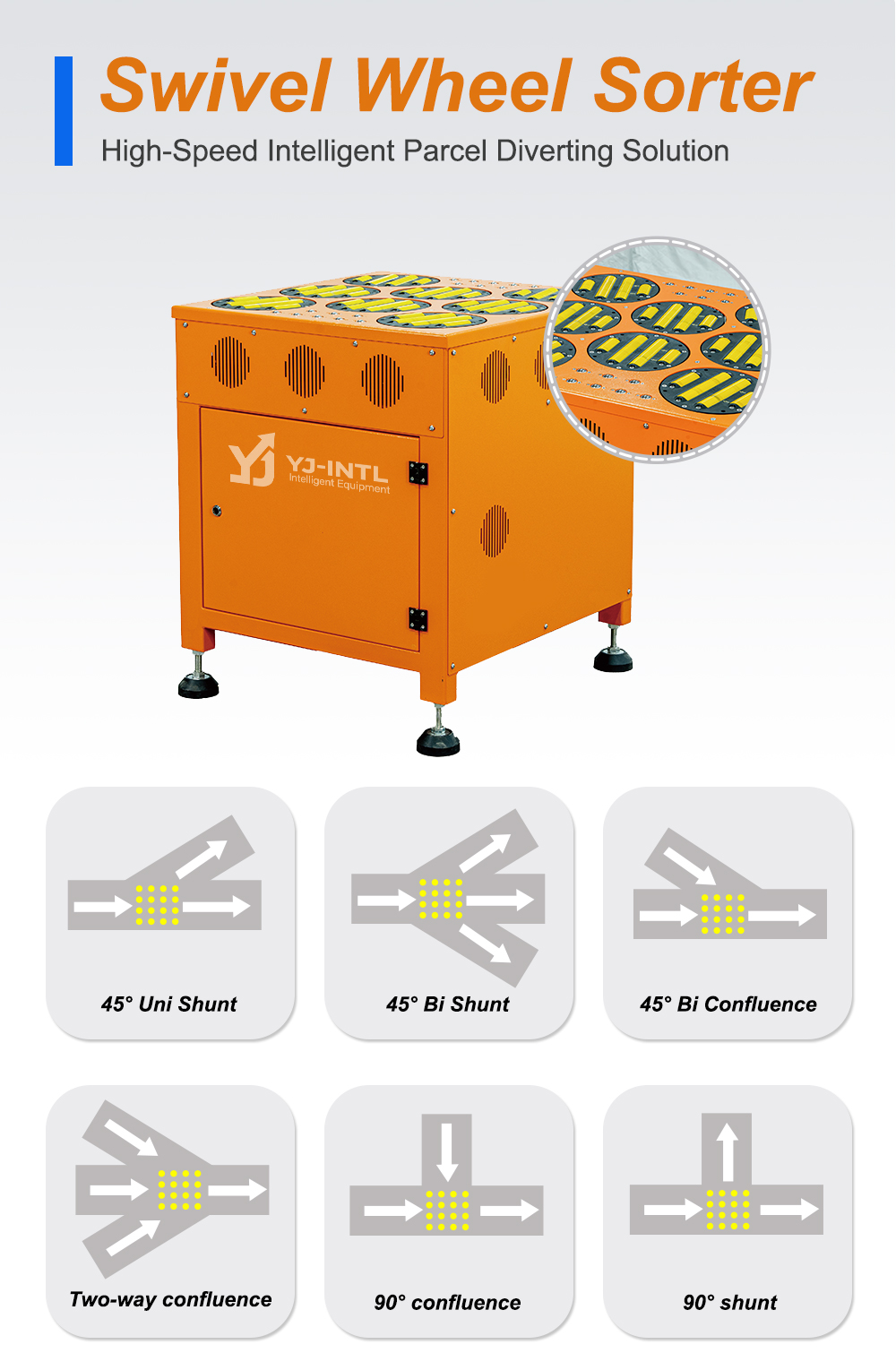

Typical layouts include:
Main Line → Left
Main Line → Right
Main Line → Multiple Destinations
This provides greater flexibility than a single fixed discharge direction.
03 — Modular Sorting Structure
Individual sorting modules can be arranged at different positions along the conveyor.
Each module can correspond to a different destination, zone or downstream process.
This makes the system suitable for expandable sorting lines.
04 — Intelligent Identification
The sorter can be combined with barcode scanning and other identification equipment.
Parcel information can be transferred to the control system before the item reaches the sorting point.
05 — Weighing & DWS Integration
For applications requiring parcel data collection, weighing and dimensioning equipment can be integrated upstream of the wheel sorter.
A typical configuration is:
Scanning → Weighing → Dimensioning → Sorting
This allows sorting decisions to be based on actual parcel information.
06 — Maintenance-Friendly Structure
The modular mechanical structure allows operators to inspect the sorting mechanism and related components more conveniently.
Maintenance configuration depends on the final system design and operating conditions.
Why Choose YJ-INTL Wheel Sorting Solutions?
Application-Based Engineering
We configure the sorting system around actual product and process requirements.
Complete System Integration
The wheel sorter can be integrated with conveyors, scanners, DWS, weighing, PLC, WCS and WMS.
Flexible Equipment Configuration
Sorting direction, conveyor layout, sorting points and system interfaces can be customized.
Project-Oriented Design
Equipment configuration considers product characteristics, throughput, site conditions and downstream processes.
Complete Automation Capability
The wheel sorter can be combined with other conveying and sorting equipment to form a complete logistics automation line.
FAQ
It is generally suitable for cartons, boxes, totes, trays and parcels with a relatively stable bottom surface. Soft, cylindrical or highly irregular products should be evaluated before final equipment selection.
Yes. The sorting layout can be configured for left-side, right-side or multiple destination diverting according to the project requirements.
Yes. A wheel sorter can be designed as a sorting module within an existing conveyor line, provided that the conveyor dimensions and product characteristics are compatible.
Yes. DWS equipment can be installed upstream of the sorter to collect parcel dimension and weight information before the sorting process.
Yes. Barcode scanners can provide identification information that the control system uses to determine the required destination.
Yes. The wheel sorter can communicate with WCS and WMS as part of an integrated warehouse automation system.
The number of destinations depends on the conveyor layout, available space, throughput requirements and sorting logic. The final number should be determined during system design.
Yes. Wheel sorters can be used in e-commerce fulfillment centers to route cartons and suitable parcels to packing, consolidation or outbound areas.
Yes. The technology can be applied to express logistics and distribution centers where parcels need to be automatically distributed to different routes or destinations.
The key information includes package dimensions, weight, shape, bottom condition, center of gravity, required throughput, package spacing, sorting directions and site layout.
Yes. YJ-INTL can customize the wheel arrangement, conveyor configuration, sorting directions, number of sorting points and automation interfaces according to project requirements.
