Dynamic DWS with Wheel Sorter for Automated Parcel Sorting

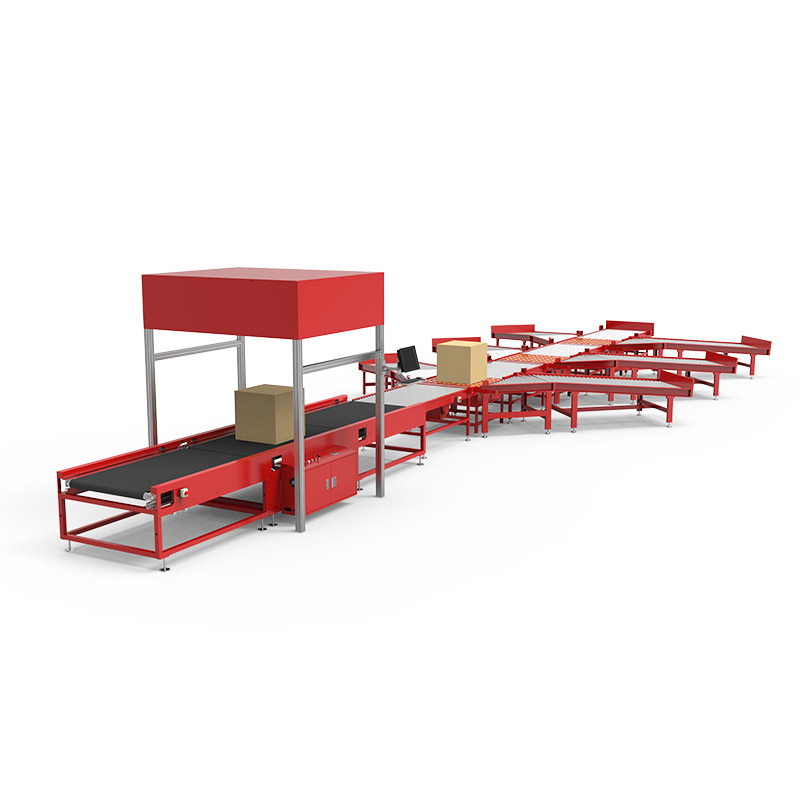

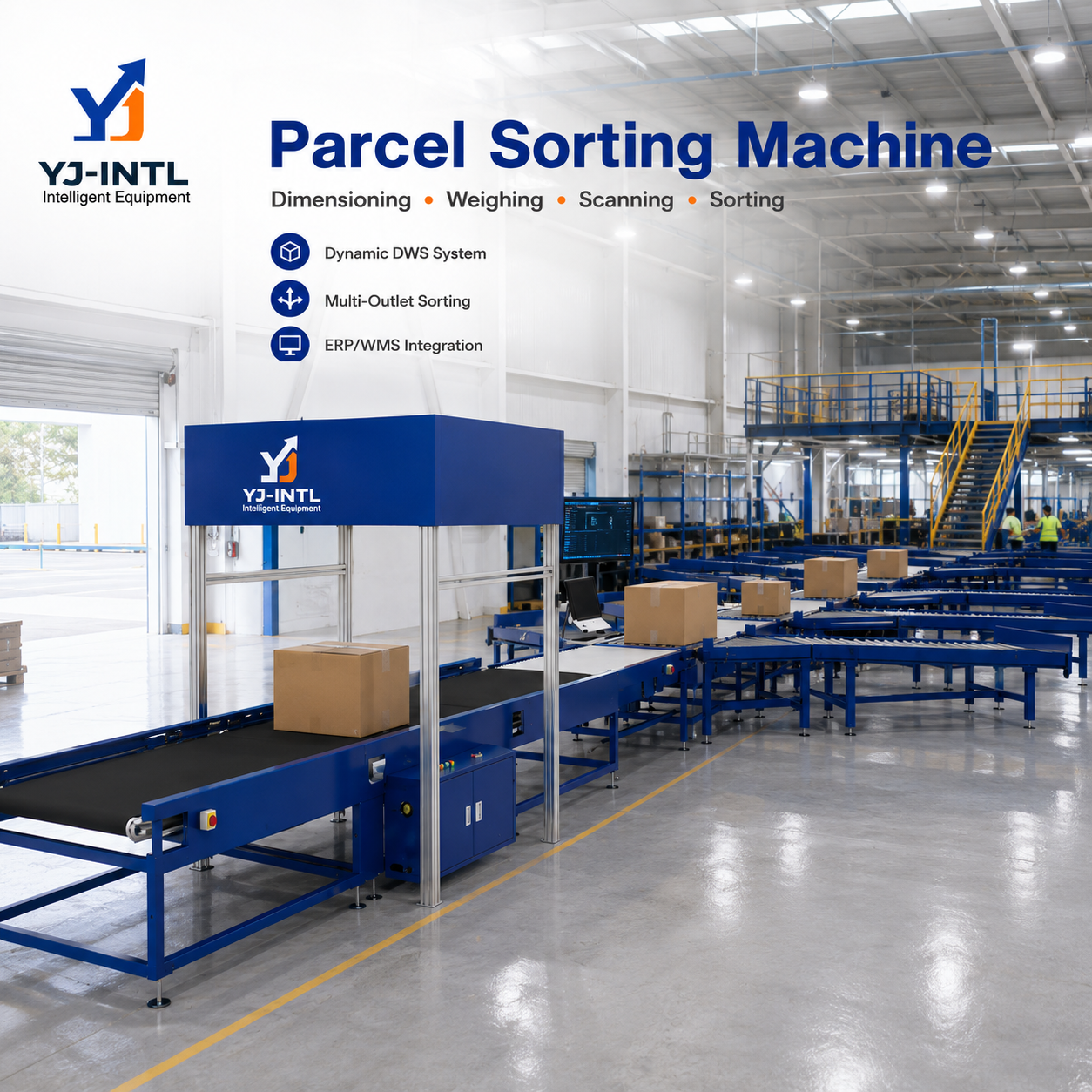

The Dynamic DWS with Wheel Sorter is an integrated parcel processing and sorting system that combines dynamic weighing, dimension measurement, barcode identification and automated wheel sorting in one continuous conveyor process.
Instead of handling weighing, dimensioning and sorting as separate operations, the system collects parcel data while products are moving and automatically routes each parcel to its designated destination.
It is designed for e-commerce fulfillment centers, express distribution hubs, parcel warehouses and automated logistics operations that require both parcel data acquisition and downstream sorting.
- Multi-Directional Parcel Diverting
- Stable Product Transfer
- Compact Sorting Structure
- Modular System Design
- Flexible Conveyor Integration
- WMS / WCS Compatible
PRODUCT SPECIFICATION
| Parameter | Specification |
|---|---|
| System Type | Dynamic DWS with Wheel Sorter |
| Processing Mode | Dynamic / In-motion |
| Functions | Weighing + Dimensioning + Scanning + Sorting |
| Sorting Method | Wheel Sorting |
| Identification | Barcode / Customized |
| Weighing | Dynamic Weighing |
| Dimensioning | Dynamic Dimension Measurement |
| Sorting Direction | Customized |
| Sorting Destinations | Customized |
| Conveyor Speed | Project-based |
| Package Size | Project-based |
| Package Weight | Project-based |
| Conveyor Width | Customized |
| Wheel Module | Customized |
| Control System | PLC |
| Data Interface | Customized |
| WCS Integration | Supported |
| WMS Integration | Supported |
| Application | E-commerce / Express / Logistics / Warehouse |
Details
Product Advantages

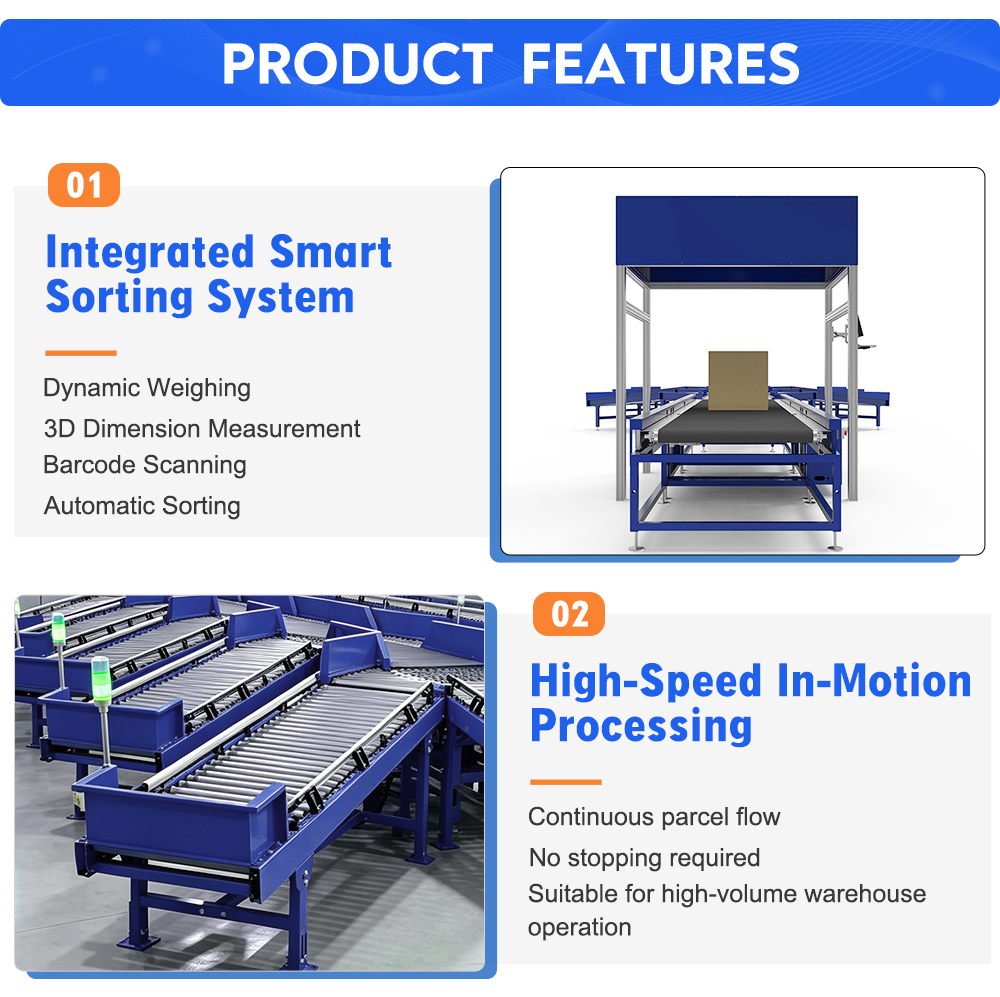

1. All-in-One Dynamic DWS & Sorting
The system combines multiple parcel-processing functions into one automated line:
Conveying → Scanning → Weighing → Dimensioning → Sorting
This reduces the need to transfer parcels between independent processing stations and creates a more continuous material flow.
2. Dynamic Weighing Without Manual Handling
Parcels can be weighed while moving through the DWS section.
The collected weight data can be associated with the parcel identification information and transferred to the customer's control or warehouse management system.
This is particularly useful for operations that need parcel-level weight records for shipping, billing, sorting or warehouse management.
3. Dynamic Dimension Measurement
The DWS section can collect parcel dimension information during conveyor movement.
The system can record:
- Length
- Width
- Height
- Weight
The resulting data can be used together with barcode information for downstream sorting and operational management.
4. Automated Wheel Sorting
After parcel information is collected, the integrated wheel sorter automatically diverts the parcel according to the assigned sorting rule.
Typical sorting logic can be based on:
- Destination
- Route
- Distribution center
- Order
- Delivery zone
- Service type
- Customer-defined sorting rules
This turns the DWS station from a simple measurement device into an automated parcel processing and sorting point.

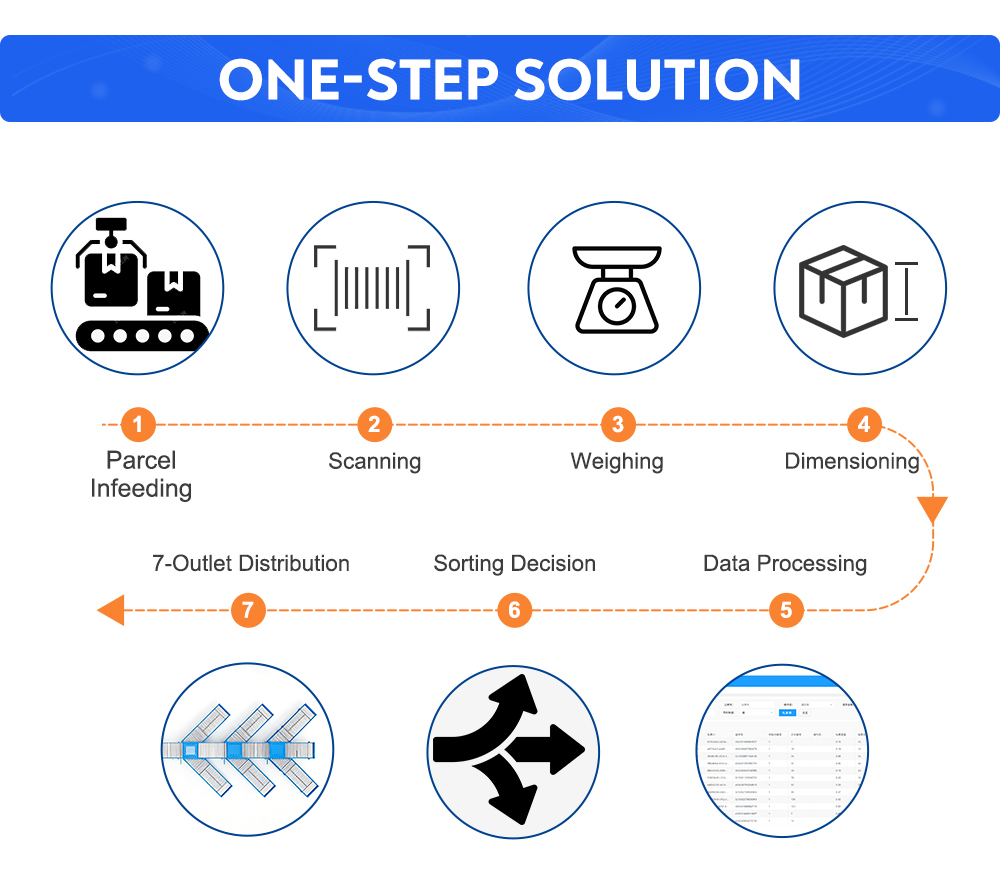

ONE-STEP DYNAMIC DWS & SORTING SOLUTION
STEP 01 — Feed
Parcels enter the conveyor system.
STEP 02 — Scan
The barcode or parcel ID is captured.
STEP 03 — Weigh
The parcel weight is collected dynamically.
STEP 04 — Measure
Length, width and height information is captured.
STEP 05 — Process
The system associates parcel information and determines the sorting destination.
STEP 06 — Sort
The wheel sorter automatically diverts the parcel.
STEP 07 — Discharge
The parcel enters the assigned destination lane.
Why Integrate DWS with Sorting?
A standalone DWS system can collect parcel information, while a standalone sorter can distribute parcels to different destinations. Integrating the two functions creates a more complete automated parcel-processing workflow.
For logistics operations, this means that parcel identity, weight, dimensions and sorting destination can be processed within the same material flow.
This configuration is especially useful when the customer needs to reduce manual measurement, avoid repeated parcel handling and connect parcel data directly with automated sorting decisions.
FAQ
The system can integrate barcode identification, dynamic weighing, dimension measurement, conveyor transportation and automated wheel sorting.
Yes. The weighing section is designed to collect parcel weight while the parcel is moving through the DWS line.
Yes. The DWS section can capture parcel length, width and height during conveyor operation, subject to the selected measurement technology and package characteristics.
The DWS collects parcel information first, and the control system uses the identification and configured sorting rules to determine when and where the wheel sorter should divert the parcel.
Yes. Barcode scanners can be integrated to associate parcel identification with weight, dimensions and sorting information.
Yes. The system can be integrated with WCS and WMS according to the customer's software architecture and interface requirements.
The system is generally suitable for cartons, boxes, e-commerce parcels, express packages, totes and other products with suitable conveying and sorting characteristics. Irregular or unstable products should be evaluated before final selection.
Yes. Sorting directions, sorting points and destination layouts can be configured according to the project requirements.
In many projects, the system can be designed as part of an existing conveyor line. Compatibility needs to be confirmed based on conveyor dimensions, product characteristics and control architecture.
Key information includes parcel size, weight, shape, bottom condition, required throughput, package spacing, barcode type, number of destinations and available installation space.
Yes. The integrated system is particularly suitable for e-commerce operations that need parcel data collection and automated downstream distribution.
Yes. It can be configured for express and parcel distribution applications where packages need to be measured, identified and automatically routed.
Yes. YJ-INTL can customize the DWS configuration, conveyor layout, wheel sorting section, scanning system, control architecture and WCS/WMS interfaces according to project requirements.
