Large Steerable Wheel Sorter
Large Steerable Wheel Sorter for Automated Parcel & Carton Sorting
The Large Steerable Wheel Sorter is designed for automated conveying and directional sorting of cartons, parcels, totes and other unit loads in logistics and material handling systems. Its steerable wheel modules change the conveying direction of each item to achieve controlled left, right or multi-directional diversion without requiring a separate push mechanism.
With modular construction, configurable wheel layouts and flexible control integration, the system can be adapted to different conveyor widths, sorting layouts and throughput requirements. It is particularly suitable for distribution centers, e-commerce fulfillment, express logistics and automated warehouse applications handling medium to large parcels.
- Large-Parcel Handling
- Precise Directional Sorting
- Modular Wheel Structure
- Flexible Sorting Layout
- Low-Maintenance Design
- Easy System Integration
Product Specification
| Parameter | Specification |
|---|---|
| Product Type | Large Steerable Wheel Sorter |
| Sorting Method | Directional Wheel Diversion |
| Application | Parcel, Carton & Tote Sorting |
| Sorting Direction | Left / Right / Multi-Directional |
| Structure | Modular Wheel Sorting Design |
| Conveyor Width | Customized |
| Wheel Configuration | Customized |
| Load Capacity | Customized According to Application |
| Parcel Size | Customized |
| Conveyor Speed | Project Dependent |
| Sorting Destinations | Customized |
| Drive System | Electric Drive |
| Control System | PLC-Based Control |
| Integration | Scanner / DWS / WCS / WMS |
| Installation | Inline Conveyor Integration |
| Maintenance | Modular Component Replacement |
Details
Product Details

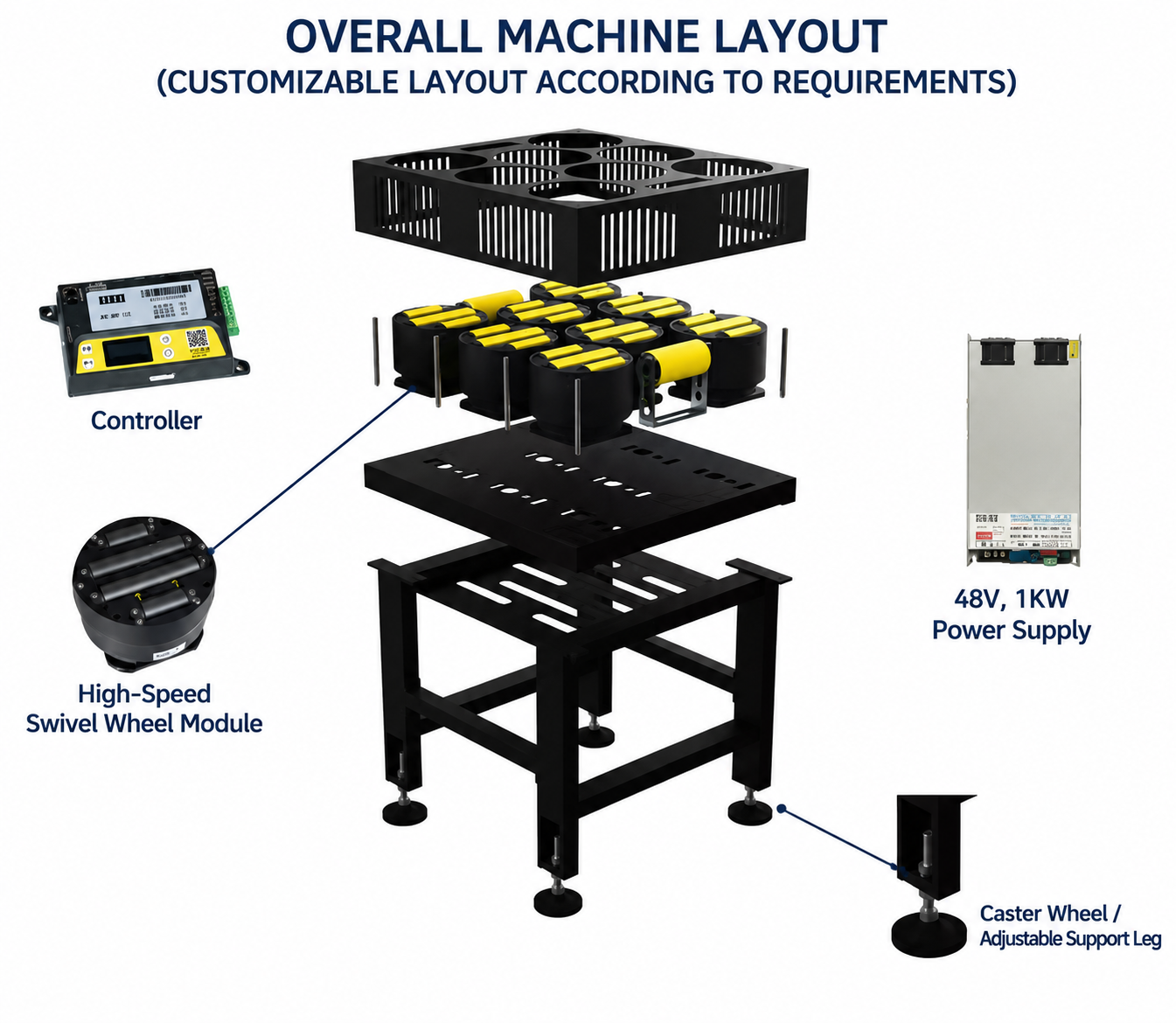

Large-Scale Steerable Wheel-Based Sorting Module
The wheel-based sorting module serves as the core functional unit of the system. Multiple modules are arranged along the conveying surface; they not only support the parcels but also enable controlled, directional movement.
The modular design allows for flexible adjustment of the wheel assembly configuration based on parcel dimensions, conveyor width, and system layout.

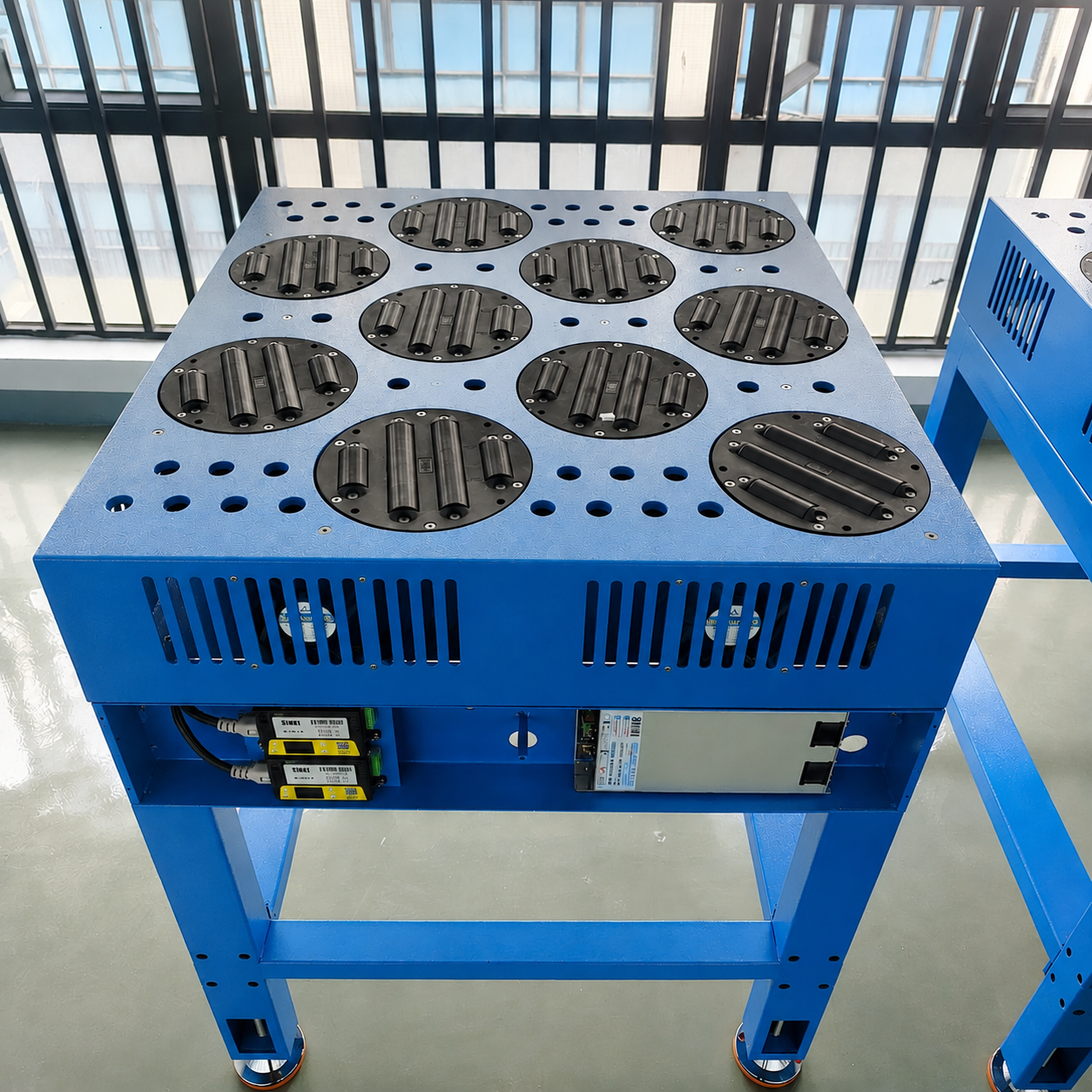

High-Profile Vertical Configuration
The high-profile vertical configuration is designed for specific installation scenarios, addressing unique requirements regarding conveyor height or system integration. This configuration can be adapted to the overall conveyor structure and the downstream sorting layout.
Key Features:
Vertical structural configuration
Compact equipment footprint
Modular wheel assembly arrangement
Adaptable to customized conveyor heights
Easy integration into automated production lines
Heavy-Duty Version
Designed for applications involving heavier cartons and unit loads, the heavy-duty wheel module configuration offers a more robust mechanical structure and enhanced load-bearing capacity.
The appropriate configuration can be selected based on actual parcel weight and dimensions, conveyor width, and operating conditions.
Important Note: Final load-bearing capacity should be verified based on the actual system configuration and engineering design, rather than relying solely on general maximum rated values.
Product Advantages
01. Stable Handling of Large and Heavy Parcels
Unlike sorting solutions designed primarily for lightweight small parcels, the large wheel sorting configuration is engineered around stable handling of cartons, totes and larger unit loads.
The wheel arrangement provides multiple contact points beneath the conveyed item, helping maintain stable movement while the sorting direction changes.
Suitable for:
- Cartons
- E-commerce packages
- Plastic totes
- Distribution containers
- Flat-bottom parcels
- Medium and large unit loads
02. Precise Lateral Diversion
The key function of the system is controlled directional diversion.
When a parcel reaches the assigned sorting position, the wheel modules change their orientation and generate a lateral conveying force. The parcel is then transferred toward the designated chute, conveyor or processing lane.
This design allows the sorting system to achieve repeatable directional movement without relying on manual intervention.
03. Modular Wheel Configuration
The sorting surface is constructed from modular wheel units, allowing the system to be configured according to the actual conveying width and load requirements.
Modular construction also makes individual components easier to inspect, replace and service.
Configuration benefits:
- Flexible conveyor width
- Replaceable wheel modules
- Easy maintenance access
- Configurable sorting direction
- Suitable for customized conveyor layouts
04. Compact Sorting Structure
The wheel sorting mechanism is integrated directly into the conveying line, helping reduce the additional space required for lateral diversion equipment.
This makes the system suitable for facilities where floor space and conveyor layout efficiency are important considerations.
05. High Throughput for Continuous Operations
The system is designed for continuous parcel conveying and automated sorting rather than intermittent manual handling.
When combined with upstream scanning and downstream destination management, the wheel sorter can become part of a complete automated sorting line.
Typical system architecture can include:
Induction → Barcode Scanning → Weighing → Conveying → Wheel Sorting → Destination Chutes
06. Flexible Integration with Automation Systems
The sorter can be integrated with the control architecture of an automated logistics line.
Typical integration points include:
- Barcode scanner
- Dimensioning system
- Dynamic weighing
- PLC
- WCS
- WMS
- Conveyor control system
- Destination management system
This makes the product suitable not only as an individual conveyor component, but also as part of a complete automated parcel sorting solution.
 |  |
|---|
Product Features
Compact Mechanical Structure
The wheel sorting mechanism is integrated into the conveying surface to maintain a relatively compact equipment layout.
Modular Wheel Arrangement
Wheel units can be configured according to the required conveying width and sorting application.
Stable Parcel Transfer
Multiple wheel contact points help maintain stable parcel movement during directional diversion.
Flexible Sorting Directions
The wheel orientation can be controlled to achieve different lateral transfer directions.
Heavy-Load Configuration
A dedicated configuration can be designed for applications requiring higher load-bearing capability.
Low Power Design
The wheel module can be engineered around energy-efficient operation to reduce unnecessary power consumption.
Easy Maintenance
Modular components provide convenient access for inspection, replacement and routine maintenance.
 |  |
|---|
Why Choose a Large Steerable Wheel Sorter?
The right sorting technology depends on parcel characteristics, throughput, available space and required sorting directions.
A large steerable wheel sorter is particularly suitable when the application requires stable handling of larger unit loads together with controlled lateral diversion.
Compared with manual sorting, the automated wheel sorting system can:
- Reduce repetitive manual sorting work
- Improve destination consistency
- Maintain continuous material flow
- Support multiple sorting destinations
- Improve utilization of conveyor space
- Connect with automated identification systems
- Scale with the overall logistics automation system
For projects with mixed parcel sizes, complex conveyor layouts or changing destination requirements, the modular wheel configuration also provides greater flexibility during system design.
FAQ
When a parcel reaches the assigned sorting position, the wheel modules change their conveying direction and generate lateral force, transferring the parcel from the main conveying path toward the designated sorting lane, chute or conveyor.
Yes. A heavy-load configuration can be designed for applications handling larger or heavier cartons. The final load capacity depends on parcel weight, dimensions, wheel arrangement, conveyor structure and operating conditions.
Yes. The wheel modules can be configured for left or right diversion, while multi-directional sorting layouts can be developed according to the number of destinations and conveyor arrangement.
Yes. The conveyor width, wheel configuration, load capacity, sorting direction, conveyor elevation, destination layout and control interfaces can be customized according to the application.
Yes. The wheel sorter can be integrated with a Dynamic DWS System for automated dimensioning, weighing and barcode scanning. Parcel information can then be used by the control system to determine the required sorting destination.
Yes. The system can be integrated with PLC-based controls, WCS and WMS according to the overall automation architecture. WCS can coordinate equipment operation and parcel routing, while WMS can provide order or destination information through the required interface.
A large steerable wheel sorter uses directional wheel modules as part of the conveying and sorting structure, while a pop-up wheel sorter generally uses lifting wheel assemblies to divert items from the main conveyor. The appropriate solution depends on parcel characteristics, load requirements, throughput and the available conveyor layout.
Key project information includes parcel dimensions, parcel weight, required throughput, conveyor width, number of sorting destinations, sorting direction, conveyor elevation, available installation space and required integration with scanners, DWS, WCS or WMS.
The modular wheel structure allows individual components to be inspected and replaced when required. Routine maintenance should focus on wheel assemblies, drive components, sensors, electrical connections and other wear components according to the operating environment and maintenance schedule.
Large steerable wheel sorters can be used in e-commerce fulfillment centers, express logistics hubs, distribution centers, automated warehouses and manufacturing logistics systems where cartons, parcels or totes need to be continuously conveyed and automatically diverted.
