Straight Flexible Roller Conveyor
Straight Flexible Roller Conveyor for Carton Transfer
The Straight Flexible Roller Conveyor is the linear configuration of the flexible roller conveyor range, designed for direct material transfer between two working points.
Its straight conveying path makes it suitable for loading, unloading, warehouse transfer and temporary material-handling operations where products need to move in a consistent forward direction. The mobile frame and flexible structure allow the conveyor to be repositioned according to changing work locations.
Compared with curved configurations, the straight type focuses on direct transfer distance, simple deployment and efficient connection between two points.
- Straight-Line Material Flow
- Flexible Conveyor Deployment
- Mobile Caster Design
- Adjustable Working Height
- Extendable Conveyor Structure
- Carton & Package Handling
- Easy Loading & Unloading
- Quick Warehouse Reconfiguration
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Straight Flexible Roller Conveyor |
| Conveyor Configuration | Straight Type |
| Conveyor Structure | Flexible Roller Conveyor |
| Conveyor Width | 500 / 600 / 700 / 800 mm |
| Conveyor Height | 600–4000 mm |
| Conveyor Speed | Adjustable |
| Mobility | Mobile |
| Caster Wheels | 4 Caster Wheels with Brakes |
| Drive | Motorized Configuration |
| Conveyor Length | Customized |
| Roller Arrangement | Customized |
| Application | Loading / Unloading / Material Transfer |
| Installation | Mobile / Flexible Deployment |
Details
Straight-Line Conveyor for Direct Material Transfer
The Straight Flexible Roller Conveyor is designed for one of the simplest material-handling requirements: move cartons from Point A to Point B without changing direction.
The straight configuration is useful when the warehouse needs a flexible connection between a fixed conveyor and another working area, loading dock or temporary staging location.
Rather than installing permanent conveyor infrastructure for every operating position, the mobile straight conveyor can be moved and positioned where material transfer is required.
Product Advantages
01. Direct Straight-Line Conveying
The straight configuration provides a simple and predictable material path.
This makes it suitable for:
- Warehouse transfer
- Truck loading
- Truck unloading
- Staging operations
- Packing area transfer
There are no curved sections in the main conveying path, making the overall layout easier to understand and arrange.
02. Flexible Working Distance
The flexible structure allows the conveyor length and working position to be adjusted according to the application.
This is useful when the distance between the warehouse conveyor and the working point changes between different operations.
03. Easy Mobile Deployment
The conveyor is mounted on caster wheels, allowing operators to move the unit between different working areas.
The braking mechanism can be used to secure the conveyor once it is positioned.
This makes the straight type particularly suitable for warehouses with multiple loading bays or temporary processing areas.
04. Adjustable Height
The conveyor can be configured with an adjustable working height.
This helps accommodate different:
- Truck bed heights
- Dock elevations
- Conveyor interfaces
- Material transfer points
05. Efficient Use of Straight Space
The straight layout makes efficient use of long, narrow warehouse areas.
It can be positioned along:
- Loading docks
- Warehouse aisles
- Production lines
- Packing areas
- Dispatch lanes
06. Simple Connection with Existing Conveyors
The straight conveyor can function as a flexible bridge between two fixed conveyor sections.
For example:
Fixed Conveyor → Straight Flexible Conveyor → Loading Area
Truck → Straight Flexible Conveyor → Warehouse Conveyor
 |  |
|---|
When to Choose the Straight Type？

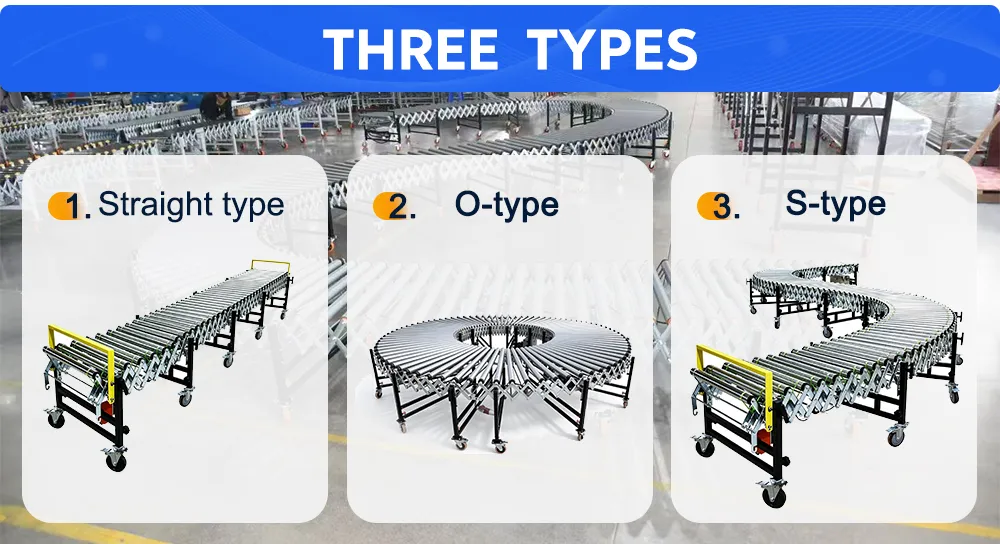

Straight Type vs Other Configurations
The Straight Type is the preferred configuration when the material flow is primarily linear.
Choose Straight Type When:
- Two points need to be connected directly
- No change of conveying direction is required
- Loading and unloading are the primary applications
- The available working space is relatively linear
- Simplicity of layout is important
Consider O-Type When:
The material needs to circulate around a central area or return to the starting direction.
Consider S-Type When:
The conveyor needs to change direction while connecting two non-linear working areas.
FAQ
A Straight Flexible Roller Conveyor is a mobile roller conveyor with a linear conveying configuration designed for direct carton and package transfer between two working areas.
Its main advantage is a simple and direct material path, making it suitable for warehouses that need flexible transfer between two fixed or temporary points.
Typical applications include truck loading and unloading, warehouse transfer, packing, staging, dispatch and manufacturing logistics.
Yes. The conveyor can be configured with an adjustable working height to accommodate different loading and connection elevations.
Yes. Caster wheels allow the conveyor to be repositioned between different work areas when required.
The configuration shown supports conveyor widths of 500, 600, 700 and 800 mm.
Yes. The straight type is particularly suitable for creating a direct conveying path between a warehouse and a truck or loading area.
Yes. It can be used to transfer cartons and suitable packaged goods between warehouse areas.
Yes. The conveyor can be configured to connect with fixed conveyors and other material-handling equipment.
Yes. Conveyor length, width, height, roller configuration and drive arrangement can be customized according to the project.
