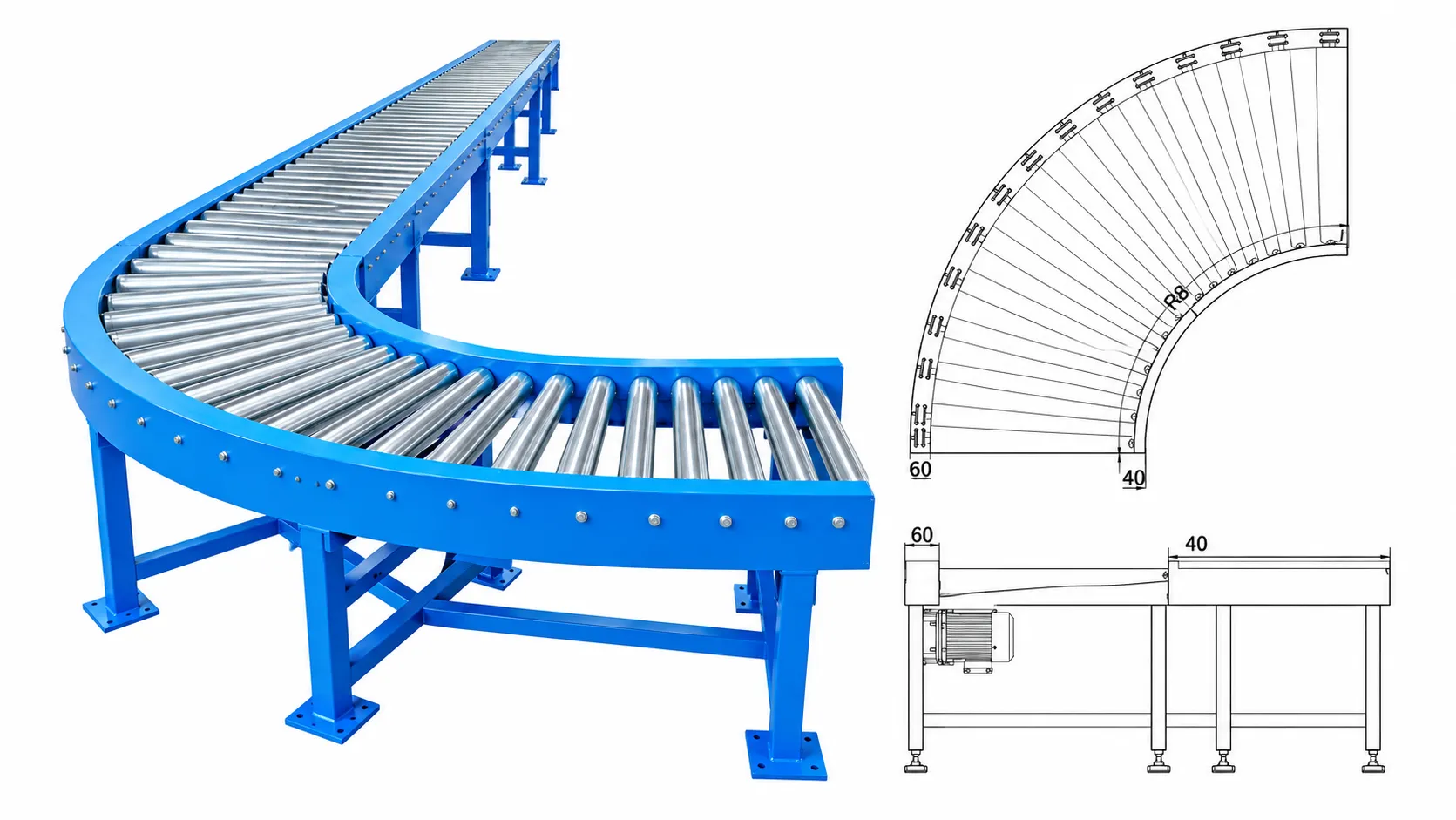

Roller Turn Machine
The roller turner, also known as a tumer roller conveyor, faclitates seamless integration with filtration systems; it can be combinedwith multiple roller conveyors, other conveying equipment, or specialized machinery to fom complex logistics conveying systems and distribution/convergence systems, enabling the fulfllment of various process requirements and offering extensive applications.
- Multi-Chain Driven Roller System
- 250 mm Minimum Inner Radius
- 30°–180° Turning Options
- Up to 100 kg Load Capacity
- ≤35 m/min Conveying Speed
- Bidirectional Conveying
- ≤40 dB Reference Noise
Technical Specifications
| Specification | Details | Specification | Details |
|---|---|---|---|
| Minimum Inner Radius | 250 mm | Outer Frame Dimension | Outer: 60 mm / Inner: 40 mm |
| Minimum Installation Height | 450 mm | Conveying Speed | ≤35 m/min |
| Drive Type | Chain / Multi-chain belt | Noise | ≤40 dB |
| Conveying Direction | Bidirectional (Forward / Reverse) | Voltage | 220 V / 380 V |
| Drive Method | Smart drive card + Three-phase VFD | Maximum Load | ≤100 kg, customizable |
| Standard Conveyor Width | 200 / 300 / 400 / 500 / 600 / 800 / 900 / 1000 / 1200 mm | Customized Width | Available |
| Turning Angle | 30° / 45° / 60° / 90° / 120° / 180° | Customized Angle | 30°–180° |
| Working Temperature | -10°C to 45°C | Operating Condition | No condensation |
| Electrical Brands | Chint / Others | Frequency Converter | Kewo / Delta / Siemens, customizable |
| Roller / Expansion Cylinder Finish | Stainless steel smooth / Galvanized smooth / Color finish / Textured finish | Tube Wall Thickness | 2.0–3.0 mm |
| Product Type | Chain-driven roller curve conveyor | Load Capacity | ≤100 kg dynamic, customizable |
Details
Product Overview
The Roller Turn Machine is a powered roller turning system designed to change material flow direction while maintaining continuous product movement. It combines a curved roller conveying surface with a multi-chain drive mechanism, allowing the rollers to transfer power through the turning section.
With a minimum inner radius of 250 mm, turning angles from 30° to 180°, and a reference load capacity of up to 100 kg, the conveyor is designed for applications where products require controlled directional transfer with a relatively high load requirement.
The system supports bidirectional conveying, variable-speed control and multiple roller-width configurations. Its steel frame and roller construction are intended for demanding logistics and material-handling environments where smooth conveying, structural strength and low noise are important.
Product Structure
Powered Rollers for Directional Transfer,The Roller Turn Machine uses a series of rollers arranged along a curved conveying path. Instead of using a continuous belt as the conveying surface, products are supported directly by the roller bed. The rollers work together to move the load through the curve while changing its conveying direction. This gives the equipment a positive mechanical drive arrangement suitable for continuous powered conveying.
Product Characteristics
The source technical sheet describes the Roller Turn Machine with several key characteristics.
Smooth Roller Operation
The roller conveying surface is designed to maintain smooth product movement through the curved section.
Low Material Impact
The roller configuration is intended to reduce unnecessary impact on transported products during directional transfer.
High Structural Strength
The steel roller/frame construction is positioned for demanding material-handling applications.
Heavy-Duty Capability
With a stated load capacity of up to 100 kg, the machine can be considered for heavier unit-load applications.
Corrosion-Resistant Options
Different roller/frame surface finishes are available according to the technical configuration.
Low-Noise Design
The supplied specification identifies ≤40 dB as the reference noise level.
Applications
Logistics & Distribution: The Roller Turn Machine can be installed at directional changes within logistics conveyor networks.
Manufacturing: The powered roller curve can connect different production stations while maintaining controlled material movement.
Heavy Material Handling: The ≤100 kg reference load makes this configuration suitable for applications where products are heavier than typical small parcel loads.
FAQ
A roller turn machine is a powered curved roller conveyor designed to change the direction of material flow while continuously conveying products through the turning section.
The conveyor uses a chain and multi-chain belt drive arrangement to transfer power to the roller section. The powered rollers move products along the curved conveying path while maintaining continuous directional transfer.
The specified minimum inner radius is 250 mm. The final radius should be selected according to product dimensions, conveyor width, turning angle and available installation space.
The technical specification lists a maximum load of up to 100 kg, with customization available. The actual load capacity should be confirmed according to product dimensions, load distribution and conveyor configuration.
The specified conveying speed is up to 35 m/min. The actual operating speed can be selected according to product characteristics and the requirements of the connected conveyor line.
Yes. The technical specification identifies the conveying direction as bidirectional, supporting forward and reverse material movement.
Available turning angles include 30°, 45°, 60°, 90°, 120° and 180°. Customized turning angles can be designed within the stated 30°–180° range.
Standard conveyor widths listed in the technical specification are 200, 300, 400, 500, 600, 800, 900, 1000 and 1200 mm. Customized widths are available.
Yes. The conveyor width can be customized according to product dimensions, required conveying capacity and the overall conveyor layout.
The supplied specification identifies a chain / multi-chain belt drive system, with a smart drive card and three-phase variable-frequency drive used for speed control.
The minimum installation height specified in the technical sheet is 450 mm.
The conveyor is intended for material-handling applications where products can be safely supported on rollers. The supplied technical description positions it for heavy-duty, high-speed, corrosion-resistant and low-noise material handling, while noting that it is not suitable for very small packages.
